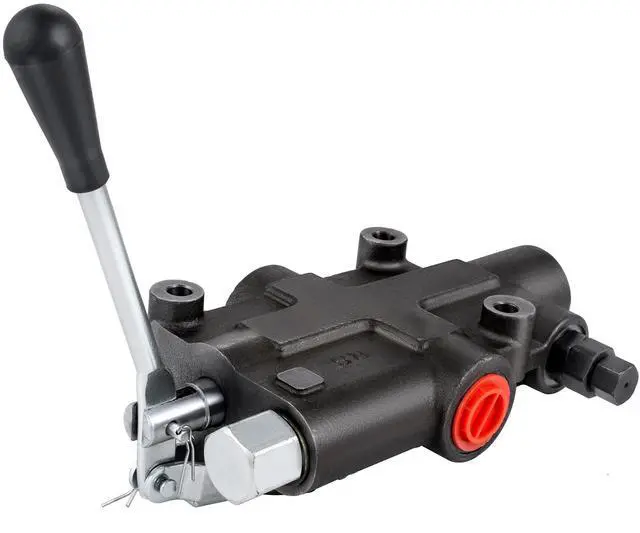

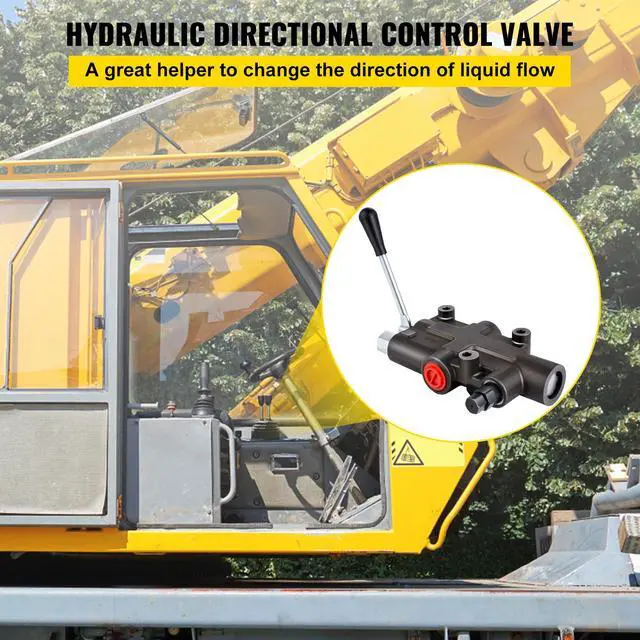

Hydraulic Directional Control Valve, 1 Spool Hydraulic Spool Valve, 21 GPM Hydraulic Loader Valve, 3625 PSI Directional Control Valve, Hydraulic Valves And Controls For Tractors Loaders Tanks

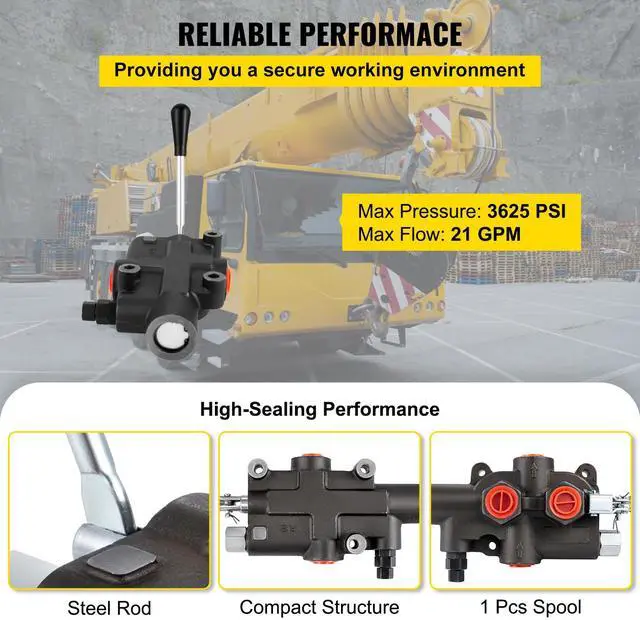

- Hydraulic Spool Valve: Equipped with 1 spool, 1/2" NPT A, B, N ports, and 3/4" NPT P, T ports. The maximum pressure of this hydraulic is 3625 PSI, and the maximum flow can reach 21 GPM. The opening and disconnection of hydraulic oil are controlled by connecting the valve to the oil line.

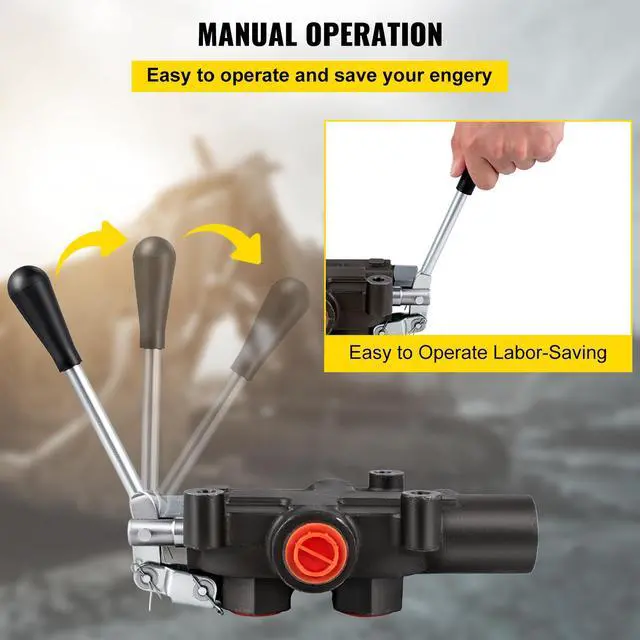

- Automatically Reset: The standard spool is spring-returned and can be reset to the neutral position. In addition, there is a spring at the bottom of the handle that makes the joystick easy to control.

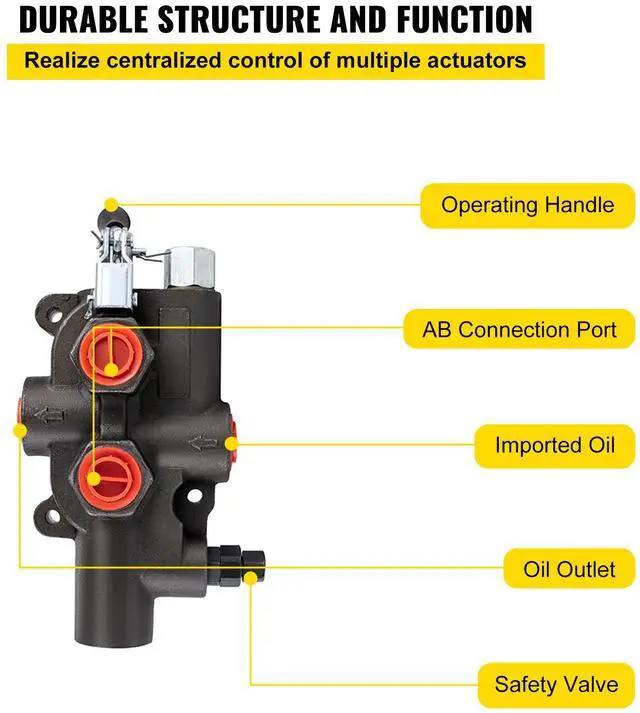

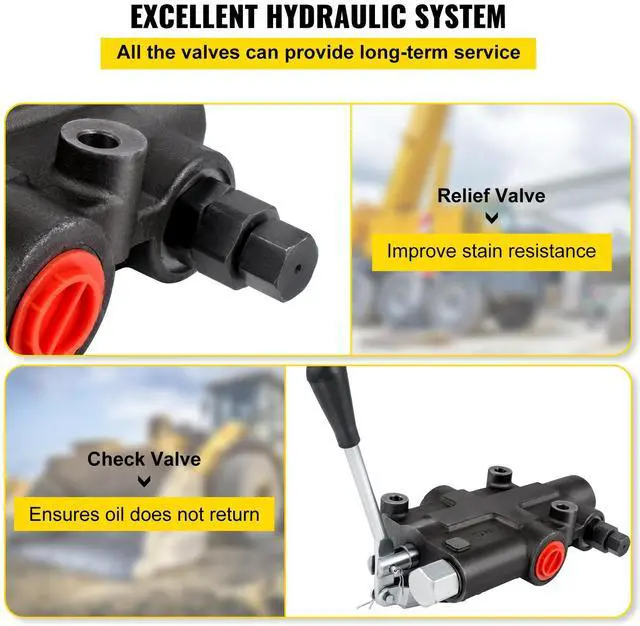

- Great Inner Valve: The check valve in the valve body ensures that the hydraulic oil does not return, and the overflow valve in the valve body can adjust the working pressure of the hydraulic system.
- Compact Structure: 1 spool hydraulic valve is made of aluminum and iron, and the solid structure can provide long-term service. The compact design allows it to install in narrow areas and maximizes its control capabilities
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

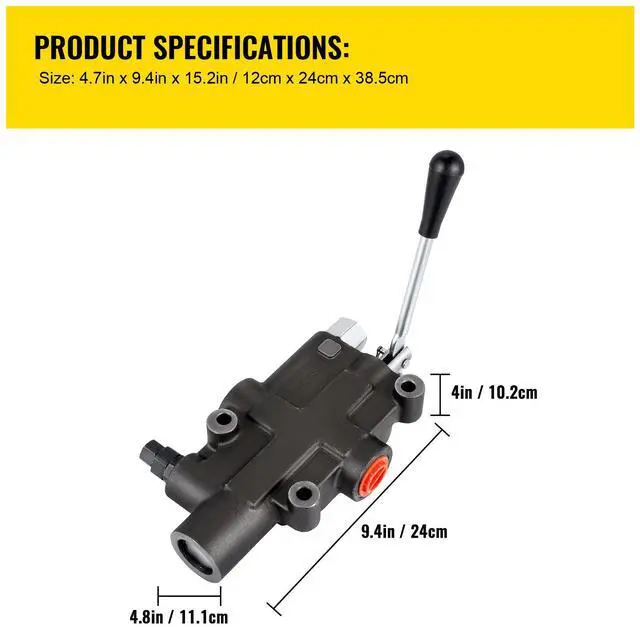

Specifications
Model: 121GPM3625
Max operating pressure: 3625 PSI
Flow Rating: 21gpm
Relief Valve: Adjustable
Center system: Open
Spool Count: 1-Spool
Valve Operation: Manual
A,
B,
N Ports: 1/2" NPT
P,
T Ports: 3/4" NPT
Package Content
1 x 1 Spool Hydraulic Directional Control Valve
