Hydraulic Cylinder 2\" Bore 36\" Stroke Hydraulic Ram Cylinder 3000psi Hydraulic Cylinders Welded Double Acting Cross Tube SAE6 Port Hydraulic Lifting Cylinder (2 X 36)
- RIGID WELDED CONSTRUCTION- Rigid welded construction, high tensile welded steel end mounts, threaded gland and top quality seal components allow cylinders to work in harsh conditions.

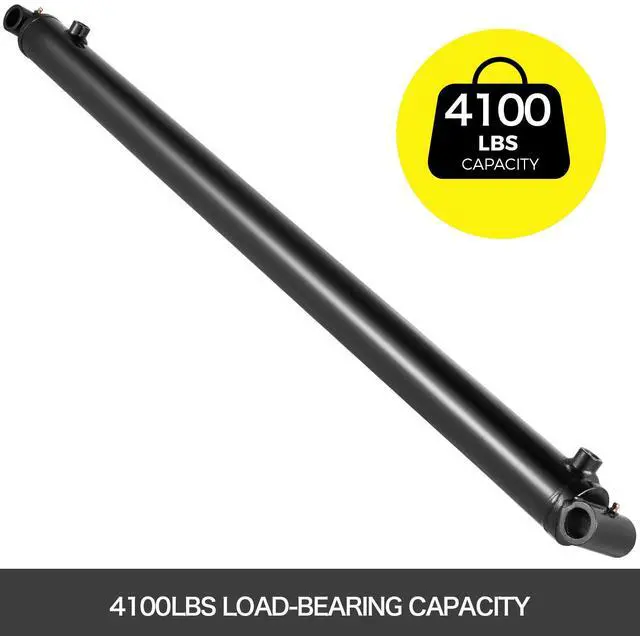

- MAX LOAD-BEARING CAPACITY- This hydraulic cylinder bore is 50mm/2inch, the longest Length is 2032mm/80inch, and the max load-bearing capacity is 4100 LBS.
- STABLE SEALING PERFORMANCE- All cylinders are fully and easily maintainable and repairable. Each cylinder is pressure tested at 150% of its working pressure before packing and shipping.
- CONVENIENT TO ASSEMBLE- All the components of this hydraulic cylinder are fully tested, well-designed, very sturdy and compact, easily to install and to disassemble.

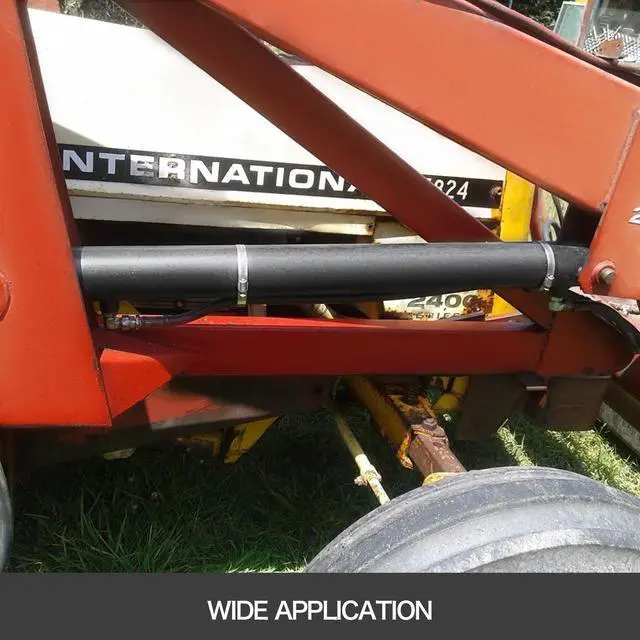

- WIDE APPLICATION- The product created for use in various types of mobile equipment such as waste, recycling, construction, transportation, agriculture, material handling, etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

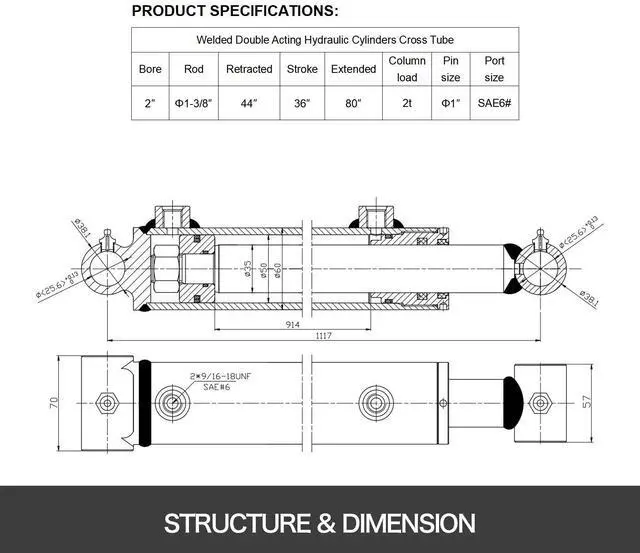

Specifications
Cylinder Bore: 50mm/2"
Stroke: 914mm/36"
Pin: 26mm/ 1.0"
Diameter Of Piston Rod: 35mm/ 1.3"
Minimum Length: 1117mm/ 43.9"
Max Length: 2032mm/ 80.0"
Max Load-Bearing Capacity: 4100 LBS
Port Size: SAE6
Work Pressure: 3500PSI
Weight: 33LBS/15kg
Packing Size: 1160mm*85mm*85mm/ 45.6" x 3.3" x 3.3"

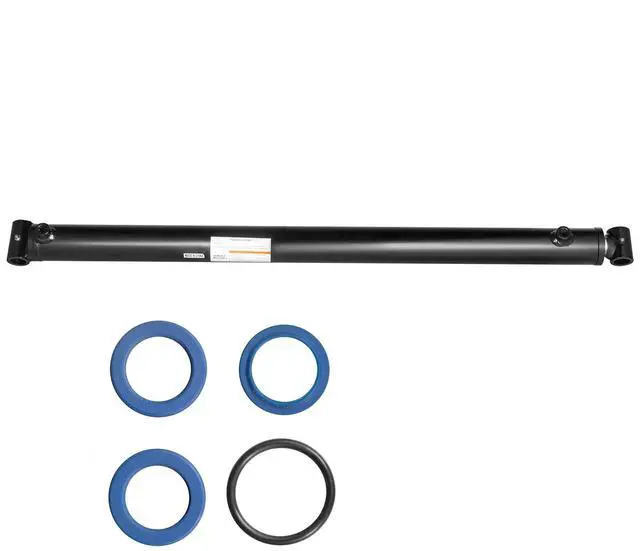

Package Content
1 x Hydraulic Cylinder
1 x Seal Ring Set
