3 Quart Hydraulic Power Unit, Double Acting Dump Trailer Pump, 3200 PSI Max Relief Pressure & 0.91 GPM Flow Rate, DC 12V Hydraulic Pump with Metal Reservoir for Dump Trailer Car Lifting

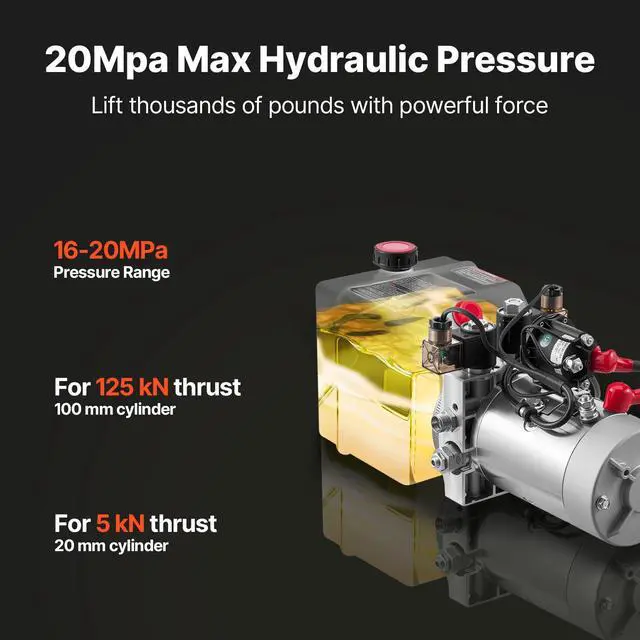

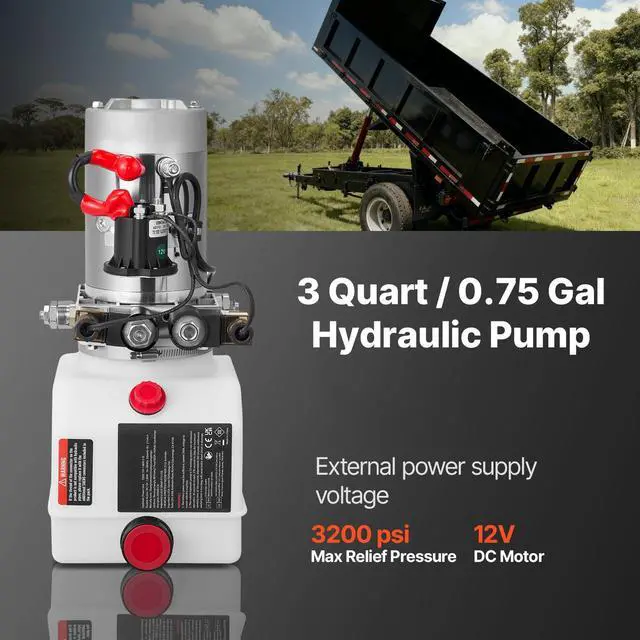

- Power You Can Feel: This DC 12V, 1.6 kW hydraulic power unit moves 0.91 GPM with a 3-quart tank, 1620 MPa working pressure, and up to 3,200 psi, so heavy-lift gear runs with steady, confident force

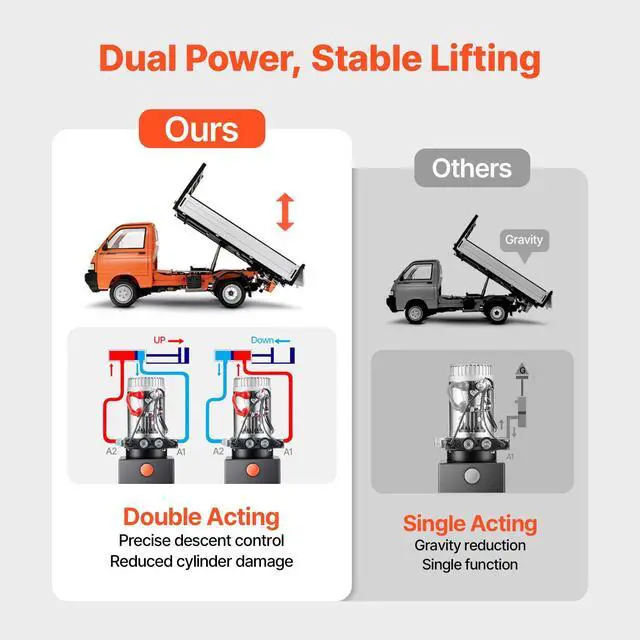

- Double-Acting Precision: This hydraulic pump controls both raise and lower for pinpoint moves while using less hydraulic oil. The built-in relief valve auto-vents over-pressure, so failures drop and security steps up

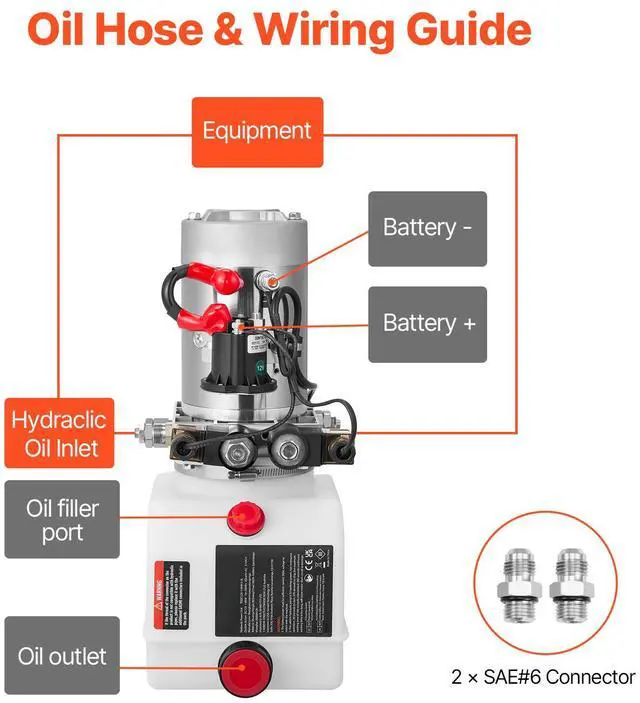

- Easy to Install: This dump trailer pump arrives pre-assembled. You add hydraulic oil, connect power leads and hoses, and go
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
Item Model Number: TDDC12V- 1.6KW -S-3L
Voltage: DC12V
Function: Dual Acting
Reservoir Capacity: 3 Quart/ 0.75 Gal
Power: 1.6 kW

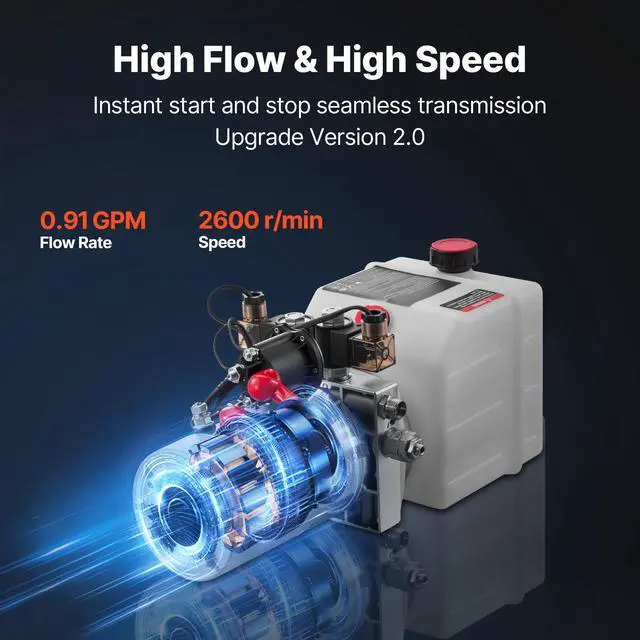

Flow Rate: 0.91 GPM( 3.4 L/min)
Speed: 2600 r/min
Traffic: 2.1 mL/r
Net Weight: 24.7 lbs/ 11.2 kg (Include all accessories)

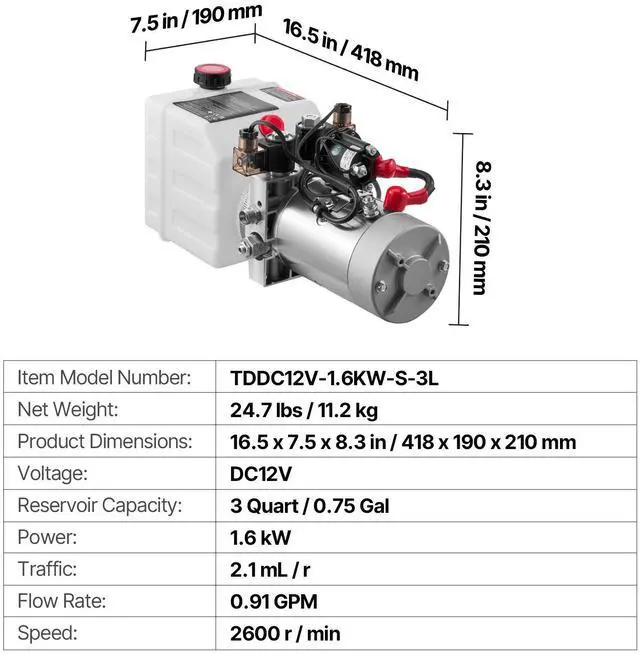

Product Dimensions: 16.5 x 7.5 x 8.3 in/418 x 190 x 210 mm
Package Content

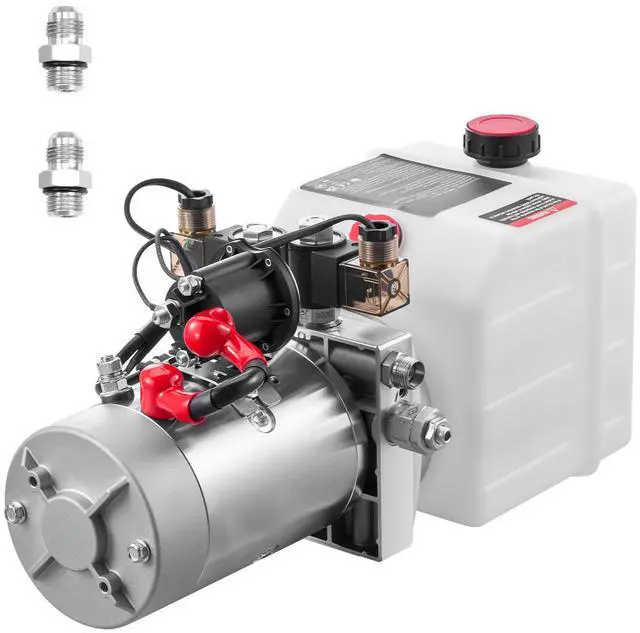

1 x Hydraulic Power Unit
2 x SAE #6 Fittings (U. S. Standard)
1 x English User Manual
