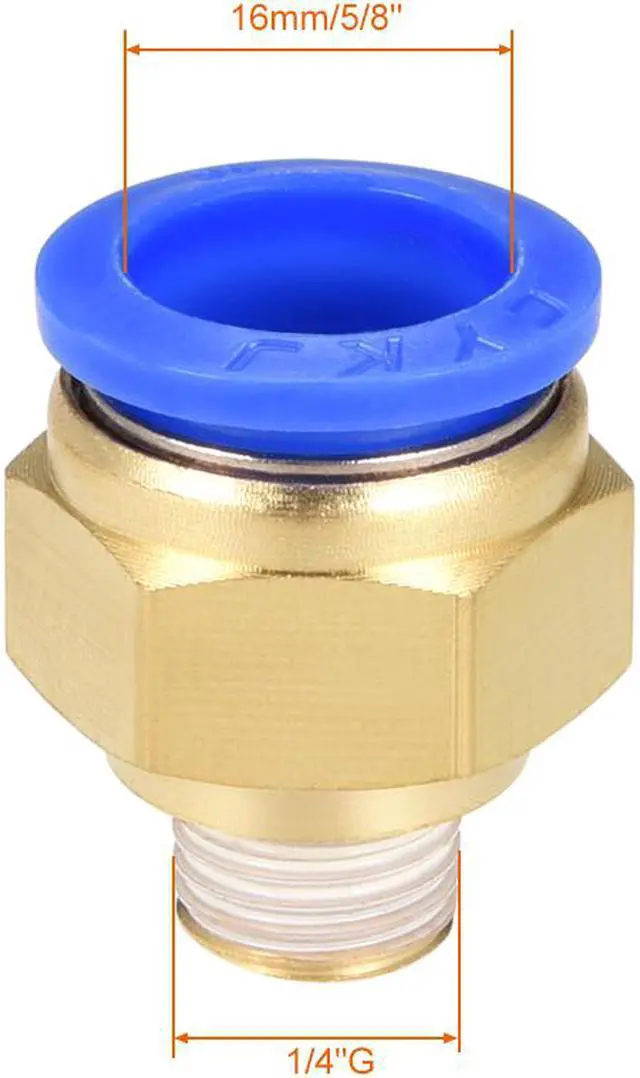

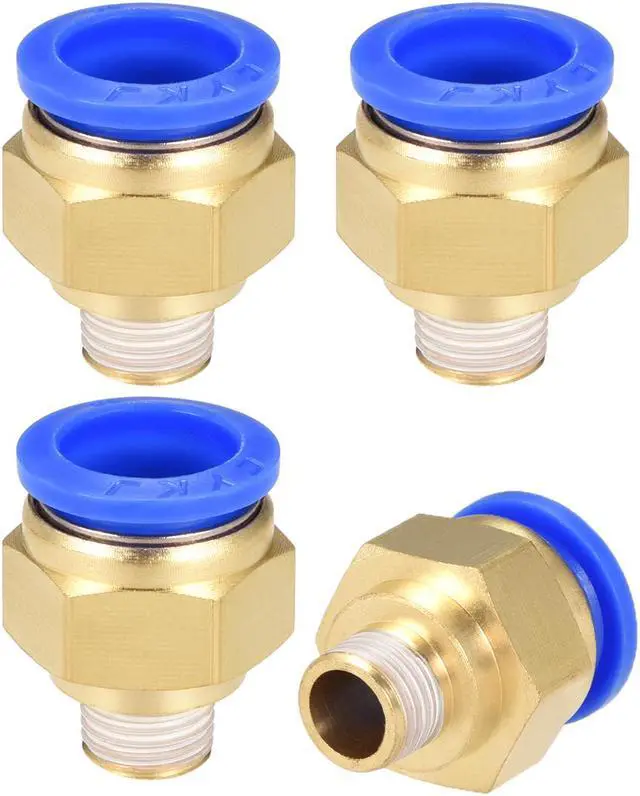

4 Pcs 1/4" G Male Straight Thread 16mm Push In Joint Pneumatic Connector Fitting Quick Fittings

Product Features:

Product Name : Quick Fittings

Model : PC16-02

Net Weight : 112g

Color : Gold Tone,Blue

Material : Plastic,Brass

Thread Tube Size : 1/4" G

Thread Tube Diameter : 12.75mm

Thread Tube Inner Diameter : 9mm / 0.35"

Tube Size (OD) : 16mm = 5/8"

Type: Male Straight Thread Connector

Thread Tube Inner Hole Type : Round Type

Operating Pressure : 0-9MPa

Guaranteed pressure resistance : 1.5MPa

Dimension : 32mm x 24mm / 1.26" x 0.94" (L x W )

KEY_TAB

Package Content:

4pcs x Quick Fittings

KEY_TAB

Description:

1.The quick fitting is designed for Polyurethane or Nylon tubing. Even after installation, the direction of the tube can be changed freely.

2.Push-to-connect tube connection on one end and male G threads on the other end.

3.A good release cap can withstand greater and stronger pressure without tripping.

4.Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.

5.Elliptical release ring help to connect tube easily by manual, no special tools required.

KEY_TAB

KEY_TAB

Mounted:

1.Cut the pipe flat, no slope

2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.

3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected.

4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.
