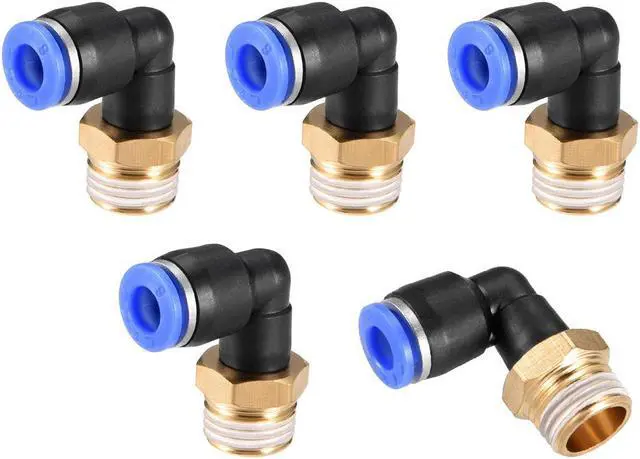

PL6-02 Pneumatic Push to Connect Fitting, Male Elbow - 15/64" Tube OD x 1/4" G Thread Tube Fitting Blue 5pcs

Product Features:

Product Name : Connect Fitting

Model : PL6-02

Net Weight : 52g

Color : Black,Blue

Material : Plastic,Metal

Male Thread Type : G Type

Operating Pressure : 0-1MPa

Guaranteed pressure resistance : 1.5MPa

Operating temperature-10 - 60 Degree Celsius

Type: 90 Deg Swivel Elbow Male Connector

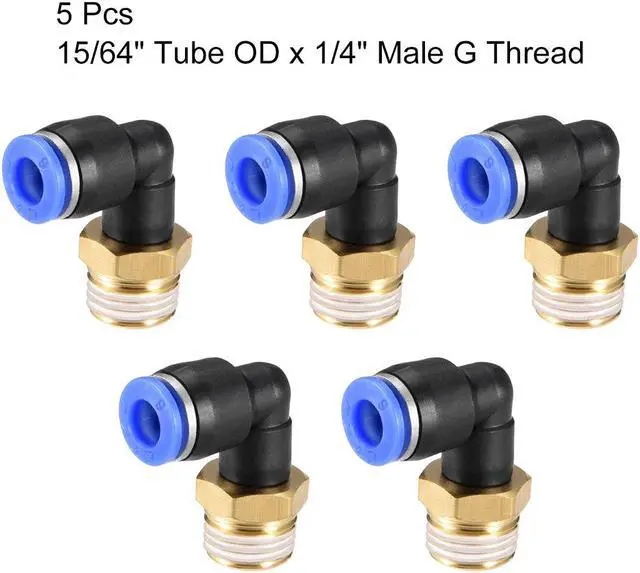

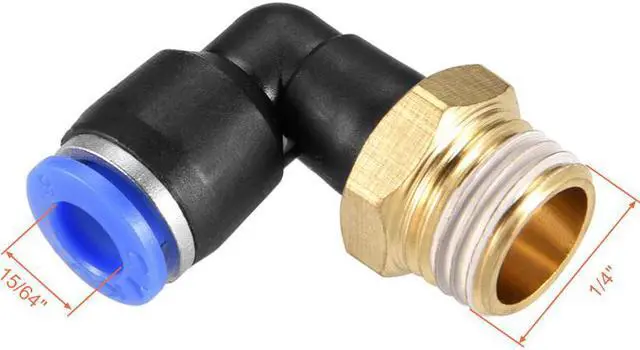

Tube and Thread Size : 15/64" Tube OD x 1/4" Male G Thread (6mm x 12.7mm)

Dimension : 30mm x 26mm x 15mm / 1.18-inch x 1.02-inch x 0.59-inch (L x W x H)

KEY_TAB

Package Content:

5pcs x Connect Fitting

KEY_TAB

Description:

1.Quick and simple installation,designed for using to connect with polyethylene, nylon and PU tubing.

2.Push-to-connect tube connection on one end and male G threads on the other end.

3.A good release cap can withstand greater and stronger pressure without tripping.

4.Have flexibility, abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.

5.Easy to install, insert the plastic tube, the cap can be rotated freely, but its rotation is only used when the angle is wrong when the joint is installed.

KEY_TAB

Mounted:

1.Cut the pipe flat, no slope

2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.

3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected.

4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.
