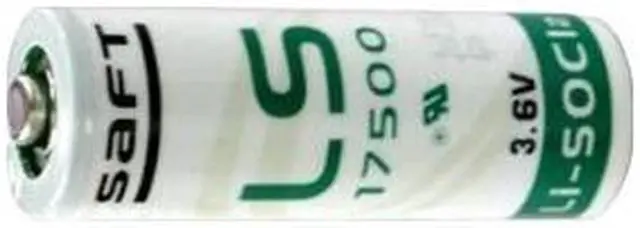

SAFT LS17500 (ER17500) 3.6 Volt A Lithium Battery (3600 mAh)

Specifications:
Voltage: 3.6V
Capacity: 3600mAh
Chemistry: Lithium Thionyl Chloride (Li-SOCI2)
Brand: Saft Concentric (“bobbin”) electrodes Hermetic glass-to-metal sealing. Non-flammable electrolyte. UL Approved --- BBCV2.
MH30127 Included Qty: 1 Electrical characteristics Nominal capacity 3.6A h (3600 mAh) Open circuit voltage (at +20C +68F) 3.66V Nominal voltage (at 1mA +20C +68F) 3.6V
Pulse capability: Typically up to 120 mA
Diameter (max): 17 mm ( 0.67 in)
Height (max): 50.9 mm (2 in)
Typical weight: 21.9 g ( 0.8 oz)
Key Features: High operating voltage, stable during most of the application lifetime Some of the highest nominal capacities on the market today Excellent reliability over extended operating life
Operating Temperature Range: -60°C/+85°C (-76°F/+185°F) Low self-discharge rate (less than 1% after 1 year of storage at + 20°C) Excellent resistance to humid environments Low magnetic signature Good resistance to passivation Non-flammable (and non-pressurized at ambient temperature) inorganic (but corrosive) electrolyte Less than 1% capacity loss during storage at ambient temperature before use ½ AA, AA and A cell models non-restricted to transport Up to 25 years of mass production experience Excellent safety records Compliant with IEC 86-4 safety standard and EN 50020 intrinsic safety standard Compliance with the European directive RoHS
Main applications: Radio communication and other military applications Alarms and security systems Memory Backup Beacons and emergency location transmitters high tech dive computers GPS Metering systems Bar-code scanners, Night vision equipment Sonobuoys LED lighting applications Others Lithium Thionyl Chloride has the highest energy density of any practical Lithium battery chemistry, three times greater than Alkaline (Zinc Manganese Dioxide) batteries. It also has the widest operating temperature range of -76F to + 185 F. Self discharge is low at less than 1% per annum at +68F, giving an effective shelf life of 10 years
Warning: This battery is not rechargeable. Do not try to recharge. The storage area should be clean, cool (not exceeding +30 Deg C ), dry and ventilated Please discharge the battery few minutes with 100mA, if the battery voltage is lower than your need or consult ABLE. Don't use different models of battery in series. Soldering the tab should be finished in few seconds. Do not use if the battery casing was mangled
