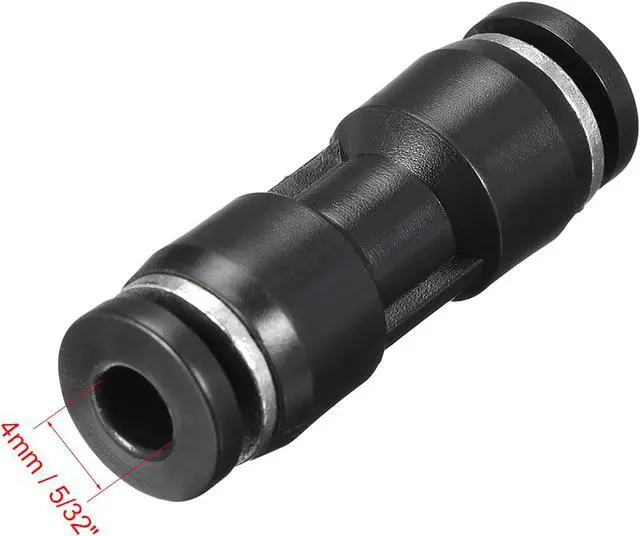

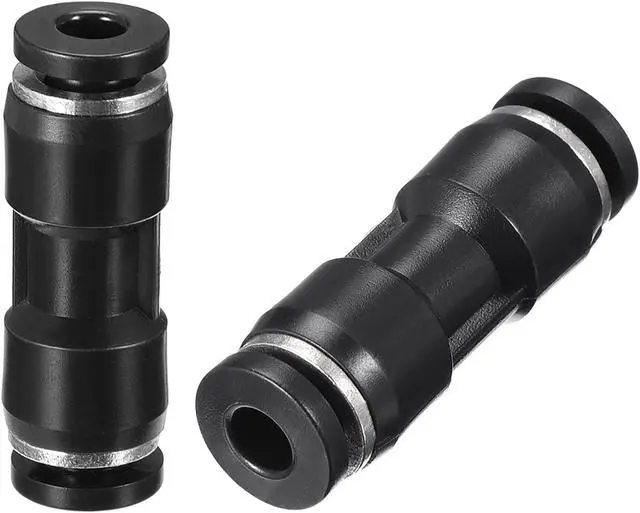

Push to Connect Fittings,4mm or 5/32" Straight OD Push Fit Lock Tube Fittings 4pcs

Product Features:

Product Name : Connect Fitting;

Model : PU4;

Color : Black;

Net Weight : 17g;

Material : Plastic;

Type: Straight Connector;

Two Tube Size : 4mm = 5/32"

Operating Pressure : 0-1MPa;

Operating temperature-10 - 60 Degree Celsius;

Dimension : 32mm x 11mm / 1.3-inch x 0.4-inch (L x D );

KEY_TAB

Package Content:

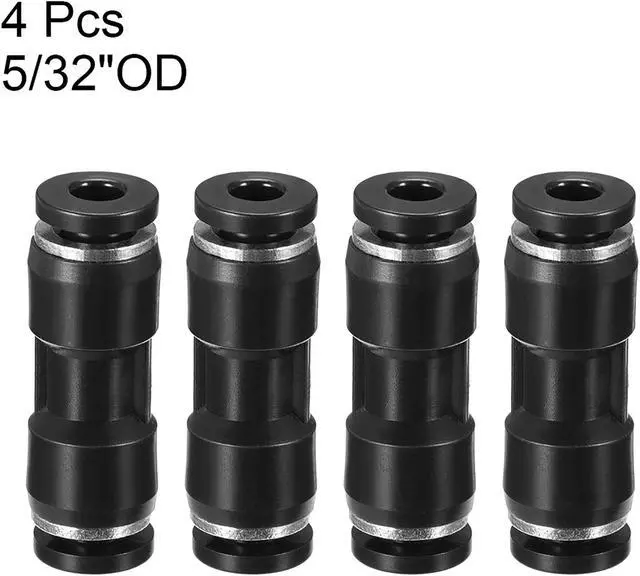

4pcs x Fitting

KEY_TAB

Description:

1.5/32" Push to Connect Fittings designed for using to connect with polyethylene, nylon and PU tubing.

KEY_TAB 2.Easy to install .This tube connector is available in various styles and models . Each model to serve its purpose. All models of push lock fittings are designed to suit your pneumatic piping needs perfectly

3.Have flexibility, abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.

4.You can easily change the tubing connector direction even after installation. The release ring of conforms with the ellipse design to ensure that the disconnecting of connect push is in good shape.

5.All push to lock contains internal hexagonal holes this enhances the installation process in a narrow space push connect fittings Can be dismantled and assembled easily These Push In Fittings Meet The Pressures And Temperatures Mentioned

KEY_TAB

Mounted:

1.Cut the pipe flat, no slope

2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.

3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected.

4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.
