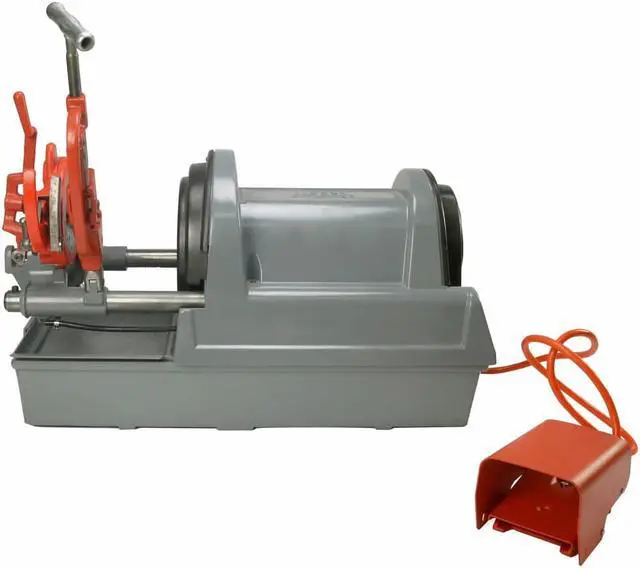

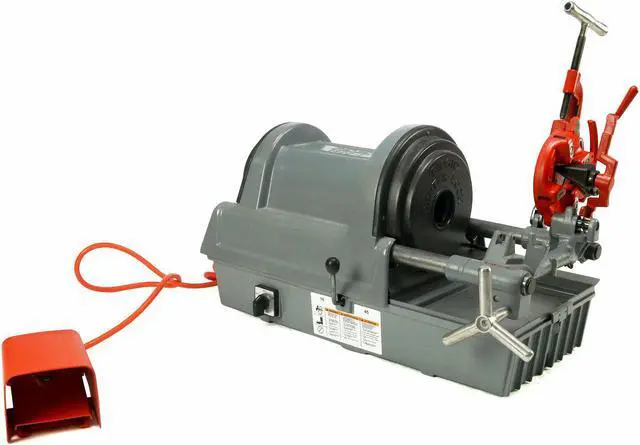

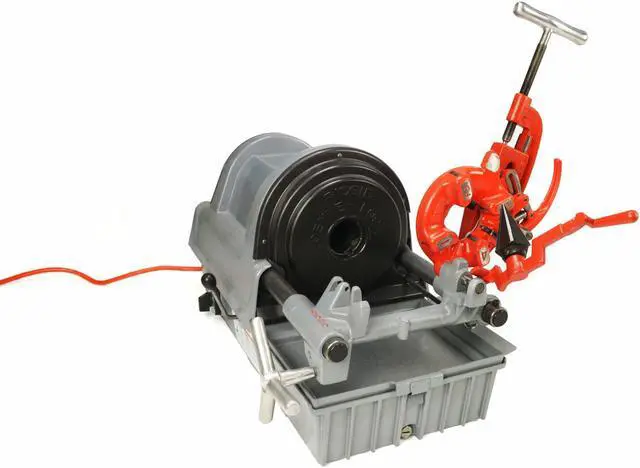

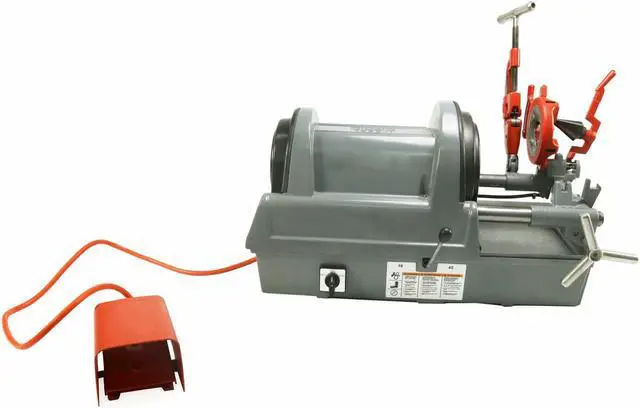

RIDGID® 1822-I Auto Chuck Pipe Threading Machine 20000 with 815A Die Head and High Speed Steel Dies

The Steel Dragon Tools® (Reconditioned) RIDGID®1822-I Automatic-Chucking Pipe Threading Machine has been cleaned, repaired, and prepared for professional use. Each Steel Dragon Tools® (Reconditioned) RIDGID® machine is disassembled, cleaned, inspected, painted, reassembled, and tested. All Steel Dragon Tools® (Reconditioned) RIDGID® machines run like new and feature a one (1) year warranty against manufacturer defects.

Package Includes:

• Steel Dragon Tools® (Reconditioned) RIDGID® Model 1822-I Pipe Threader with foot pedal.


• Steel Dragon Tools® (Reconditioned) RIDGID® 344 Pipe Reamer.


• Steel Dragon Tools® (Reconditioned) RIDGID® 364 Pipe Cutter, full-floating, self-centering with E-1032 cutting wheel.


• Steel Dragon Tools® (Reconditioned) RIDGID® 815A Universal Self-Opening Die Head.


• One (1) set of New RIDGID® 47765 1/2 in. to 3/4 in. Universal High-Speed Steel Dies.


• One (1) set of New RIDGID® 47770 1 in. 2 in. Universal High-Speed Steel Dies.


• Does not include stand.

Steel Dragon Tools® (Reconditioned) RIDGID® 1822-I Pipe Threader Features:

• Will thread a wide variety of pipe including black, galvanized, stainless steel, IMC, PVC, and heavy wall conduit.


• Heavy-duty automatic chucking.


• Triple-filtration on the oil pump prolongs pump life and produces clean threads.


• Equipped with foot pedal for hands-free operation.


• For use with 815A Universal Quick-Opening Die Heads.


• Induction motor runs at a constant 45 or 16 RPM.

Specifications:

• Pipe Threading Capacity: 1/8 in. to 2 in. (3 mm-50 mm) or 2-1/2 in. to 4 in. (62 mm-100mm) with 141 Geared Threader


• Bolt Threading Capacity: 1/4 in. to 2 in. (6mm-50mm)


• Pipe Cutting Capacity: 1/8 in. to 2 in. (3 mm-50 mm)


• Motor: 1-1/2 HP, 120 V, 60 Hz, single-phase induction.


• Motor Control: Open/Off/Close with heavy-duty rotary switch and foot switch.


• Transmission: Two (2) speeds (45 RPM for standard pipe and 16 RPM for low voltage use and special materials).


• Spindle Speed: 45 and 16 RPM, right hand, can be adapted to left-hand operation


• Front Chuck: Automatic gripping and centering.


• Rear Centering Device: Automatic (centering only).


• Clutch: Shifting cone-type.


• Oil Pump: Self-priming gerotor.

To ensure optimal performance and longevity of your pipe threading machine, we recommend greasing and/or lubricating your machine upon arrival and regularly greasing and/or lubricating all moving parts, especially the threading dies and carriage mechanisms. Proper greasing and/or lubrication minimizes wear, reduces friction, and enhances overall machine efficiency. Heavy use of your machine may require more frequent greasing and/or lubrication.
