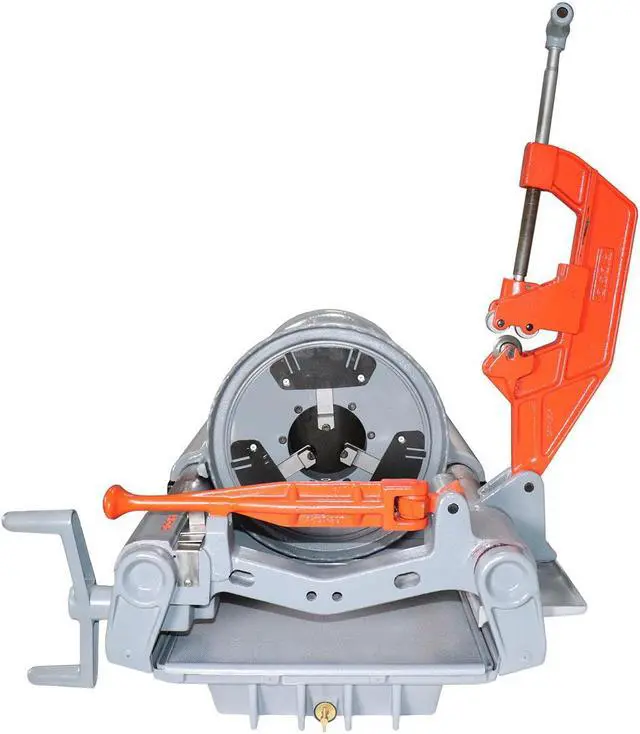

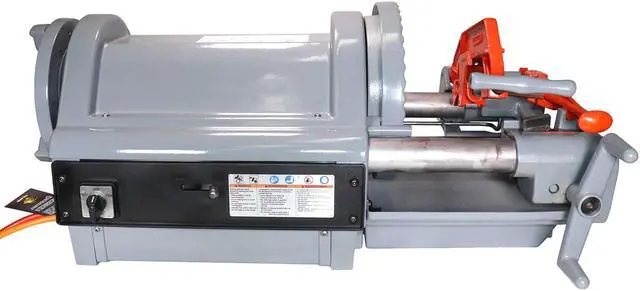

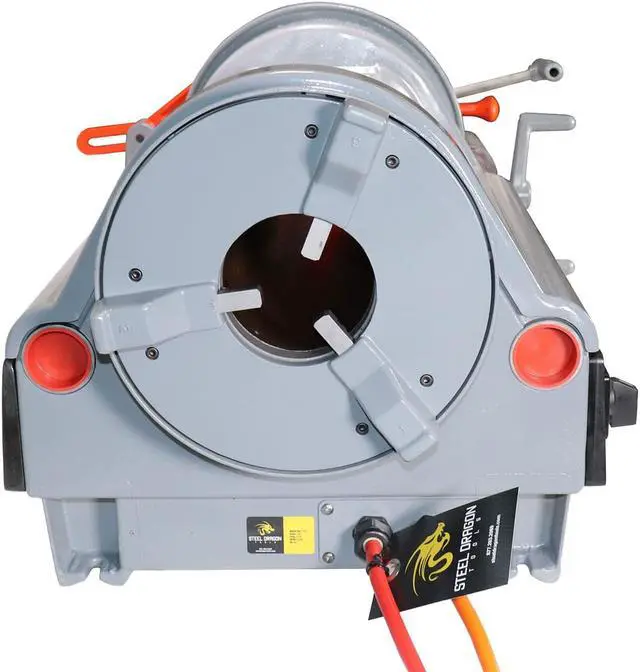

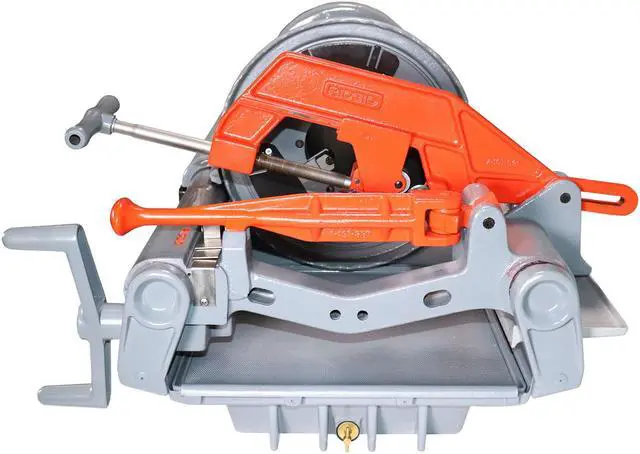

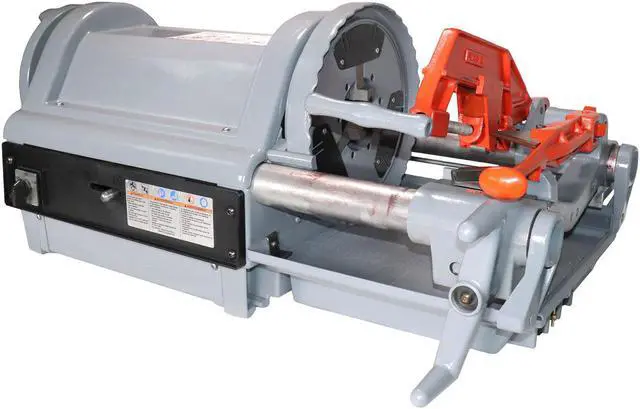

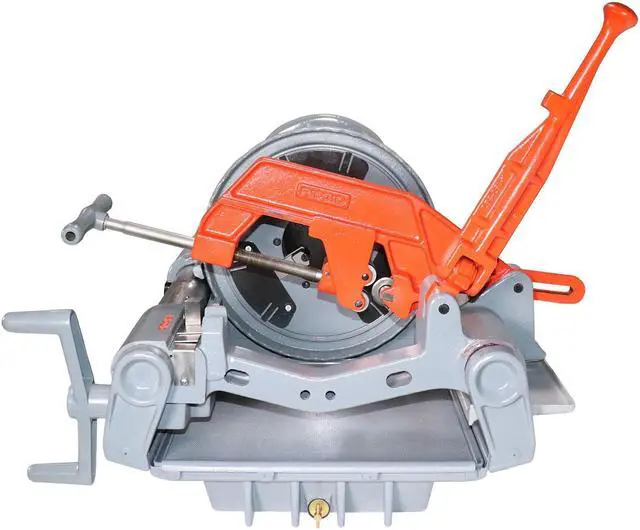

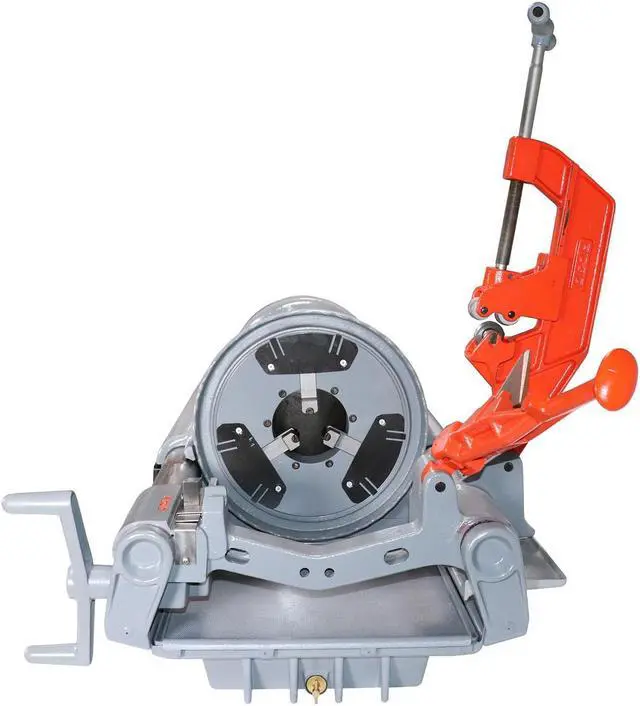

RIDGID® 1224 Pipe Threading Machine 26092 with 744 Reamer & 764 Cutter

The Steel Dragon Tools® (Reconditioned) RIDGID® 1224 Power Pipe Threader has been cleaned, repaired, and prepared for professional use. Each Steel Dragon Tools® (Reconditioned) RIDGID® machine is disassembled, cleaned, inspected, painted, reassembled, and tested. All Steel Dragon Tools® (Reconditioned) RIDGID® machines run like new and feature a one (1) year warranty against manufacturer defects.

Package Includes:

• Steel Dragon Tools® (Reconditioned) RIDGID® Model No.1224 Power Pipe Threader.


• Steel Dragon Tools® (Reconditioned) RIDGID® 744 Pipe Reamer.


• Steel Dragon Tools® (Reconditioned) RIDGID® 764 Pipe Cutter.

Steel Dragon Tools® (Reconditioned)KEY_TAB RIDGID® 1224 Power Pipe Threader Features:

• Thread 1/4-inch to 2-inch pipe at 36 RPM.


• Thread 2-1/2-inch to 4-inch pipe at 12 RPM.


• Threads black, galvanized, plastic-coated, steel, and stainless-steel pipe.


• Will also thread IMC, heavy wall conduit.


• Will also thread rod up to 30 Rockwell C.


• Special capacitor-start / capacitor-run motor allows for threading despite voltage drop.


• For use with 1/4-inch to 2-inch universal die head.


• For use with 2-1/2-inch to 4-inch receding die head.


• Will cut tapered or straight NPT/NPSM or BSPT/BSPP threads.

Specifications:

• Pipe Capacity: 1/4 in. to 4 in. (6 mm to 100 mm)


• Bolt Capacity: 1/4 in. to 2 in. (6 mm to 50 mm)


• Motor: 1-1/2 HP, 60 Hz or 50 Hz, Induction-Type, Single-Phase


• Motor Control: Reverse/Off/Forward controlled by heavy-duty, rotary type and integral foot switch.


• Spindle Speed: 36 RPM or 12 RPM


• Gear Box: Two-speed gearbox 3:1 ratio.


• Chuck: Hammer-type with replaceable rocker-action jaw inserts.


• Rear Centering Device: Cam-action


• Oiling Pump: Self-priming, gerotor-type, with automatic reversing and constant flow.

To ensure optimal performance and longevity of your pipe threading machine, we recommend greasing and/or lubricating your machine upon arrival and regularly greasing and/or lubricating all moving parts, especially the threading dies and carriage mechanisms. Proper greasing and/or lubrication minimizes wear, reduces friction, and enhances overall machine efficiency. Heavy use of your machine may require more frequent greasing and/or lubrication.
