Steel Dragon Tools® 7090 1/2-inch to 2-inch Power Pipe Threading Machine with Cart 811A Die Head and Dies

The Steel Dragon Tools® 7090 is a portable and compact, high-performance pipe threading machine that will thread, cut, and ream up to 2-inch pipe. This machine comes with a Steel Dragon Tools® 811A quick-opening die head and a through-head oiling system. The included high-speed steel dies will fit RIDGID® die heads

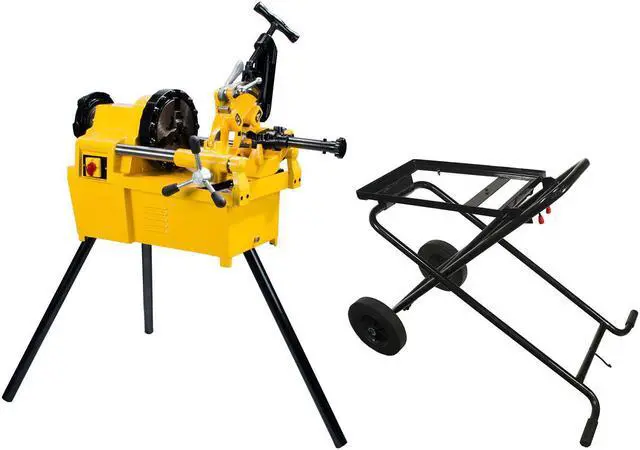

The Steel Dragon Tools® 7090 features a 1000-watt induction motor. This package includes a folding steel cart with wheels, allowing for easy transport around the shop or job site.

Features:

• Pipe Capacity: 1/2 in. to 2 in. NPT


• Automatic oiling system produces high-quality threads. Oil comes through the die head with a gear driven pump and automatically recirculated through the system.


• Includes Steel Dragon Tools® 811A Die Head that works with RIDGID® Dies.


• Dies are made of steel with Rockwell Hardness of 58-62 HRC for long operating life.

Package Includes:

• Steel Dragon Tools® 7090 Pro Pipe Threading Machine


• Steel Dragon Tools® 811A 1/2 in. to 2 in. universal die head.


• Steel Dragon Tools® 811A Universal Die Head works with compatible RIDGID® machines and dies.


• One (1) set of Steel Dragon Tools® 47765 1/2 in. to 3/4 in. universal high-speed steel dies.


• One (1) set of Steel Dragon Tools® 47770 1 in. to 2 in. high speed steel dies.


• Industrial-strength pipe cutter.


• Portable cart with 10-inch wheels.


• Wrenches and oil can.


• Threading oil is not included.

Specifications:

• Motor: Induction, 1000 W, 110 V, 60 Hz, 25 RPM, Reversible


• Maximum Chuck Capacity: 2-1/2 in.


• Reamer: Pentangular 5-Blade Conical


• Pipe Cutter Capacity: 1/4 in. to 2 in.


• Maximum amperage under load is 18.5 amps


• Overall Measurements: 24 in. x 24 in. x 18 in.


• Overall Weight: 190 lbs.

To ensure optimal performance and longevity of your pipe threading machine, we recommend greasing and/or lubricating your machine upon arrival and regularly greasing and/or lubricating all moving parts, especially the threading dies and carriage mechanisms. Proper greasing and/or lubrication minimizes wear, reduces friction, and enhances overall machine efficiency. Heavy use of your machine may require more frequent greasing and/or lubrication.
