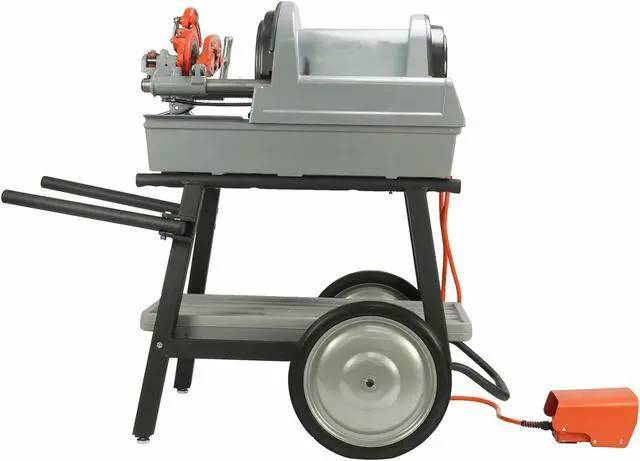

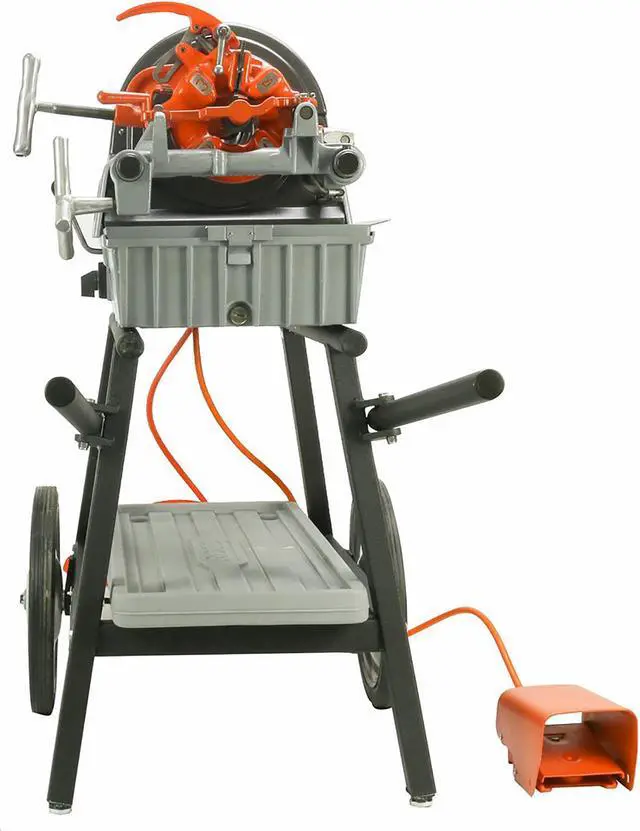

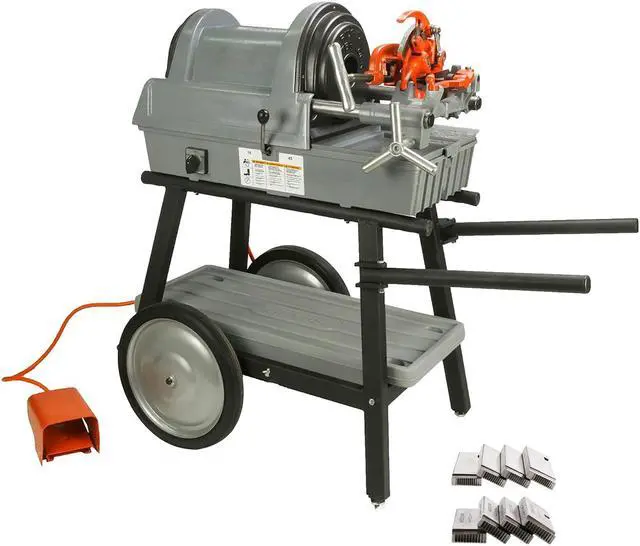

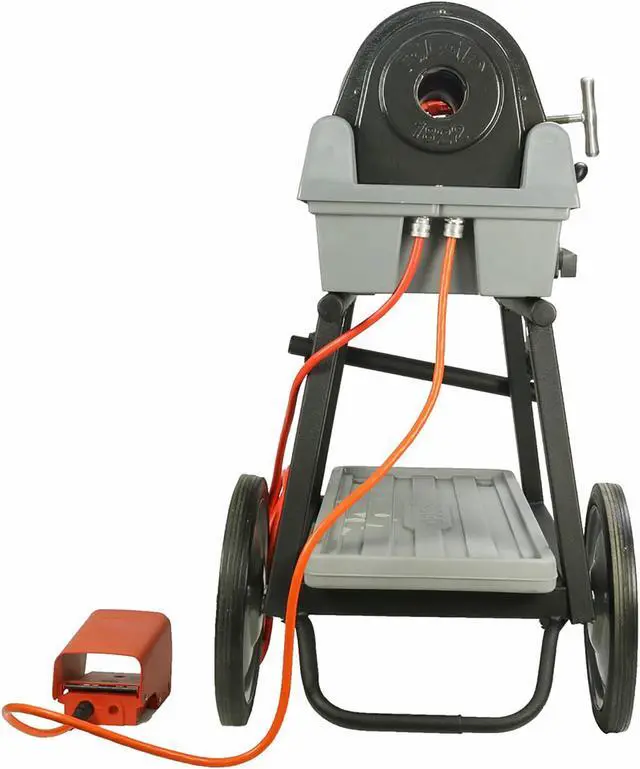

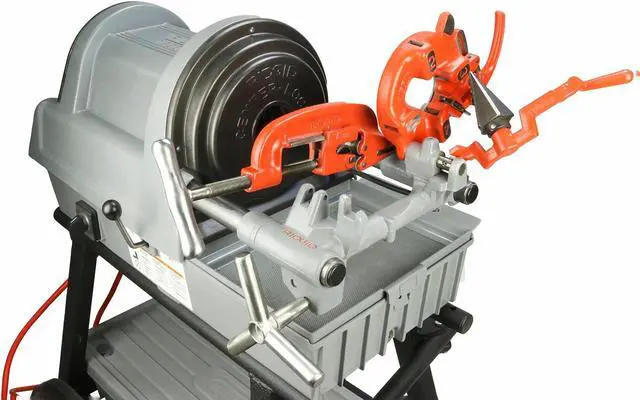

RIDGID® 1822-I Auto Chuck Pipe Threading Machine with 815A HSS Dies & Cart

Package Includes:

• ReconditionedKEY_TAB RIDGID® Model 1822-I Pipe Threader with foot pedal.


• Reconditioned RIDGID® 344 Pipe Reamer.


• Reconditioned RIDGID® 364 Pipe Cutter, full-floating, self-centering with E-1032 cutting wheel.


• Reconditioned RIDGID® 815A Universal Self-Opening Die Head.


• One (1) set of New RIDGID® 47765 1/2 in. to 3/4 in. Universal High-Speed Steel Dies.


• One (1) set of New RIDGID® 47770 1 in. 2 in. Universal High-Speed Steel Dies.


• New RIDGID® Universal Cart.

Features:

• Will thread a wide variety of pipe including black, galvanized, stainless steel, IMC, PVC, and heavy wall conduit.


• Heavy-duty automatic chucking.


• Triple-filtration on the oil pump prolongs pump life and produces clean threads.


• Equipped with foot pedal for hands-free operation.


• For use with 815A Self-Opening Die Heads.


• Induction motor runs at a constant 45 or 16 RPM.

Specifications:

• Pipe Threading Capacity: 1/8 in. to 2 in. (3 mm-50 mm) or 2-1/2 in. to 4 in. (62 mm-100mm) with 141 Geared Threader.


• Bolt Threading Capacity: 1/4 in. to 2 in. (6mm-50mm).


• Pipe Cutting Capacity: 1/8 in. to 2 in. (3 mm-50 mm).


• Motor: 1-1/2 HP, 120 V, 60 Hz, single-phase induction.


• Motor Control: Open/Off/Close with heavy-duty rotary switch and foot switch.


• Transmission: Two (2) speeds (45 RPM for standard pipe and 16 RPM for low voltage use and special materials).


• Spindle Speed: 45 and 16 RPM, right hand, can be adapted to left-hand operation.


• Front Chuck: Automatic gripping and centering.


• Rear Centering Device: Automatic (centering only).


• Clutch: Shifting cone-type.


• Oil Pump: Self-priming gerotor.
