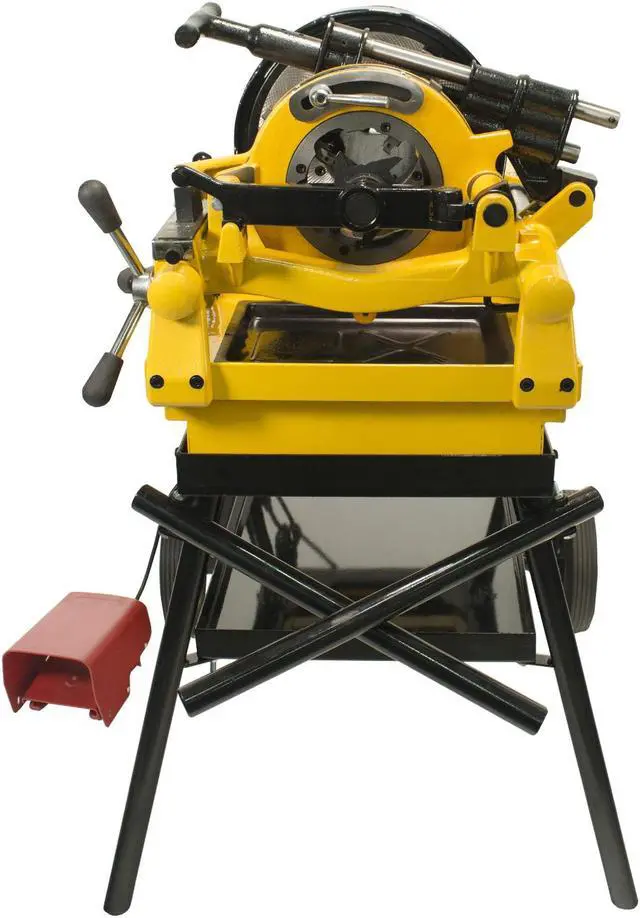

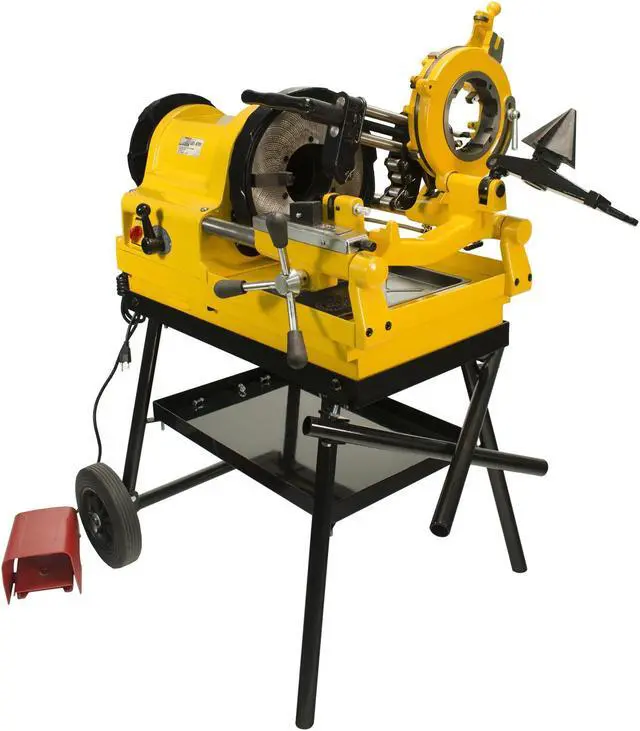

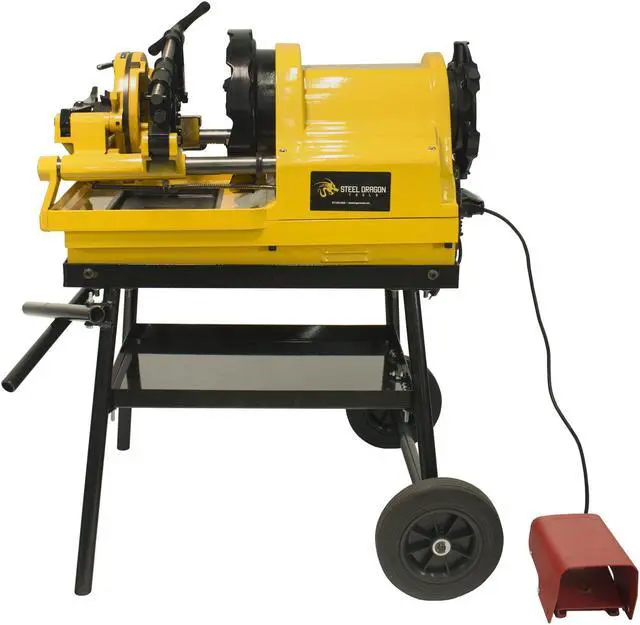

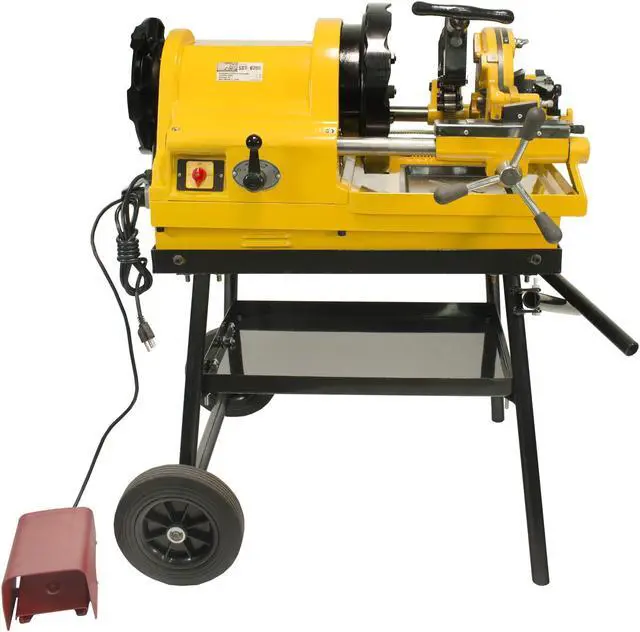

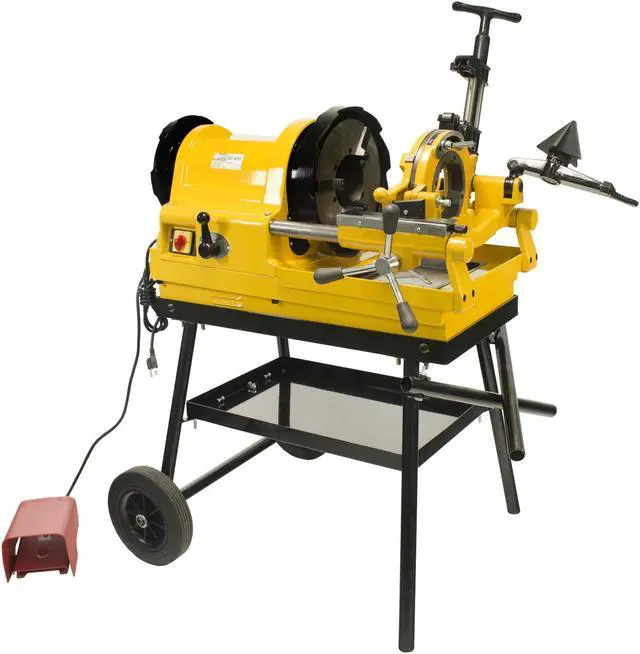

Steel Dragon Tools® 6790 Power Pipe Threader Threading Machine 1/2in. - 4in. Capacity 750W 24RPM with Reverse Foot Switch Self-Oiling Die Head and Cart

The Steel Dragon Tools® 6790 Pipe Threading Machine will thread, cut and ream various sizes of water and gas pipes, and electric conduit ranging from 1/2 in. to 4 in. This package includes two (2) quick-opening die heads that allow the operator to cut consistent threads. Foot pedal and cart are also included. The Steel Dragon Tools® 6790 features a quiet and powerful 750-watt induction motor with a reverse switch.

Package Includes:

• Steel Dragon Tools® 6790 Pipe Threading Machine.

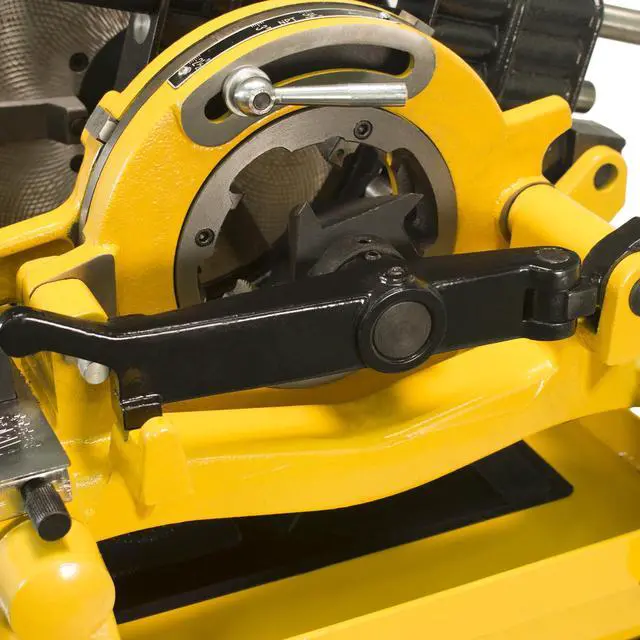

• Steel Dragon Tools® 6790 universal quick-opening die head for 2-1/2 in. to 4 in. pipe.


• Steel Dragon Tools® 6790 universal quick-opening die head for 1/2 in. to 2 in. pipe.


• Steel Dragon Tools® 6790 1/2 in. to 3/4 in. alloy steel dies NPT (14 threads/inch).


• Steel Dragon Tools® 6790 1 in. to 2 in. alloy steel dies NPT (11-1/2 threads/inch).


• Steel Dragon Tools® 6790 2-1/2 in. to 4 in. alloy steel dies NPT (8 threads/inch).


• Heavy Duty 1/2 in. to 4 in. Pipe Cutter


• Two-blade reamer.


• Includes a transportation cart and foot pedal.


• Includes tool case with wrenches, oil can, and screwdriver.


• Threading oil is not included.

Technical Specifications:

• Motor: 750 W, 110 V, 60 Hz, 2-Speed with FWD/REV


• Pipe Capacity: 1/2 in. to 4 in. NPT


• HSS Dies Rockwell Hardness (HRC) 58-62


• Maximum Rotation Speed: 24 RPM


• Maximum Chuck Capacity: 4 inches.


• Sledge Travel: 7 in. (180 mm)


• The cart is mainly used for transportation purposes.


• Maximum pipe threading operation weight is 200 lbs or less.
