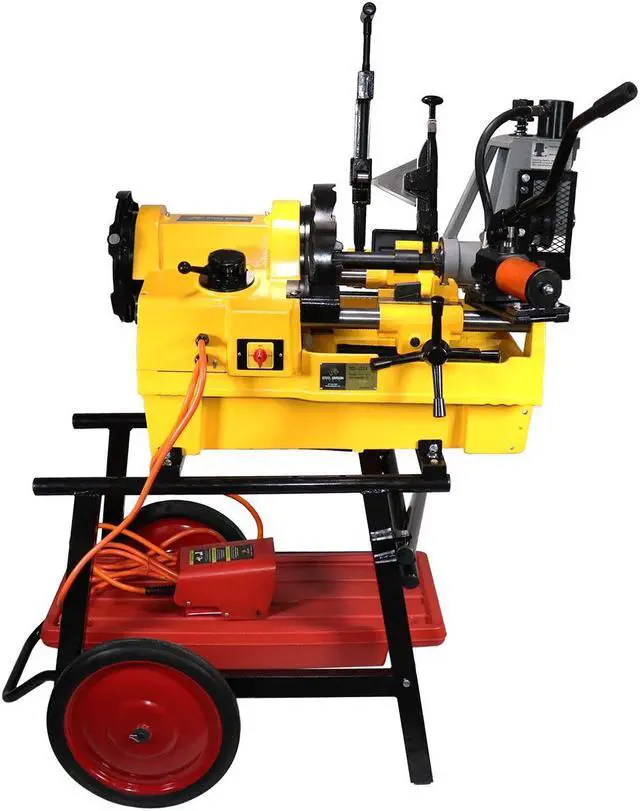

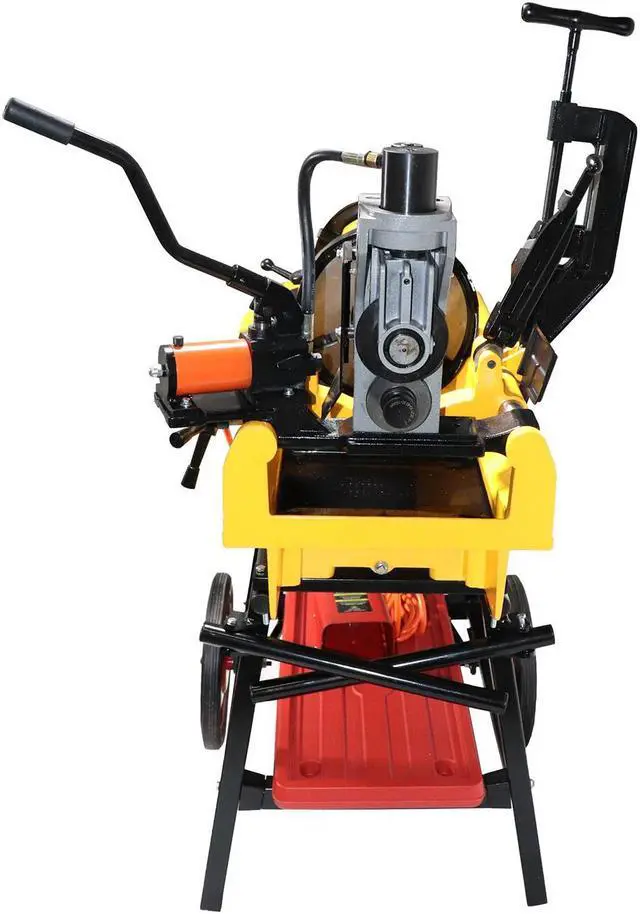

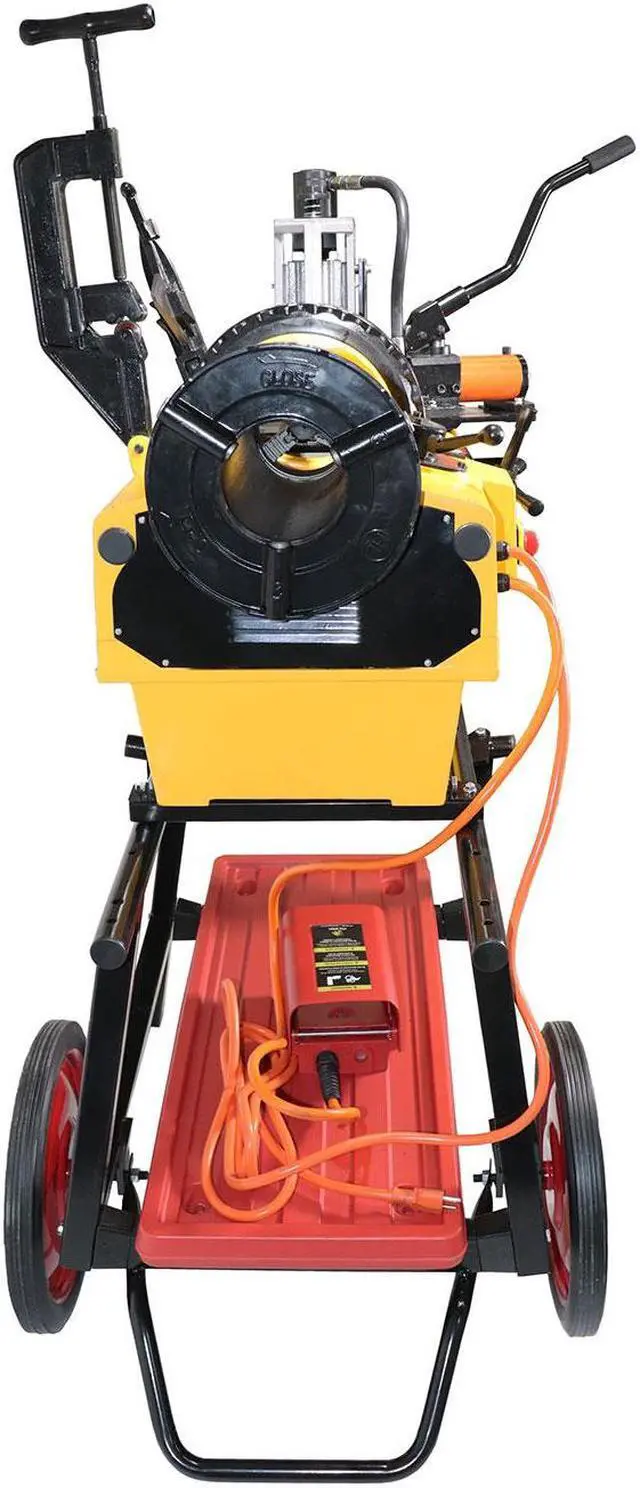

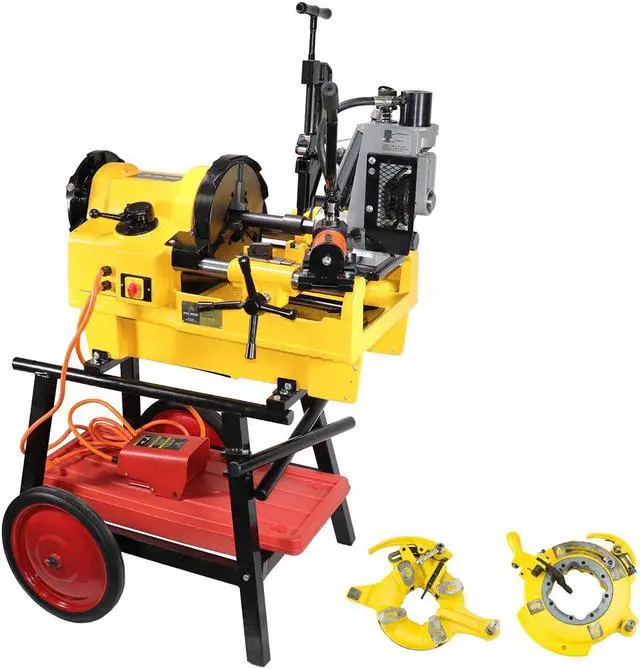

Steel Dragon Tools® 1224 1/4" - 4" Pipe Threading Machine 26092 150A Cart and 918 Roll Groover 48297

Specifications:

• Automatic geared self-oiling system will automatically oil dies to extend operating life.


• 1/4-inch to 2-inch Universal Die Head and 2-1/2-inch to 4-inch Receding Die Head will cut tapered or straight NPT and NPSM threads.


• Steel Dragon Tools® 711 and Steel Dragon Tools® 714 Die Heads compatible with RIDGID® Dies


• The Steel Dragon Tools® 1224 has a 1500 W, 2 HP induction motor with extra torque to handle large pipes.


• Foot pedal allows operator to easily control the RPMs while safely operating the machine.


• High-torque, 3-speed induction motor goes in Forward and Reverse for easy cleanup of threads and removal of pipe.

Package Includes:

• Steel Dragon Tools® 1224 Pipe Threading Machine.

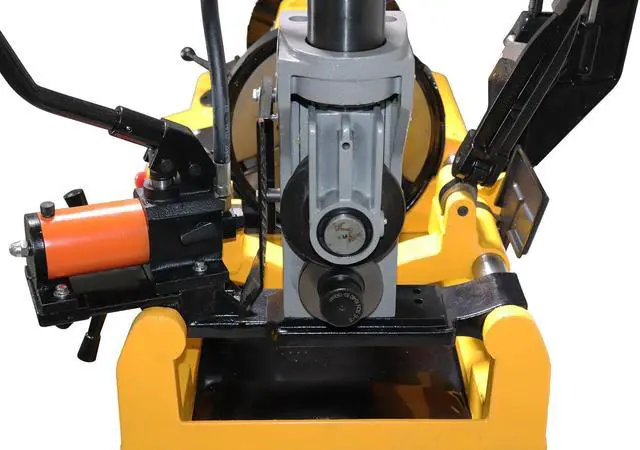

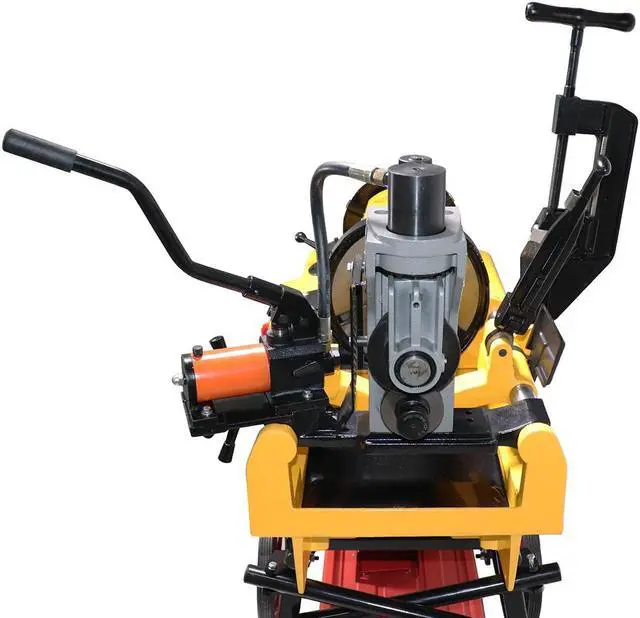

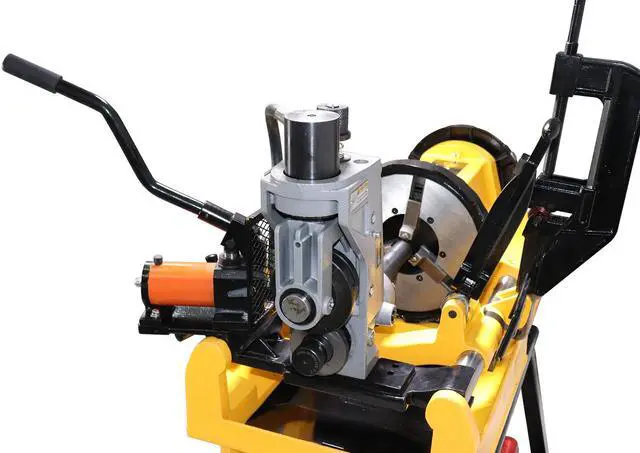

• Steel Dragon Tools® 918 Roll Groover


• Steel Dragon Tools® 92462 150A Universal Wheel and Tray Stand for 92617 and 56872.


• Steel Dragon Tools® 714 universal self-opening die head for 2-1/2 in. to 4 in. pipe. compatible with RIDGID® Dies (NPT/NPSM Threads).


• Steel Dragon Tools® 711 universal self-opening die head for 1/4 in. to 2 in. pipe. compatible with RIDGID® Dies (NPT/NPSM Threads).


• Steel Dragon Tools® 47765 1/2 in. to 3/4 in. universal high-speed dies.


• Steel Dragon Tools® 26192 2-1/2 in. to 4 in. 1224 high-speed dies.


• Steel Dragon Tools® 47770 1 in. to 2 in. high-speed steel dies.


• Steel Dragon Tools® 764 Full Floating Self Centering Pipe Cutter.


• Steel Dragon Tools® 744 Reamer 1/4 in. to 4 in.


• Heavy-duty foot pedal with attached plug.


• Includes two (2) extra drive belts.


• Includes four (4) 1-inch steel legs.


• Threading oil is not included.

Technical Specifications:

• Motor: 3-speed, induction, high-torque, 1500 W, 2 HP, 110 V, 60 Hz, with FWD/REV


• Spindle Speed: 36 RPM (1/4 in. to 3/4 in.), 20 RPM (1 in. to 2 in.), 11 RPM (2-1/2 in. to 4 in.)


• Pipe Capacity: 1/4 in. to 4 in. NPT or NPSM


• All aluminum body.


• Hammer-type chuck with replaceable jaw inserts.


• Cam-action rear-centering chuck.


• HSS Dies Rockwell Hardness (HRC) 58-62


• Maximum Rotation Speed: 36 RPM


• Maximum Chuck Capacity: 4-15/16 in. (125 mm)


• Sledge Travel: 7 in. (180 mm)


• Dimensions: 36 in. (L) x 22 in. (H) x 17 in. (D)


• Weight: 392 lbs.


• Sturdy wooden shipping crate is bolted to the machine for delivery.

Steel Dragon Tools® 918 Roll Groover Capacity:

• Schedule 10 Steel, Stainless Steel, PVC: 2 in. to 12 in.
  Schedule 40 Steel, Stainless Steel, PVC: 2 in. to 8 in.

Steel Dragon Tools® 92462 150A Universal Wheel and Tray Stand for 92617 and 56872:

• Model: 150A


• Adjustable to fit Steel Dragon Tools® and RIDGID® 1822, 535, and 1224 pipe threading machines.


• Industrial-strength steel frame.


• Dent- and corrosion-resistant tool tray.


• Heavy-duty wheels for easy transportation.

WARNING! This product can expose you to chemicals including lead and di_2_ethylhexyl_phthalate_dehp, which are known to the state of California to cause cancer and birth defects or other reproductive harm, respiratory irritation, neurotoxicity, and/or immunotoxicity. For more information, go to www.P65Warnings.ca.gov. Wash hands after handling.
