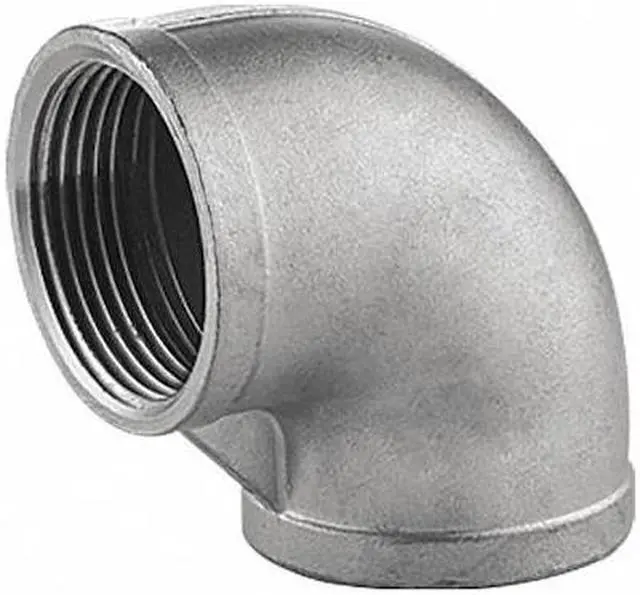

ZORO SELECT 409E111N010 304 Stainless Steel 90 Elbow, 1 in x 1 in Fitting Pipe

The ZORO SELECT - 409E111N010 is a stainless steel 90 Degree Elbow pipe fitting designed to connect two 1-inch pipes at a right angle to change the flow direction. Applications include air, natural gas, non-potable water, oil, potable water, and steam. Female FNPT threads on both ends; connects to compatible FNPT-threaded pipes or fittings. Rated for Class 150 pressure with a maximum operating pressure of 300 psi and a maximum steam pressure of 150 psi, it meets ASTM-A-351 material standards and conforms to ANSI B1.20.1 threading as well as MSS-SP-114 Class 150 pressure ratings. Key Features:

• - Material: 304 Stainless Steel
• - Shape: 90 Degree Elbow
• - Nominal Pipe Size: 1 inch on both ends
• - Connection Type: Female FNPT threads on both ends
• - Pipe Thread Size: 11 threads per inch on both ends
• - Pressure Rating: Class 150 for general and steam service
• - Maximum Operating Pressure: 300 psi
• - Maximum Steam Pressure: 150 psi
• - Applications include Air, Natural Gas, Non-Potable Water, Oil, Potable Water, and Steam systems
• - Color: Silver
• - Does not include pre-applied thread sealant or seals

. This item has been restricted from sale in the following state(s): []
