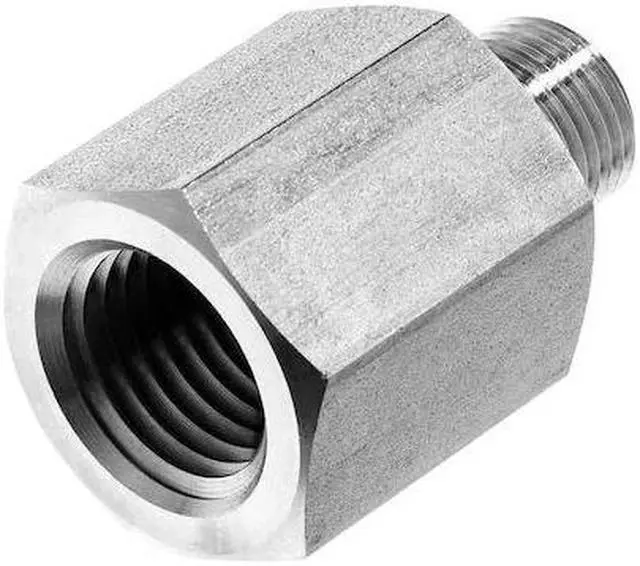

ZORO SELECT ZUSA-PF-7863 Reducing Adapter, 304 Stainless Steel, 3/8 in Female

The ZORO SELECT - ZUSA-PF-7863 is a stainless steel instrumentation pipe fitting designed as a reducing adapter to connect pipes or fittings of different diameters. It is machined from 304 stainless steel and complies with ANSI B31.1 standards. The joint design is rated for operation up to 4,900 psi and is intended for use in instrumentation and sampling applications, with media compatibility limited to fluids/gases compatible with 304 stainless steel within the rated maximum operating pressure of 4,900 psi. It features a female 3/8 in NPT connection on Side A and a male 1/8 in NPT connection on Side B, facilitating secure transitions between different pipe sizes. The fitting is silver in color and has an overall length of 1 1/4 in. Key Features:

• - Material: 304 stainless steel
• - Configuration: Reducing adapter
• - Connection Side A: Female, 3/8 in NPT thread, 18 threads per inch
• - Connection Side B: Male, 1/8 in NPT thread, 27 threads per inch
• - Maximum operating pressure: 4,900 psi
• - Hex size for wrenching: 7/8 in across flats
• - Includes: No pre-applied thread sealant or included sealing components
• - Overall length: 1 1/4 in
• - Low lead compliance: Compliant for potable water use
