VisiPower DVR Video Recorder HD Dome Fish Finder 360 Rotated Camera Panoramic view,7'' monitor Underwater exploration,fishing,Swimming/diving/snorkeling,well inspection Cable Length 656ft/200m Camera

DVR Recorder 7 Inch 200m Underwater Fishing Camera Fish Finder with Depth Temperature 360 Degree Rotating Dome Rotating Panoramic viewing Camera


Fishing Camera Description:

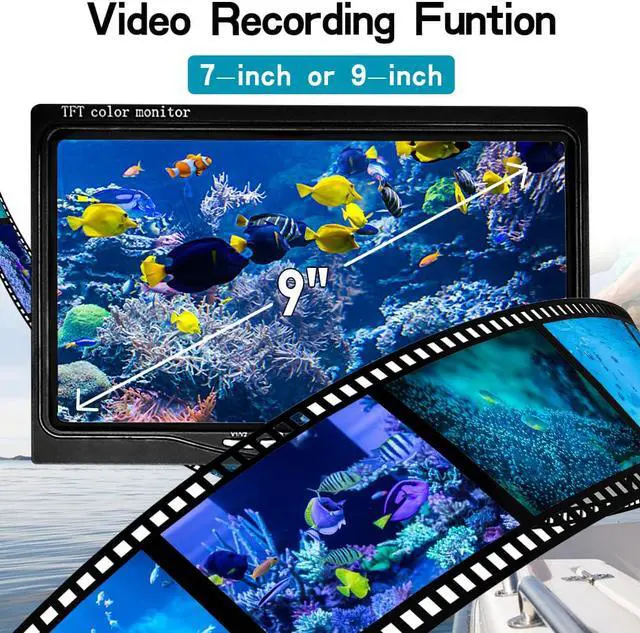

This product you are watching now is the latest popular, fashional, good looking and convenient Underwater Video Camera System. It not only has a large and color screen, but also has a height definition camera which has HD CCD 1000TV lines. 20pcs white LEDs, 18pcs infrared lamps, high-intensity. 4 different
LED status: White LED onIR LED onall LED onall LED off, obtain more better quality image. this underwater monitor system also has the DVR and photo function. Besides, this item comes with 8GB TF card and this system maximally support 32 GB TF card.



Product Description
Underwater Video CCD Camera with 0-360 Pan
Cable length: 200/300/500M optional

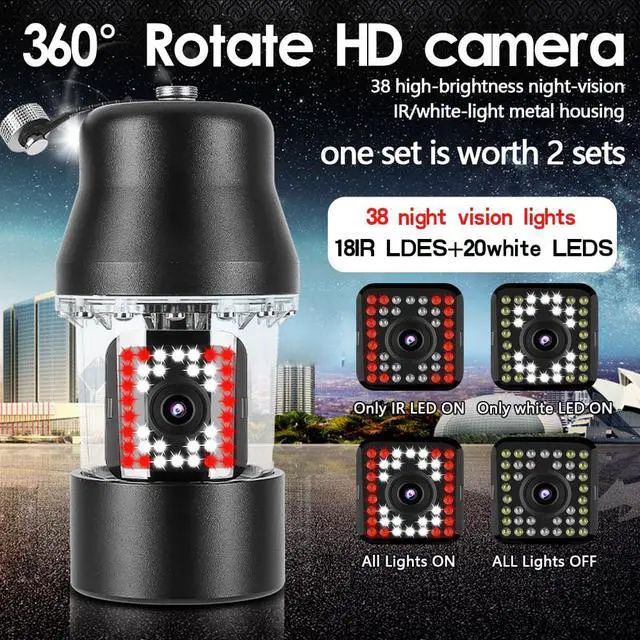

18 IR LEDS and 20 White LEDS.
Power Box: Battery status
For underwater exploration/Fishing/Well inspection!

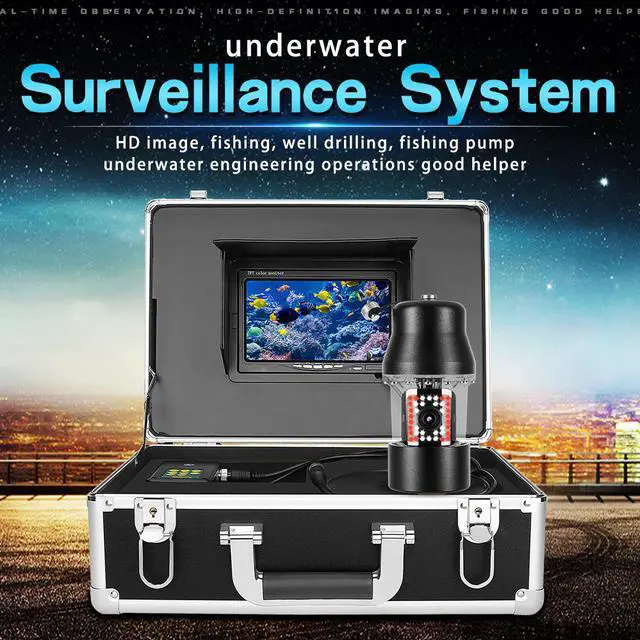

is an underwater video camera with 0-360 motorized pan head for viewing objects in all
directions. It is a CCD camera, very sharp image. It was specially designed for underwater activities such as sea bottom exploration, ocean fishing and ice fishing, well inspection, etc.
Typical applications are:
Underwater exploration
Ocean/Ice/Lake fishing
Swimming/diving/snorkeling
Well/pipe inspection

Key features:

1. High-quality CCD color video camera with 1/3" HD CCD

2. Remotely controlled pan head for 0-360 all direction view

4. speed adjustment from fast to slow for different applications

5. All LEDS can be turned off/on for best image quality under different
6.50 m heavy-duty gauge anti-corrosion cable

7. Aluminum box
Size: 375*265*135 (MM)

Camera specifications

1.
Image sensor: 1/3" HD color CCD

2.
Horizontal resolution: 1000 TVL

3.
While balance: auto

4.
Lens focus size: 3.6 mm

5.
Angle of view: 92
6.
LEDs: 38 pcs

7.
Head pan movement: 0-360

8.

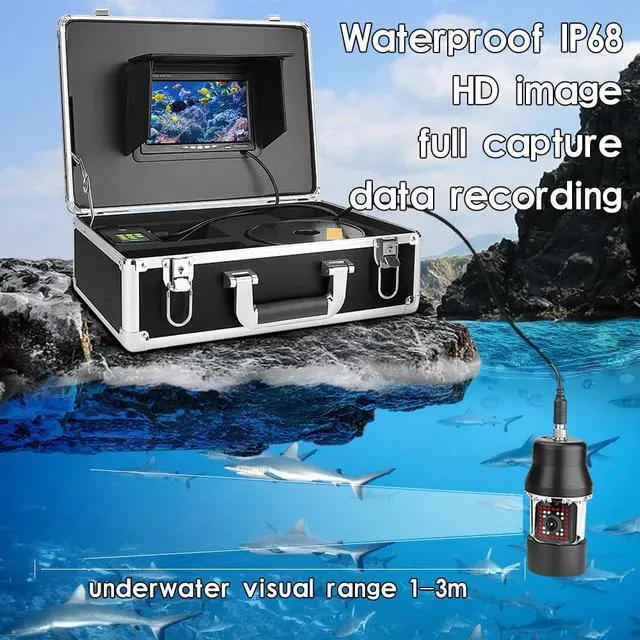

Underwater vision distance: 1-3m, depending on clarity of water

9.
Current consumption: 400mA

10.
Body construction: Metal + ABS plastic

11.
Waterproof level: IP68

12.
Power supply: 12V DC
13.

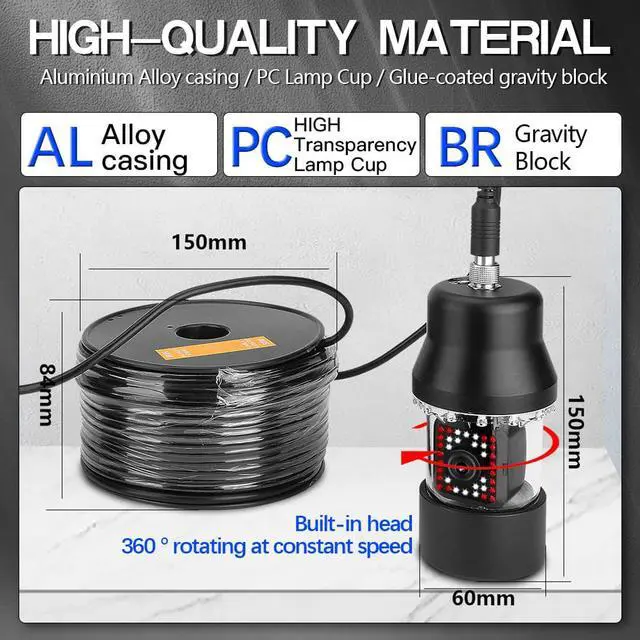

Camera Size: 65*170 (MM)

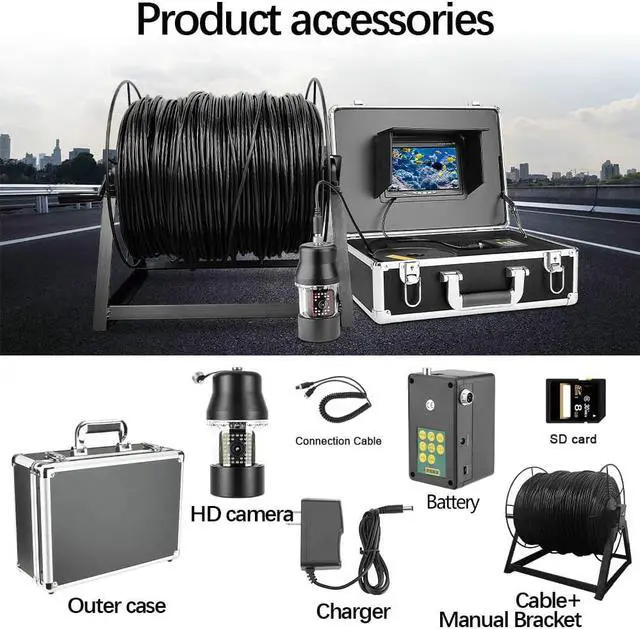

Item Includes:
1 x 7" inch Color TFT LCD Monitor
1 x 8G SD card

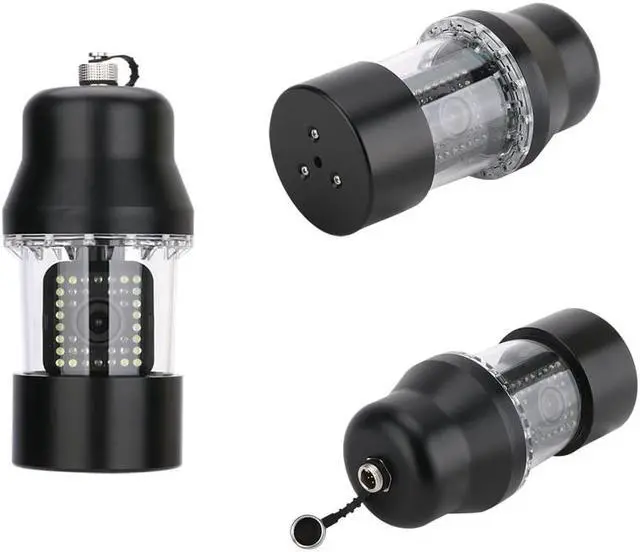

1 x Underwater Camera with 200M Cable can be rotated (HD CCD)
1 x DC lithium battery 12V4500MA
1 x DC 12V Battery Charger
1 x Remote Control box
1 x Aluminum box
