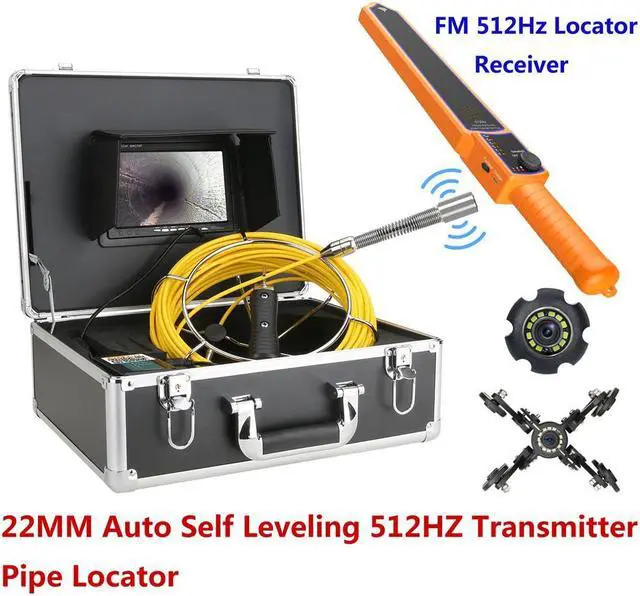

VisiPower 7" Monitor Sewer Pipe Drain Pipe Pipeline Locator Auto Self Leveling + 512HZ Pipe Locator 22MM IP68 HD Camera 12PCS LED Lights for Blocked draining plumbing Cable Length 20m/65ft Camera

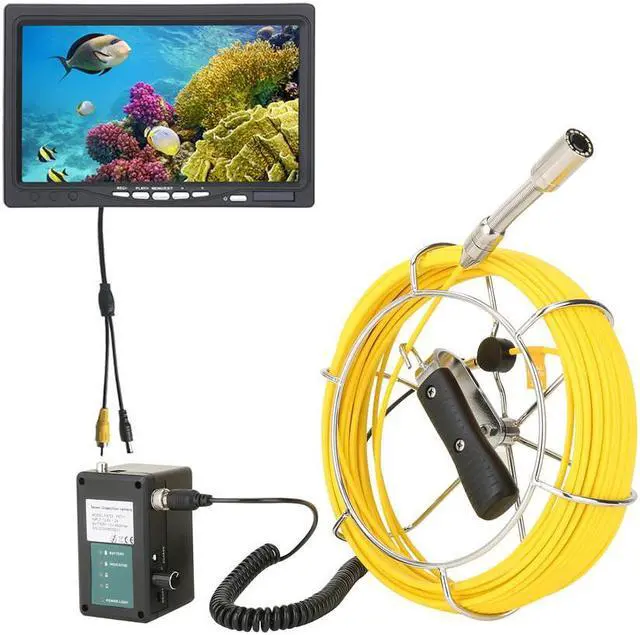

The pipe inspection camera combines a camera-tipped probe with 7" LCD monitor for viewing hard-to-reach inspection area. The deluxe leather sun visor provides clear viewing in outdoor inspection and extra protection for the monitor.
It comes with a fully padded case which stores all kits for easy transport and use. It eliminates the needs of tearing drywall to locate leaks and helps to solve pipe problems.
It is a must have for any homeowner, contractor and even professional plumbers!



PIPE SEWER DRAIN INSPECTION SYSTEM:

The Drain Sewer Pipeline Industrial Endoscope System with HD 1000TVL high-definition waterproof IP68 #304 stainless steel camera+tipped probe+145°wide viewing angle what make it clear when you inspect some places hard to watch.
12 pcs adjustable LEDs to illuminate the hard-to-reach inspection area. Inspections will be seen more clearly in the dark environment.

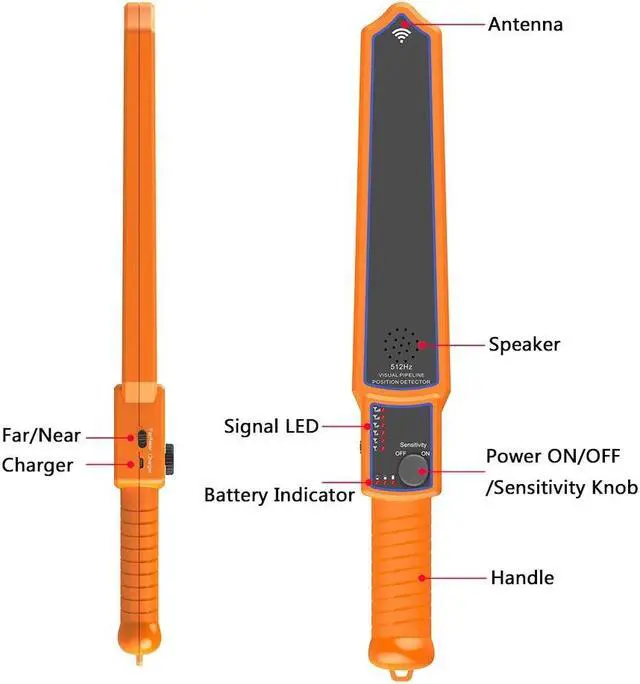

512HZ TRANSMITTER:

This transmitter is suitable for locating the damage place of underground pipes, air-conditioning pipes and other pipes, Video Auto balance Auto Self Leveling 512HZ Transmitter Pipe Locator.



512HZ Receiver Technical Parameters:

Receiver Frequency: 512HZ

Distance: about 5m

Battery: 3.7V 3000MAH built-in lithium battery

Charger: 5V1A

Battery Indicator: 3 gear, it is flashing when battery is low

Battery working time: about 10 hours

Signal strength: 6 gear

Speaker: Support

Detect Mode: Far/ Near

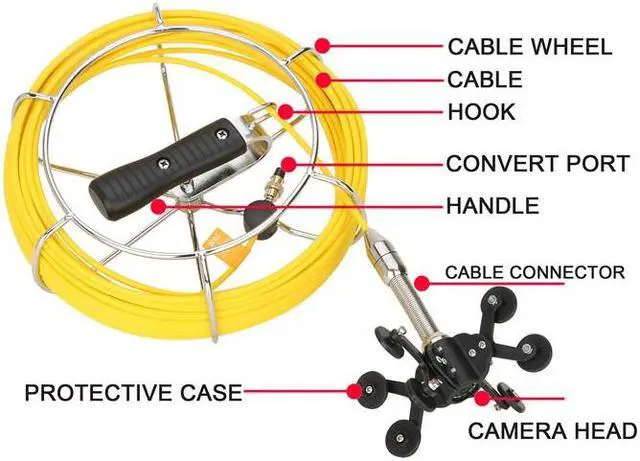

MONITOR&CABLE:

Professional Drain Pipe/Sewer Pipeline Inspection Camera is designed with a 7 inches color TFT LCD monitor with a sun-visor for outdoor inspections. The material of wire is fiberglass rod(diameter: 4.9MM ),
anti-corrosion/cold/tensile.




PORTABLE CARRY CASE&LONG BATTERY:

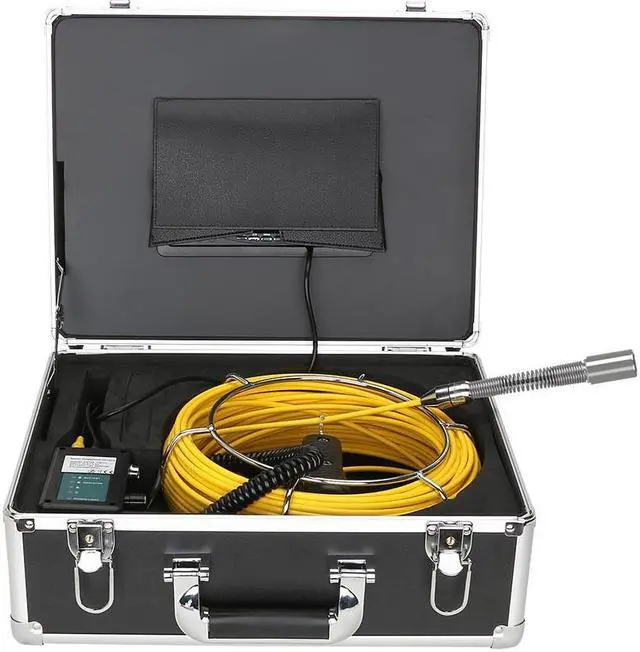

Pipe Wall Sewer Inspection Snake Camera Kit with heavy duty padded aluminum case stores all contents, convenient to carry around.
12V 4500mAh Li-battery included supports approximate 8 hours of continuous use.



Applications:

Blocked / slow draining plumbing.

Wall / wire inspection.

Home owners inspection.



Item: parameter

1.
Charger: AC100-240V DC 12.6V

2.512 hz: Built in 512hz transmitter

3.
Receiver Frequency: 512HZ

4.
Distance: about 5m

5.
Auto balance: YES

6.
Battery: Luminal-cell arrester 4.5AH

7. continuous use time for battery: approximate 8h

8. investigation depth: 20m/65ft ( selectable line length)

9. material: fiber tube with /high intensity

10. camera light source: 12 PCS LED with high while light (adjustable)

11. camera viewing angle: 145°

12. camera size/material: 42MM* 22MM /stainless steel

13. camera protective cover parts size/material: 38MM* 28MM /plastic-steel

14. camera protective cover parts size/material: 90MM* 28MM /plastic-steel with wheel

15. camera picture: color

16.
Operating temperature: -40-60°

17.
Aluminum box size: 410*370*180mm

18.
Package size: 425*415*195mm

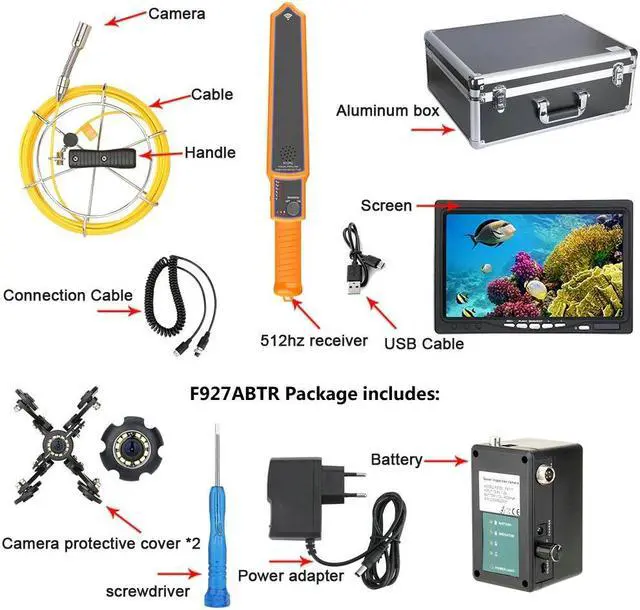

Package List:

1 * 7inch LCD Monitor

1 * HD 1000TVL Camera

1 * 512Hz PIPE Locator

1 *20m/65ft Fiberglass Cable

2 * Camera Proof Cover

1 * 4500mah Battery Box

1 * Charger

1 * Connection Cable

1 * USB Cable

1 * Screw Driver

1 * User Manual (English)
