The pipe inspection camera combines a camera-tipped probe with 9" LCD monitor for viewing hard-to-reach inspection area. The deluxe leather sun visor provides clear viewing in outdoor inspection and extra protection for the monitor. It comes with a fully padded case which stores all kits for easy transport and use. It eliminates the needs of tearing drywall to locate leaks and helps to solve pipe problems. It is a must have for any homeowner, contractor and even professional plumbers!
The Drain Sewer Pipeline Industrial Endoscope System with HD 1000TVL high-definition waterproof IP68 #304 stainless steel camera+tipped probe+145°wide viewing angle what make it clear when you inspect some places hard to watch. 12 pcs adjustable LEDs to illuminate the hard-to-reach inspection area. Inspections will be seen more clearly in the dark environment.
MONITOR&CABLE:
Professional Drain Pipe/Sewer Pipeline Inspection Camera is designed with a 9 inch color TFT LCD monitor with a sun-visor for outdoor inspections. The material of wire is fiberglass rod(diameter: 4.9MM ), anti-corrosion/cold/tensile.
WIRELESS SIGNAL TECHNOLOGY: The Pipe Inspection Camera built-in 2.4G wifi, it can be operated by the free app(Android, IOS and tablet pc), support max to 5 devices viewing simultaneously, very simple and convenient to use. The inspections can be playback by your phone.
PORTABLE CARRY CASE&LONG BATTERY:
Pipe Wall Sewer Inspection Snake Camera Kit with heavy duty padded aluminum case stores all contents, convenient to carry around. 12V 4500mAh Li-battery included supports approximate 8 hours of continuous use.
Applications:
Blocked / slow draining plumbing.
Wall / wire inspection.
Home owners inspection.
Item: parameter
1.9" TFT Monitor
2. Metal carry case for easy transportation
3. It can recod/snapshoot the video by your phone

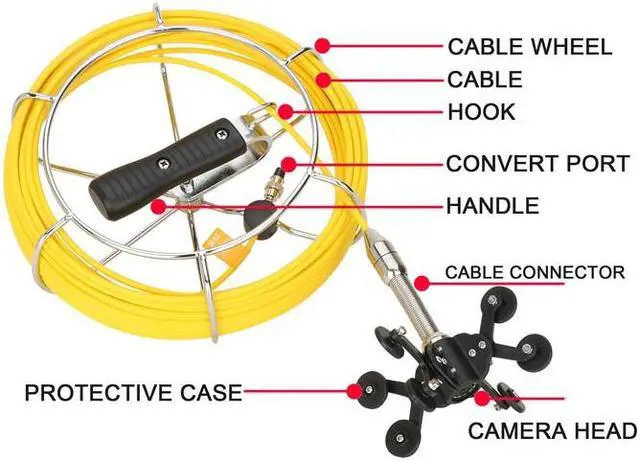

4. Fiberglass Cable & Stainless Steel Reel
5.
Charger: AC100-240V DC 12.6V
6.
Battery: Luminal-cell arrester 4.5AH
7. Wireless Wi-Fi, support 5 smart devices
8. continuous use time for battery: approximate 8h
9. investigation depth: 20m/65ft ( selectable line length)
10. material: fiber tube with /high intensity

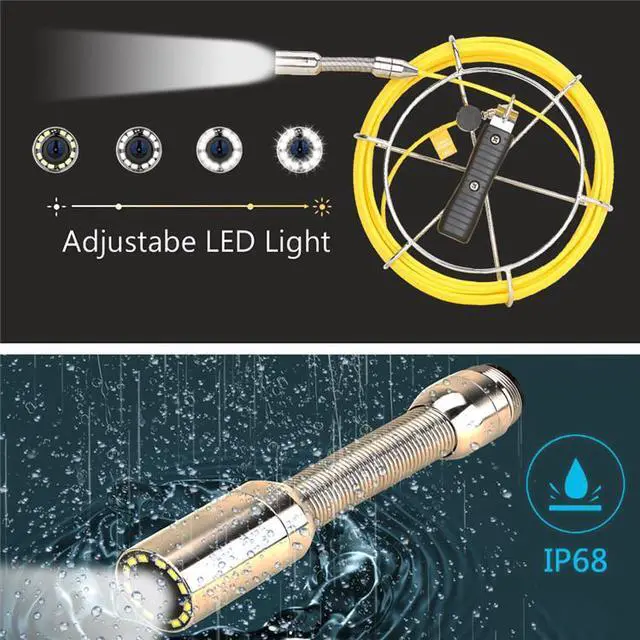

11. camera light source: 12 PCS LED with high while light (adjustable)

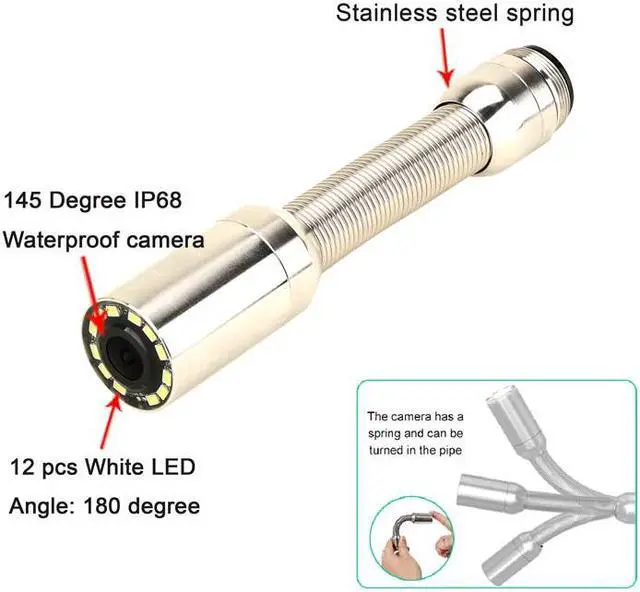

12. camera viewing angle: 145°

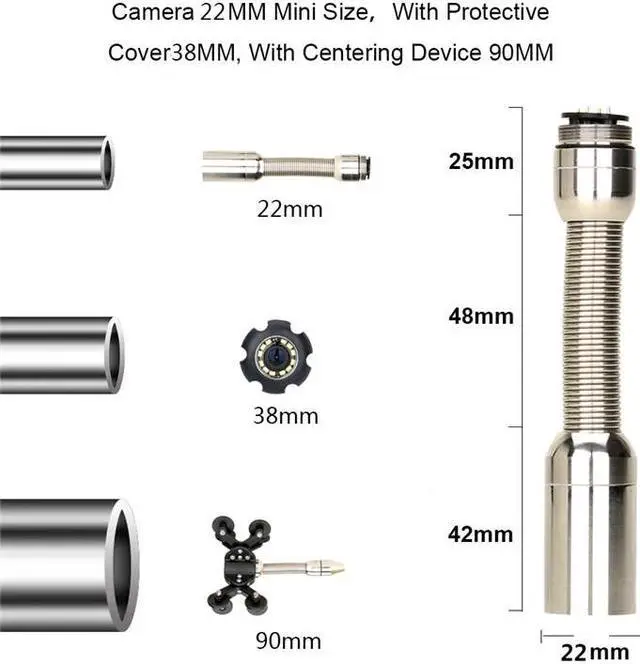

13. camera size/material: 42MM* 22MM /stainless steel
14. camera protective cover parts size/material: 38MM* 28MM /plastic-steel
15. camera protective cover parts size/material: 90MM* 28MM /plastic-steel with wheel
16. camera picture: color
17.
Operating temperature: -40-60°
18.
Storage temperature: -50-80°
19.
Aluminum box size: 410*370*180mm
20.
Package size: 425*415*195mm
Package List:
1 * 9inch LCD Monitor
1 * HD 1000TVL Camera
1 * 20M/30M/50M(65ft/98ft/164ft) Cable----Optional
2 * Camera Proof Cover

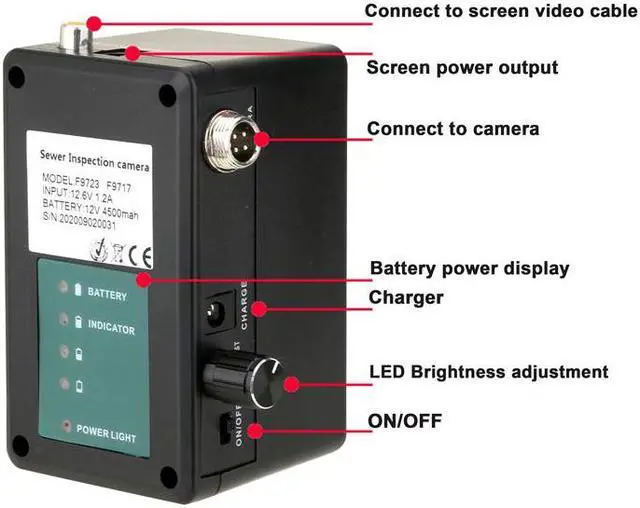

1 * 4500mah Battery Box
1 * Charger
1 * Connection Cable
1 * Screw Driver
1 * User Manual (English)
