512HZ Locator Sonde for 9" DVR screen Sewer Pipe Drain Pipe Pipeline Inspection Camer

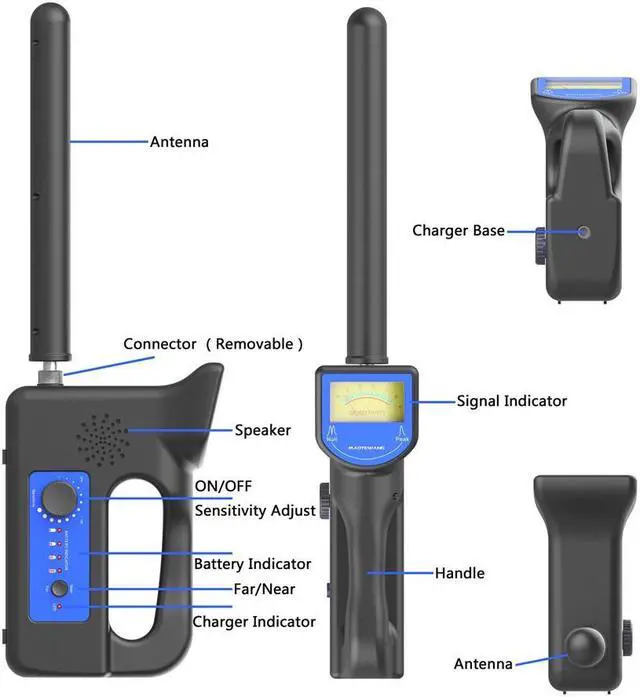

- Receiver: The receiver has a built-in induction coil to receive the magnetic signal from the pipeline, and the coil generates an induced current to calculate the
- direction and position of the transmitter. There are two receiving modes: Far (note: about 5M) and Near (note: about 2 meter). Then adjust the sensitivity knob, peak mode (maximum) or null mode (minimum) to locate the transmitter.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Receiver: The receiver has a built-in induction coil to receive the magnetic signal from the pipeline, and the coil generates an induced current to calculate the
direction and position of the transmitter.
There are two receiving modes: Far
(note: about 5M) and
Near (note: about 2 meter). Then adjust the sensitivity knob, peak mode (maximum) or null mode (minimum) to locate the transmitter.

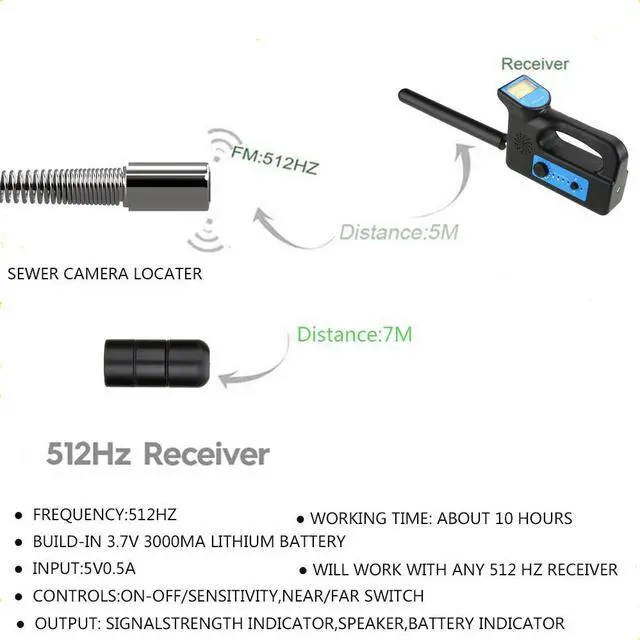

Receiver Technical Parameters:
Receiver Frequency: 512HZ
Power consumption: <3W
Distance: about 5m
Battery: 3.7V 3000MAH built-in lithium battery
Charger: 5V 0.5A
Charger time: about 6 hours
Battery Indicator: 4 gear, it is flashing when battery is low
Battery working time: about 10 hours
Signal strength: 6 gear
Sensitivity Adjustable: Support
Speaker: Support
Detect Mode: Far/ Near
Package List:
1 * 512Hz PIPE Locator
1 * Charger
1 * Tool box and eva
1 * User Manual (English)
direction and position of the transmitter.
There are two receiving modes: Far
(note: about 5M) and
Near (note: about 2 meter). Then adjust the sensitivity knob, peak mode (maximum) or null mode (minimum) to locate the transmitter.
Receiver Technical Parameters:
Receiver Frequency: 512HZ
Power consumption: <3W
Distance: about 5m
Battery: 3.7V 3000MAH built-in lithium battery
Charger: 5V 0.5A
Charger time: about 6 hours
Battery Indicator: 4 gear, it is flashing when battery is low
Battery working time: about 10 hours
Signal strength: 6 gear
Sensitivity Adjustable: Support
Speaker: Support
Detect Mode: Far/ Near
Package List:
1 * 512Hz PIPE Locator
1 * Charger
1 * Tool box and eva
1 * User Manual (English)
