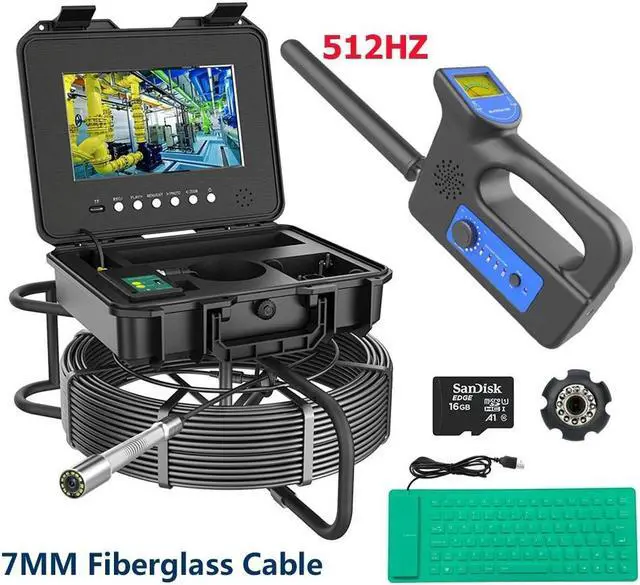

VisiPower 10" AHD 2MP Display Screen Pipe Sewer Drain Inspection Video Camera Video Recording Meter Counter Keyboard 5X Image Zoom 512HZ Locator Industrial Endoscope 7mm Cable Length 20m/65ft Camera

Video + Audio + 5X
Image Enlarge:
Pipeline Wall Sewer Inspection Snake Camera built-in TF Card slot, 16GB TF card included, it is avialiable to view live video and save video recording and photos and audio record. You can record the inspections and playback via the pipe system. (DVR
Edition Video Format: MP4
Photo format: JPG)+ZOOM to zoom in or zoom out 0-5 times

MONITOR&CABLE:

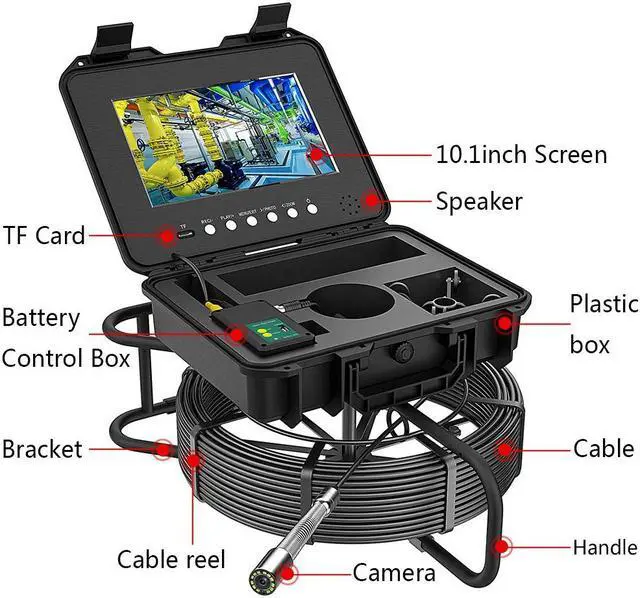

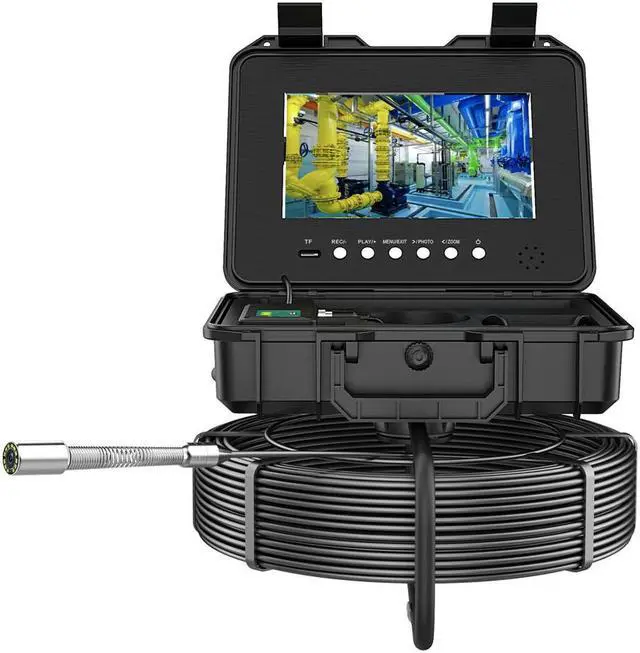

Professional Drain Pipe/Sewer Pipeline Inspection Camera is designed with a 10.1 inches color IPS LCD monitor for outdoor inspections. The material of wire is fiberglass rod(diameter: 7MM), anti-corrosion/cold/tensile.

DVR Recording Function:
Pipeline Wall Sewer Inspection Snake Camera built-in TF Card slot, 16GB TF card included, it is avialiable to view live video and save video recording and photos and audio record. You can record the inspections and playback via the pipe system. (DVR
Edition Video Format: MP4 Photo format: JPG)

Meter Counter & Keyboard function:
Can change the metric and imperial, support input the text information /symbols to mark events during the work

512HZ TRANSMITTER:
This endoscope camera has a built-in 512 hertz transmitter that helps to easily detect any blockage or area of interest. This greatly helps save time from having to dig and locate the problem. The sonde transmits a 512Hz signal that can be picked up with any compatible locator, allowing you to pinpoint the transmittersposition underground.

512HZ Receiver Technical Parameters:
Receiver Frequency: 512HZ
Distance: about 5m
Battery: 3.7V 3000MAH built-in lithium battery
Charger: 5V1A
Battery Indicator: 4 gear, it is flashing when battery is low
Battery working time: about 10 hours
Signal strength: 6 gear
Speaker: Support
Detect Mode: Far/ Near

PORTABLE CARRY CASE&LONG BATTERY:

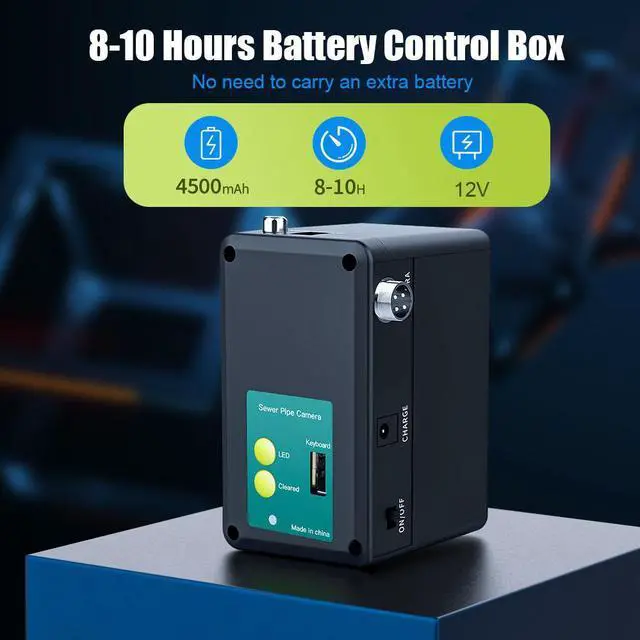

Pipe Wall Sewer Inspection Snake Camera Kit with heavy duty padded aluminum case stores all contents, convenient to carry around. 12V 4500mAh Li-battery included supports approximate 8 hours of continuous use.

Applications:
Blocked / slow draining plumbing.
Wall / wire inspection.
Home owners inspection.


Support for Part Replacement & Fast Customer Service:
If you need assistance, including pre-order/after-sales service, please do not hesitate to contact us. All pipeline inspection camera spare parts/accessories for repair or replacement, factory offer very cheap price, you do not need to worry about the cost and availability of the replacements.
The Video Snake Pipe and Wall Inspectioniis a must have for any homeowner, contractor and even professional!



Item: parameter
1.
Monitor: 10.1 inch IPS color record monitor
2.
Function: Video record/audio/photo/electronic zoom/power display/ meter counter/keyboard input (support English)
3.
TF Card: Memory Support maximum 128G TF card (16G TF card included)
4.512 hz: Built in 512hz transmitter
5.
Receiver Frequency: 512HZ
6.
Camera: AHD 1080P

7.
Quick photo: press the key to take a photo.

8.
Image Zoom: Press key to zoom the image from 0 to 5 times.

9.
Charger: AC100-240V DC 12.6V
10.
Battery: Luminal-cell arrester 4.5AH
11. continuous use time for battery: approximate 8h
12. investigation depth: 20M/30M/50M/70M=65ft/98ft/164ft/229ft ( selectable line length)
13. material: fiber tube with /high intensity

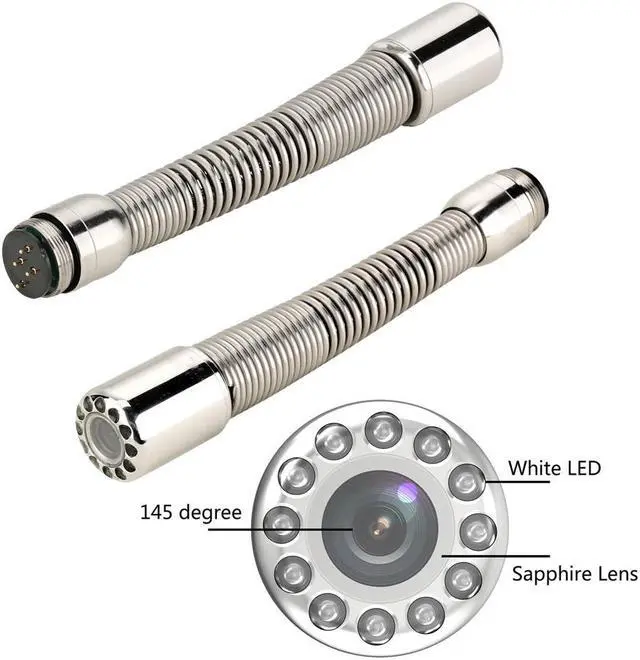

14. camera light source: 12 PCS LED with high while light (adjustable)
15. camera viewing angle: 145°
16.
Lens Mirror Material: Sapphire
17. camera size/material: 23MM* 40MM /stainless steel
18. camera protective cover parts size/material: 38MM* 28MM /plastic-steel
19. camera protective cover parts size/material: 90MM* 28MM /plastic-steel with wheel
20. camera picture: color
21.
Box Installation size: 520*369*248mm
22.
Package size: 590*440*325mm

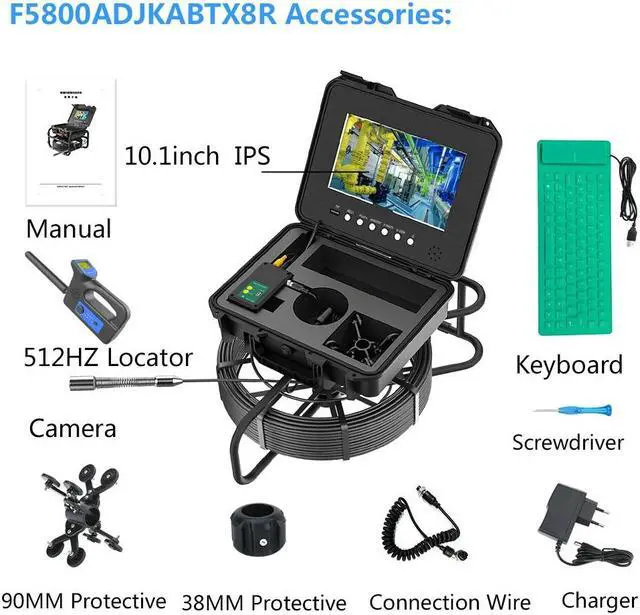

Package List:
1 * 10.1 inch IPS Monitor (DVR)
1 * Camera (Built in 512hz transmitter )
1 * 512Hz PIPE Locator
1 * 16GB TF Card
1 * 20M/30M/50M/70M=65ft/98ft/164ft/229ft Fiberglass Cable ----Optional
(Cable Diameter 7MM )
2 * Camera Proof Cover
1 * 4500mah Battery Box
2 * Charger
1 * Connection Cable
1 * Screw Driver
1 * User Manual (English)
