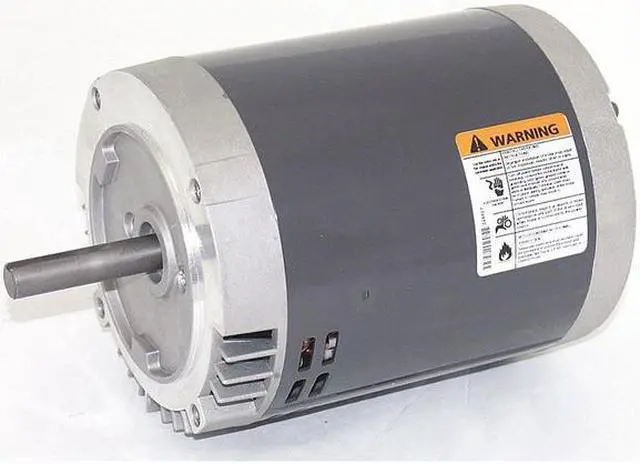

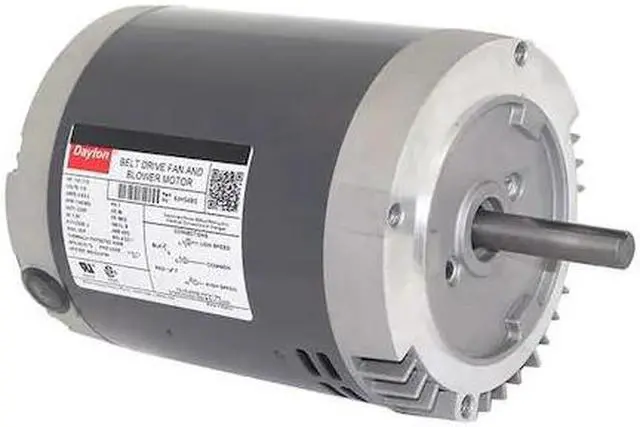

DAYTON 6XH54 Belt Drive Mtr,SplitPh,ODP,1/6HP,1140rpm
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Belt Drive Motor, Single Phase, Motor Design Split-Phase, 1/6, 1/15 HP, Nameplate RPM 1, 140/850, No. of Speeds 2, Voltage 115V AC, 4.2 / 3.1 A Full Load Amps, 56CZ Frame, 60 Hz Hz, Motor Service Factor 1.35, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Face, Motor Mounting Position All Angle, Motor Frame Material Rolled Steel, Shaft Dia.
5/8 in. This item has been restricted from sale in the following state (s): []
5/8 in. This item has been restricted from sale in the following state (s): []
