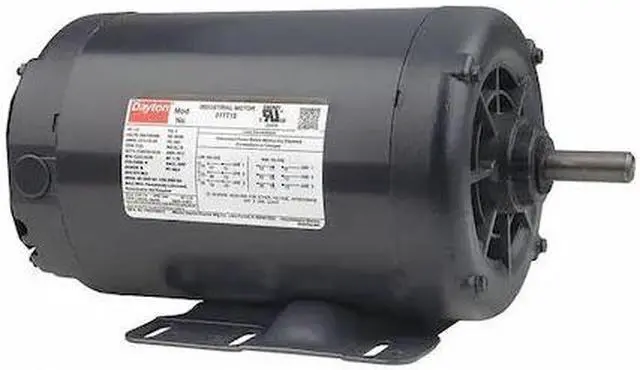

DAYTON 31TT13 Three-Phase General Purpose Motor, 1 1/2 HP, 56H Frame, 230/460V

California Proposition 65: This product contains a chemical known to the State of California to cause cancer. California Proposition 65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm.

The DAYTON - 31TT13 is a General Purpose Motor. This versatile motor is designed to power a broad range of applications in power transmission and pneumatics. It's engineered for efficient energy usage while providing necessary torque for demanding operations.


Key Features:


The motor shaft rotation is CW/CCW, crucial for ensuring proper operation in specific industrial applications.

It has an impressive nominal efficiency of 83.8%, indicating high filtration efficiency.

With insulation class B, it can withstand heat effectively impacting its performance and longevity.

Voltage compatibility ranges from 115V AC to 230V AC, allowing safe operation with different electrical inputs.

It operates at a voltage of 115/208-230V AC for optimal performance.

The motor service factor stands at 1.15, providing extra power when needed without overheating risks.

Nameplate RPM is set at 1725 for precise control over pneumatic tools' performance.

Compliant with UL (E47479) standards ensuring quality and safety requirements are met.

Offers horsepower (HP) of 1½ which indicates its capacity to drive pneumatic tools efficiently.

Can function optimally up to a maximum ambient temperature of 104 Degrees F.

Motor enclosure design: Open Dripproof offering better cooling but less protection.

Rigid base motor mounting type secures the motor onto compressor sturdily.

Ball type motor bearings reducing friction between moving parts enhancing operational efficiency.

Capacitor-Start/Run motor design influencing performance and operational costs.

Frame size: 56H determining compatibility with different types of compressors.

Continuous duty cycle allowing non-stop operation for high-demand settings.
