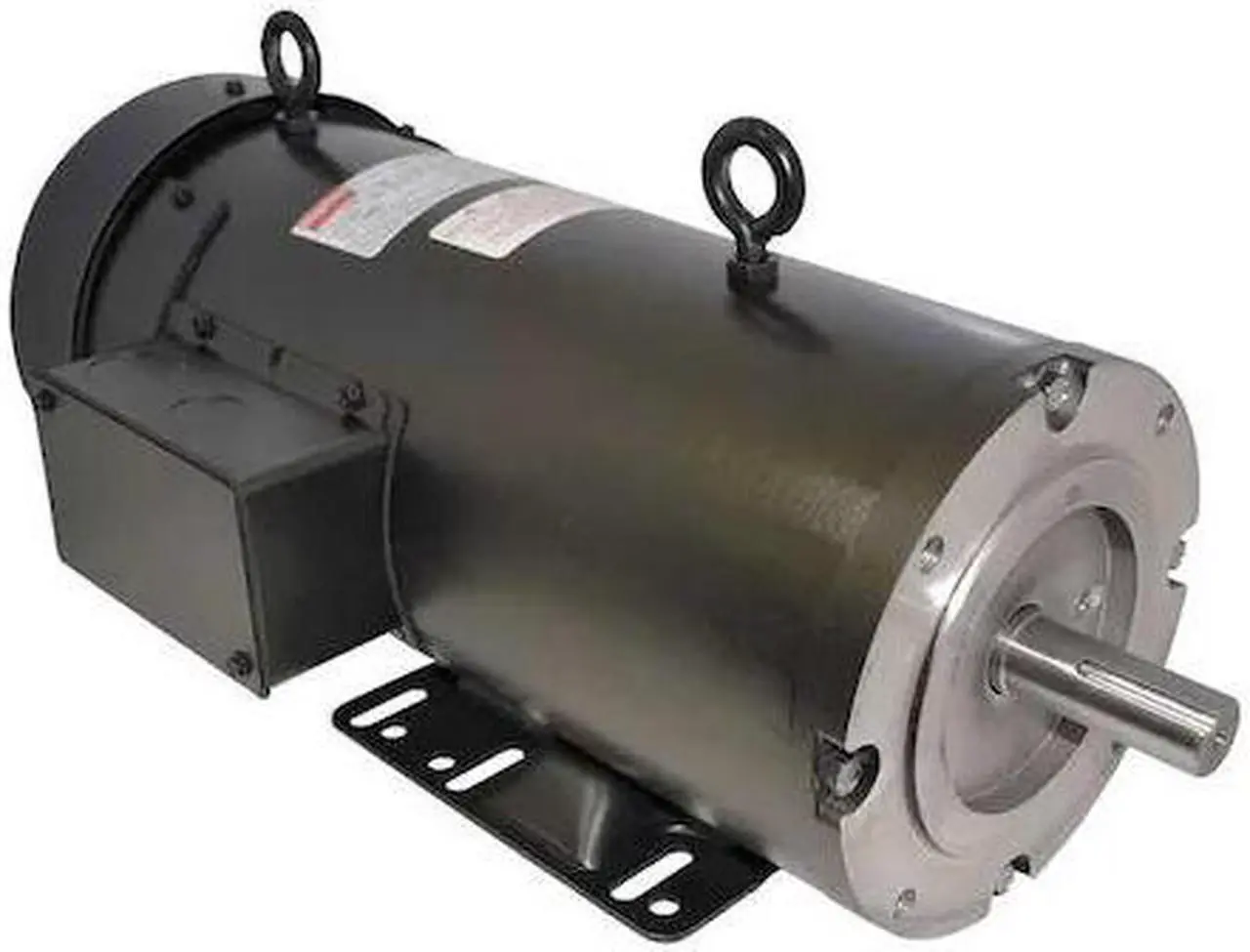

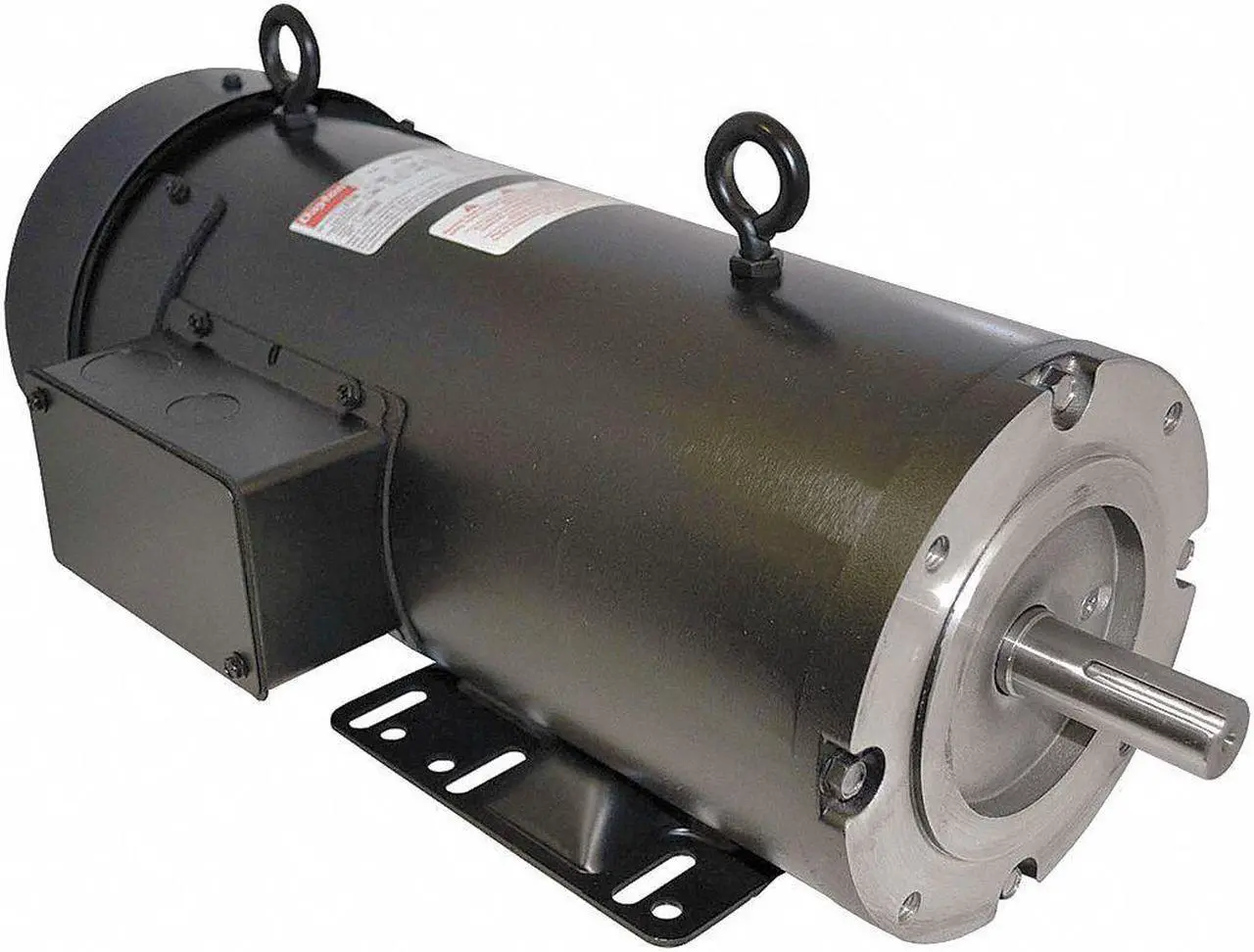

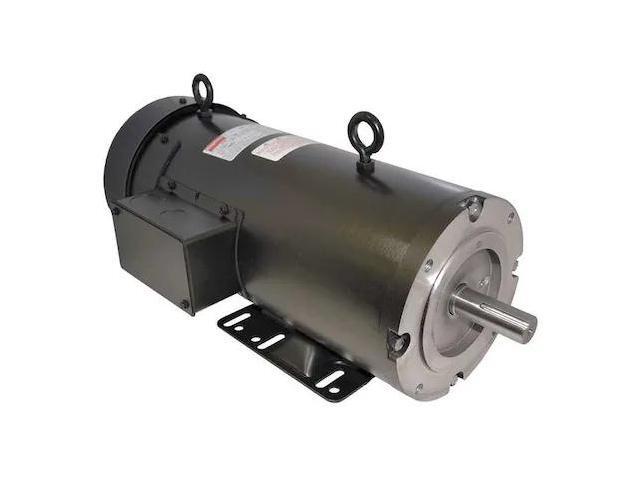

DAYTON 4Z379A DC Motor,PM,TEFC,1-1/2 HP,1750rpm,180VDC
- The brand for this item is DAYTON
- This item ships free
- This item ships directly from Zoro
+
+
Overview
Specs
Reviews
DC Permanent Magnet Motor, Motor Design Permanent Magnet DC, 1 1/2 HP, Nameplate RPM 1, 750, Voltage 180V DC, 7.5 A Full Load Amps, 143/5TC Frame, Full Load Torque 12 in-lb, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base, Removable Base Yes, Shaft Dia. 7/8 in, Motor Bearings Ball, Shaft Length 2 1/2 in.
