$616.99
Meet Your Seller

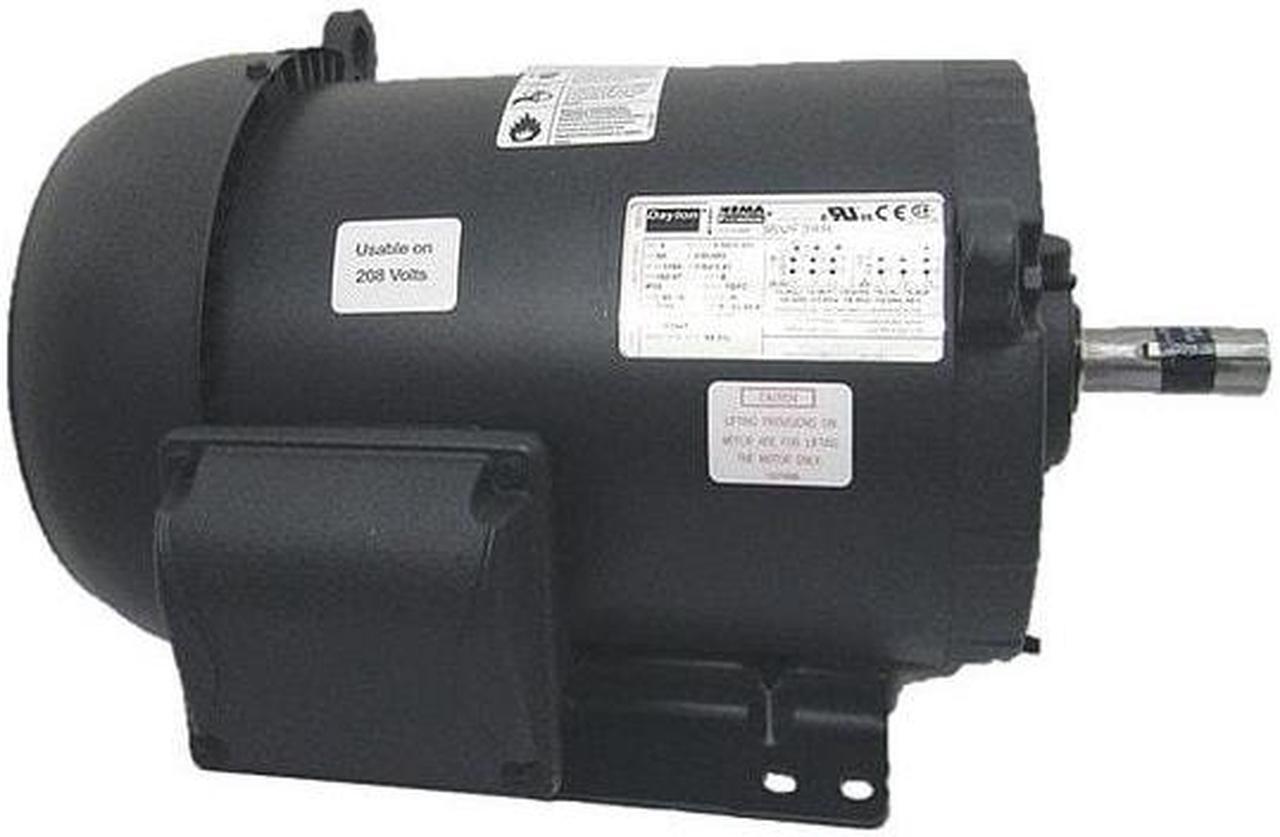

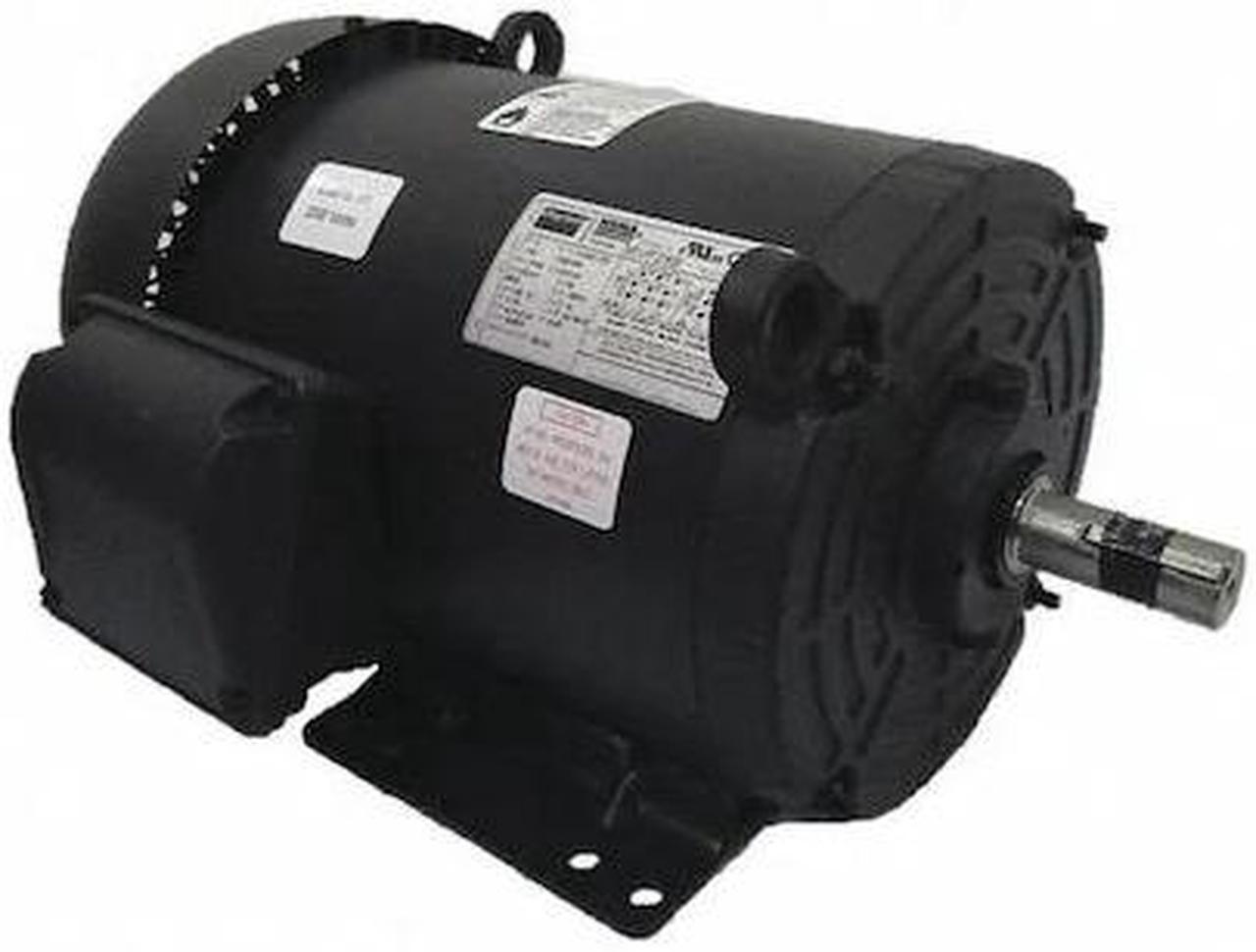

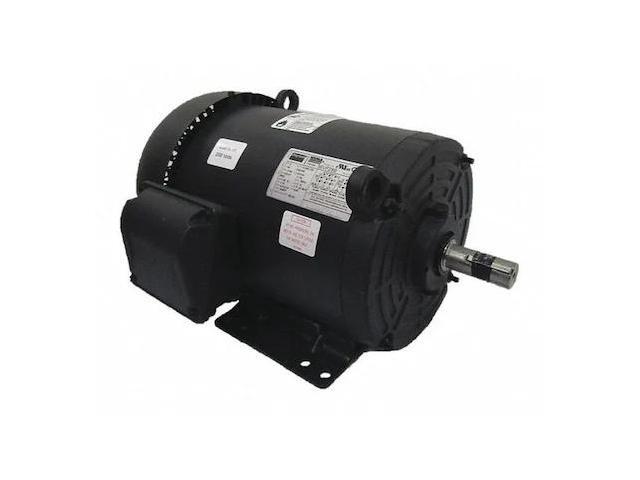

DAYTON 36VF28 GP Motor,TEFC,3 HP,1765 rpm,1-1/8in dia.
- Black
+
+
Overview
Specs
Reviews
General Purpose Motor, 3-Phase, Totally Enclosed Fan-Cooled, 3 HP, Nameplate RPM 1765, 182/4T Frame, Voltage 208-230/460, 60 Hz, 3 Phase, 8.4-7.6/3.8 Full Load Amps, No. of Speeds 1, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Thermal Protection None, Ins. Class F, 1.15 Motor Service Factor, Ball Motor Bearings, Frame Material Rolled Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Overall Length 17-15/16 In., Motor Shaft Design Keyed, Compliance Certification Number CC030A
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 90 days
- This item is covered by Zoro Return Policy
