$150.00
Sold by Prime Electronic Components
Shipped by Prime Electronic Components
Meet Your Seller

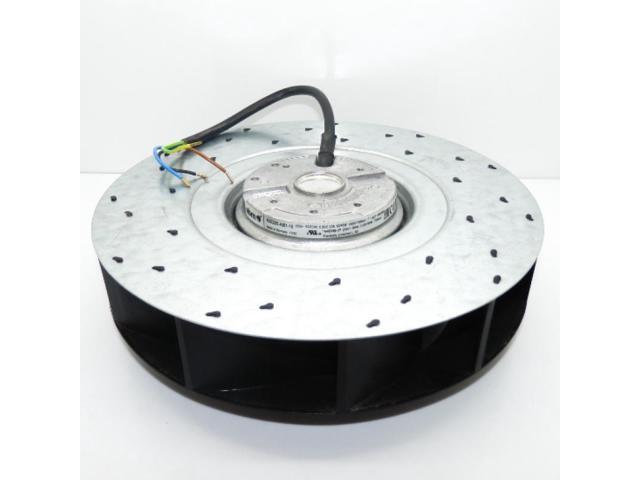

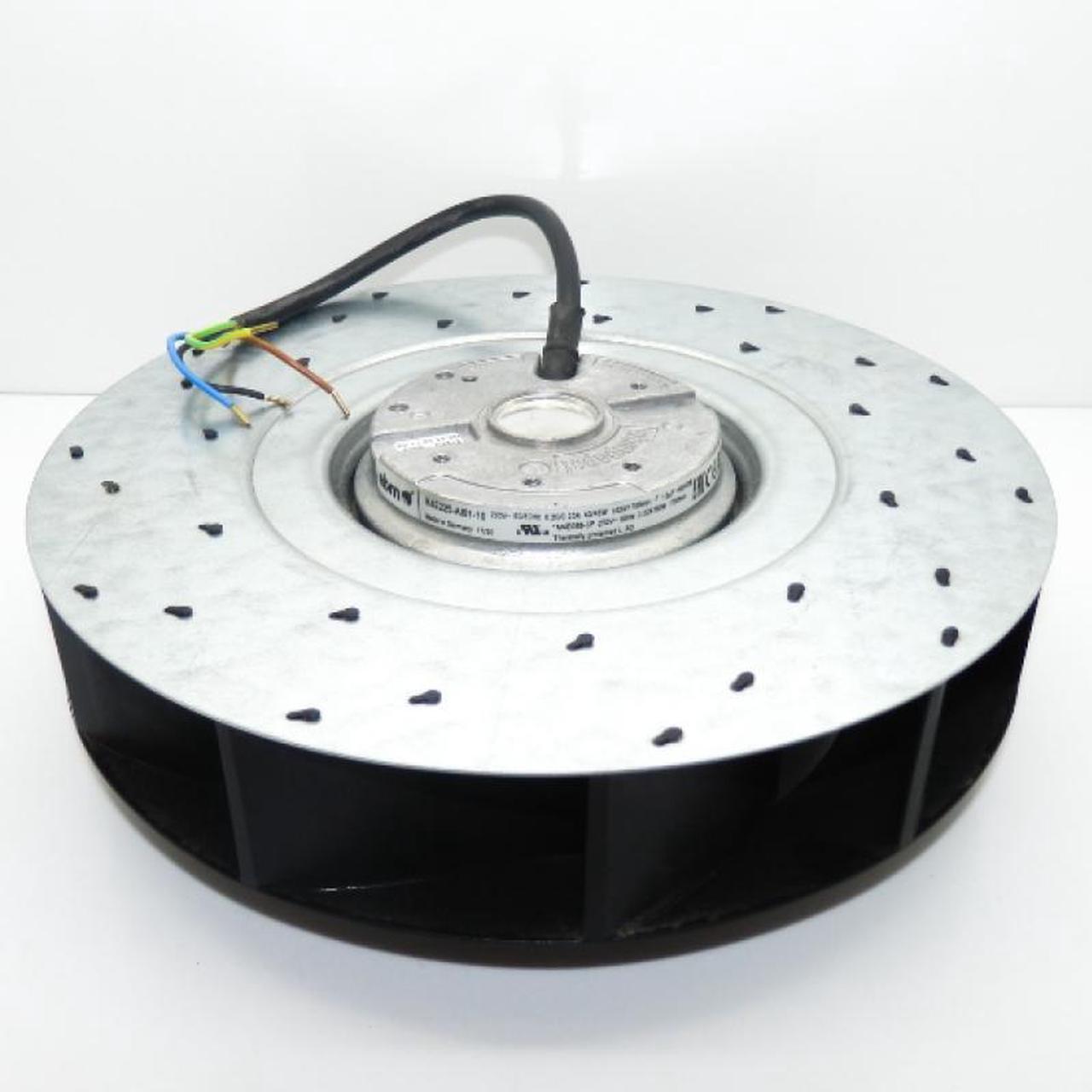

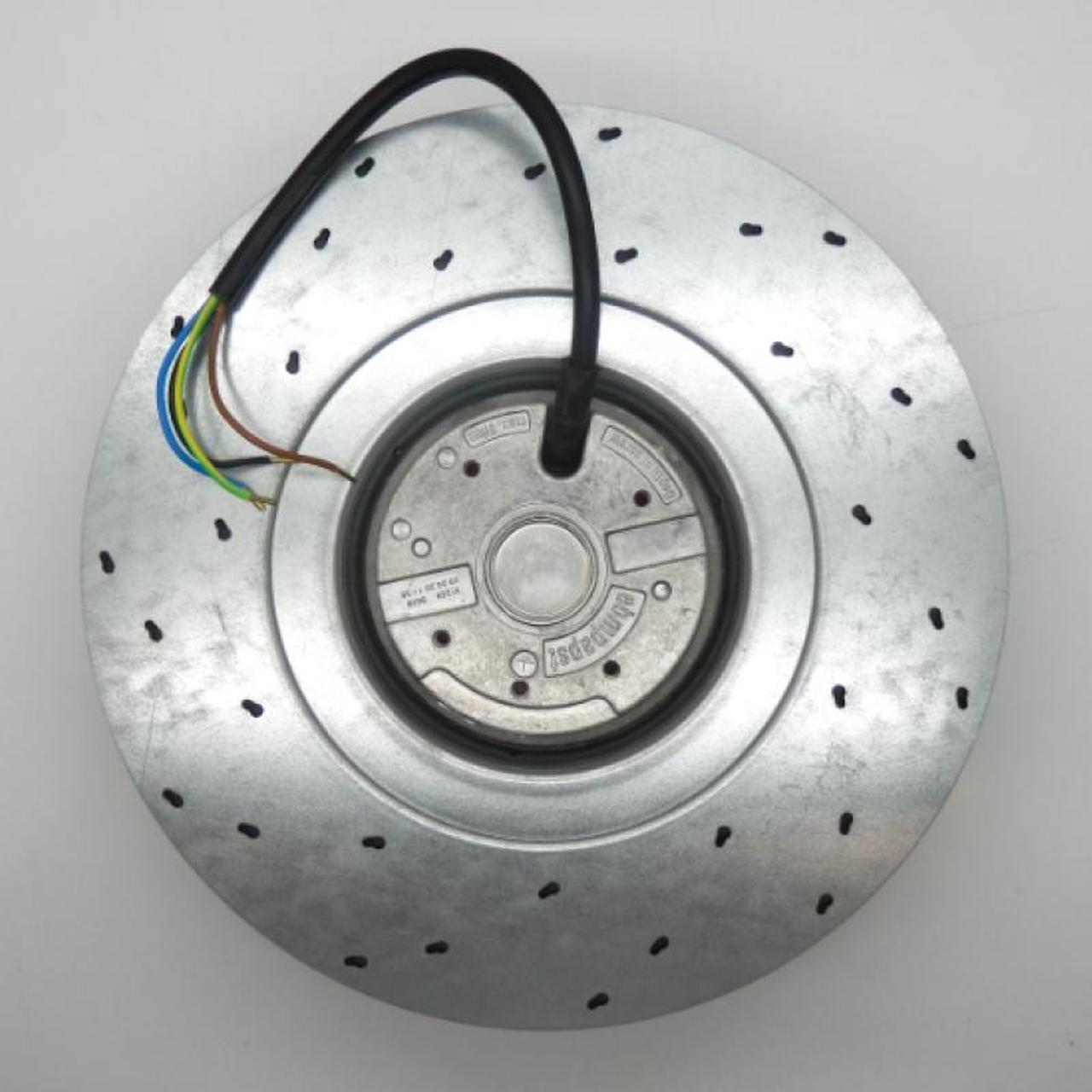

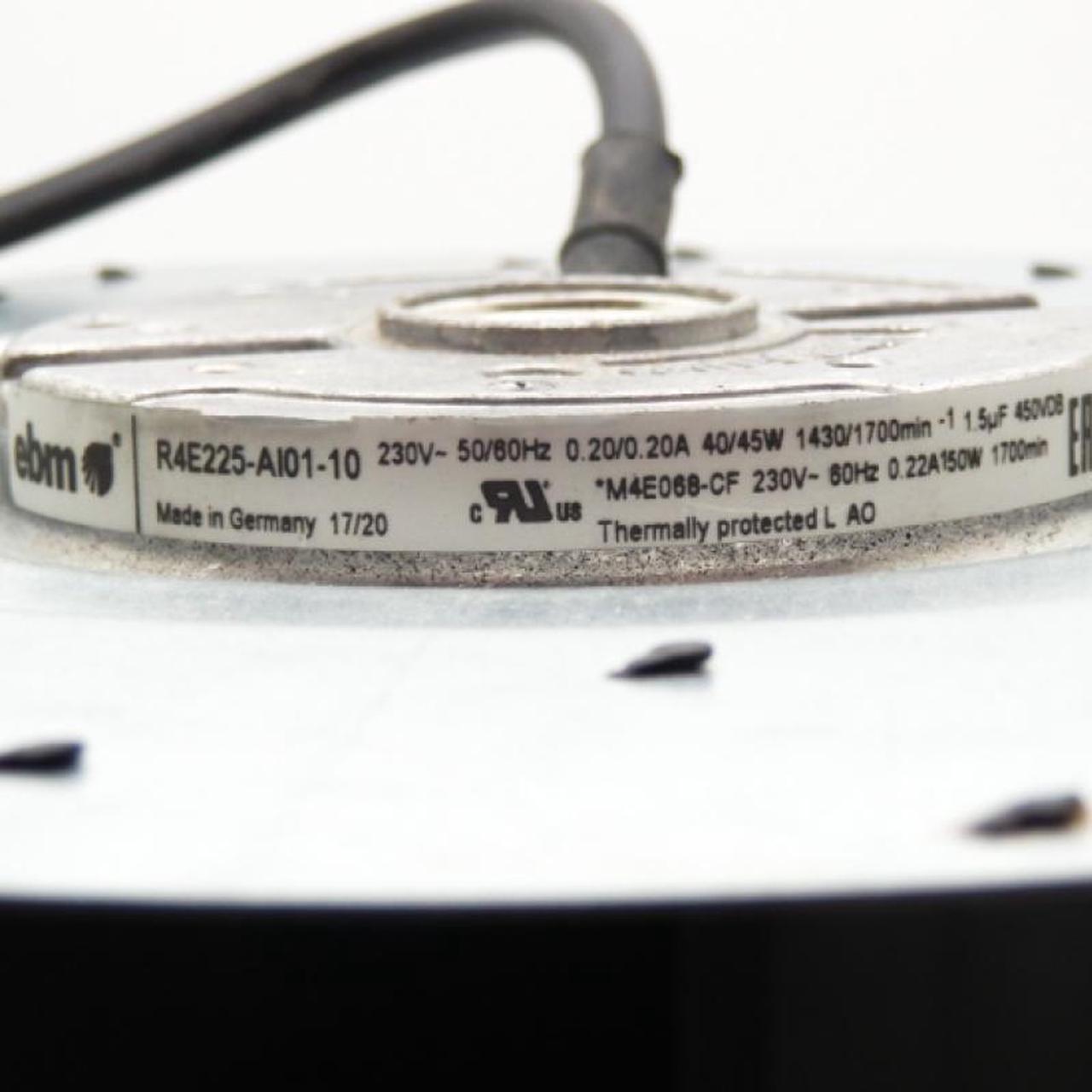

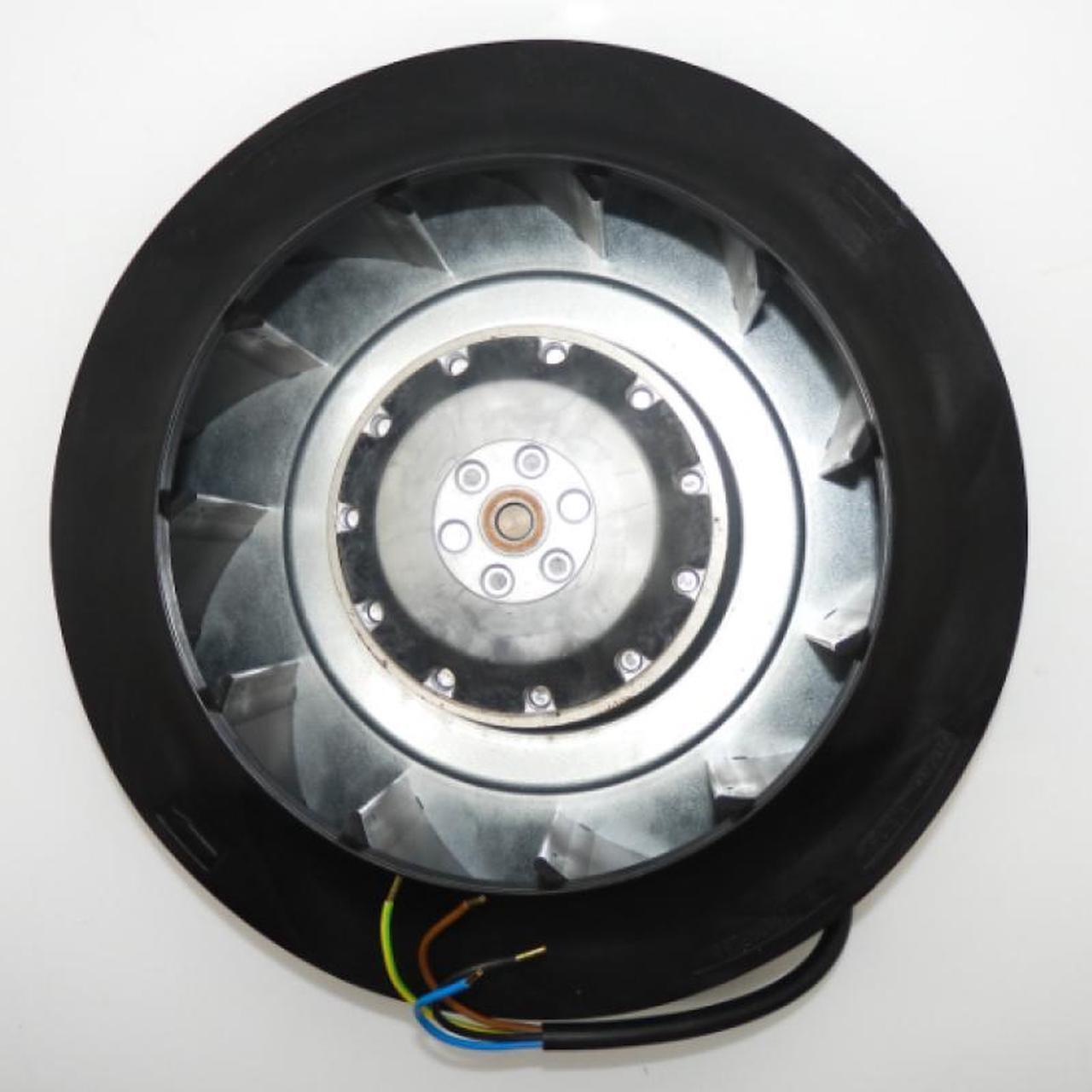

Ebm-Papst R4E225 Series Centrifugal Blower R4E225-AI01-10
- Air Flow: 265 CFM
- Bearing Type: Ball
- Capacitance: 1.5 uf
- Current Rating: 0.2 A
- Fan Type: AC
- IP Rating: IP44
- Noise Level: 61 dBA
- Nominal Voltage: 230 VAC
- Power Rating: 45 W
- Series: R4E225 Series
- Speed: 1700 RPM
- Temperature Range: -25 to 50 C °C
- Type: Radial
- Voltage Rating: 230 V
+
+
Overview
Specs
Reviews
Ebm-Papst centrifugal fans and blowers featuring backward curved blades are an ideal solution to a wide range of application requirements and are ideally suited for intake suction use. Additionally, Ebm-Papst centrifugal fans and blowers, specifically those used for intake suction using backward curved blades, do not require a scroll housing - increasing ease of use and versatility.
Specifications:
Specifications:
- Air Flow: 265 CFM
- Bearing Type: Ball
- Capacitance: 1.5 uf
- Current Rating: 0.2 A
- Fan Type: AC
- IP Rating: IP44
- Noise Level: 61 dBA
- Nominal Voltage: 230 VAC
- Power Rating: 45 W
- Series: R4E225 Series
- Speed: 1700 RPM
- Temperature Range: -25 to 50 C °C
- Type: Radial
- Voltage Rating: 230 V
