The-new-style Gas Fireplace Remote Control Thermostat Kit For Millivolt Gas Fireplace

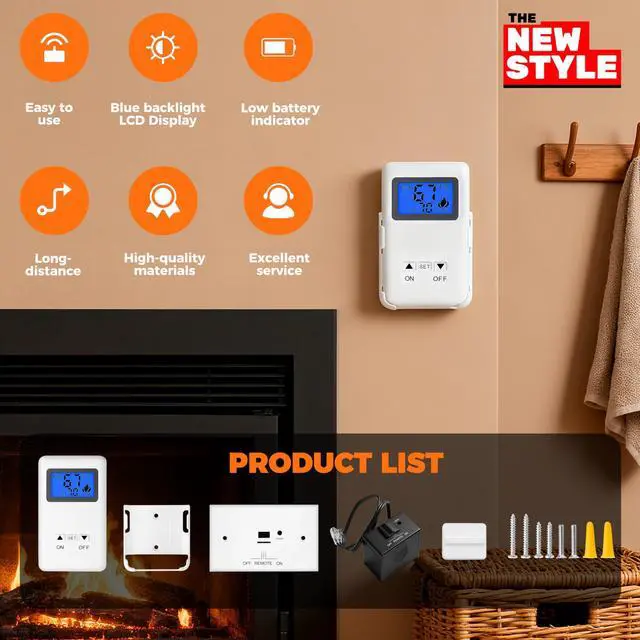

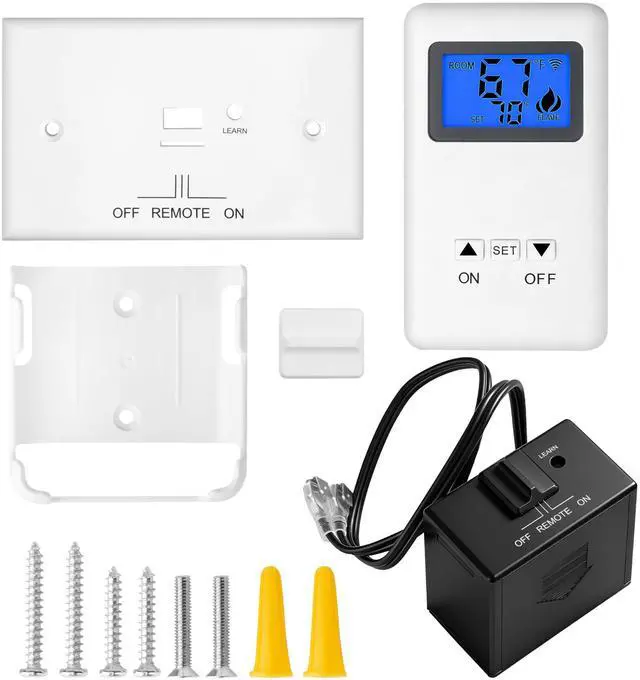

INCLUDE : Remote, Receiver, Wall plate, Wiring to connect receiver to valve System - 6 Screws (For Wall Cover Plate and Remote Control)

• Attention: This Kit Does Not Work With Latching Solenoid Gas Valve Systems Please Read Your Fireplace Directions For Correct Application Before Purchase.

Features :

• Easy Access Thermostatic Control

• Battery Powered Transmitter and Receiver

• Low Battery Indication

• Child Proof Lock-out

• 16 Security Codes

Remote Overview

• Fireplace Remote Control and Receiver With AUTO Thermostat Function

• Remote Control Has a Blue Backlight For Better Vision at Night

• Remote Allows You To Turn Your Gas Logs on/off or Set The Temperature You Want

• It Can Direct Replacement For SKYTECH - Ambient -Majestic - Monessen - Vermont Castings Fireplaces and Stoves

• This Wireless Thermostatic on/off/ Remote Control System Provides a Safe, Reliable, and User Friendly Remote Control for Millivolt Valve Gas Appliances

• The System Can be Thermostatically or Manually Turned on And off With The Transmitter

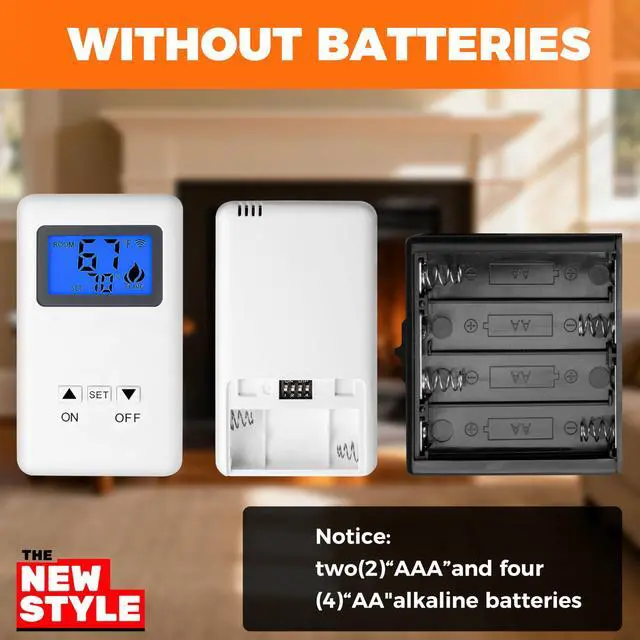

• This Remote Control Requires Two (2) “AAA (batteries not included)

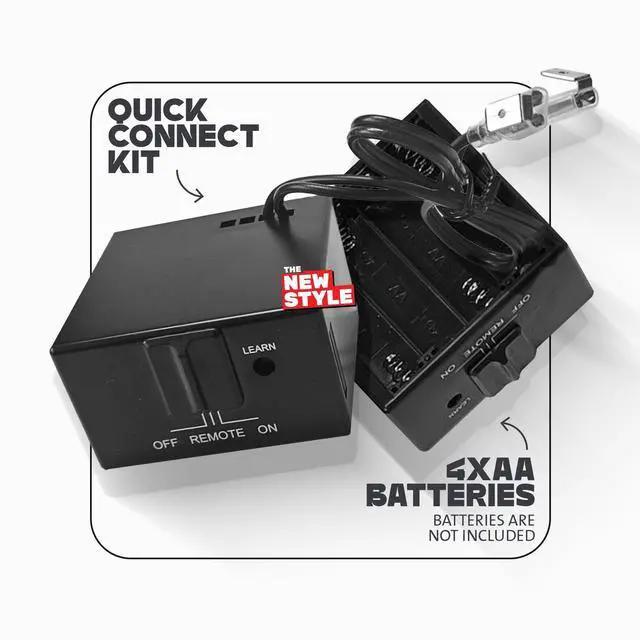

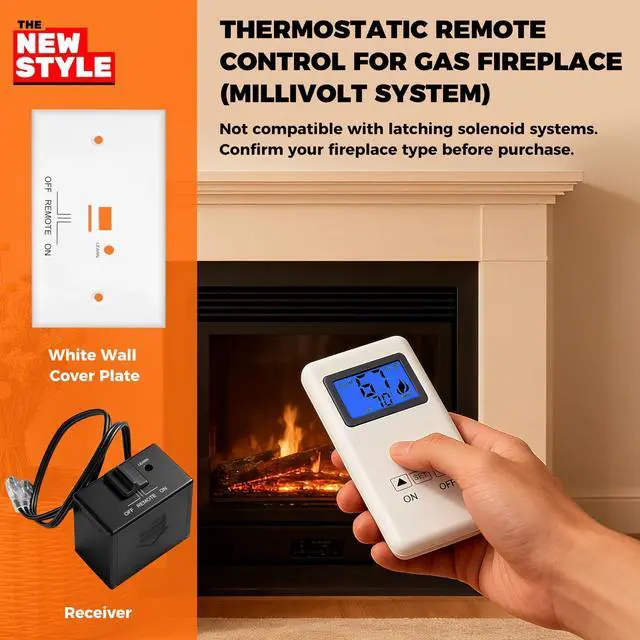

Receiver Overview

• Receiver Connects To Any Standard Millivolt Gas Valve System

• Easy Access To The Receiver's Battery Compartment Uses a Sliding Battery Cover

• The Receiver Have a Learn Button

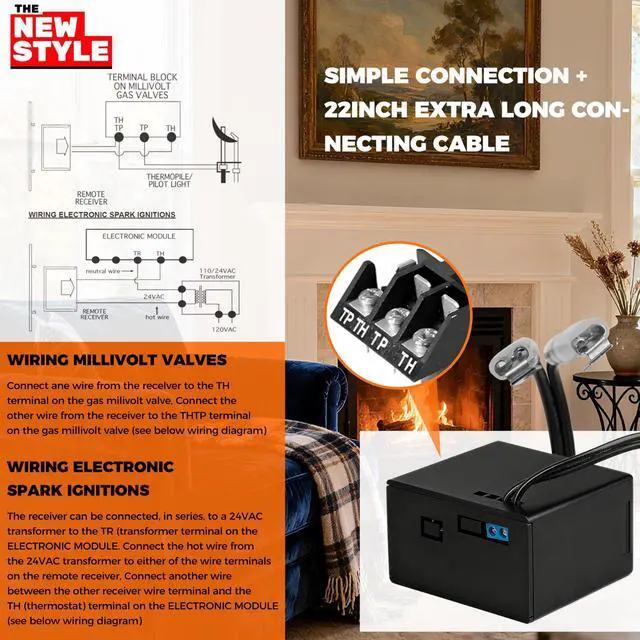

• Pre-Programmed For Quick Installation , Connect The Two Terminals To The (TH ) and( TH/TP) Terminals In The Millivolt Valve

• This Receiver Requires Four (4) “AA” Batteries (Batteries Not Included)

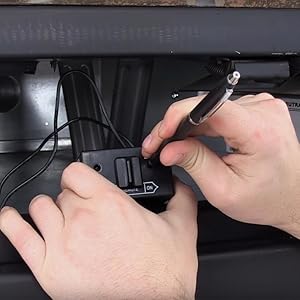

LEARNING TRANSMITTER TO RECEIVER

-1-The transmitter privacy (DIP) Switches are preset at the factory. Setting the 4 bits DIP Switches on transmitter to select a security code.

-2- Put the receiver slide switch to “REMOTE” location. Using a small screwdriver or end of a paper clip gently press and hold the ‘LEARN ‘button on the receiver to accept the transmitter security code upon initial use, when you release the LEARN button the receiver will emit an audible 3 “beep” sounds.

-3- After the receiver emits 3 “beep” sounds. Press the transmitter “ON “or “OFF” button and release at once. The receiver will emit several beeps indicating that the transmitter’s code has been accepted into the receiver.

Note:( If matching failed from the the first attempt please repeat step 1-3 )

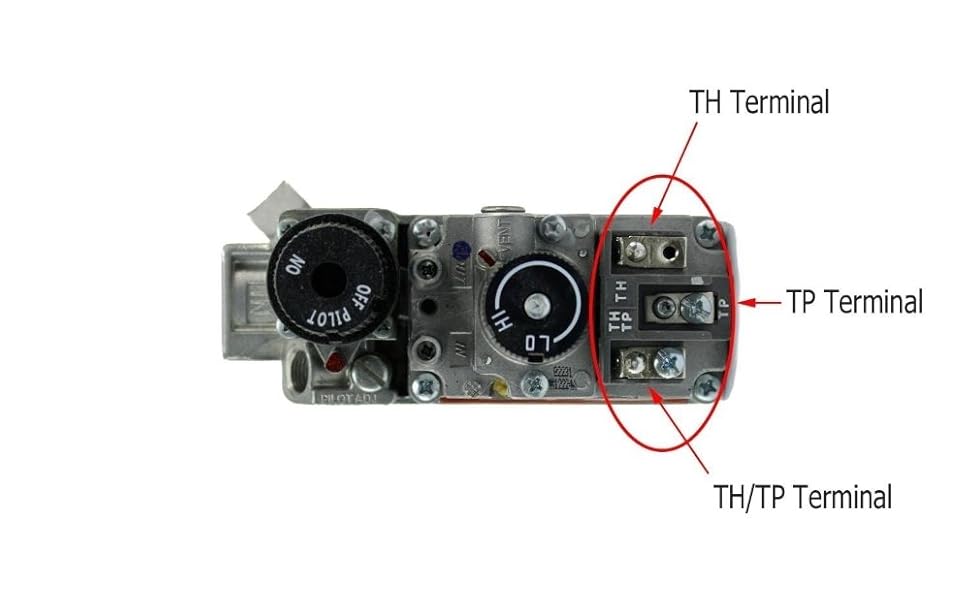

Millivolt Valve

This Remote Control System is Designed For Use With a Millivolt Or 24V Gas Valve System Only

• It can Direct Replacement For SKYTECH - Ambient -Majestic - Monessen - Vermont Castings Fireplaces and Stoves

• Always Check The appliance Home Owner’s Manual For Additional Information, Or Warnings Regarding Accessory Installation Before Connecting This Remote Control System

• Do Not Use This Remote Control System On Applications With Voltages Above 24 Volts AC/DC And 1 Amp Current

• Do Not Short (Or Jumper) Across The Gas Valve Terminals To Test The Remote Control Installation

• Attention: This Kit Does Not Work With Latching Solenoid Gas Valve Systems Please Read Your Fireplace Directions For Correct Application Before Purchase.

TROUBLESHOOTING

Battery icon on the remote	Low Batteries ,Solution is to Replace batteries.
LCD Display is blank	Check battery installation and replace batteries.
Receiver beeping every minute	Receiver Low Battery .Solution is to Replace batteries.
Fireplace does not turns on.	DIP (Privacy) switch setting on transmitter does not match receiver , Solution is : . Make sure the transmitter dip switch is matched to the receiver.
Fireplace does not turns on.	Transmitter measures temperature exceeding 99 degrees and shows “HI” on LCD display. Solution is to Move transmitter to a cooler place and wait until temperature drops below 99 degree.
Fireplace does not turns on.	Distance between the transmitter and receiver is more than 30 feet , Solution is to Make sure the operating distance is less than 30 feet
Receiver no signal	1.Receiver is installed in an enclosure , Solution is to Make sure the receiver is not inside a tight enclosure.
