For RIELLO Controller Control Box 530SE 530E Compatible for RIELLO 40G Oil Burner Controller Electric Eye (Controller+Base+Electric eye)

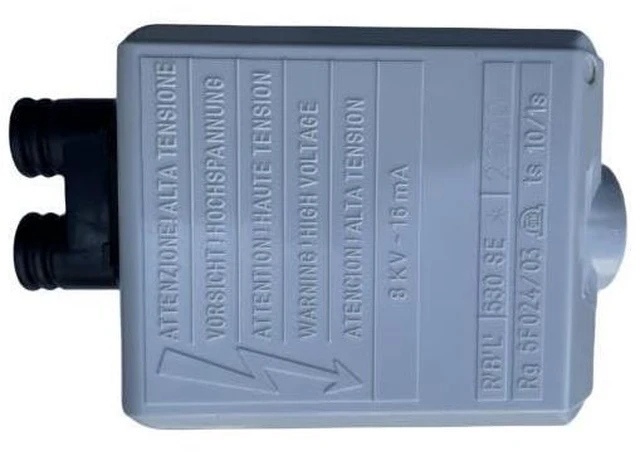

QJGTDS 530SE 530E Oil Burner Controller Set

This controller control box assembly is designed for compatible 40G series oil burner applications. The package includes the 530SE 530E controller, matching base, and electric eye photocell component for replacement and maintenance needs.

Compatibility

• Compatible with selected 40G series oil burners
• Applicable model references include G3, G5, G10, G20, G5LC, G10LC, G20LC, and G20S
• Confirm the existing burner model, wiring configuration, and terminal arrangement before ordering

Technical Features

• Single-stage fire control design
• Supports systems using a 1 x 8 kV igniter
• Includes a photocell plug-in terminal

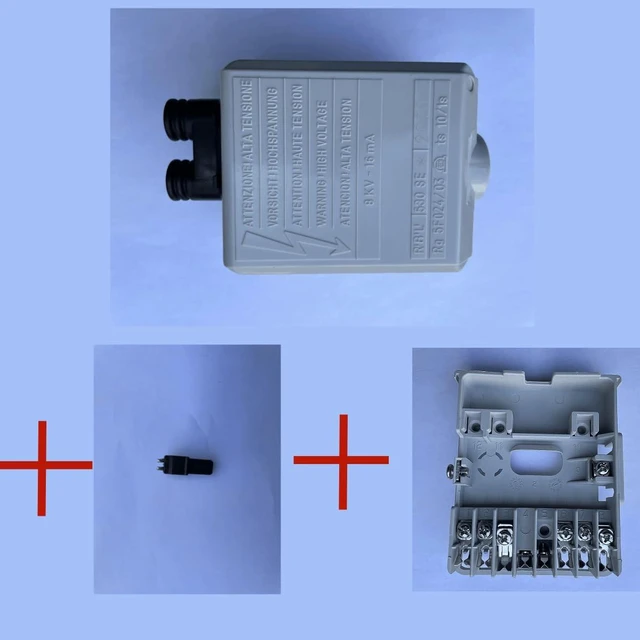

• Package configuration: controller, base, and electric eye
• Country of origin: China

Installation Precautions

1. Keep all controller terminal wiring properly insulated from the high-voltage ignition cable.
2. Do not confuse the live wire with the neutral wire.
3. Install switches, fuses, grounding, and related protection in accordance with applicable electrical wiring rules.
4. Verify that the terminal block current rating is not exceeded.
5. Never connect the input power supply to the combustion controller output terminal.

Installation should be performed by a qualified technician familiar with oil burner controls and electrical safety procedures. Disconnect power before servicing and verify compatibility before installation.

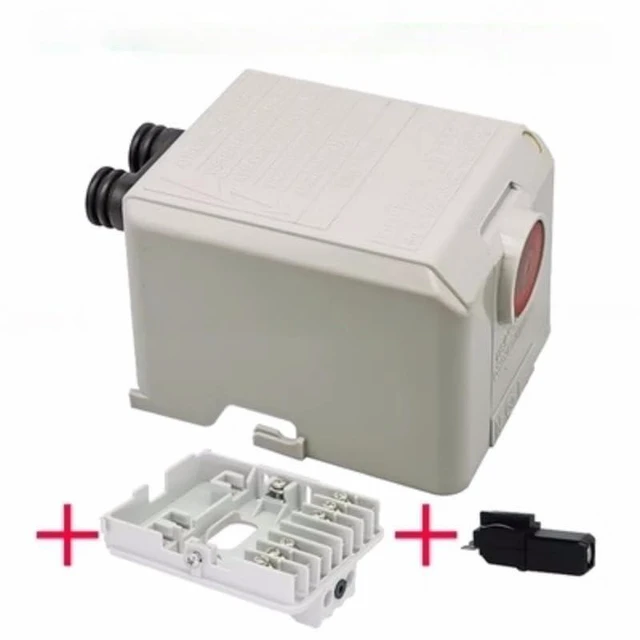

Package Includes: 1 x 530SE 530E controller, 1 x controller base, and 1 x electric eye.
