Time Switch Relay,Digital LCD Programmable Timer,12V DC/AC Input,200-250V 16A Output,28 Programs Daily/Weekly Schedule,CN101A for Lighting and Equipment Control
- 12V DC/AC Input Voltage , 200-250V Output Voltage12V DC/AC control input for safe operation with 200-250V AC power output for load switching
- Dual-Mode Programmable ControlOffers automatic scheduling with 28 on/off settings or instant manual control for complete flexibility
- User-Friendly LCD InterfaceFeatures a clear backlit LCD screen for easy programming and real-time status viewing in any lighting condition

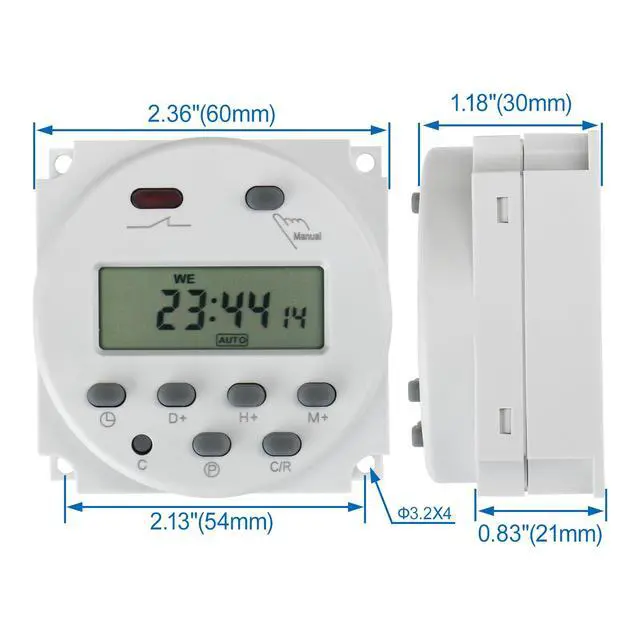

- Standardized Panel-Mount DesignFeatures a 4-pin configuration compatible with 1/4" female connectors, designed for secure installation in panels with 3.2mm (approx. 1/8") mounting holes
- Built-in Battery BackupWhile the timer runs on main input power, its integrated lithium battery preserves your schedules and supports setup if power is lost
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product OverviewThe BAOMAIN CN101A digital timer provides precise scheduling control for electrical devices. With 28-program capacity and 16A relay rating, it offers reliable automation for lighting, equipment, and control systems.
Technical SpecificationsInput Voltage: 12V DC/AC
Output Voltage: 200-250VAC 50/60Hz
Power reserve: 3 years
Power consumption: <1W
Load Capacity: 16(8)A 250V AC
Mounting type: Panel mount
Maximum Program Capacity: 28 on/off settings
Time Setting Range:1Minute-168Hours
Time Accuracy: ±1 second per day(77°F /25°C)
Backup Battery: CR2032 (included)
Display: LCD with backlight
Operating Temp: -4°F to 131°F (-20°C to 55°C)

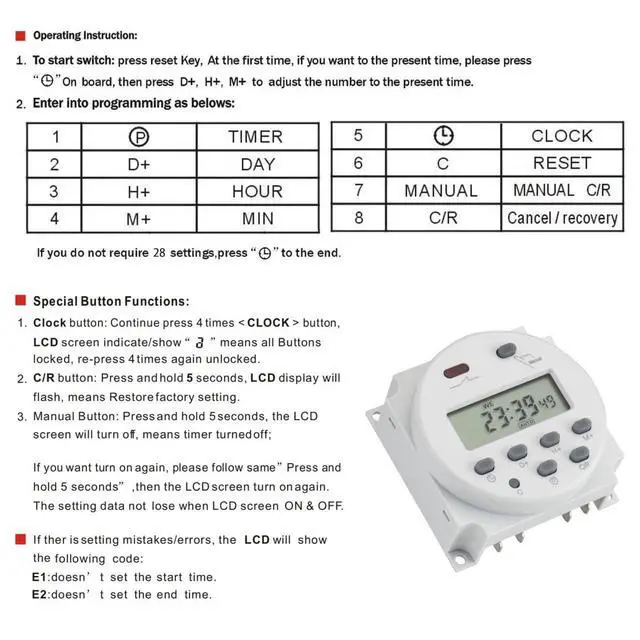

Key FeaturesProgrammable Control: Features daily & weekly programming with 28 on/off settings and one-week presetting capability.
Operation Modes: Switch between Automatic and Manual control
Memory Protection: Battery backup to preserve settings in case of power loss.
Important Setup Note
The timer is powered by the rated input voltage. The built-in battery serves solely for memory backup during power outages.
If the screen is off, please connect to the input power to wake the display. Once lit, proceed with system settings.
