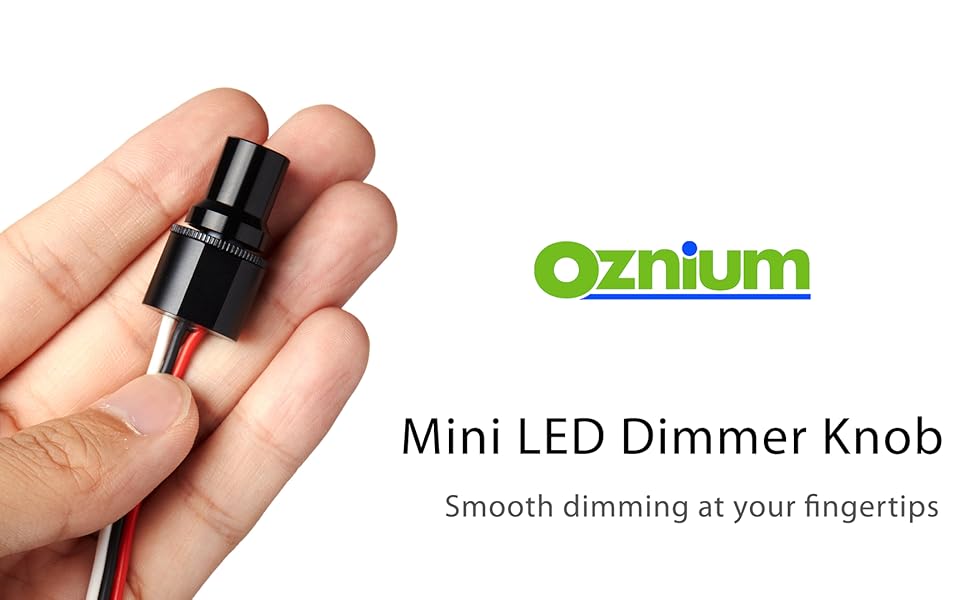

100% Oznium exclusive. Designed from the ground up, to be small and fully waterproof. With a simple turn of the knob, you can dim down, or brighten up your LEDs. Turn the knob all the way to the left and it will "click" off. Turn the knob clockwise and the brightness gradually increases from 0% to 100%. The best benefit for you: this mini LED dimmer easily mounts to a panel. So all the electronics are hidden away, and you're left with just a tiny knob.
Most Popular Applications
Automotive Lights Dimming
Mount on your car dashboard to dim all of the interior and exterior lights at your fingertips
Boat Lights Dimming
Whether you want to dim the deck lights or courtesy lights on your boat, our IP67 waterproof mini LED dimmer knob is what you need.
Home Lights Dimming
Work perfectly with any 12-24V lightings at home, such as ceiling lights, cabinet lights or step lights.
Commercial Lights Dimming
Small size with highest build quality. Our mini LED dimmer knob can be used in a wide range of commercial and industrial applications.
Mounting and Wiring are SIMPLE

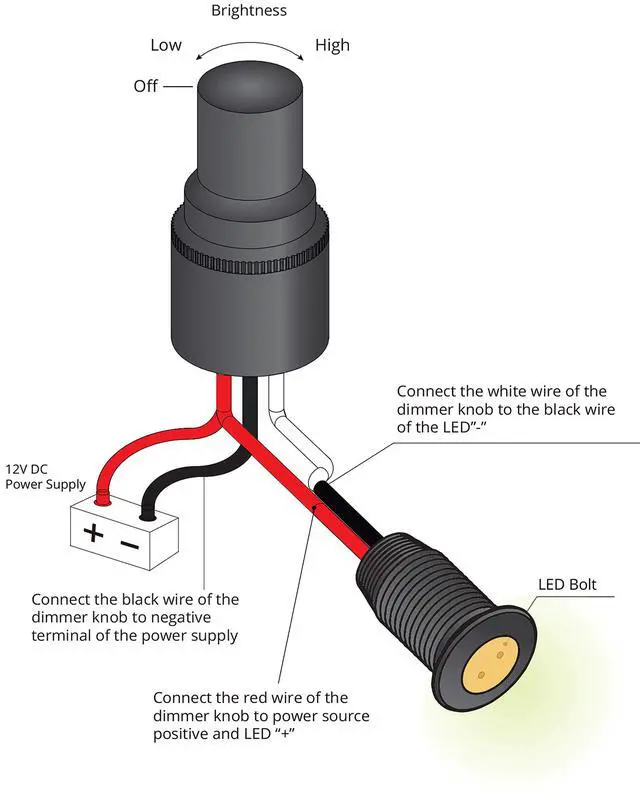

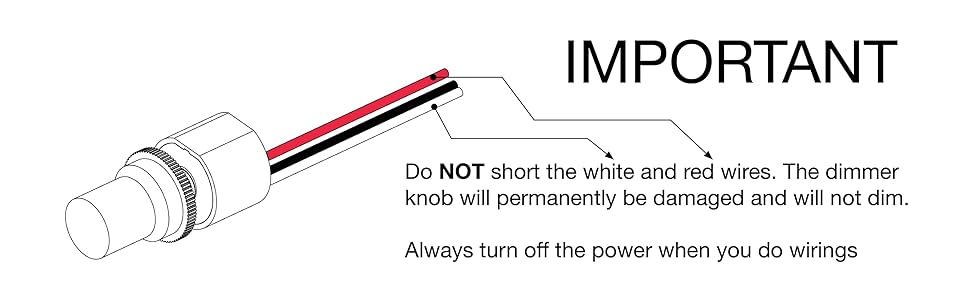

Just pull the pressure-fitted knob straight off, loosen the washer/nut, and attach to a hole drilled in a panel (diameter of about 10mm, or 3/8"). Hook up your 12-24V power supply + and LED + to the RED wire, 12-24V power supply - to the BLACK wire, and then LEDs - to the WHITE wire.
Huge Amperage Rating
Each Mini LED Dimmer Knob can handle 12-24V LEDs, up to 4.8 amps current.
Ultimate Waterproof
Our Mini LED Dimmer Knob is waterproof and IP67 certified.
Virtually Unbreakable
Housed in a durable anodized aluminum housing encapsulated in ultra-tough silicone. It's built to work for many years
Environmentally Safe
Free from hazardous substances. RoHS Compliant.
 Oznium Mini LED Dimmer Knob |  Oznium Regular LED Dimmer Knob | |
|---|---|---|
| Customer Reviews | — | — |
| Price | — | — |
| Operating Voltage Range | 12-24 VDC | 8-20 VDC |
| Current Rating | 4.8A at 12VDC / 2.4A at 24VDC | 6A at 12VDC |
| Dimming | PWM | PWM |

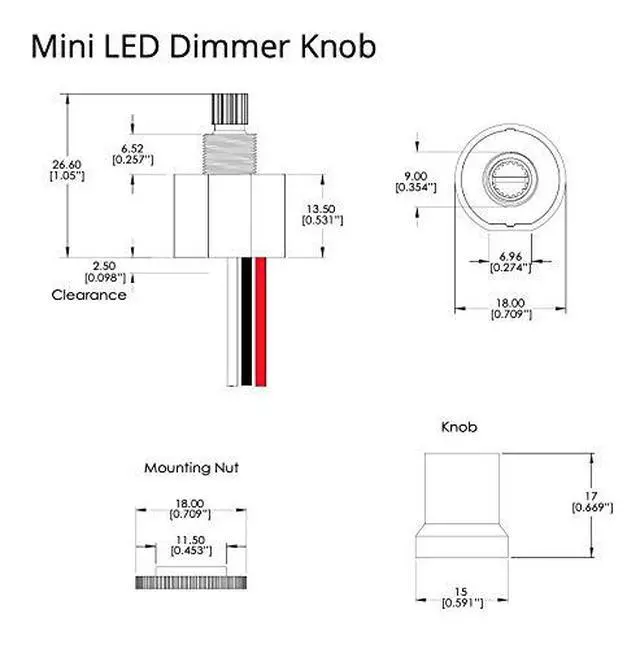

| Dimension (L x W x H) | 0.53" x 0.71" x 0.71" | 1.54" x 1.27" x 0.98" |
| Waterproof | ? | no data |
| Max Panel Mounting Thickness | 4.5mm (about 0.18") | 5mm (about 0.2") |
| Hole Size for Installation | 10mm (about 3/8") | 10mm (about 3/8") |
| Standby Current | 3mA at 0% "off" state | 3mA at 0% "off" state |
| Housing Material | Anodized Aluminum | Bare PCB |
| Protection | Reverse Polarity Protection | Reverse Polarity Protection |
