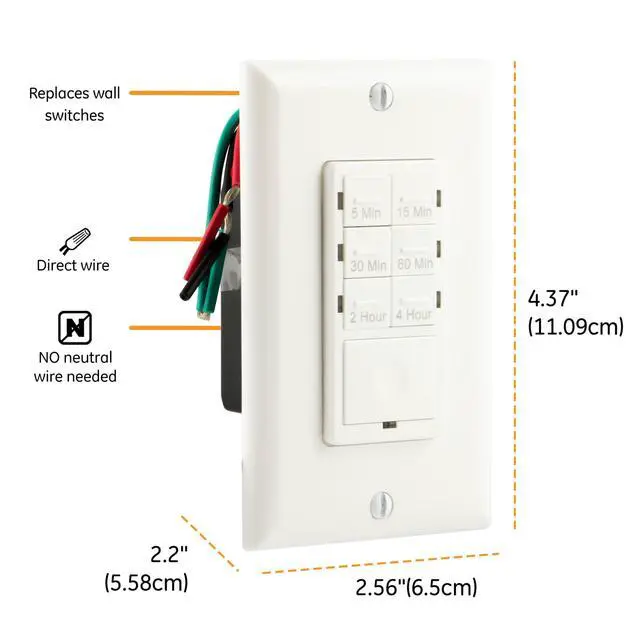

Easy Direct Wire Installation
The in-wall countdown timer has an easy direct wire installation, making it easy for you to replace your wall switch.
Fits Single/Multi-Gang Rocker Plates
This countdown timer includes a single decor wall plate and fits most single or multi-gang rocker plates.

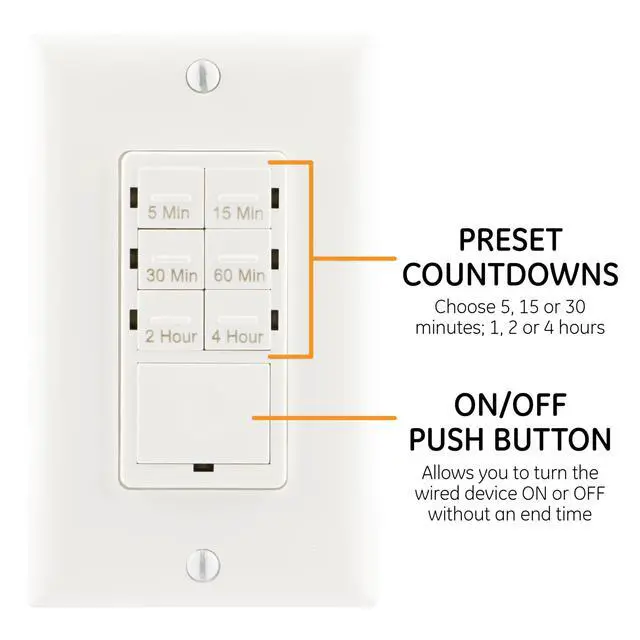

6 Countdown Presets
With 6 countdown preset options, you can choose from 5 min. up to 4 hours to shut off device at desired time.
No Neutral Wire Needed
No neutral wire is need to install, but a ground wire is required.
In-Wall Countdown Versatility and Uses
Turn lights ON/OFF with this countdown timer to help keep your home secure. By automating your lights, this timer gives your home a lived-in appearance even when you are away.
Compatible with LED, CFL and incandescent bulbs, the timer supports a wide range of plug-in lighting.

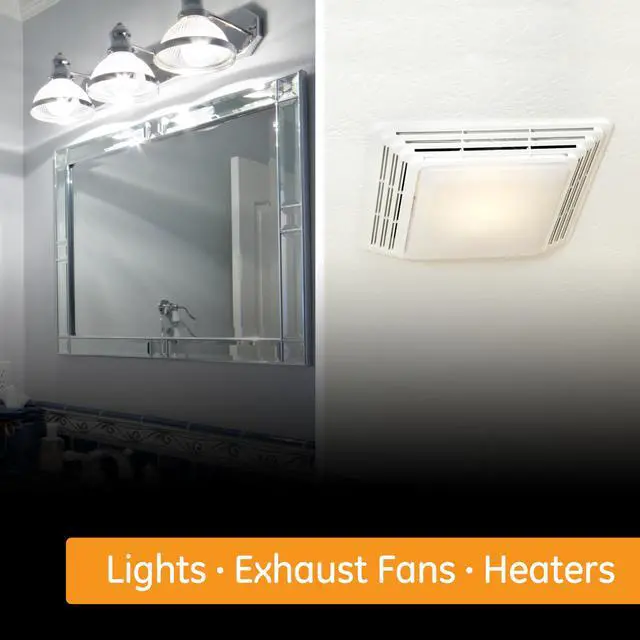

The timer’s versatility is not limited to lights. It can also be used for ceiling fans, exhaust fans, heaters and more. The timer is rated for 125VAC/60Hz and UL certified.

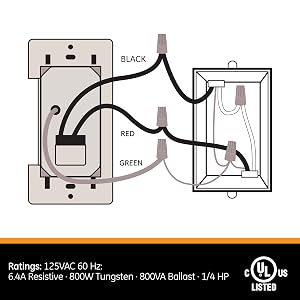

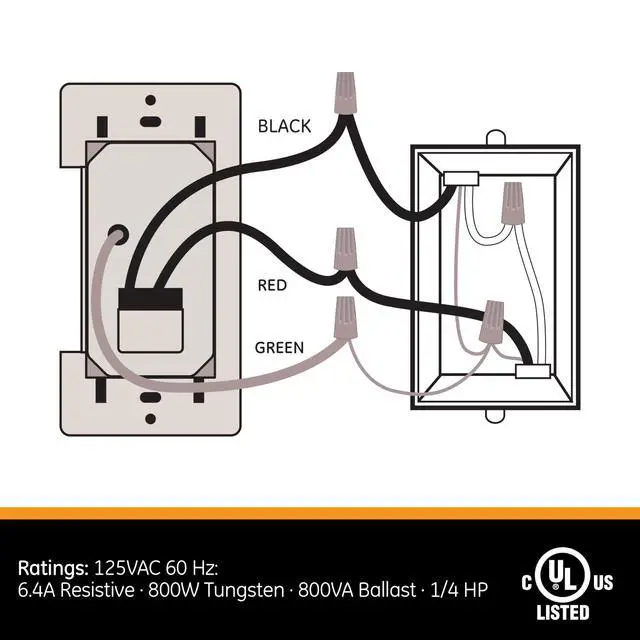

Easy Installation
- Shut off power to fuse box or circuit breaker before installation.
- Remove wall plate and existing single pole switch, if applicable.
- Strip building wire to 3/8”.
- Connect wires using the provided twist-on connectors.
- Tuck the wires into the box leaving enough room for the timer then mount using screws provided and screw wall plate into place.
- Restore power at fuse box or circuit breaker.
Have Questions?
Jasco Products Company designs and develops products to simplify your life and connect your home. We at Jasco want to make sure you are happy with your purchase. Our U.S.-based call center associates are trained on our products and are here to answer any questions or concerns you might have.
7:00am – 8:00pm
Monday - Friday
Operation
For timed switching, simply press the 5, 15, 30 min., or the 1, 2, 4 hour pad on the face of the timer.
To turn lights on with no end time push and hold big button for 3 seconds. Lights will stay on until big button is pressed to turn off lights.
Easy Direct Wire Installation
The in-wall countdown timer has an easy direct wire installation, making it easy for you to replace your wall switch.
Fits Single/Multi-Gang Rocker Plates
This countdown timer includes a single decor wall plate and fits most single or multi-gang rocker plates.
6 Countdown Presets
With 6 countdown preset options, you can choose from 5 min. up to 4 hours to shut off device at desired time.
No Neutral Wire Needed
No neutral wire is need to install, but a ground wire is required.
In-Wall Countdown Versatility and Uses
Turn lights ON/OFF with this countdown timer to help keep your home secure. By automating your lights, this timer gives your home a lived-in appearance even when you are away.
Compatible with LED, CFL and incandescent bulbs, the timer supports a wide range of plug-in lighting.
The timer’s versatility is not limited to lights. It can also be used for ceiling fans, exhaust fans, heaters and more. The timer is rated for 125VAC/60Hz and UL certified.
Easy Installation
- Shut off power to fuse box or circuit breaker before installation.
- Remove wall plate and existing single pole switch, if applicable.
- Strip building wire to 3/8”.
- Connect wires using the provided twist-on connectors.
- Tuck the wires into the box leaving enough room for the timer then mount using screws provided and screw wall plate into place.
- Restore power at fuse box or circuit breaker.
Operation
Have Questions?
Jasco Products Company designs and develops products to simplify your life and connect your home. We at Jasco want to make sure you are happy with your purchase. Our U.S.-based call center associates are trained on our products and are here to answer any questions or concerns you might have.
7:00am – 8:00pm
Monday - Friday
For timed switching, simply press the 5, 15, 30 min., or the 1, 2, 4 hour pad on the face of the timer.
To turn lights on with no end time push and hold big button for 3 seconds. Lights will stay on until big button is pressed to turn off lights.
