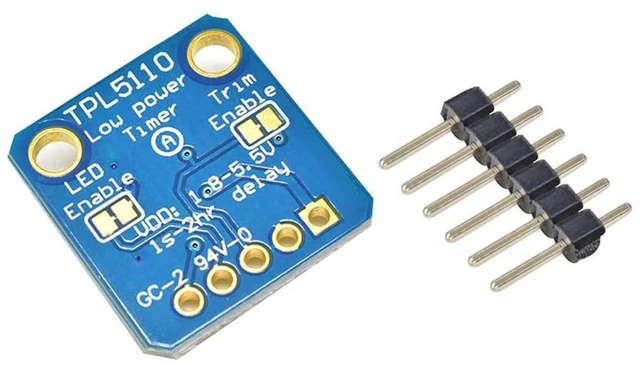

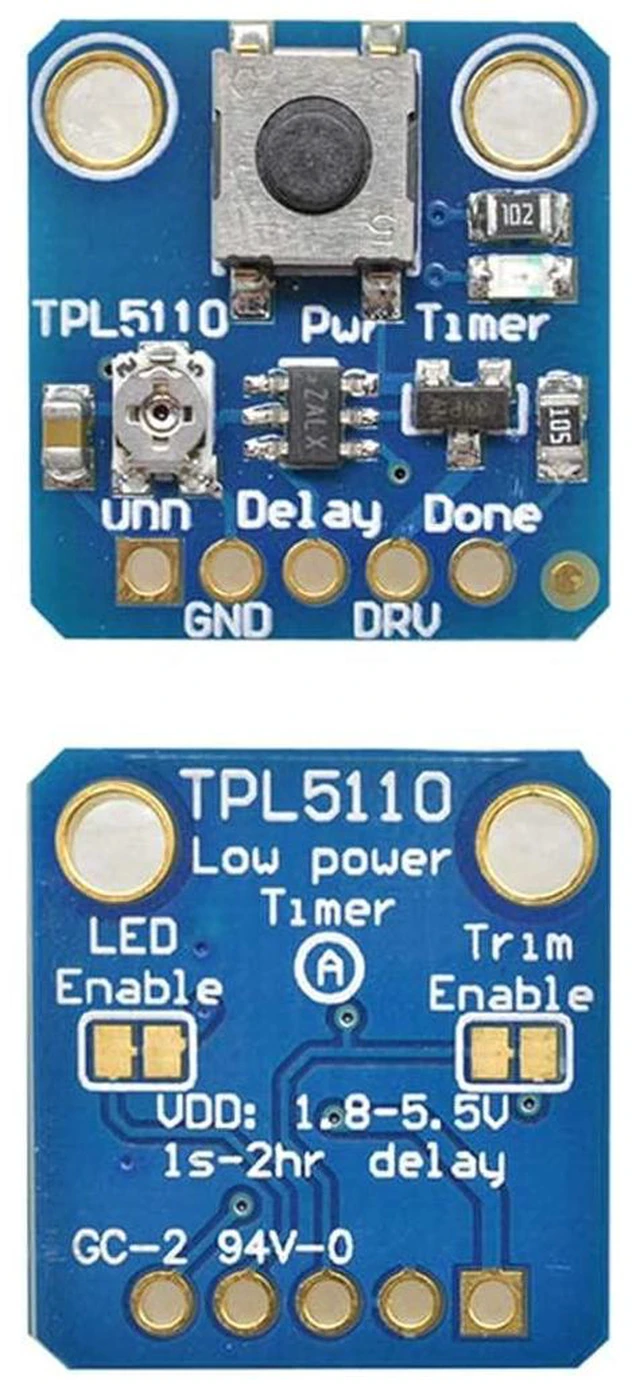

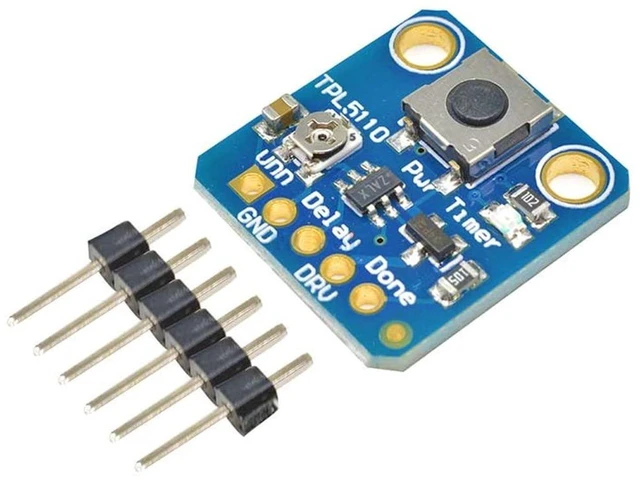

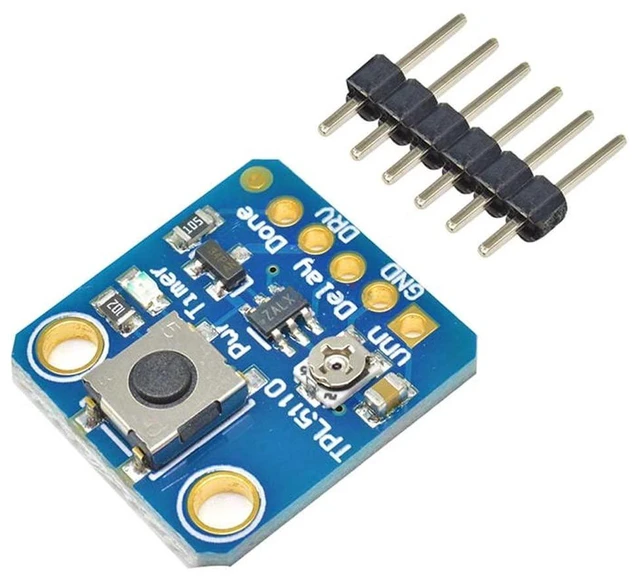

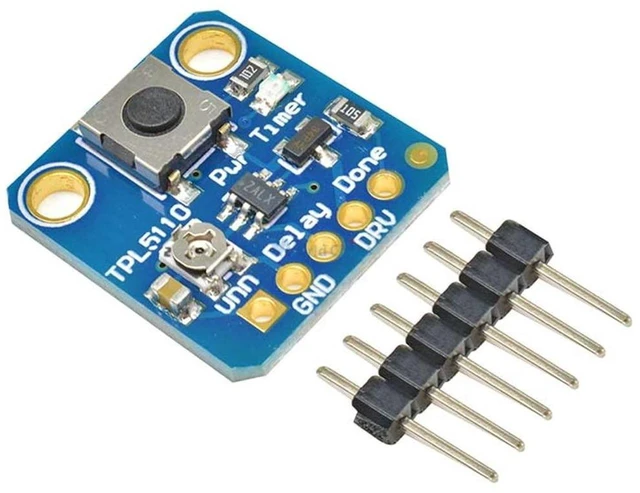

AJMRTC TPL5110 Low Power Timer Breakout Module, 20uA Standby Nano Power Timer Board, Programmable Power Gating Timer for IoT Battery Sensor Projects
Limited time offer, ends 11/29 By ConnectFlow USA
- 1. Ultra low standby current around 20uA, ideal for battery-powered long-running devices
- 2. Programmable timing range from 100ms up to 7200s (2 hours), adjustable by resistor
- 3. Built-in MOSFET driver, supports periodic power gating and one-shot trigger mode
- 4. Wide working voltage 1.8V to 5.5V, compatible with most MCU and sensor circuits
- 5. Compact breakout design with clear pinout, easy wiring for DIY and embedded development
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
TPL5110 nano-power timer breakout board is designed for duty cycle power control, helping cut power consumption of battery IoT sensors and low-power data loggers. It can automatically switch the load power on and off on schedule. It supports both cycle timer mode and one-shot mode, and accepts a DONE signal from your main controller to shut down power safely. The small form factor is friendly for wearable electronics, remote monitoring nodes and low-power embedded projects. No complicated firmware required for basic timing functions.
Specifications
- Brand: AJMRTC
- Chip: TPL5110 Nano-Power Timer
- Standby Current: Approx 20uA
- Supply Voltage: 1.8V ~ 5.5V
- Timing Range: 100ms to 7200s (2 hours)
- Adjustment Method: External resistor
- Working Mode: Periodic timer / One-shot trigger
- Function: Power gating, MOSFET drive
- Application: IoT sensor, battery logger, home automation, low-power DIY circuit
- Operating Temp: -40°C ~ 105°C
- Note: Timer accuracy is about 1% typical
