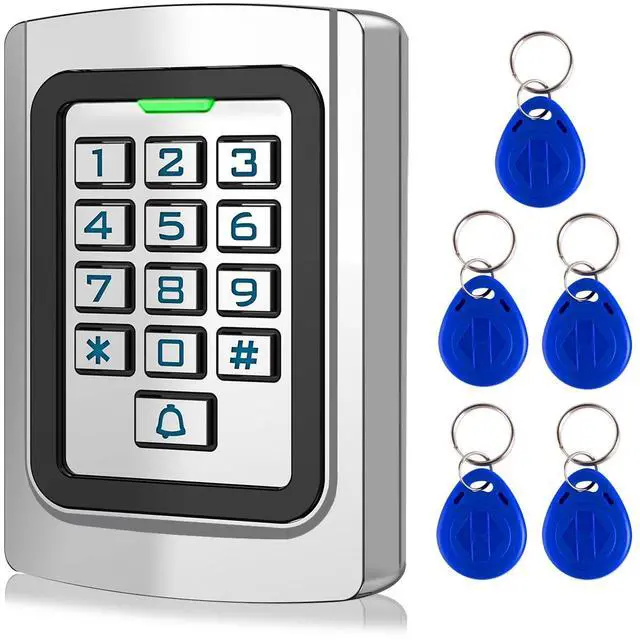

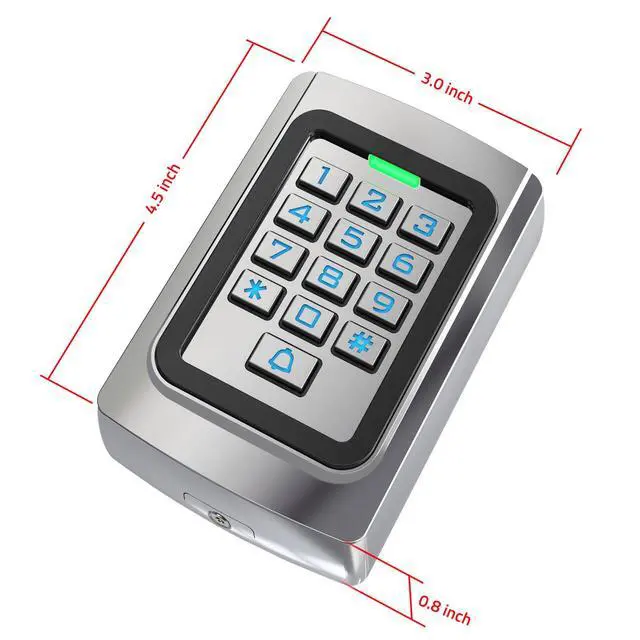

Wired Access Control Keypad 2000 Users / ID Card PIN Code Unlock / IP68 Waterproof / Backlight

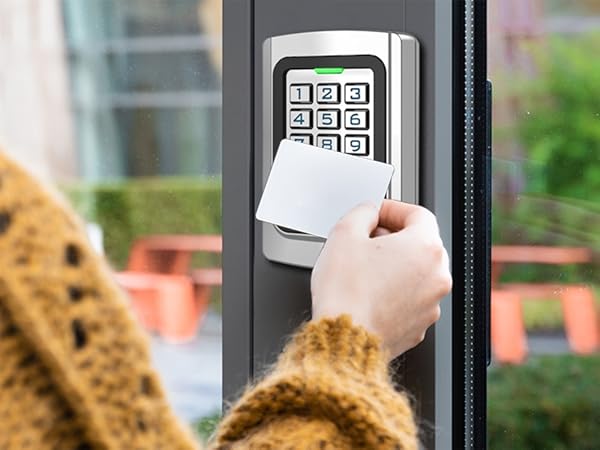

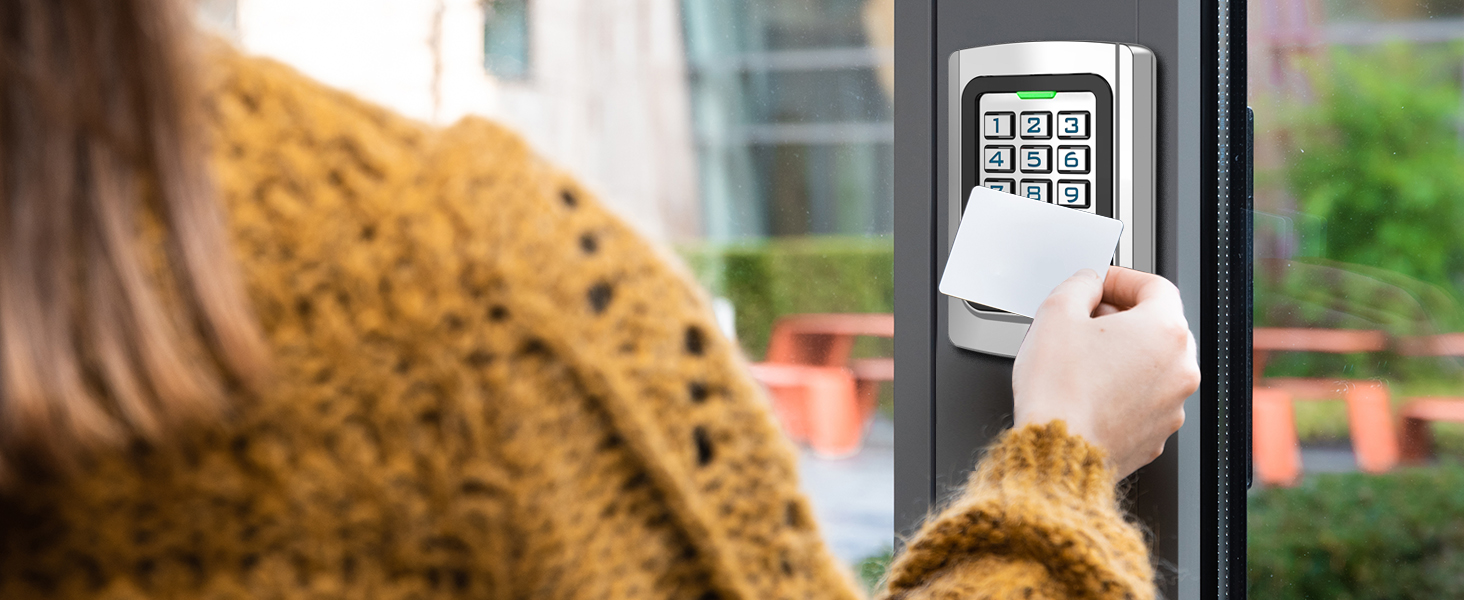

Reading distance: 2-5mm, 125KHz Standard EM-ID card. (Can't support some encrypted cards)

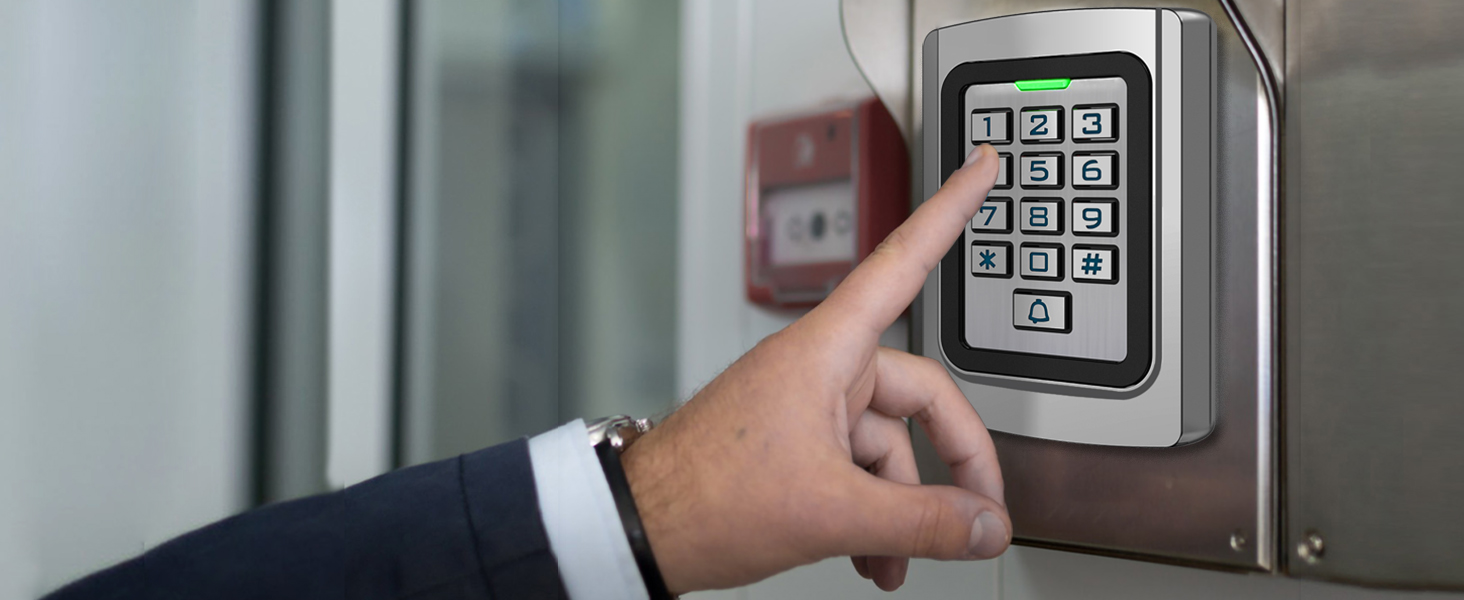

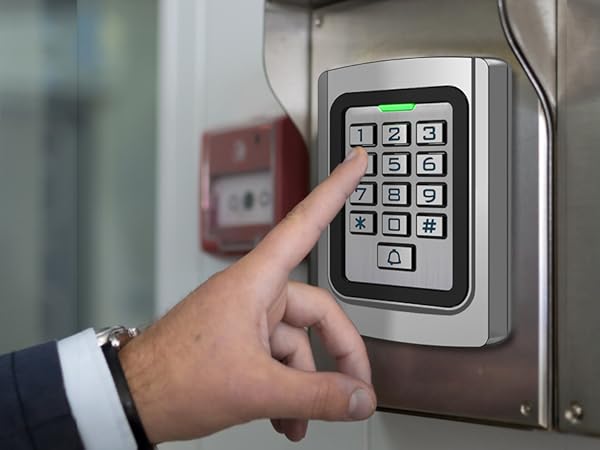

The password is any 4 digits between 0000-9999 with the exception of 1234 which is reserved.

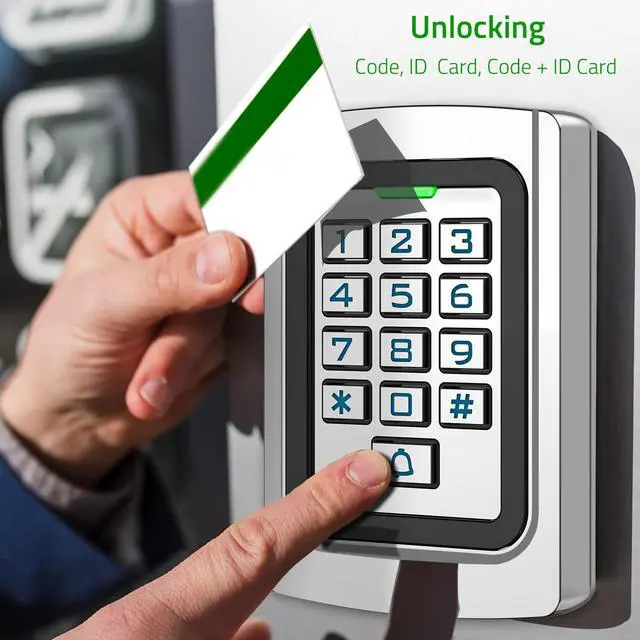

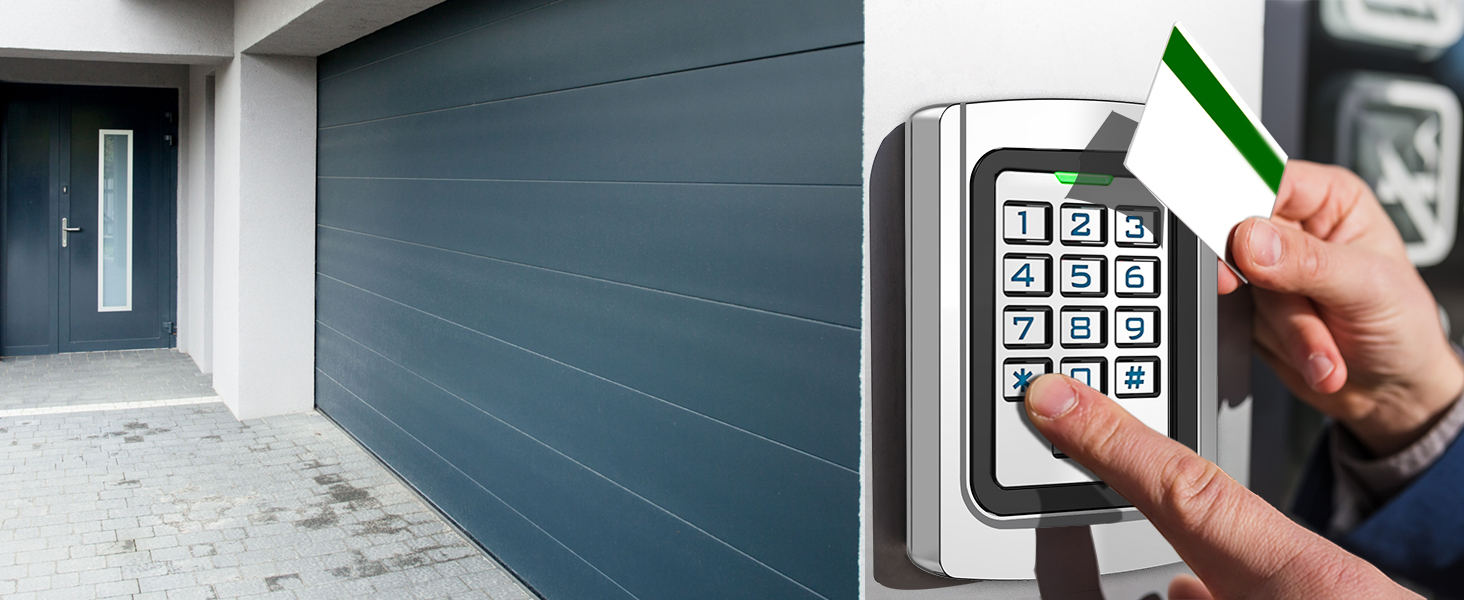

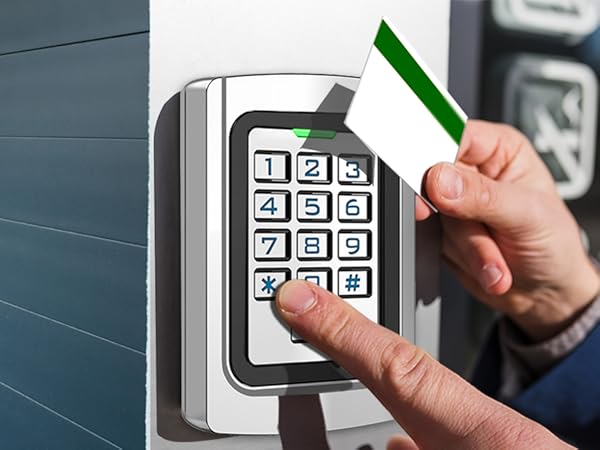

Unlocking with both card and password. (Default mode: card or password unlock)

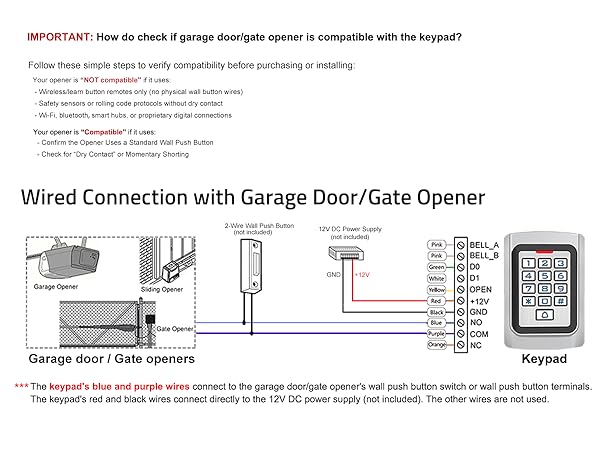

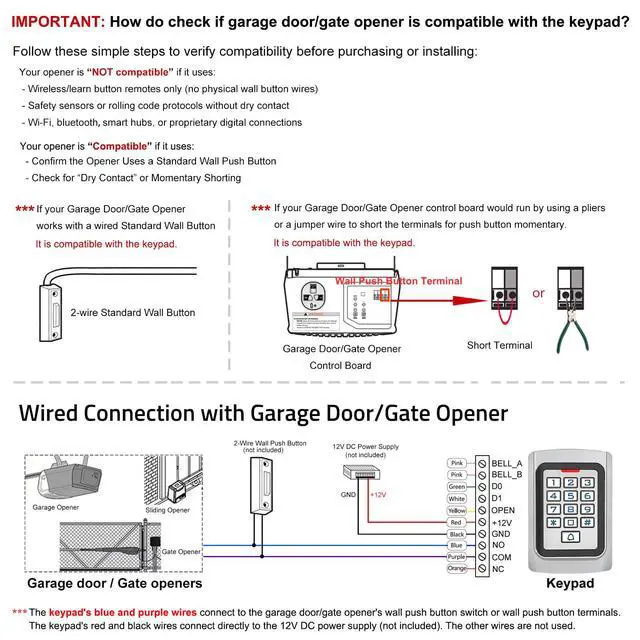

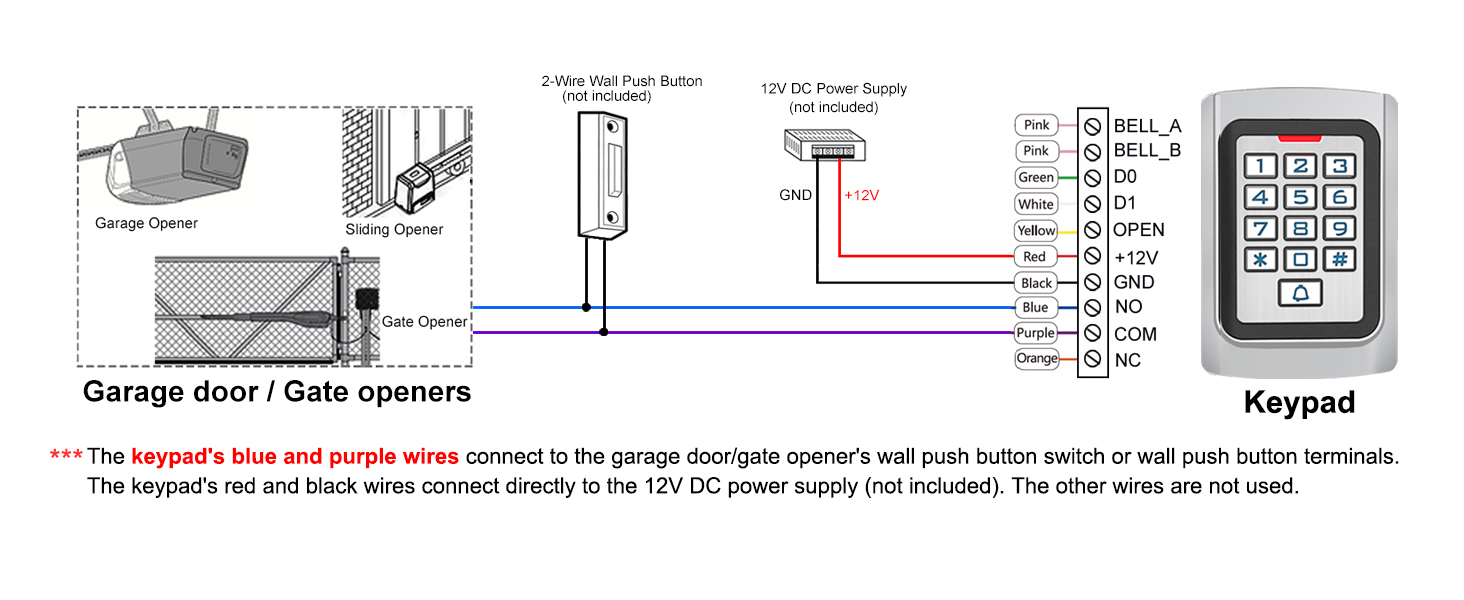

Wired Connection with Garage Door/Gate Opener Wiring Diagram

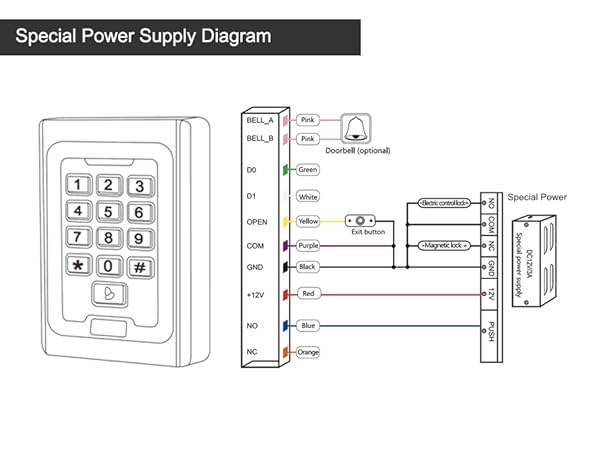

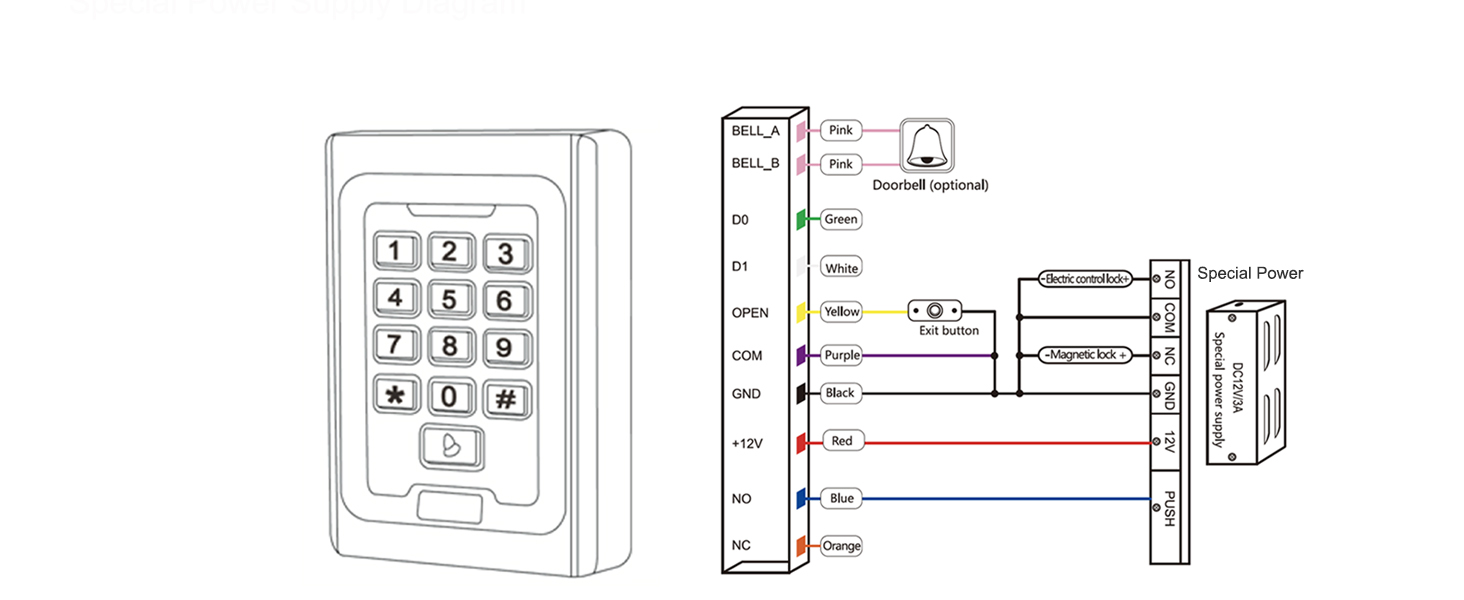

Wired Connection with Electric Magnetic Lock Wiring Diagram

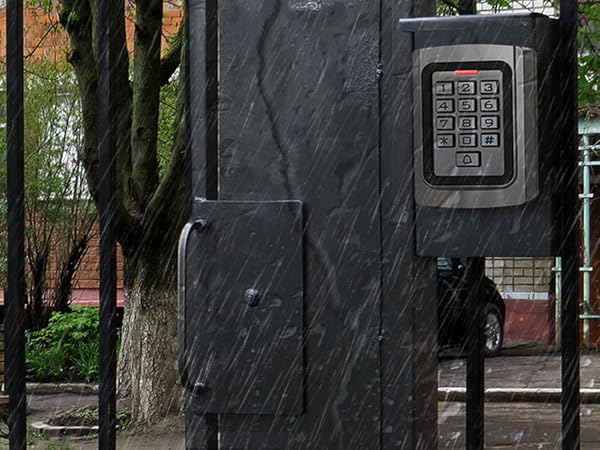

Rainproof, Dustproof, Pry-resistant

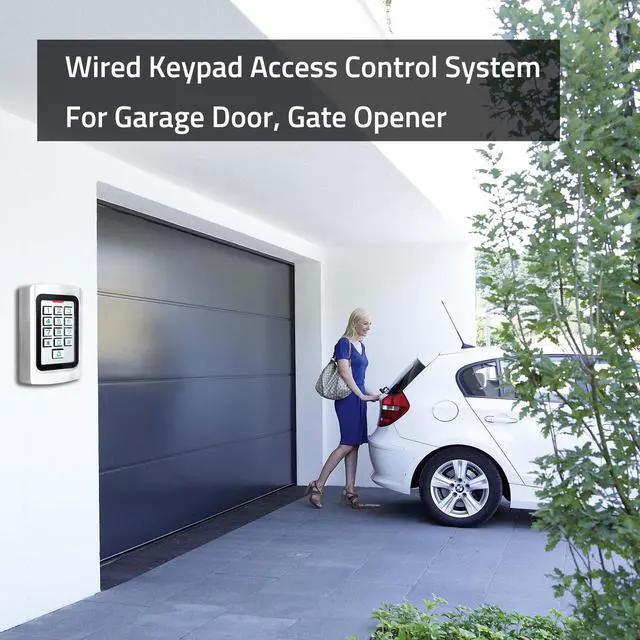

Works with Garage Door, Gate Opener and Access Control System
This keypad is a smart access control keypad with contactless proximity card technology. Simply enter a short password or tap the card (incl. 5 fobs) to open the gate. Greatly improves the experience of keyless operation.
Support 2000 users capacity, compatible with most third party Garage/Gate Opener whose control board accepts “Dry Contact” signal.
Suitable for office, off-limit area, hotel, garage, household, courtyard, farm, ranch, warehouse and other commercial / industrial sites, etc.
If your Garage Door/Gate Opener works with a wired Standard Wall Button. It is compatible with the keypad.
If your Garage Door/Gate Opener control board would run by using a pliers or a jumper wire to short the terminals for push button momentary. (whose control board accepts a “Dry Contact” signal or can be controlled by a momentary push button switch), It is compatible with the keypad.
Note: Models whose connection protocol is Wi-Fi, learn buttons, safety sensors, rolling code are not currently supported! It uses a wired connection directly to the opener's push button terminals.
Is the garage gate opener compatible with keypad?
It is compatible with the keypad

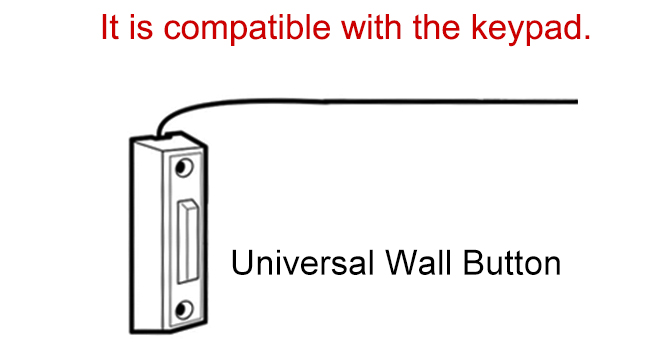

If your Garage/Gate Opener works with a wired Universal Wall Button, it is compatible with the keypad.
It is compatible with the keypad

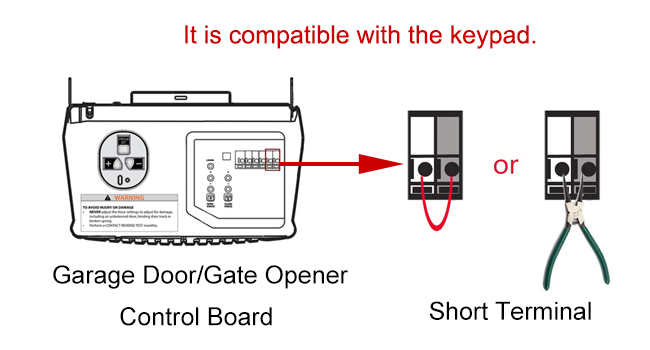

If your Garage/Gate Opener control board would run by using a pliers or a jumper wire to short the terminals for push button momentary, it is compatible with the keypad.
How does this keypad work?
The keypad uses contactless RFID and PIN code technology. It can be used as an multifunction standalone access controller, control an electronic door lock or garage, gate opener, or as a card reader to work with an access control system.
How is the keypad installed?
The keypad is made of metal casing with potting process and can be installed indoors and outdoors. Just screw it to the inside of the door or the same side of the control panel, wired to the electric lock or controller.
Does it still work without WiFi signal?
This is a wired keypad and will work without WIFI. All programming can be done from the keypad, no wifi or computer required.
Can the keypad be connected to an external doorbell or exit button?
YES, Keypad be connected to external Doorbell, Electric Lock, Exit Button, External Alarm.(Not Incl.)
How many users and what cards does the keypad support?
Supports up to 2000 users with a choice of card, 4-digit code or card + code. Card reader supports 125KHZ EM-ID cards (some encrypted cards such as HID, Cobra, APCiK, etc. are not supported).
AMOCAM Video Doorbell System
AMOCAM Access Control Keypad
Video Doorbell System
Always know what's happening at your front door and communicate directly with visitors.
Access Control System
No need to worry about forgetting to key. Verify visitor identity for safe and convenient access.
AMOCAM Technology Inc. is a high-tech enterprise integrating R&D, production, service and e-commerce of intelligent video doorbell system, advanced access control system and smart home system.
Make life better aims to help people apply the power of technology to make their lives better, more convenient and more fulfilling.
We provide after-sales support and services to all of our customers around the world.
Privacy and security are our top priorities. We are wholeheartedly and passionately committed to protecting your privacy and taking steps to ensure that your data is always secure.
Video doorbell protect your home, you’ll always know who at your door. locally stored recording protects your privacy.
Access control systems provide a secure and automated solution that can stop unauthorized persons from entering.

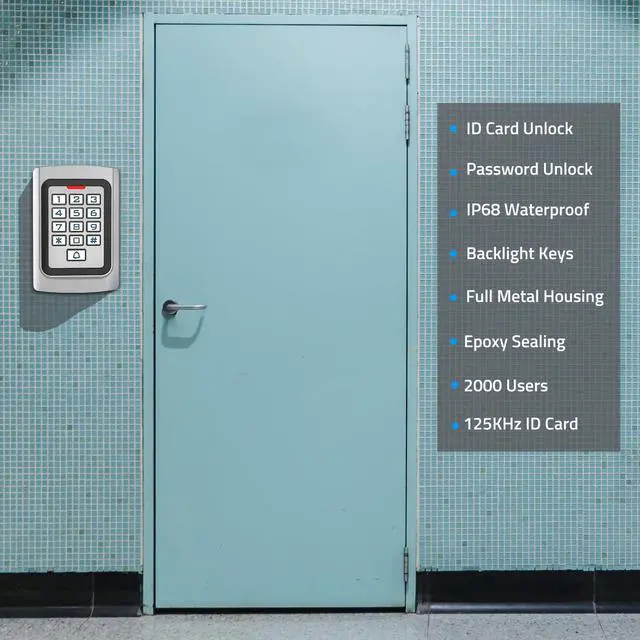

Wired Access Control Keypad 2000 Users / ID Card PIN Code Unlock / IP68 Waterproof / Backlight
Reading distance: 2-5mm, 125KHz Standard EM-ID card. (Can't support some encrypted cards)
The password is any 4 digits between 0000-9999 with the exception of 1234 which is reserved.
Unlocking with both card and password. (Default mode: card or password unlock)
Wired Connection with Garage Door/Gate Opener Wiring Diagram
Wired Connection with Electric Magnetic Lock Wiring Diagram

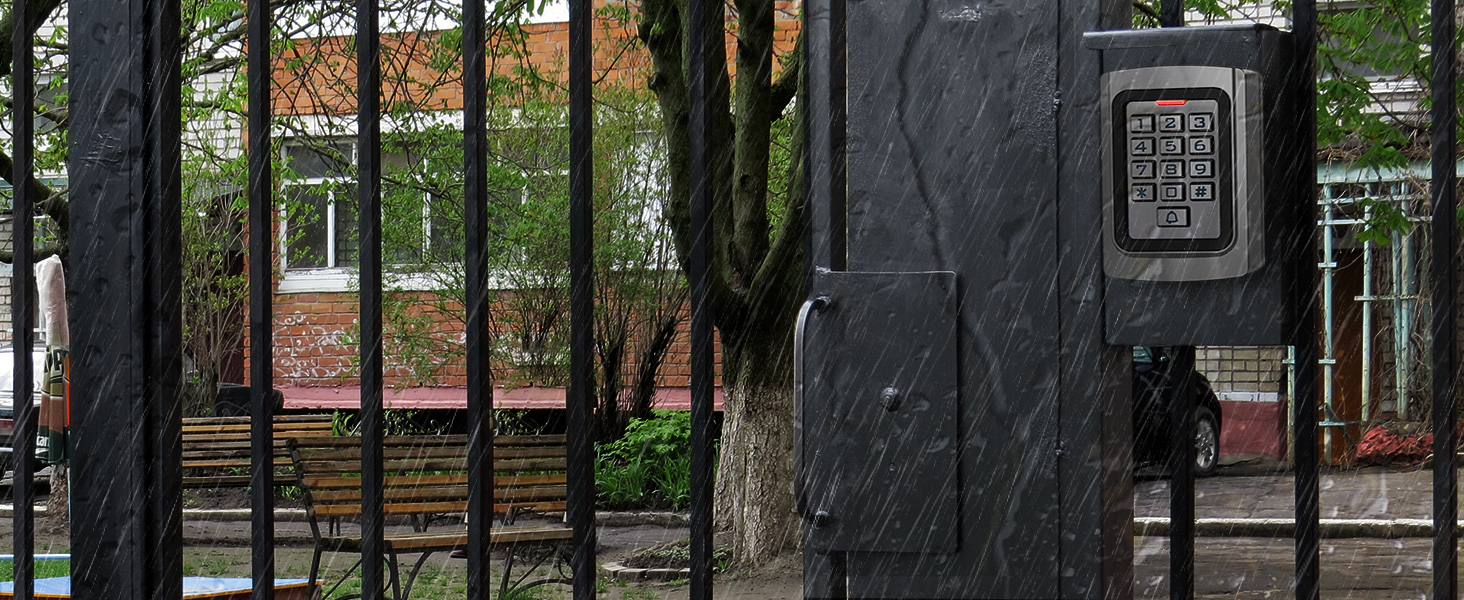

Rainproof, Dustproof, Pry-resistant

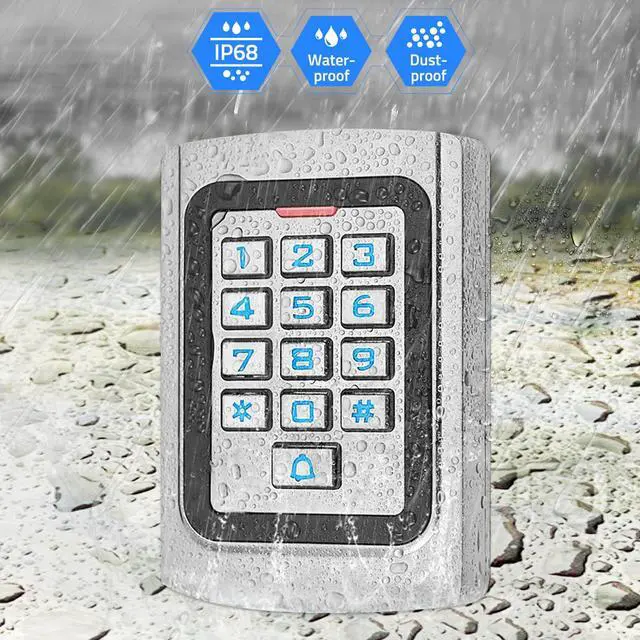

IP68 Weaterproof

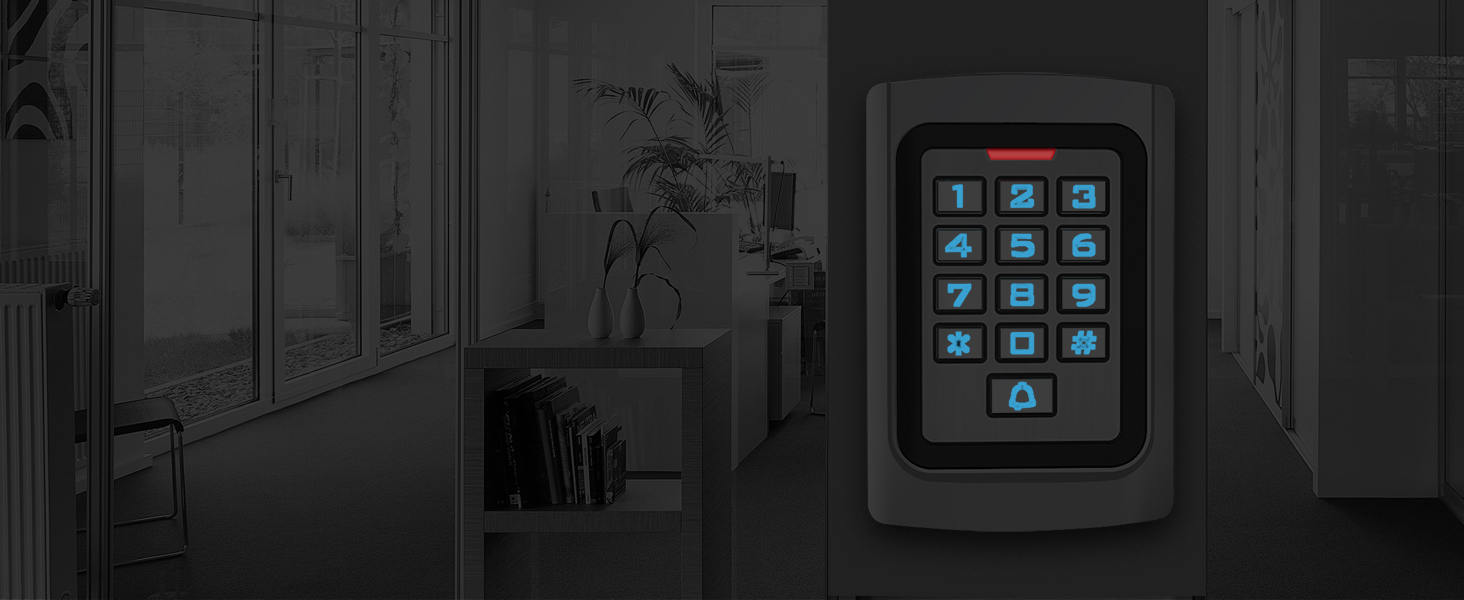

LED Backlight at Night
Zinc alloy housing and metal buttons, internal epoxy to potting, IP68 weaterproof, allowed to work outdoors long-term use in rain and sunlight.

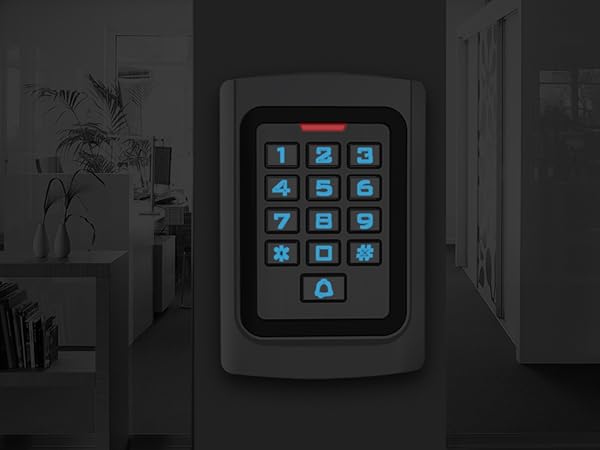

The LED backlight illuminates the keypad at night for easy to find and enter the password correctly, useful.
Works with Garage Door, Gate Opener and Access Control System
This keypad is a smart access control keypad with contactless proximity card technology. Simply enter a short password or tap the card (incl. 5 fobs) to open the gate. Greatly improves the experience of keyless operation.
Support 2000 users capacity, compatible with most third party Garage/Gate Opener whose control board accepts “Dry Contact” signal.
Suitable for office, off-limit area, hotel, garage, household, courtyard, farm, ranch, warehouse and other commercial / industrial sites, etc.
If your Garage Door/Gate Opener works with a wired Standard Wall Button. It is compatible with the keypad.
If your Garage Door/Gate Opener control board would run by using a pliers or a jumper wire to short the terminals for push button momentary. (whose control board accepts a “Dry Contact” signal or can be controlled by a momentary push button switch), It is compatible with the keypad.
Note: Models whose connection protocol is Wi-Fi, learn buttons, safety sensors, rolling code are not currently supported! It uses a wired connection directly to the opener's push button terminals.
Is the garage gate opener compatible with keypad?
It is compatible with the keypad
If your Garage/Gate Opener works with a wired Universal Wall Button, it is compatible with the keypad.
It is compatible with the keypad
If your Garage/Gate Opener control board would run by using a pliers or a jumper wire to short the terminals for push button momentary, it is compatible with the keypad.
| Operating Voltage | DC 12V |
|---|---|
| Operation Temperature | -49?~140? |
| Lock Load Output | =1A |

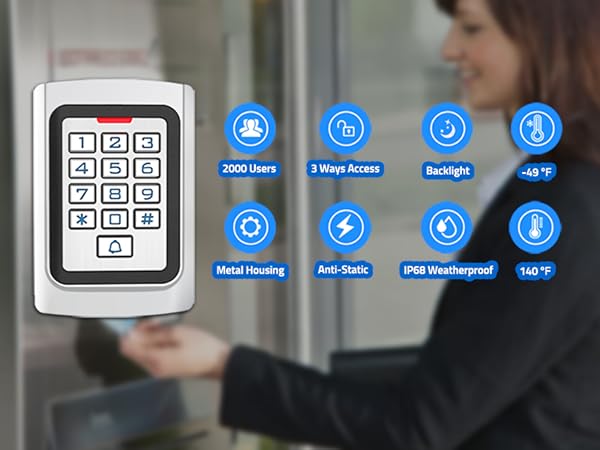

| User Capacity | 2000 |
| Read Card Frequency | 125KHz EM-ID card |
| Card Reading Distance | 2 ~ 5 cm |
| Waterproof rate | IP68 |
| Keypad | Digital backlit |
| Unlck Access | Card; code; card+code |
| Unlock Door Relay Time | 0 to 99 seconds adjustable |
| Static electricity | =30mA |
| Humidity | 10% to 90% RH |
How does this keypad work?
The keypad uses contactless RFID and PIN code technology. It can be used as an multifunction standalone access controller, control an electronic door lock or garage, gate opener, or as a card reader to work with an access control system.
How is the keypad installed?
The keypad is made of metal casing with potting process and can be installed indoors and outdoors. Just screw it to the inside of the door or the same side of the control panel, wired to the electric lock or controller.
Does it still work without WiFi signal?
This is a wired keypad and will work without WIFI. All programming can be done from the keypad, no wifi or computer required.
Can the keypad be connected to an external doorbell or exit button?
YES, Keypad be connected to external Doorbell, Electric Lock, Exit Button, External Alarm.(Not Incl.)
How many users and what cards does the keypad support?
Supports up to 2000 users with a choice of card, 4-digit code or card + code. Card reader supports 125KHZ EM-ID cards (some encrypted cards such as HID, Cobra, APCiK, etc. are not supported).
