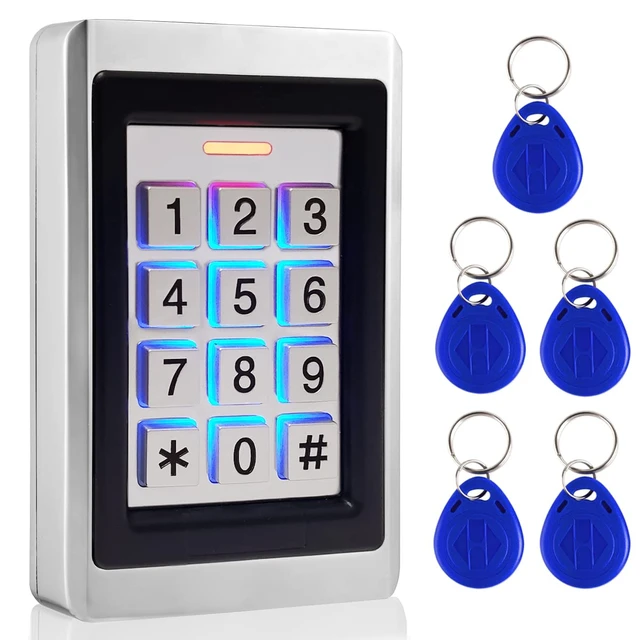

Access Control Keypad
Access control system with ID keyfobs suitable for mounting either indoor or outdoor in harsh environments. You can gain access through enter a pin code onto the keypad, use a proximity card, or use a pin code and proximity card. Single door multifunction standalone access controller or a Wiegand output keypad card reader.
- Strong zinc alloy electroplated anti-vandal case,IP68 waterproof, with LED indicators with key feedback, Sensitively and response quickly.
- Wiegand output: Wiegand output interface, Wg26 or Wg34 output
- Backlit keypad: the night can also operate keyboard.
- Full programming from the keypad, can works alone, no need to connect on the computer.
- User modification password: Users can revise the door password.
- Including 5pcs ID Key Fobs, each card pre-programmed with a unique ID number, which is printed on the card.
- Application Home, Garage, Office, or Gate Use.
High Security and Widely Used: Full programming from the keypad, Without the use of some computing intermediate, password will not be stolen.
*** Important Notice:
- It's a wired keypad, for garage door/sliding door openers, please make sure your garage door/sliding door openers is compatible with the keypad.
- If the garage door opener has a wired wall push button wiring port, supports run by wired wall push button, then it's compatible with the keypad.
- The wired keypad can be used with most third party garage door/gate openers or swing/sliding door openers, whose control board accepts “normally open dry contact” signal, powered by the openers control board or powered by an external DC 12V-24V power supply control.

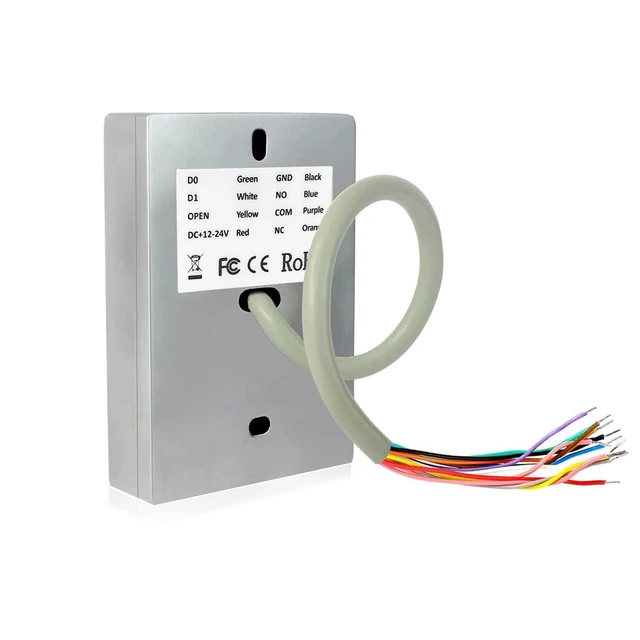

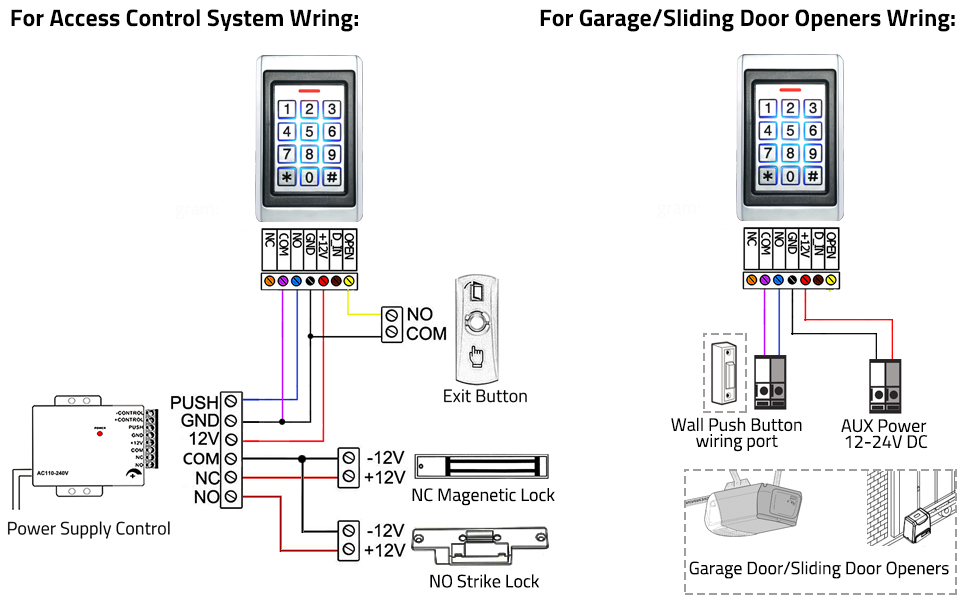

Wiring
IMPORTANT NOTE
*** IMPORTANT NOTE:
- For garage door/sliding door openers, please make sure your garage door openers is compatible with the keypad.
- If the garage door opener has a wired wall push button wiring port, supports run by wired wall push button, then it's compatible with the keypad.
- The wired keypad can be used with most third party garage door/gate openers or swing/sliding door openers, whose control board accepts “normally open dry contact” signal, powered by the openers control board or powered by an external DC 12V-24V power supply control.
*** Please note that "exit button", "electric lock", "DC 12V power supply" are not included in this package, please kindly refer for all available accessories for Access Control.

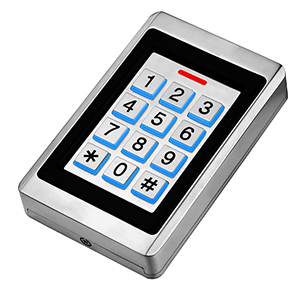

Specifications:
- User capacity:2000 users
- Card Reading Distance: 2-10mm / 0.08-0.39in
- Open Mode: ID Card or Access Password or Card + Password
- Identification frequency: ID (EM) type: 125KHz
- Material: Strong zinc alloy electroplated case
- Work Voltage:DC 12V
- Door Relay Time: 0 ~ 99s (adjustable)
- Temperature: -25?~60?
- Weight: Approx. 500g/1.1lb

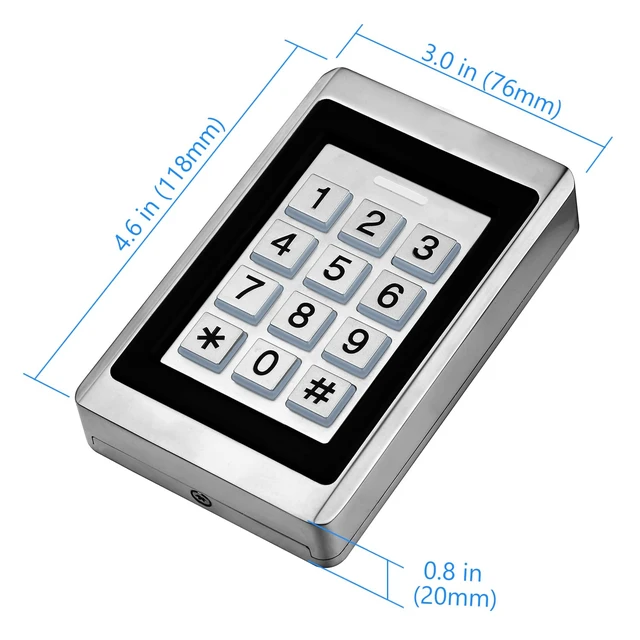

- Dimension: 118 x 76 x 20mm / 4.6" x 3.0" x 0.8"
ID keyfobs
- Read only, not HID card, can not be programmed, not rewritable
- Read only, not HID card, can not be programmed, not rewritable
- Read only, not HID card, can not be programmed, not rewritable
- Works as a regular 125KHz ID
- Card type: Standard EM card
- Compatible with standard EM ID access devices or ID reader
- Contactless transmission of data and supply energy
- Detection distance: 2-10mm
- Each card pre-programmed with a unique ID number, first 10 digitals are printed on the card
- Compatible with other universal 125kHz tags like EM4100/4102, Suitable for 125kHz ID proximity access control system and ID management system

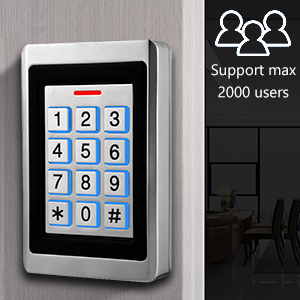

Support 2000 Users
Easy install, supporting 2,000 users.
User modification password.It is easy for Users can revise the door password.
Access control case with strong zinc alloy electroplated impact resistance, anti-vandal.
Use with a doorbell.

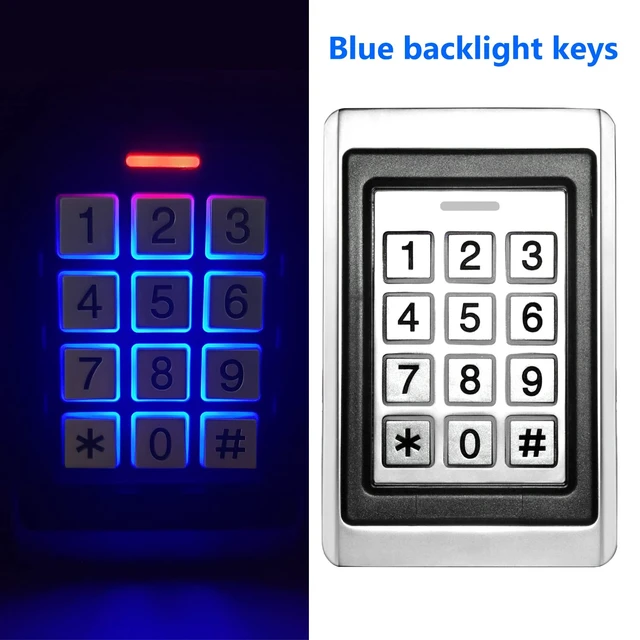

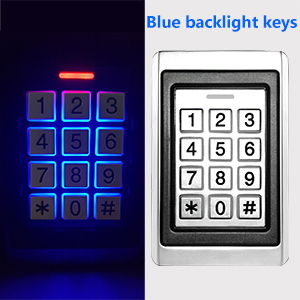

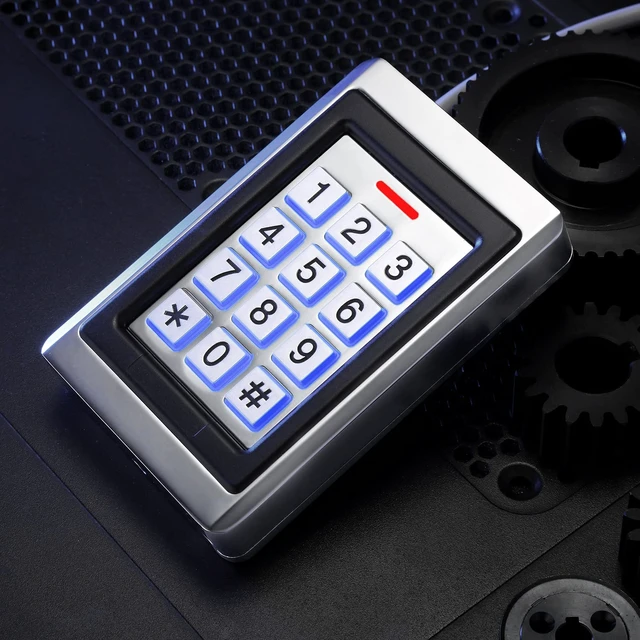

Backlight Keypad
Backlight keypad you can see the keypad number in dark conditions or night,
Access control keypad can be used for stand alone access control, or used as a reader.
There is an internal sounder that is used to indicate key press feedback, and Red Yellow Green LED to indicate operation.

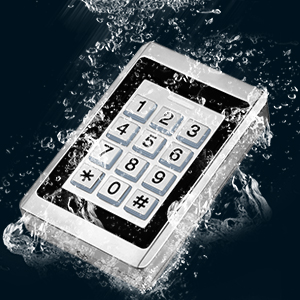

Weatherproof
All metal case, Wear resistance, weatherproof.
Epoxy to completely encapsulated, Back potting treatment, effective against water ingress, heat, corrosion.
Operating temperature range from -45-60 degree centigrade.
And the operating humidity is 10%- 90% RH; so it can works well in most weather conditions.

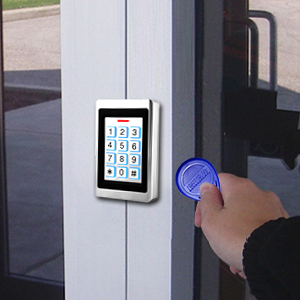

Swipe ID Card Unlock
- Supports swipe unlock, after card is lost, usable keyboard delete card, thoroughly eliminate safety lapses.
- After card is lost, usable keyboard delete card, thoroughly eliminate safety lapses.
- Support releases an electric door lock.

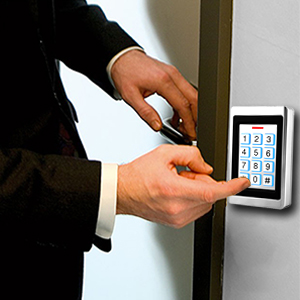

Password Unlock
- Supports password unlock, can add user and delete user as your requirement.
- Kits includes 5PCS ID key fobs.
- Support releases an electric door lock.

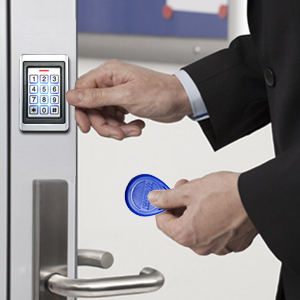

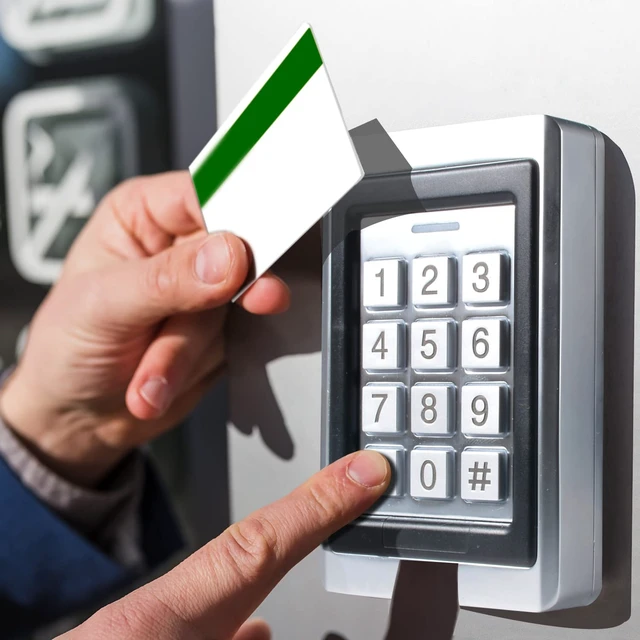

Card+PIN
- Supports Card and PIN (password) double authentication method.
- Users input a specific PIN to gain entrance. They’re most secure when used with ID card.
- Access control systems provide you the ability to lock and unlock doors.

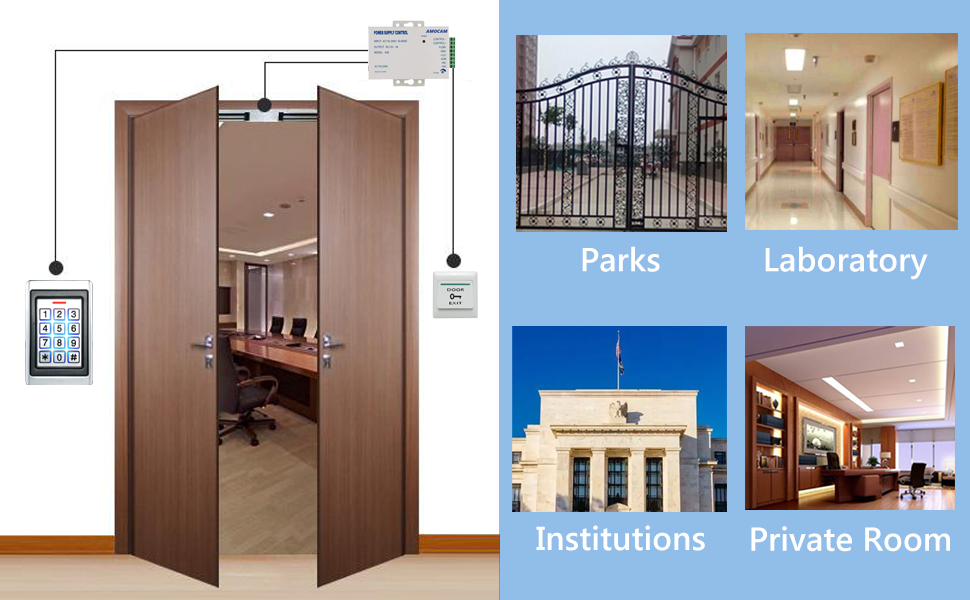

Installation & Applications

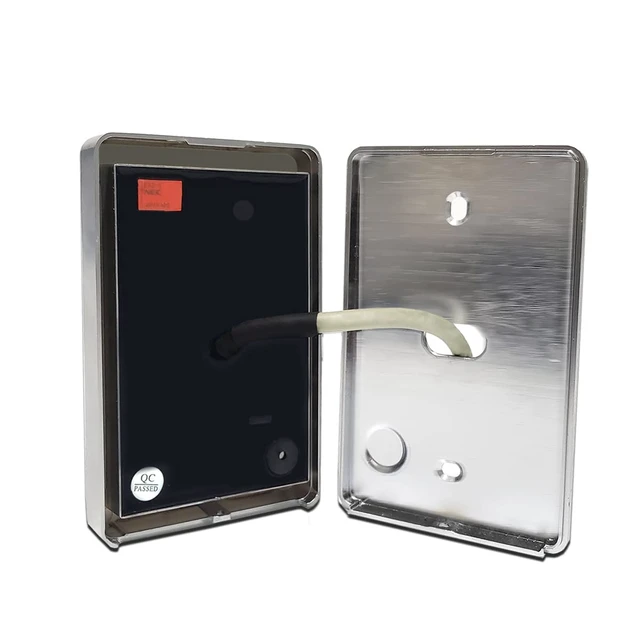

- Remove the back cover from the keypad using the supplied special screw driver
- Drill 2 holes on the wall for the Self tapping screws and 1 hole for the cable
- Put the supplied rubber bungs into the 2 holes
- Fix the back cover firmly on the wall with 2 Self tapping screws
- Thread the cable through the cable hole
- Attach the keypad to the back cover
*** Please note that "exit button", "electric lock", "DC 12V power supply" are not included in this package, please kindly refer for all available accessories for Access Control.
Package List:
- 1 x Access Control
- 5 x Keyfobs
- 1 x User Manual(English)
