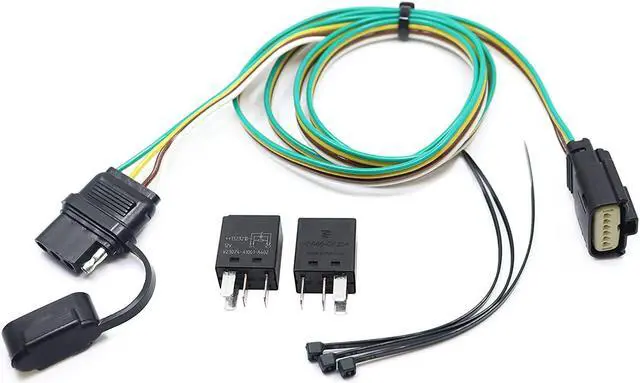

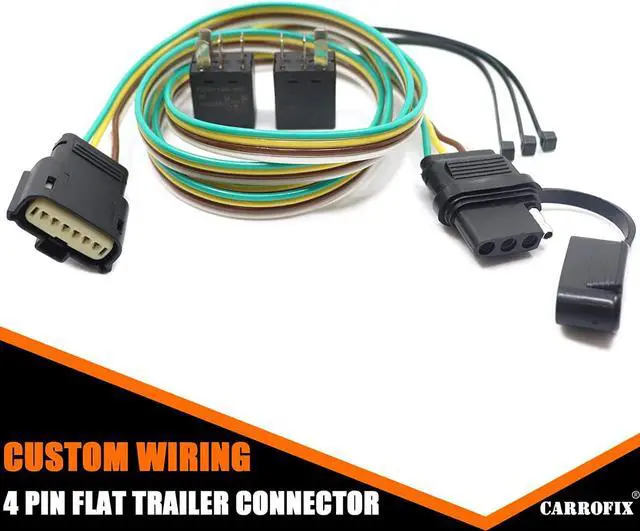

CARROFIX Custom Fit Vehicle-Side Wiring Harness with 4-Pole Flat Trailer Connector for Chevy Equinox/GMC Terrain

Product details
PackageDimensions: 5.51 x 2.64 x 2.05 inches; 5.78
OuncesItemmodelnumber: OE Replacement Trailer Hitch Harness Manufacturer: CARROFIX

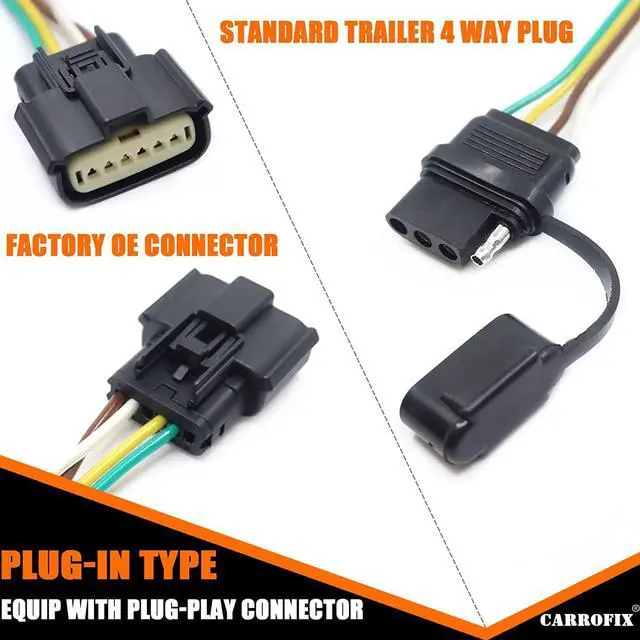

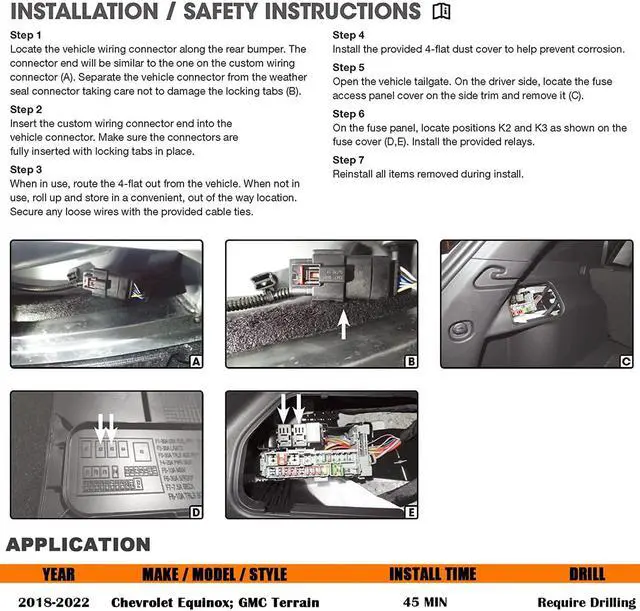

CountryofOrigin: China Product Description This Custom Fit Vehicle Wiring Harness is designed for 2018-2022 Chevy Equinox; GMC Terrain with a factory tow package, it provides a 4-way flat trailer connector at the back of your vehicle to power your trailer's turn signals, brake light and taillights. No splicing or cutting of vehicle wires. Simply locate your vehicles wiring harness connector, unplug the connection and insert the Connector into the vehicle's harness. No special tools required. It is made from the highest-quality materials to last for years to come, Ideal to make trailer towing safer and easier. Installation This custom-fit wiring harness plugs into your vehicle's factory tow package, which is located behind your rear bumper, on the driver's side. Once you've plugged in the connector, open your fuse box and locate the fuse position indicated in the instructions. Then insert the included relays. Once installation is complete, the 4-way flat connector will be stowed beneath your vehicle, near the trailer hitch.
WARNING: Maximum AMP.: Stop/turn
lights: 7.5 amps per circuit;
Taillights: 7.5 amps per circuit
FAQQ: Does This Wiring Harness Works on My Car......? This Trailer Wiring Harness is specific for the models of 2018-2022 Chevrolet Equinox; GMC Terrain with Factory Tow Package.

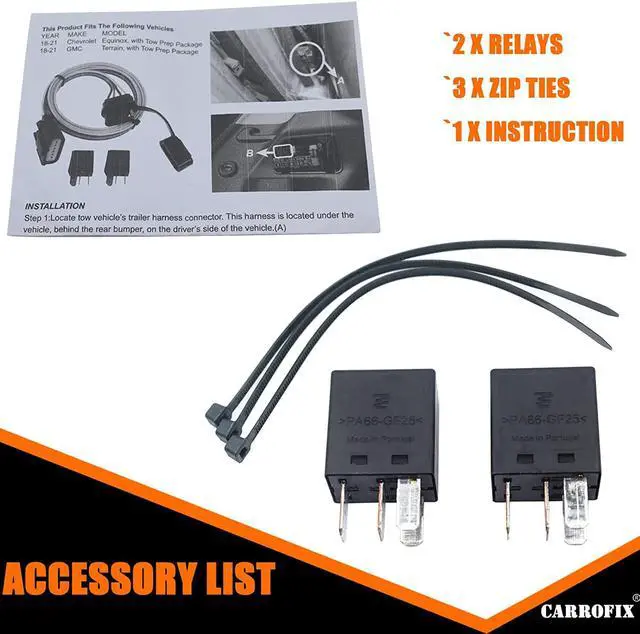

Q: What is the Purpose of the Relays Included with the CARROFIX Wiring Harness? Sometimes a vehicle, like your Chevrolet Equinox, will come with the factory tow package but for some reason will not include relays. The relays included with the T-Connector that you purchased are intended to be used to activate the lighting functions. If relays are already installed then you can save them in case one of your relays ends up needing to be replaced in the future.
Q: Are Relays Needed When Installing This Wiring Harness for Chevy Equinox with Tow Package? The relays that are included with the CARROFIX Vehicle Wiring Harness for your Chevy Equinox may or may not be needed. On some Equinox models with the tow package, the slots are available for the included relays, but there is actually a factory relay already present nearby. In these cases, the additional relays are not needed. Since you do not see any wiring running from those slots, you likely have the factory relay so you simply don't need to install these. The only connection you need to make is with the primary harness to the factory port under the vehicle.
