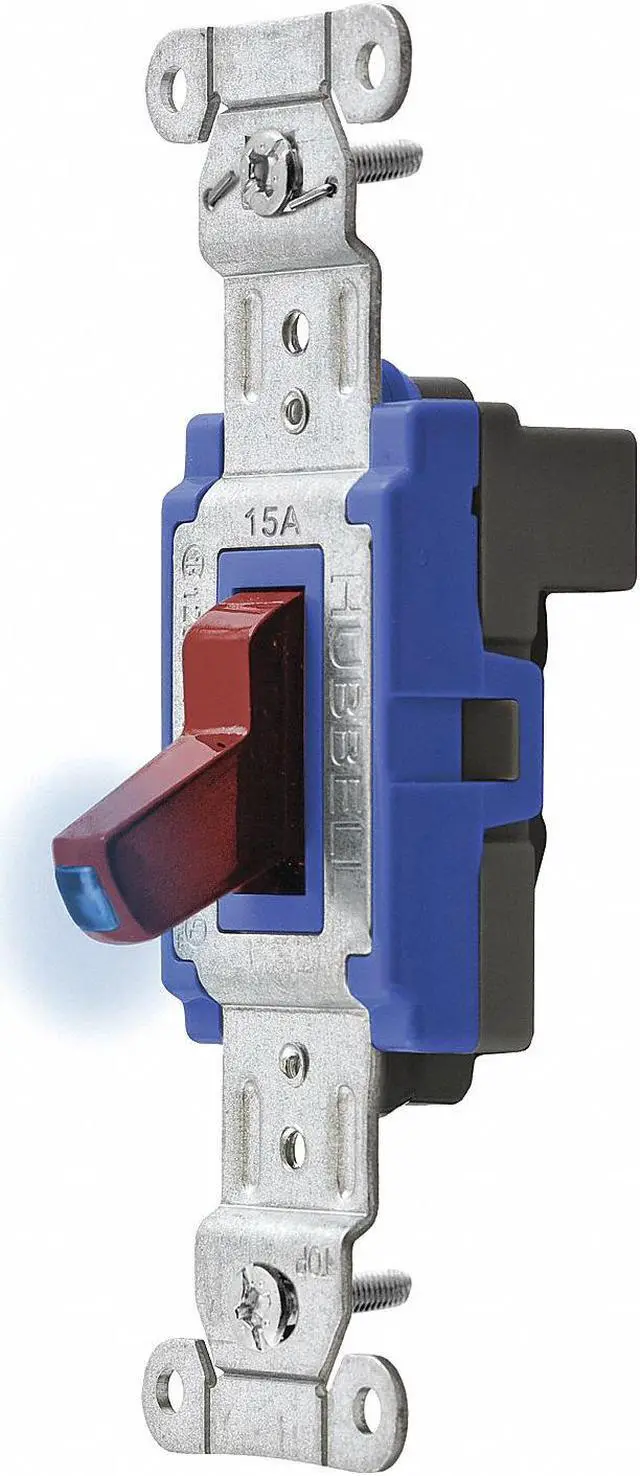

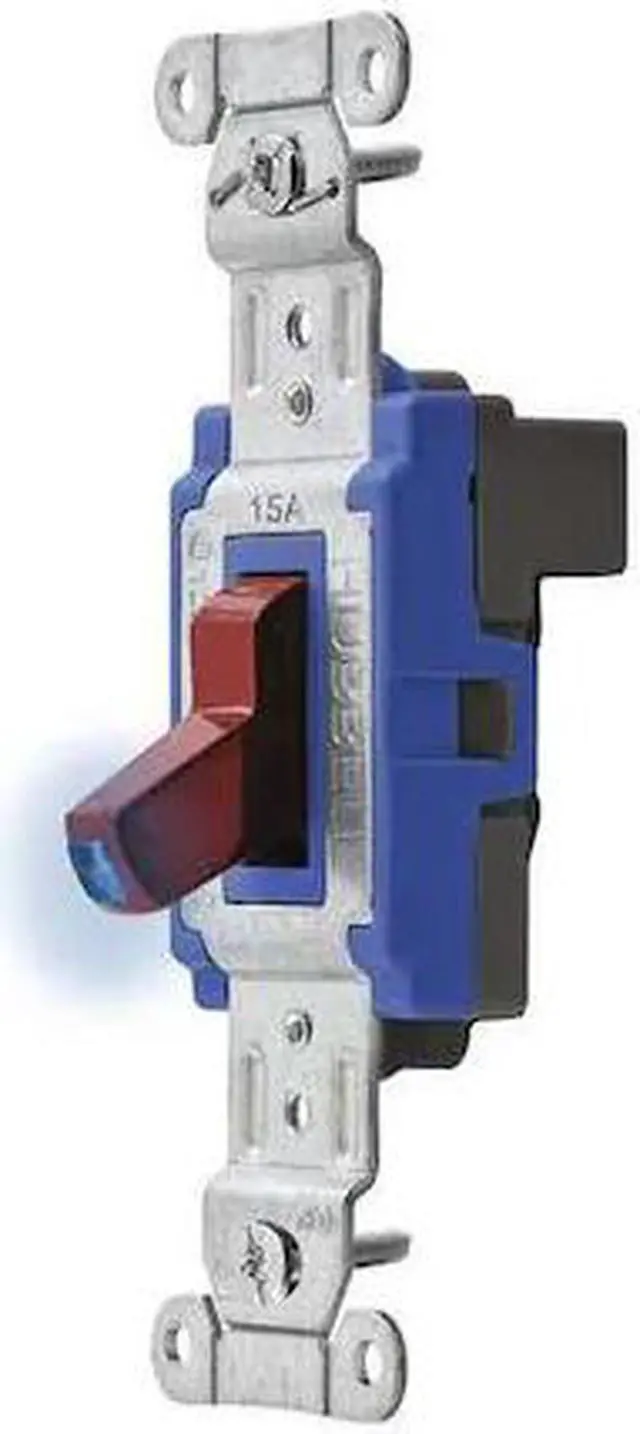

HUBBELL WIRING DEVICE-KELLEMS SNAP1201ILRNA Illuminated Wall

The HUBBELL Illuminated Wall Switch is a single pole, 15A toggle switch suitable for use in commercial and industrial electrical installations. It features an illuminated indicator that lights up when the load is off, provides a visual indicator. The switch utilizes SNAPConnect modular wiring for efficient installation and maintenance, with impact-resistant thermoplastic housing suitable for demanding environments.

Key Features of the HUBBELL Illuminated Wall Switch:

• Amperage/Voltage Rating: Rated for 15 A and 120/277V AC applications


• Illumination: Blue LED indicator illuminates when load is off


• Switch Type: Single pole maintained toggle style


• Wiring Method: Modular SNAPConnect connector facilitates installation and maintenance


• Material & Construction: Impact-resistant thermoplastic housing; brass terminals; zinc-plated bridge resists corrosion


• Performance Ratings: Withstands dielectric voltage of 1500V AC minimum for 1 minute; overload tested at minimum 4.8 times rated current for 100 cycles


• Temperature Range: Rated for operation within -40°F to 75°C


• Flammability Standard: Meets UL 94V-2 requirements


• Circuit Compatibility: Rated up to 2 horsepower loads; suitable for commercial settings
