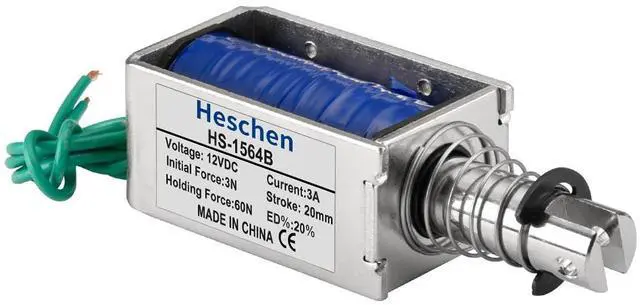

Main image of DC Solenoid Electromagnet, Push Pull Type, HS-1564B, DC12V 3A, 20mm Stroke, Initial Force 3N, Max Keep Force 60N, Open Frame, Linear Motion

Alt view image 2 of 7 - DC Solenoid Electromagnet, Push Pull Type, HS-1564B, DC12V 3A, 20mm Stroke, Initial Force 3N, Max Keep Force 60N, Open Frame, Linear Motion

Alt view image 3 of 7 - DC Solenoid Electromagnet, Push Pull Type, HS-1564B, DC12V 3A, 20mm Stroke, Initial Force 3N, Max Keep Force 60N, Open Frame, Linear Motion

Alt view image 4 of 7 - DC Solenoid Electromagnet, Push Pull Type, HS-1564B, DC12V 3A, 20mm Stroke, Initial Force 3N, Max Keep Force 60N, Open Frame, Linear Motion

Alt view image 5 of 7 - DC Solenoid Electromagnet, Push Pull Type, HS-1564B, DC12V 3A, 20mm Stroke, Initial Force 3N, Max Keep Force 60N, Open Frame, Linear Motion

Alt view image 6 of 7 - DC Solenoid Electromagnet, Push Pull Type, HS-1564B, DC12V 3A, 20mm Stroke, Initial Force 3N, Max Keep Force 60N, Open Frame, Linear Motion

Alt view image 7 of 7 - DC Solenoid Electromagnet, Push Pull Type, HS-1564B, DC12V 3A, 20mm Stroke, Initial Force 3N, Max Keep Force 60N, Open Frame, Linear Motion

Shop All Generic Brand Products | Visit Fengfengshishang Store

FOLLOW

DC Solenoid Electromagnet, Push Pull Type, HS-1564B, DC12V 3A, 20mm Stroke, Initial Force 3N, Max Keep Force 60N, Open Frame, Linear Motion

Be the first to review this product...

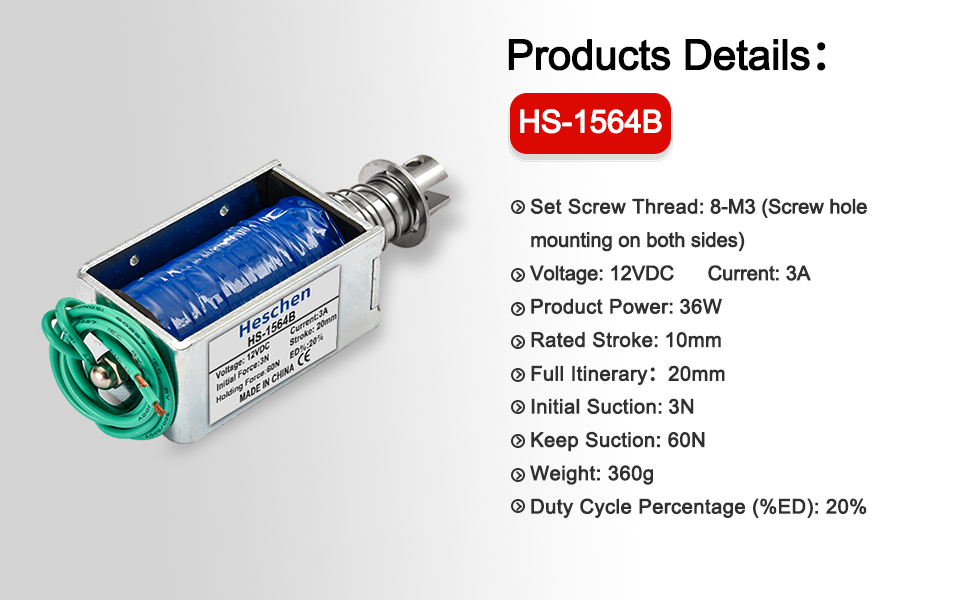

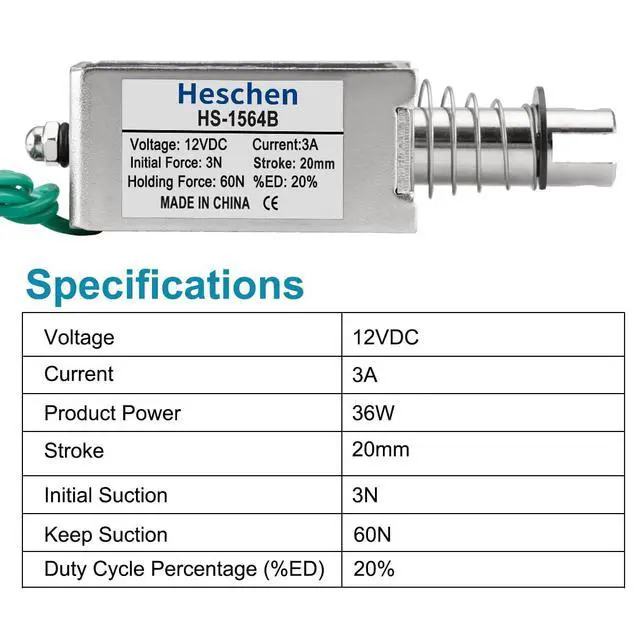

Rated Voltage: DC12V; Rated Current: 3A; Stroke: 20mm; ED%=20%; Push Pull Type

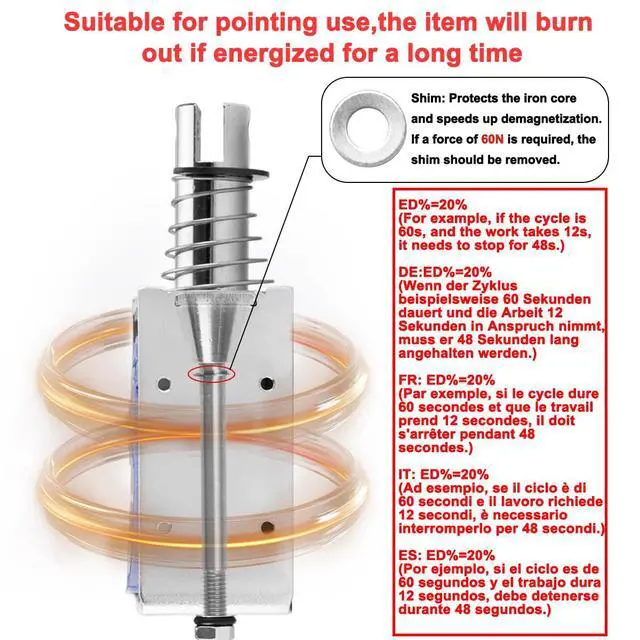

Initial Force: 3N; Max Keep Force: 60N (Only by removing the shim from the product can it be achieved.)

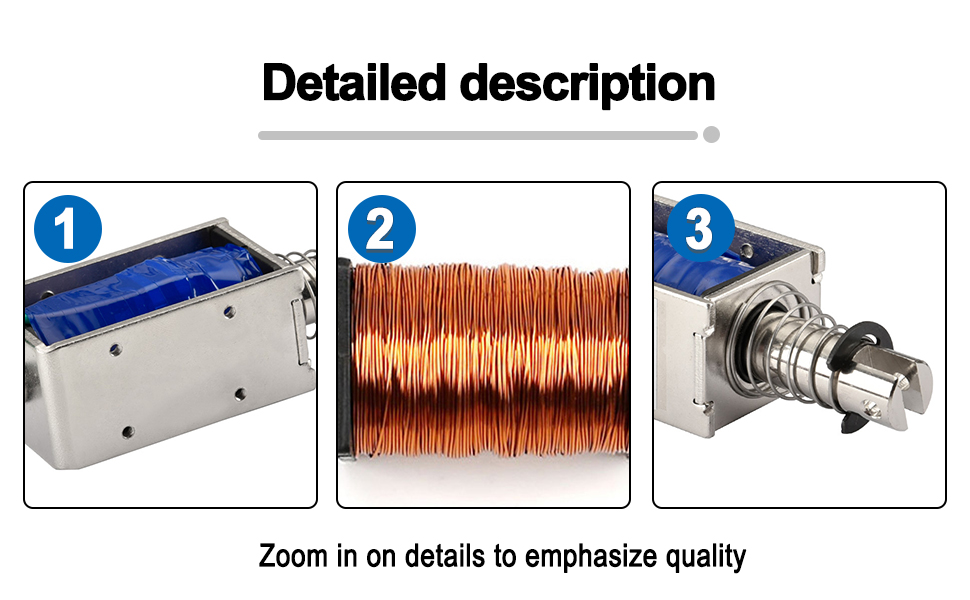

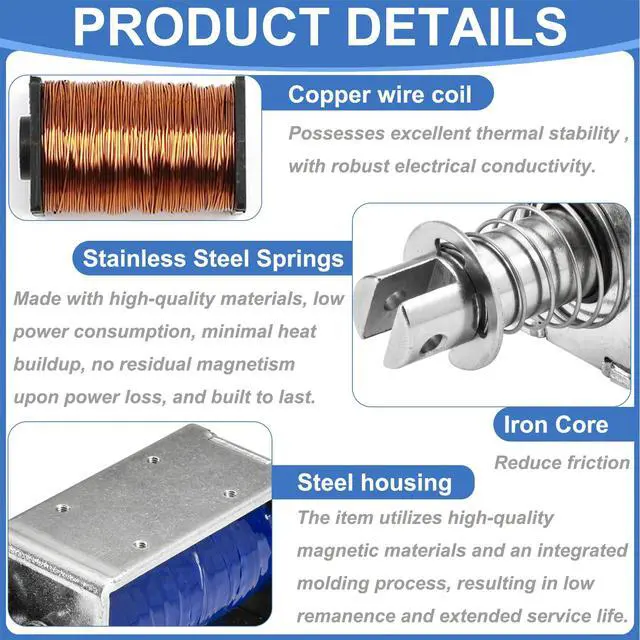

The item is easy to install, use copper coil and operates stably.
Electromagnets heat up when energized, making them unsuitable for prolonged operation; they require periodic switching on and off of power.
Push-pull electromagnets have high power consumption after operation, and power supplies with power lower than the item power may cause them to malfunction.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Circuit Breaker MCCB
Solenoid Electromagnet
Household AC Contactor
Proximity Sensor Switch
Changeover Switch
Electrical Solenoid Valve
Miniature Circuit Breaker
Pneumatic Standard Cylinder
HVAC Motor Contactor
Solar PV Fuse
NH Fuse Link

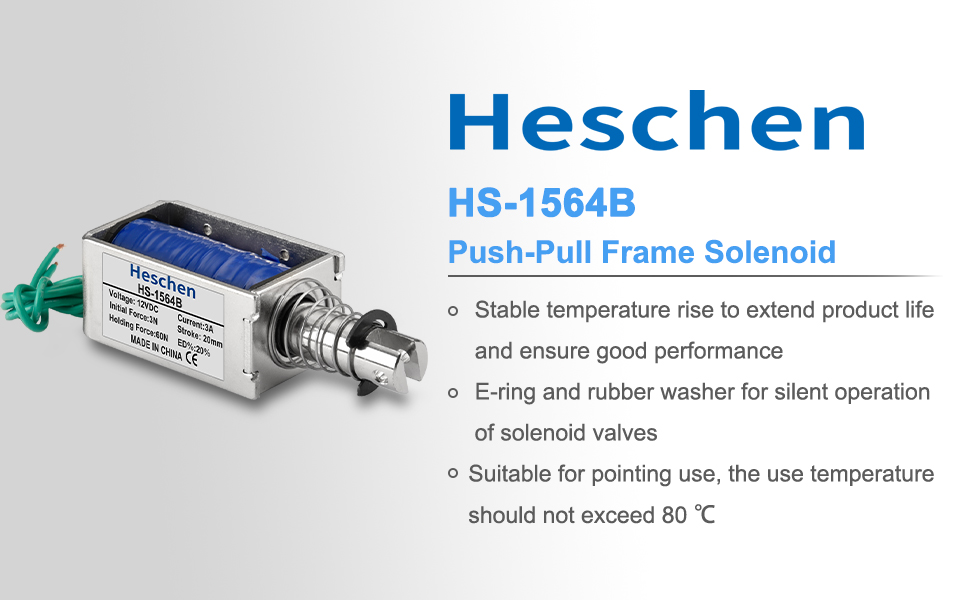

Text reads 'Heschen HS-1564B Push-Pull Frame Solenoid'. Technical product image showing electrical solenoid component with specifications.

aplus content image

Application scenarios diagram showing two industrial settings: medical equipment room with surgical machinery and textile machinery manufacturing floor.

Text reads 'Heschen HS-1564B Push-Pull Frame Solenoid'. Technical product image showing electrical solenoid component with specifications.

aplus content image

Application scenarios diagram showing two industrial settings: medical equipment room with surgical machinery and textile machinery manufacturing floor.
