Tekpower TP3005P Programmable Variable DC Power Supply 0-30V at 0-5A
- Input voltage: 110 V/ 60 Hz
- Fuse: 4A /250 V
- Output voltage: 0-30 V
- Output current: 0-5 A
- Source effect: C.V. 0.01 % + 3 mV
- C.C. 0.1 % + 3 mA
- Load effect: C.V. 0.01 % + 2 mV
- C.C. 0.1 % + 10 mA
- Setup resolution: 10 mV, 1 mA
- Setup accuracy: 0.5 % + 20 mV, 0.5 % + 10 mA (25°C ± 5°C)
- Ripple: 2 mV rms, 3 mA rms
- Temperature coefficient: 100 ppm + 10 mV, 100 ppm + 5 mA
- Read back accuracy: 10 mV, 1 mA
- Read back temp. coefficient: 100 ppm + 10 mV, 100 ppm + 5 mA
- Reaction time (10% rated load):
- -voltage rise: 100 ms
- -voltage drop: 100 ms
- Dimensions: 4 ½ (W) x 7 ½ (H) x 9 ½ (D)
- Weight: 11 lbs 10 oz
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

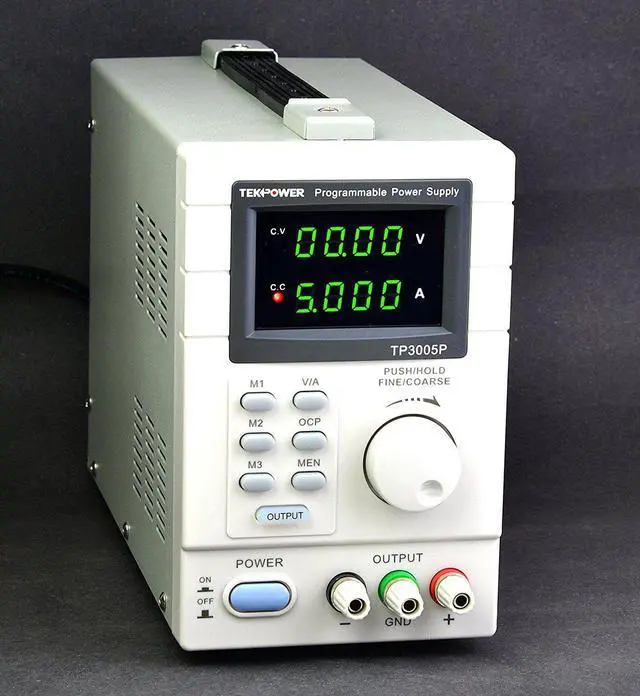

Single-output programmable variable DC regulated power supply with dual LED displays adjusts continuously from 0 - 30 volts and 0 - 5 amps with both coarse and fine adjustment, 10 mA / 1 mV resolution over the full range
Pro-level precision and accuracy with low noise and low ripple, plus built-in memories to easily and effortlessly store and access your frequently-used settings to save time and improve productivity
USB interface enables remote control, operation, data exchange via a computer (Windows PC only), software and USB cable are included
Automatically shut-off to prevent damage to the connected load with Over Current Protection (OCP)

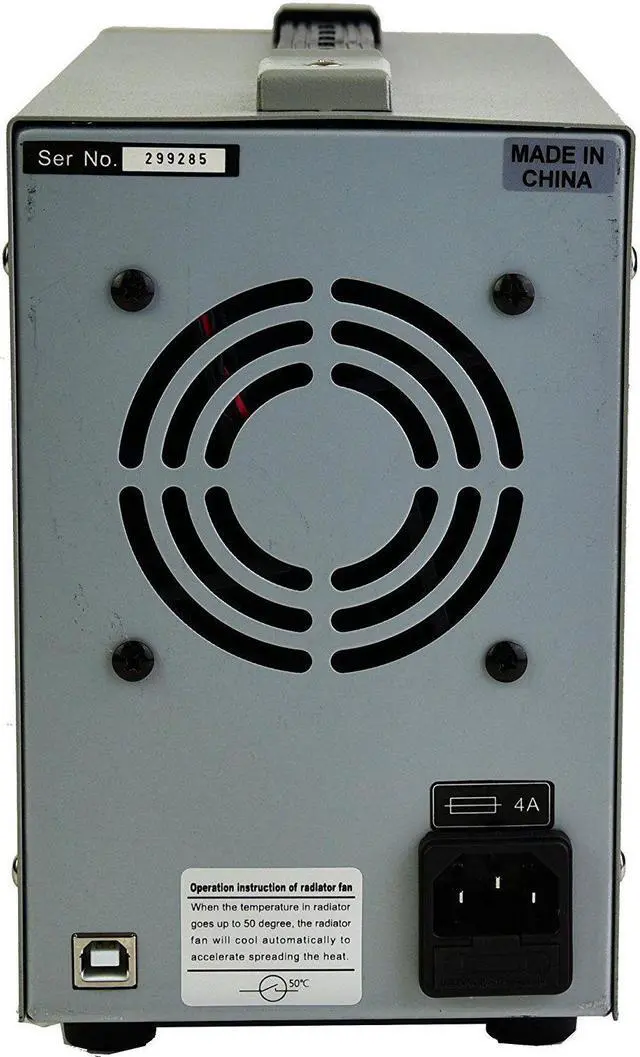

Cooling fan with thermo sensor, output sockets with insulation protection, and overload fuse protection ensure operational and personal safety, CE certified
Pro-level precision and accuracy with low noise and low ripple, plus built-in memories to easily and effortlessly store and access your frequently-used settings to save time and improve productivity
USB interface enables remote control, operation, data exchange via a computer (Windows PC only), software and USB cable are included
Automatically shut-off to prevent damage to the connected load with Over Current Protection (OCP)
Cooling fan with thermo sensor, output sockets with insulation protection, and overload fuse protection ensure operational and personal safety, CE certified
