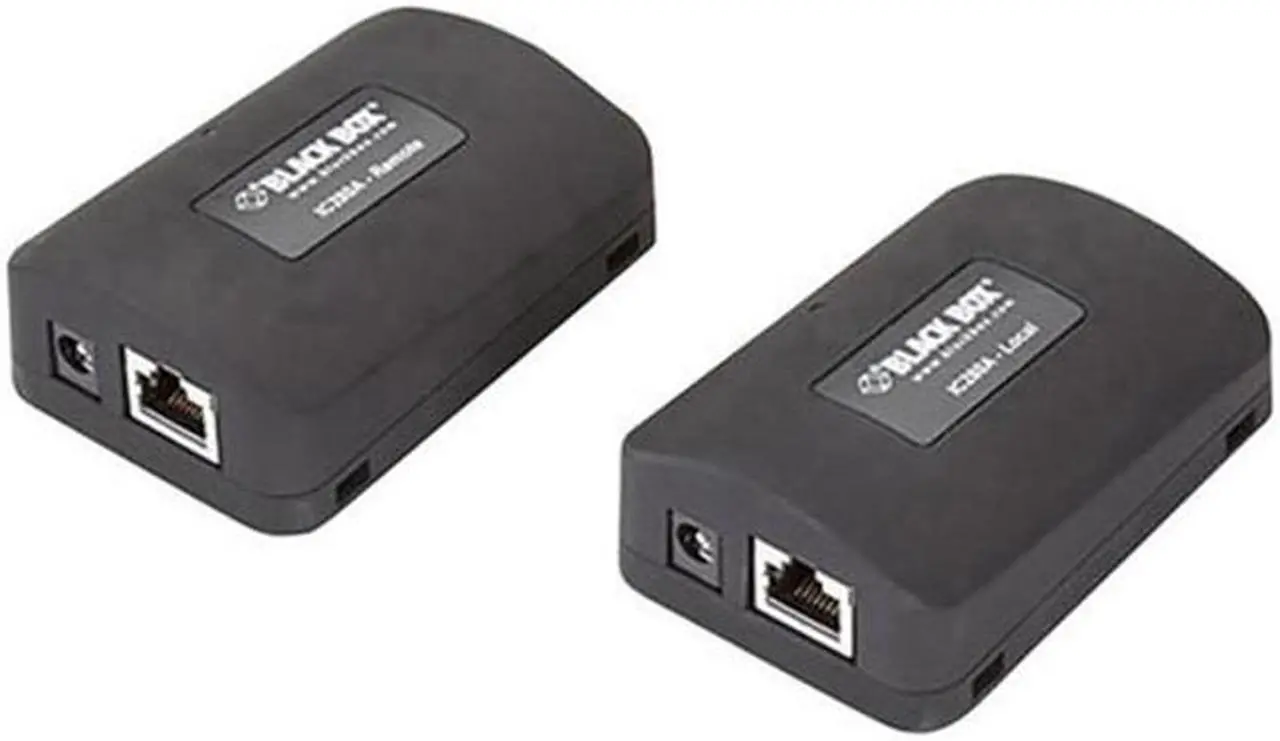

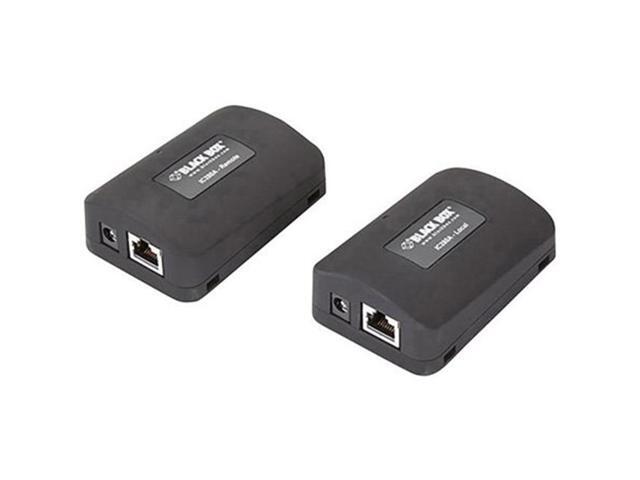

Black Box BBX-IC280A-R2 USB 2.0 CAT5 Extender

With the IC280A-R2- you can extend USB 2.0 peripherals beyond the 16 ft (5 m) limitation up to 328 ft (100 m) over CATx- and power it locally or remotely. Extend a USB peripheral connection beyond the desktop to USB keyboards- mice- printers- webcams- interactive whiteboards- and other devices. The extender receives power locally or remotely- so you have the flexibility to power the extender where it is most convenient for you. Use it- for instance- in industrial control- factory floor- classroom- or meeting room applications where you're short on power outlets. The extender supplies up to 500 mA to the downstream USB device and offers reliable operation with USB 1.1 and USB 2.0 devices.
Features
Extend USB 2.0 signaling over CAT5 cable to a remote USB peripheral
Gives you the option to power it locally or remotely. Transmits power over the UTP cable
Works with USB 1.1 and USB 2.0 hosts
Compatible with USB devices operating at speeds up to 480 Mbps
Supports all major operating systems: Windows- Mac OS X- and Linux
Plug and play- No software drivers to load on a host computer
Includes 6-foot USB cable for transmitter-to-host connection
Transmits power over the UTP cableSpecifications
Range: Up to 100 m (330 ft.) over Cat 5e/6/7 cable
USB Device Support: High-speed devices (480 Mbps) (USB 2.0); Full-speed devices (12 Mbps) (USB 1.1); Low-speed devices (1.5 Mbps) (USB 1.1)
Maximum USB Devices Supported: 30 USB devices or 4 USB hubs with 26 USB devices
Power Supply Input: 100-240V AC
Output: 24V DC- 1A
AC Adapter Connector: 2.1-mm center-positive jack
Current Available to USB Device at Remote Extender: Up to 1 Amp
Mounting: Slots for Cable Ties
Enclosure Material: Black ABS with Rubberized Coating
USB Connector: (1) USB 2.0 Type B
Link Connector: (1) RJ-45
