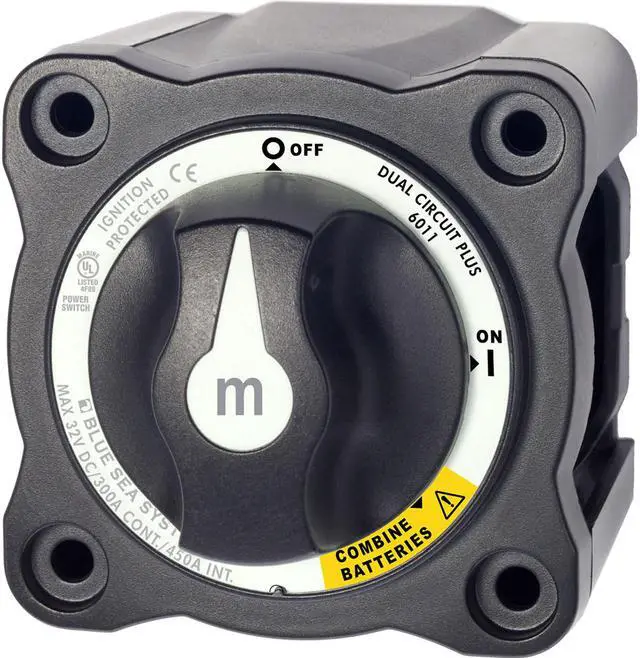

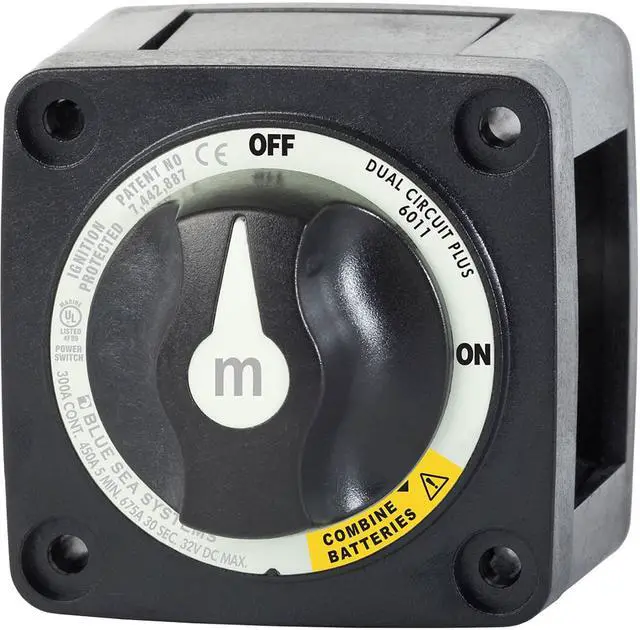

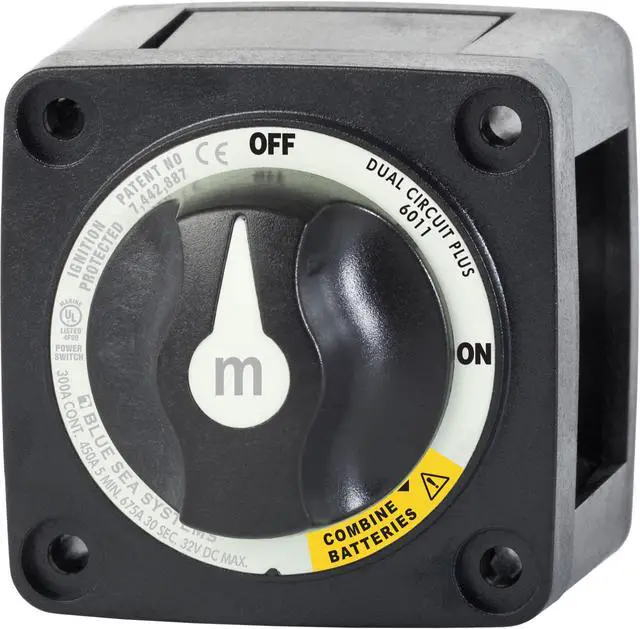

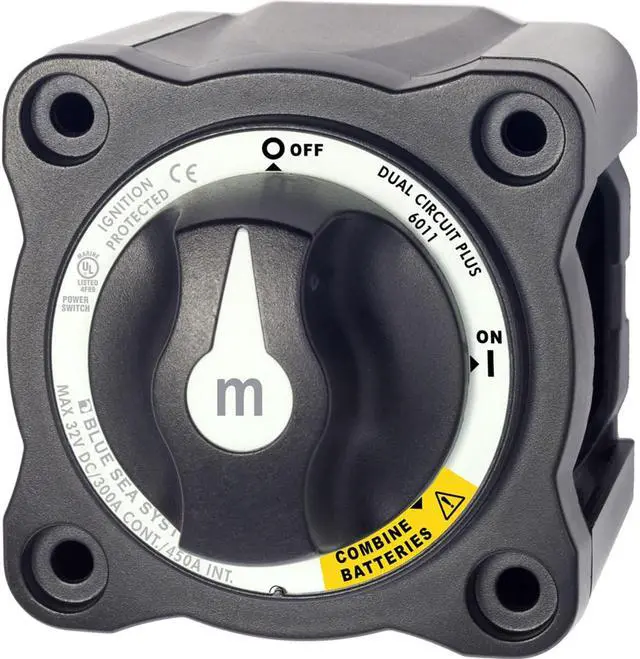

Blue Sea 6011200 m-Series Battery Switch Dual Circuit Plus - Black
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
m-Series Mini Dual Circuit Plus Battery Switch - BlackSimultaneously switches two isolated battery banks or combines battery banks to all loads. Make before break contact design allows switching between battery banks without power interruption.
Switch Type: Dual
Circuit PlusColor: BlackSwitch
Positions: 3Battery
Combine: YesAlternator
Field Disconnect: NoMaximum
Voltage: 32V
DCContinuous Rating: 300AIntermittent
Rating: 450A (5 min) Cranking
Rating 10 sec: 1000ACranking
Rating 1 min: 650ABattery
Inputs: 2Cable Clearance For 4/0
AWG Cables: 1.12 in ( 28.45 mm)Cable Size to
Meet Ratings: 4/0 AWG (120mm²)
Mounting Holes: Accept #10 ScrewTerminal
Stud Size: 3/8"-16 (M10)
Terminal Stud Torque: 120 in-lb ( 13.56
Nm)Weight: 0.80
lb ( 0.36 kg)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings. ca. gov.
Switch Type: Dual
Circuit PlusColor: BlackSwitch
Positions: 3Battery
Combine: YesAlternator
Field Disconnect: NoMaximum
Voltage: 32V
DCContinuous Rating: 300AIntermittent
Rating: 450A (5 min) Cranking
Rating 10 sec: 1000ACranking
Rating 1 min: 650ABattery
Inputs: 2Cable Clearance For 4/0
AWG Cables: 1.12 in ( 28.45 mm)Cable Size to
Meet Ratings: 4/0 AWG (120mm²)
Mounting Holes: Accept #10 ScrewTerminal
Stud Size: 3/8"-16 (M10)
Terminal Stud Torque: 120 in-lb ( 13.56
Nm)Weight: 0.80
lb ( 0.36 kg)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings. ca. gov.
