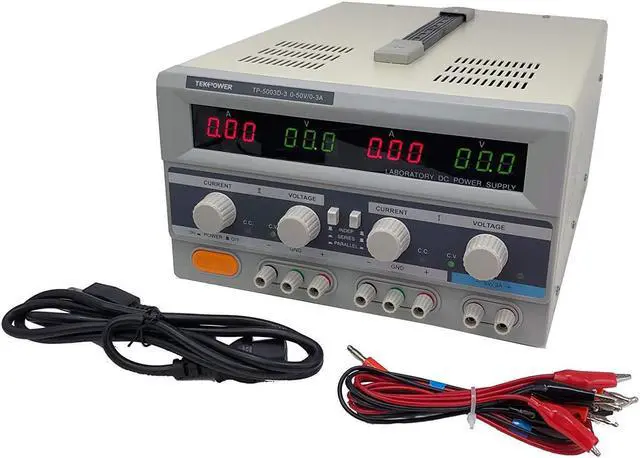

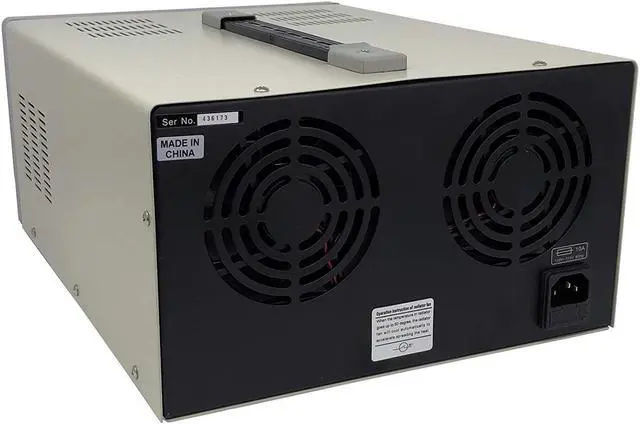

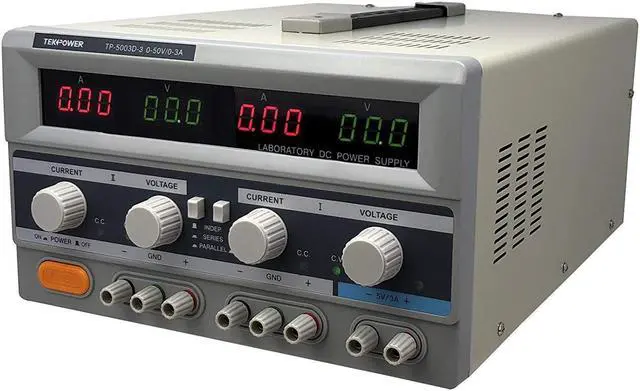

Tekpower TP5003D-3 Variable Triple Outputs Linear DC Power Supply 50V @ 3A
- The Tekpower TP5003D-3 variable DC power supply is a compact and affordable instrument that is suitable for both home and industrial use. This digital DC power supply has a total of three DC outputs, two of them have a maximum output voltage of up to 50 volts and current up to 3 amps, they may also be connected in series or in parallel for higher voltage or current; the last one has an output voltage of 5V and current up to 3 amps. It comes with rotary switches for setting up the voltage and current. With its reliability and versatility, it's an invaluable and indispensable tool for testing, science project and etc., ideal for labs, research institutes, R & D facilities.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Output DC Voltage: 0.0 50.0V
Output DC Current: 0.00 3.00 A
Input Voltage: 110V/AC, 60Hz
Voltage and Current adjustment
Voltage regulation: CV < 0.01% + 3mV, CC < 0.01% + 6 mA
Load regulation: CV < 0.01% + 2mV, CC < 0.01% + 6mA
Ripple and noises: CV < 1 mV rms, CC < 3 mA, rms
Protection: High current limiting
Operating Temperature: 0 - 102 F (0 - 40 C), Relative
Humidity: < 80%
LCD Accuracy is within +/- 2.5 %
Size: 360 x 265 x 165 mm
Weight: approx. 19 lbs
Output DC Current: 0.00 3.00 A
Input Voltage: 110V/AC, 60Hz
Voltage and Current adjustment
Voltage regulation: CV < 0.01% + 3mV, CC < 0.01% + 6 mA
Load regulation: CV < 0.01% + 2mV, CC < 0.01% + 6mA
Ripple and noises: CV < 1 mV rms, CC < 3 mA, rms
Protection: High current limiting
Operating Temperature: 0 - 102 F (0 - 40 C), Relative
Humidity: < 80%
LCD Accuracy is within +/- 2.5 %
Size: 360 x 265 x 165 mm
Weight: approx. 19 lbs
