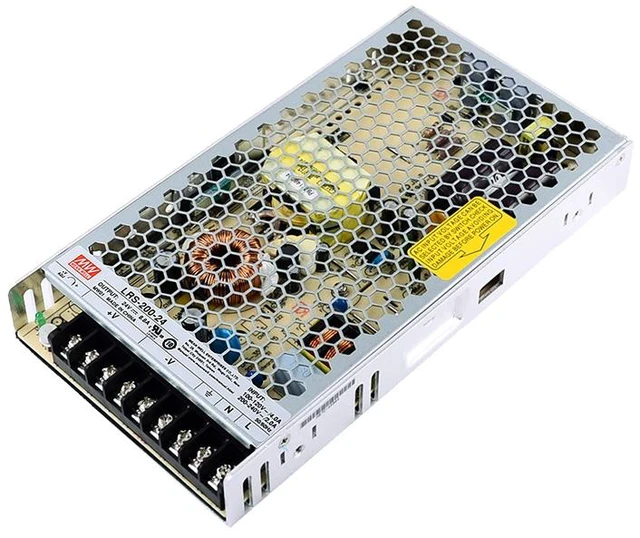

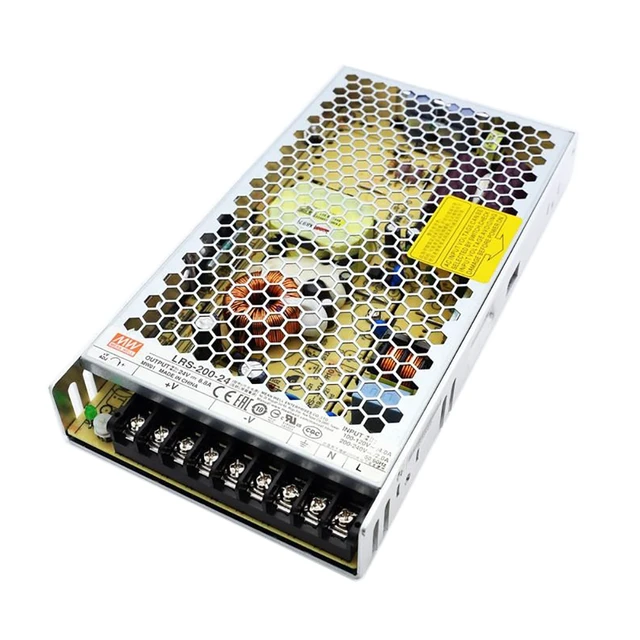

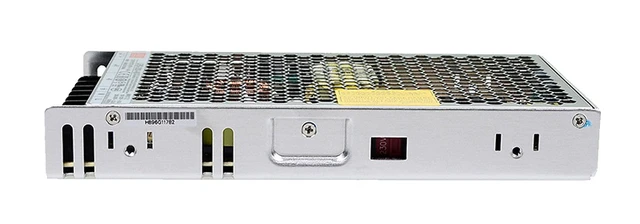

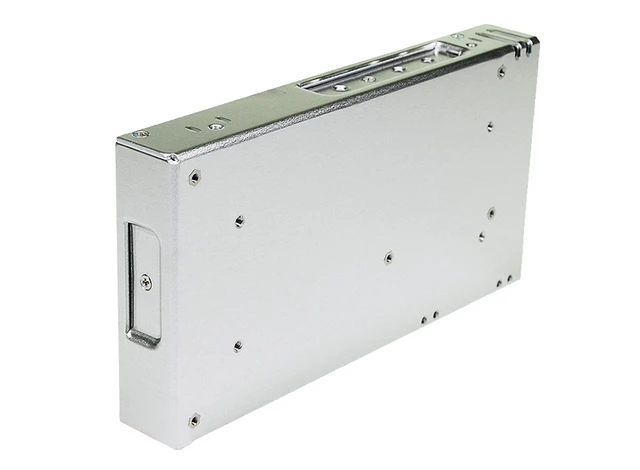

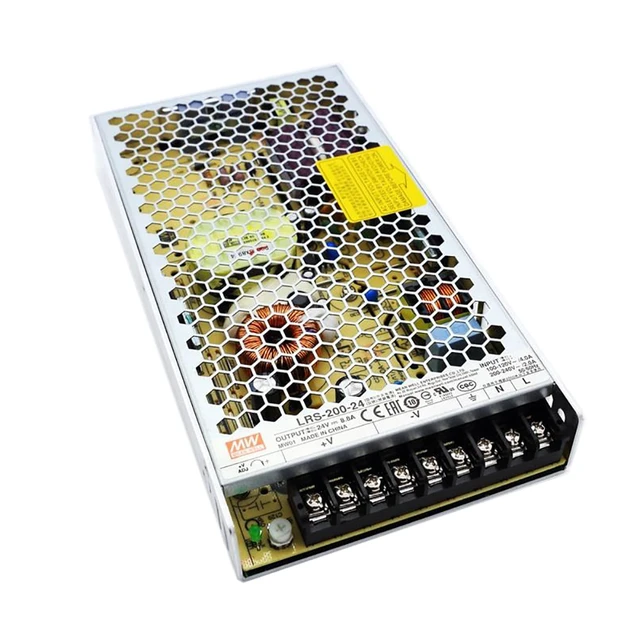

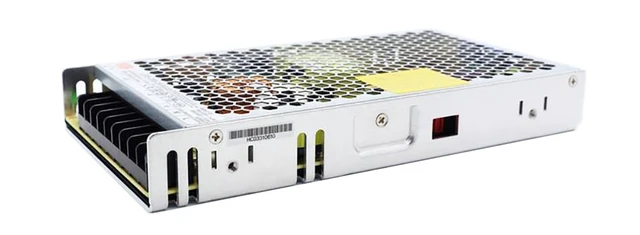

LRS-200-24 Mean Well 200W 24V 50A Switching Power Supply
- The LRS-200 series is a 200W single output enclosed power supply with a 30mm low profile design. It adopts 115VAC or 230VAC segmented input (selected through a switch), and the entire series provides 4.2V, 5V, 12V, 15V, 24V, 36V, and 48V outputs In addition to achieving an efficiency of up to 90%, the design of the metal mesh casing enhances the heat dissipation capability, allowing the LRS-200 to operate within a temperature range of -25 ° C to+70 ° C without a fan. Providing ultra-low no-load power consumption (less than 0.75W) makes it easy for terminal systems to meet international energy requirements. LRS-200 has complete protection function and anti 5G vibration capability; It complies with UL62368-1 international safety regulations, and the LRS-200 series provides a cost-effective solution for various industrial applications.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
The input range for communication can be switched through a switchCan withstand 300vac surge input for 5 secondsProtection type: short circuit/overload/overvoltage/overtemperatureNatural Air Cooling1U low profile designCapable of withstanding 5G vibration testing, power supply startup, LED indicator light, no-load power consumption<0.75W, 100% full load aging testing, working temperature can reach up to 70 ° C, high efficiency, 3-year warrantyCan operate at an altitude of 5000 meters (Note 8)High lifespan and high reliability
Can withstand 300vac surge input for 5 seconds
Protection type: short circuit/overload/overvoltage/overtemperature
Natural Air Cooling
1U low profile design
Capable of withstanding 5G vibration testing, power supply startup, LED indicator light, no-load power consumption<0.75W, 100% full load aging testing, working temperature can reach up to 70 ° C, high efficiency, 3-year warranty
Can operate at an altitude of 5000 meters (Note 8)
High lifespan and high reliability
