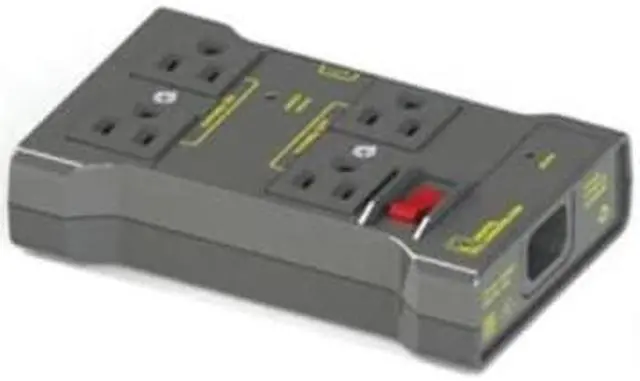

Digital Loggers IoT Power Relay II
- Multiple AC loads of up to 12A total can be connected
- Universal control voltage of 3-48VDC or 12-120VAC to allow control from any micro/ AC source
- AC input 90-120VAC, 0-8A with 18AWG Cords, 0-12A with 16AWG
- Diverse safety features
- Included 12 Inch C-13 to 5-15 16AWG cord
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Connect and safely control power from an Arduino, Raspberry Pi, Galileo or other micro-controller. The universal input connects to any circuit including 3.3V and 5 volt logic. No driver is required. Simply connect two wires. One to ground and one to your control signal, such as an output bit on a micro-controller. NOT FOR USE ON 220V AC.
Build the IoT. The relay can also be controlled by an AC input voltage of 12 to 120 VAC. No changes or jumpers are required. The internal circuitry is very power efficient, using approximately 1/5W unswitched and 1.1W activated.
Applications include: Remote reboot of networking equipment IoT products, DIY gadgets, OEM test equipment Home and building automation Green power and energy conservation Kiosks, vending machines and signage controls Multiple AC loads of up to 12 Amps total may be controlled. Your imagination is the limit. The IoT control relay is rugged and reliable, with US design and QC. It ships fully assembled and tested with a 1 year warranty.
Build the IoT. The relay can also be controlled by an AC input voltage of 12 to 120 VAC. No changes or jumpers are required. The internal circuitry is very power efficient, using approximately 1/5W unswitched and 1.1W activated.
Applications include: Remote reboot of networking equipment IoT products, DIY gadgets, OEM test equipment Home and building automation Green power and energy conservation Kiosks, vending machines and signage controls Multiple AC loads of up to 12 Amps total may be controlled. Your imagination is the limit. The IoT control relay is rugged and reliable, with US design and QC. It ships fully assembled and tested with a 1 year warranty.
