How we got our start
Our first batch of production-soldering stations and hot air stations rolled off the assembly line in the year 2000.
What makes our product unique
We continued to innovate and evolve our solutions to provide better user experience, notable technologies first introduced by YIHUA includes Hot Air Start/Stop, Hot Air Failsafe, Skeleton-Type Heating Element, Integrated Soldering Iron Holder System, and more.
Our Top Picks
Exclusive Rework Stations
Your handy bench power supply is here

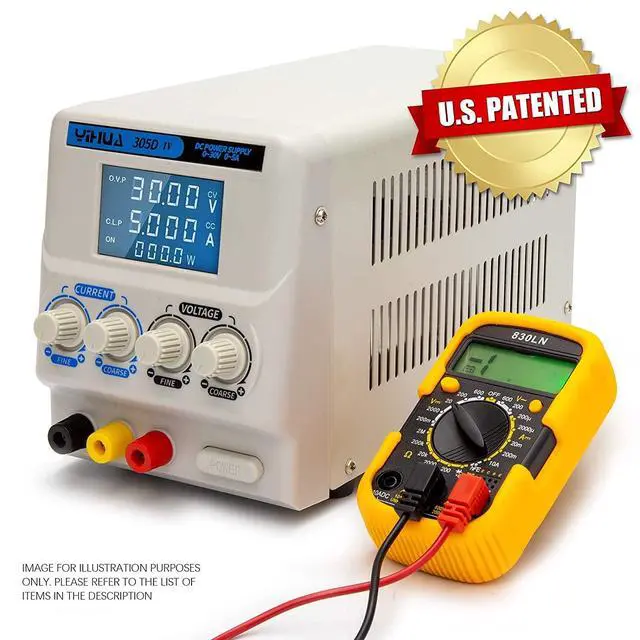

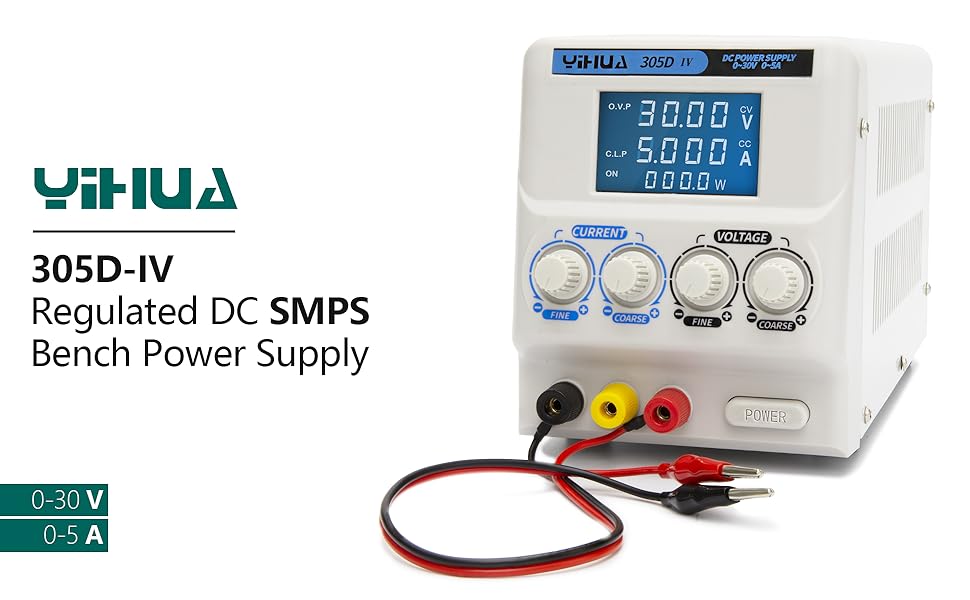

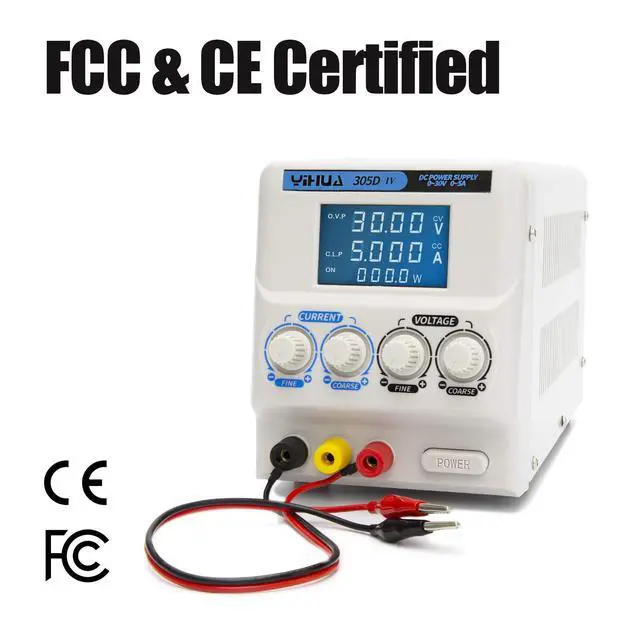

305D-IV Regulated DC Bench Power Supply
This SMPS (Switch-Mode Power Supply) provides reliable power delivery, and accurate readings, with a current display that shows up to every mA (milliamps) / 0.001A and a voltage display that reads up to every 10 mV (millivolts) / 0.010V. The power supply supports current adjustments from 0A to 5A, and voltage adjustments from 0V to 30V.
Need-to-Know
Classification
- Switch Mode Power Supply (SMPS)
- A.C. 110V 50/60Hz U.S. Spec
- Light-weight & Low-Noise
- Fine & Coarse Adjustments (Voltage/Current)

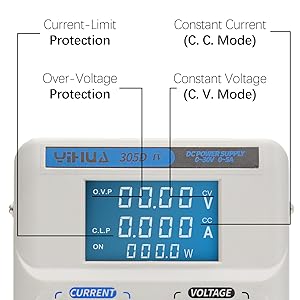

Features
- Over-Voltage ProtectionCurrent-Limit Protection
- Constant Current (C. C. Mode)
- Constant Voltage (C. V. Mode)
Output

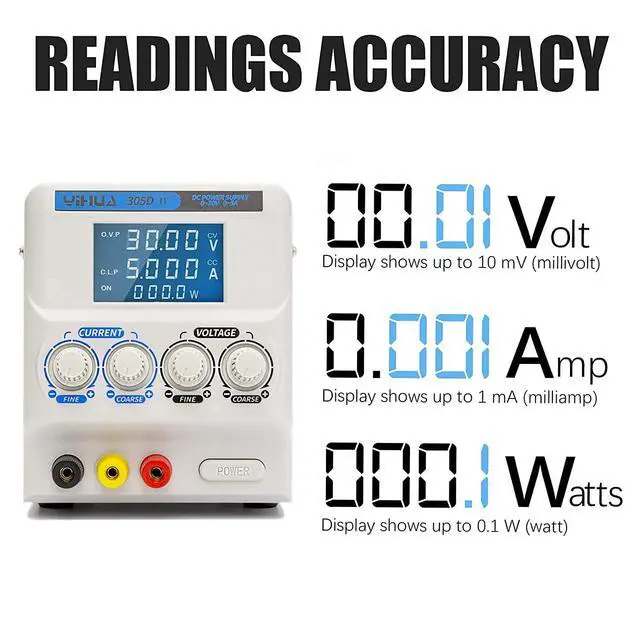

- Output: 0 – 30.00V / 0 – 5.000A
- Voltage Readings: Up to 0.010V (10 millivolt)
- Current Readings: Up to 0.001A (1 milliamp)
- Wattage Readings: Up to 000.1W
Safety
Lead-Free | A.C. 110V 50/60Hz | U.S. Spec Power Plug
In the box
1 x 305D-IV Regulated DC Power Supply
2 x Ring – Alligator Clips Leads (+ Positive & - Negative)
By choosing YIHUA products, you reap the benefits of quality products derived from our 20-years of experience in designing and manufacturing soldering, hot air rework, DC power supply, and desoldering equipment.

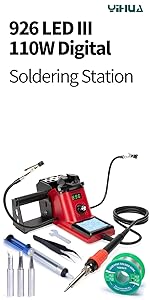

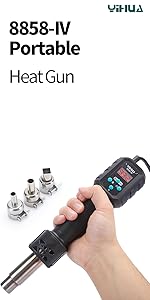

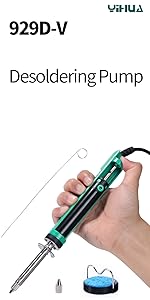

 YIHUA 928D-III |  YIHUA 929D-V |  YIHUA 926 III |  YIHUA 8858-IV |  YIHUA 853D 2A USB |  YIHUA 946D-III | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Category | Soldering Iron | Desoldering Pump | Soldering Station | Heat Gun | 3-IN-1 Multi Station | LCD Screen Separator |
| Rated Power | 24W(Max.110W) | no data | 22W | 700W | 800w | no data |
| Temperature Range | 194°F-896°F | no data | 194?~896? | 212°F ~932°F | Soldering: 392?~896? & Hot Air Rework: 212?~896? | no data |
| Display | LED Nixie | no data | LED | LED Nixie | LED Nixie | LCD |
| PID Temperature Stabilization | ? | no data | ? | ? | ? | no data |
| Temperature Calibration | ? | no data | ? | ? | ? | no data |
Specifications (Power Supply)
How we got our start
Our first batch of production-soldering stations and hot air stations rolled off the assembly line in the year 2000.
What makes our product unique
We continued to innovate and evolve our solutions to provide better user experience, notable technologies first introduced by YIHUA includes Hot Air Start/Stop, Hot Air Failsafe, Skeleton-Type Heating Element, Integrated Soldering Iron Holder System, and more.
Our Top Picks
Exclusive Rework Stations
Your handy bench power supply is here
305D-IV Regulated DC Bench Power Supply
This SMPS (Switch-Mode Power Supply) provides reliable power delivery, and accurate readings, with a current display that shows up to every mA (milliamps) / 0.001A and a voltage display that reads up to every 10 mV (millivolts) / 0.010V. The power supply supports current adjustments from 0A to 5A, and voltage adjustments from 0V to 30V.
Need-to-Know

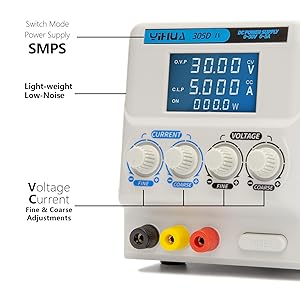

Classification
- Switch Mode Power Supply (SMPS)
- A.C. 110V 50/60Hz U.S. Spec
- Light-weight & Low-Noise
- Fine & Coarse Adjustments (Voltage/Current)
Features
- Over-Voltage ProtectionCurrent-Limit Protection
- Constant Current (C. C. Mode)
- Constant Voltage (C. V. Mode)

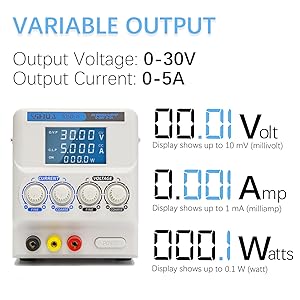

Output
- Output: 0 – 30.00V / 0 – 5.000A
- Voltage Readings: Up to 0.010V (10 millivolt)
- Current Readings: Up to 0.001A (1 milliamp)
- Wattage Readings: Up to 000.1W

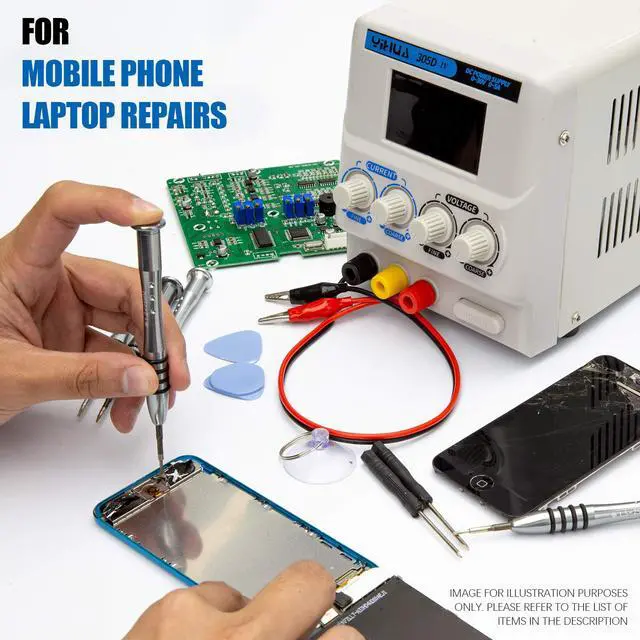

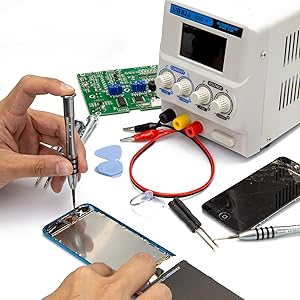

1.Mobile Phone / Laptop Projects
This is a great unit to have if you're working with mobile phones & small electronic projects with different voltage and current requirements for safe operations. You can adjust different parameters to suit the specifications of different devices without having to purchase a dedicated adaptor for each of them

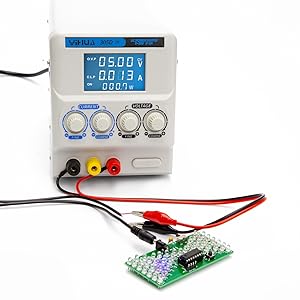

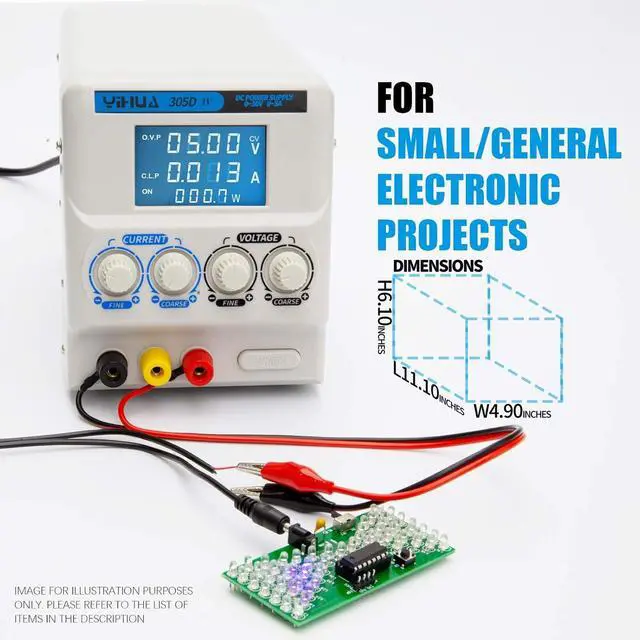

2.Small / General Electronic Project
With reliable failsafe functions and great output precision, this unit is also widely endorsed in the laptop repair businesses. How it works:In a potential overload, the built-in overload protection function kicks in to cut the power and protect the board and components from frying.

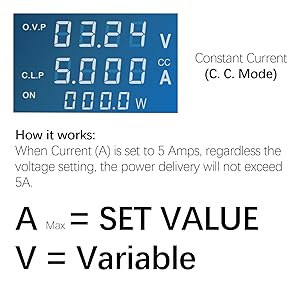

3.Constant Current (C.C. Mode)
In C.C. mode, the power supply will ONLY allow change in the voltage value while keeping the current value constant. How it works:When you're powering current-sensitive components such as a fuse / semi-conductor / LED, the power supply can regulate the current output to your set value.

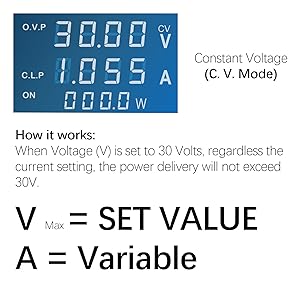

4.Constant Voltage (C.V. Mode)
In C.V. mode, the power supply will ONLY change the current value while keeping the voltage value constant. How it works:When you're powering components or devices with higher voltage requirements, such as an electric motor or a circuit, the C.V. mode keeps the voltage value constant (regulated) while keeping the current value available for changes to power the load
Safety
Lead-Free | A.C. 110V 50/60Hz | U.S. Spec Power Plug
In the box
1 x 305D-IV Regulated DC Power Supply
2 x Ring – Alligator Clips Leads (+ Positive & - Negative)
By choosing YIHUA products, you reap the benefits of quality products derived from our 20-years of experience in designing and manufacturing soldering, hot air rework, DC power supply, and desoldering equipment.
YIHUA 928D-III | YIHUA 929D-V | YIHUA 926 III | YIHUA 8858-IV | YIHUA 853D 2A USB | YIHUA 946D-III | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Category | Soldering Iron | Desoldering Pump | Soldering Station | Heat Gun | 3-IN-1 Multi Station | LCD Screen Separator |
| Rated Power | 24W(Max.110W) | no data | 22W | 700W | 800w | no data |
| Temperature Range | 194°F-896°F | no data | 194?~896? | 212°F ~932°F | Soldering: 392?~896? & Hot Air Rework: 212?~896? | no data |
| Display | LED Nixie | no data | LED | LED Nixie | LED Nixie | LCD |
| PID Temperature Stabilization | ? | no data | ? | ? | ? | no data |
| Temperature Calibration | ? | no data | ? | ? | ? | no data |
Specifications (Power Supply)
| Model | 305D-IV |
| Rated Power | 195W |
| Weight | 5lbs. ±10% |
| C.V. Mode-Output Voltage | 0~30V |
| C.V. Mode-Load Regulation | =0.2%+2mV |
| C.V. Mode-Temp. Coefficient | =200PPM/°C |
| C.C. Mode-Line Regulation | =0.1%+3mA |
| C.C. Mode-Ripple/Noise | <1%Vrms |
| Voltage | 110V-127V AC 60Hz |
| Dimensions | L11.1" xW4.9" xH6.1" ±0.2" inch |
| Operating ambient temperature | 0~40?/32?~104? |
| C.V. Mode-Line Regulation | =0.01%+2mV |
| C.V. Mode-Ripple/Noise | <0.3%Vrms |
| C.C. Mode-Output Current | 0-5A |
| C.C. Mode-Load Regulation | =0.02%+3mA |
| C.C. & C.V.-Reading Accuracy | up to ±1% of reading |
