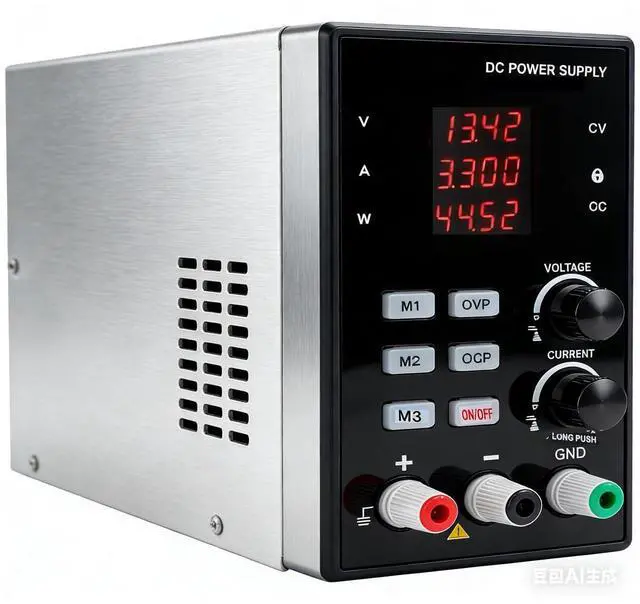

New model with stronger functions bench power supply
Output power on/off options ,all for your convenience
Output Voltage: DC 0-16V
Output DC Current: 0-5A
Input AC110V±10% ,60HzDisplay Resolutionvoltage 0.01V , current 0.01A
Load Regulation Rate=0.3%Ripple and Noise=50mVp_pCurrent Load Regulation Rate=0.2%+5mAWorking Temperature0 ~ 40°C
Tips:1.Few buyers said they have to push a button to turn the voltage on and off ,please note it that is old model function,it is output on ,it will damage your device if there is something connected to it once power on
Our equipment powers up with output off by default so you won't accidentally zap anything connected to it.
Press the ON/OFF lightly ,then output on .If you want to keep it output on next time ,just press the ON/OFF and hold 3 seconds while output is on,then it will be output on by default next time once power up
If you want to recover output off ,press the switch off and hold 3 seconds while it the output is off ,it will keep output off next time
If you can't understand ,you can send ask us by message
2025 latest bench power supply with new functions
Advantages compared to the old ones in market
Advantages :
1.A lot of old models power up with output on by default,that will zap the devices which has connected to it
Our equipments powers up with output off by default, so you won't accidentally zap anything connected to it.
Press ON/OFF lightly ,then output on .if you want to keep output on next time ,press and hold ON/OFF for 3 seconds ,it will power up with output on by default next time
2.Most old models has no memory functions
Our equipments have M1-M3 memory groups: store up to 3 voltage/current profiles, set overvoltage and overcurrent protection, and even lock the current setting if needed.
3.Most Old models has four knobs ,you need to adjust the voltage range first then adjust the currency ,toggle between modes frequently
Our equipments controls use individual encoder knobs for voltage and current, which makes tuning each parameter simple and intuitive - no need to toggle between modes.
4.OVP OVC functions:Long-press OVP to set max protection voltage via the voltage knob. Short-press to activate OVP. Press **Output** to reset after triggering.
3 Memory Groups,save three voltage and current combinations you commonly use,recall it up anytime and anywhere without having to reset it
How to distinguish new model from old models ?
How to distinguish new model from old models ?
From out apprearance ,you can know their difference .
1:Old model has no memory functions ,no M1-M3 knob ,our new model has M1-M3 knobs
2.Old model has 4 knobs for voltage and currency adjustment ,need to adjust voltage range first then adjust currency need to toggle modes requently .our new model has 2 encoder knob makes tuning each parameter simple and intuitive - no need to toggle between modes.Easier operation and simple adjustment

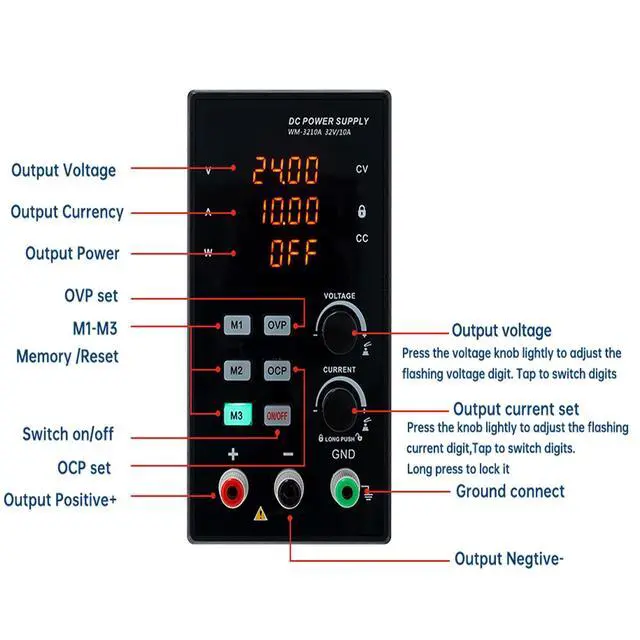

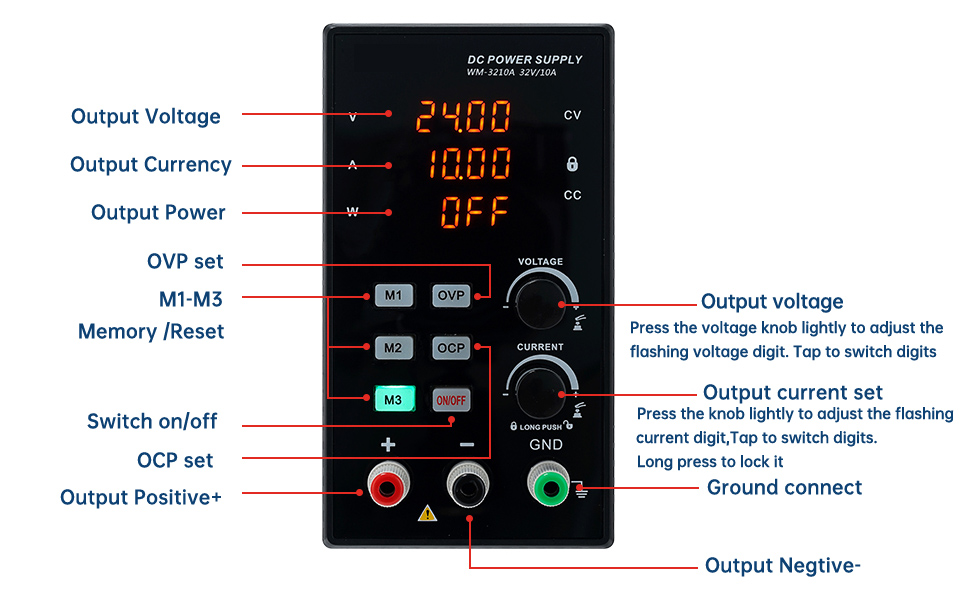

Functions details

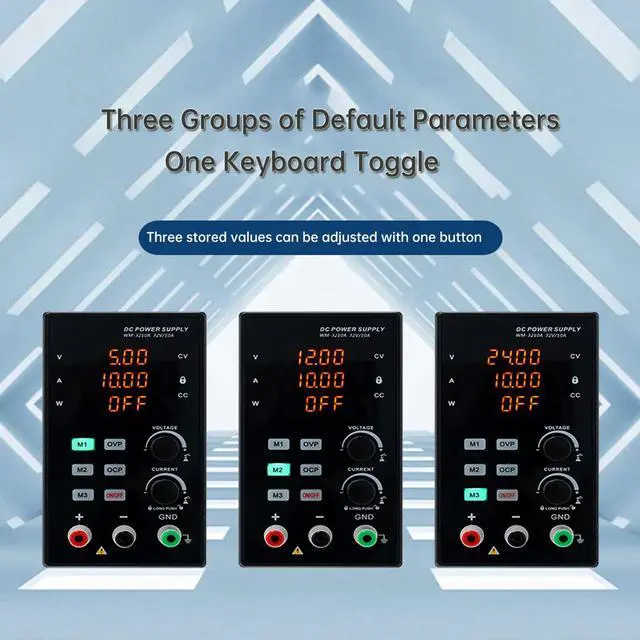

Memory functions
You can set three voltage and current combinations you commonly use and press long M1-M3 for 3 datas until the button bright like the photo M1 ,it means save successfully. press lightly to recall it next time ,no need to set again
Encoder knobs for voltage and currency
Two encoder knobs ,simple and intuitive adjust .
OVP &OCP functions:Long press OVP/OCP to set and save a highest voltage/currency value ,it will start to OVP function
Output on/off options
It powers up with output off by default, prevent from accidentally zap anything connected to it
Press ON/OFF lightly ,then output on ,if you want it powers up with output on by default next time press ON/OFF again for 3 seconds

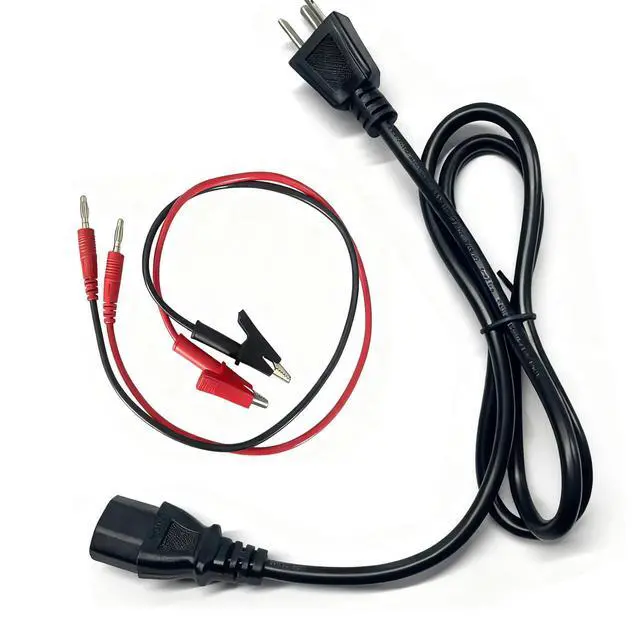

Quality input and output leads
The clip leads included are molded and decent quality,clip firmly ,protect your power supply well
Input Voltage Toggle Switch
1. Choose the input voltage from different countries including 110V/220V before using

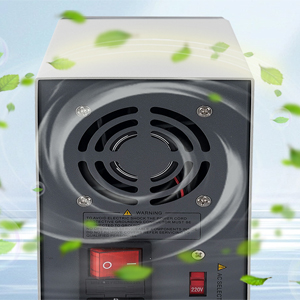

2.There is fan inside the device so that it can keep cool while working
