DC Power Supply Variable 30V 5A, Hyelec Switching Power Supply with 5V 2A USB Output, Adjustable Regulated Power Supply with 4-Digits LED Power Display, Alligator Leads Including,110V Input Voltage

High PrecisionHyelec adjustable dc bench power supply using the traditional high quality carbon film potentiometer, The coarse and fine adjustment function of current and voltage are respectively set. user can set the voltage and current value by coarse and fine adjustment potentiometer accordingly, it with high precision LED display, voltage resolution 0.01V and current resolution 0.001A, the indicator is stable.

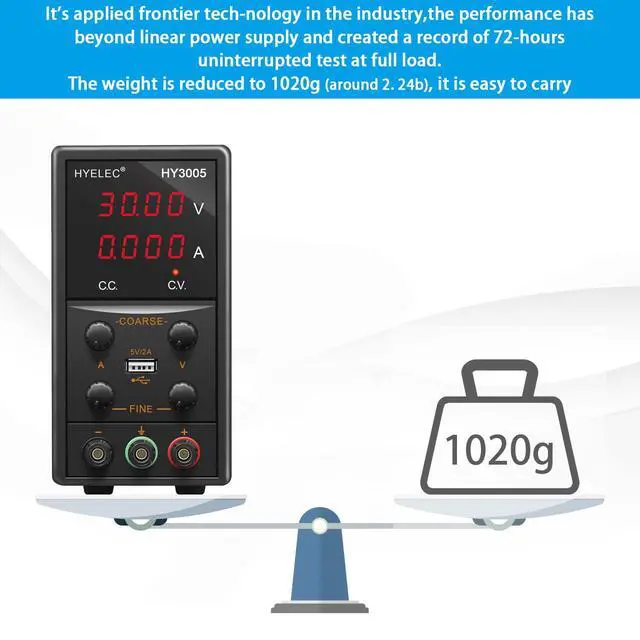

Protection & Heat dissipationThe bench power supply includes temperature control fan, Current limitingshort circuit protection. Its applied frontier technology in the industry, the performance has beyond linear power supply and created a record of 72-hours uninterrupted test at full load.Equipped with a large fan controlled by an intelligent temperature control sensor and multiple heat radiation slots on both sides, it provides good heat dissipation, effectively reducing noise and extending the use life
Constant Voltage/ Current & 5V/2A USBThe power supply can be operated as a constant voltage source (CV) or as an equivalent constant current source (CC) . The conversion of constant voltage and constant current could be indicated by the LED display on the front panel. Use the coarse and fine adjustment knobs to easily adjust the required voltage and current. The variable power supply has a 5V/2A USB interface, it could charge phones or provide power for the equipment which needs to be repaired

Product Description

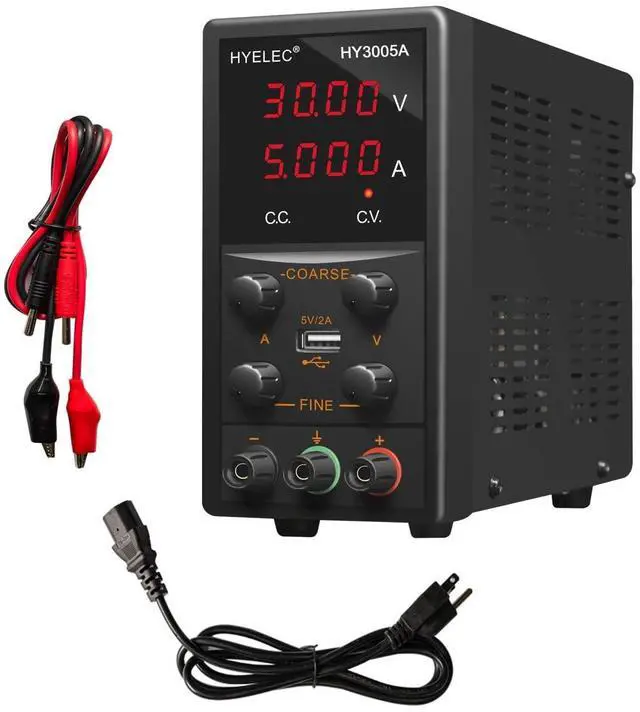

HYELEC adjustable DC bench Power Supply HY3005A

HY3005A is a high precision, compact variable dc power supply, it’s applied frontier technology in the industry, works very stable, the structure of HY3005A is reasonable, neat, light and reliable, easy to carry with.

Feature:

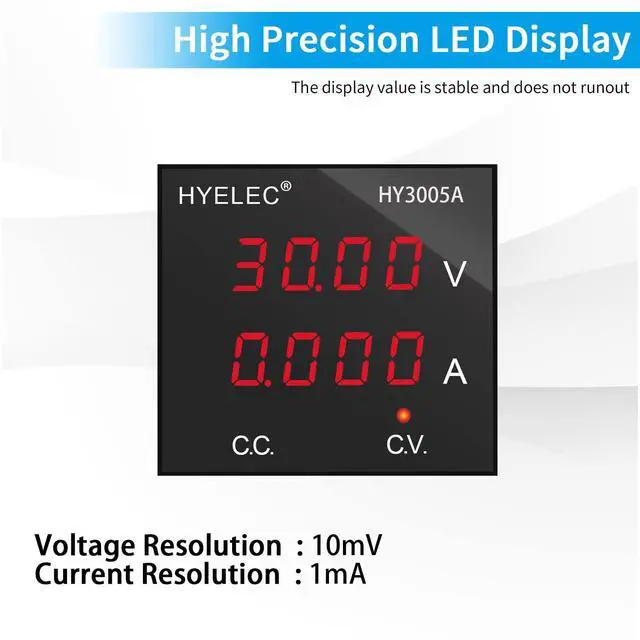

1. Highly accurate 4-digit backlit LED display provides more accurate readings of voltage and current values in low light conditions

2. With the 5V / 2A USB interface, HY3005A could charge phones and provide power for the equipment needs to be repaired

3. Current limiting , short circuit protection

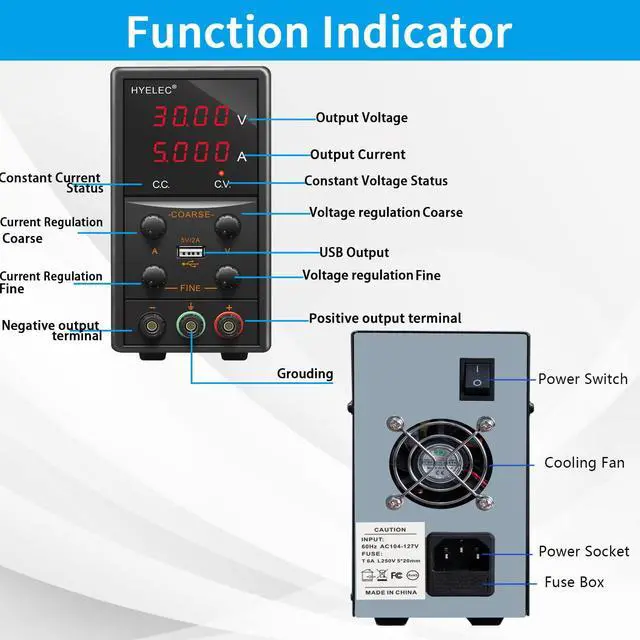

4.The product has independent coarse and fine adjustment buttons for both voltage and current, which is far more convenient and straightforward

5. lightweight and easy to carry

6. wide range of application such as school lab experiments, cell phone repairing and troubleshooting, electronic production ensuring specifications, and laboratory measurements etc.

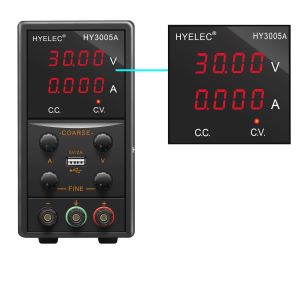

HY3005A Display

Display

LED screen works even in low voltage conditions Provides more accurate and clearly visible readings of voltage and current values.

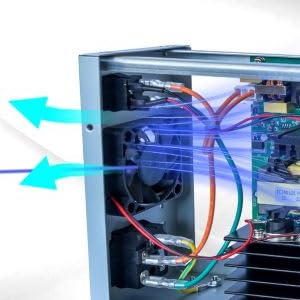

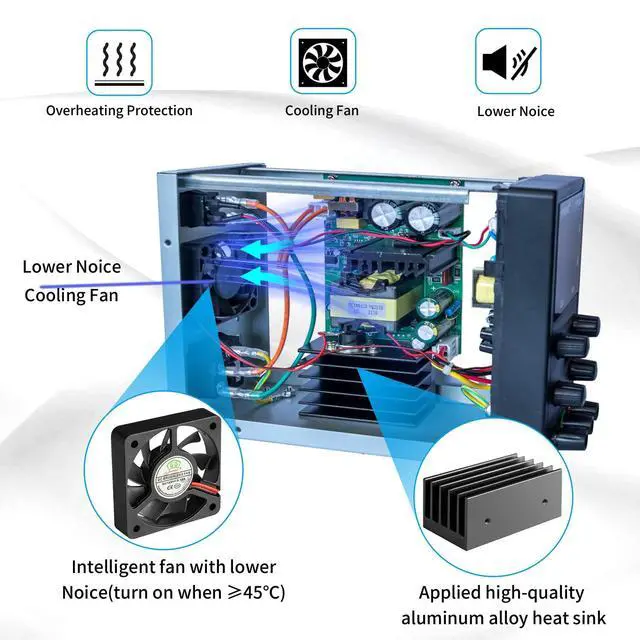

Cooling fan

Intelligent Cooling Fan

Temperature control intelligent air cooling system can effectively heat the machine, prolong the service life of the machine can also effectively reduce noise, provide reliable working conditions.

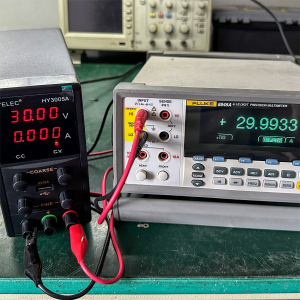

HY3005A Precision

High Precison and stable output

The power supply output is stable and precise.

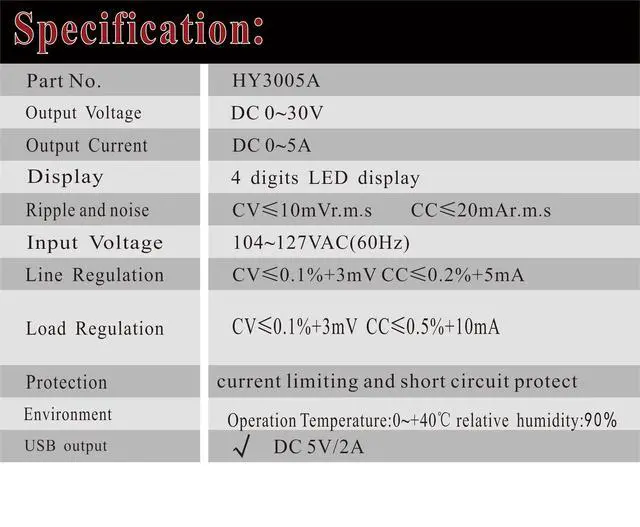

Specification:

Output Voltage	DC 0~30V
Output Current	DC 0~5A
Display	4 digits LED Display
Ripple and noise	CV=10mVr.m.s CC=20mAr.m.s
Input voltage	104~127VAC(60Hz)
Line regulation	CV=0.1%+3mV CC=0.2%+5mA
Load regulation	CV=0.1%+3mV CC=0.5%+10mA
Protection	current limiting and short circuit protection
Environment	Operation temperature :0~+40°C relative humidity :90%
USB Output	DC 5V/2A
