3005D-III DC Variable Power Supply 30.00V 5.0000A High Precision Bench Lab Power Supply with Alligator Clips for anodizing kit, Electroplating, arduino, breadboard

This variable power supply provides accurate numerical voltage reading up to 00.01V (Every 10mV), current reading up to 0.0001A (Every 0.1mA), power reading up to every 0.1W. Comes standard with automatic Constant Voltage, Constant Current function. Please read the product manual carefully and ensure you fully understand the specifications of the equipment to be connected before use
You can easily adjust the lab power supply's output to the precise parameters you need, no more fiddlign with corase and fine adjustment dials. This bench power supply's adjustment dials are made from digital rotary encoders, this gives greater lifespan even when used frequently. Plus, you don't need to short-circuit the terminals to set the adjustable power supply's parameters
This dc power supply comes with short-circuit protection, active temperature management, overload protection (CC/CV mode), The power supply cuts power, play a warning beep, and shows code "ScP" when a short circuit is detected. The cooling fan activates automatically to maintain optimal operation temperature, and the adjustable power supply cuts power and enters protection mode once overheat is detected
This compact dc power supply is similar to the size of a lunch box, saving precious work space. The power supply has a maximum power of 150W supporting maximum output of 30V 5A. It has a strong power capacity, and its voltage drop is low when powering a load

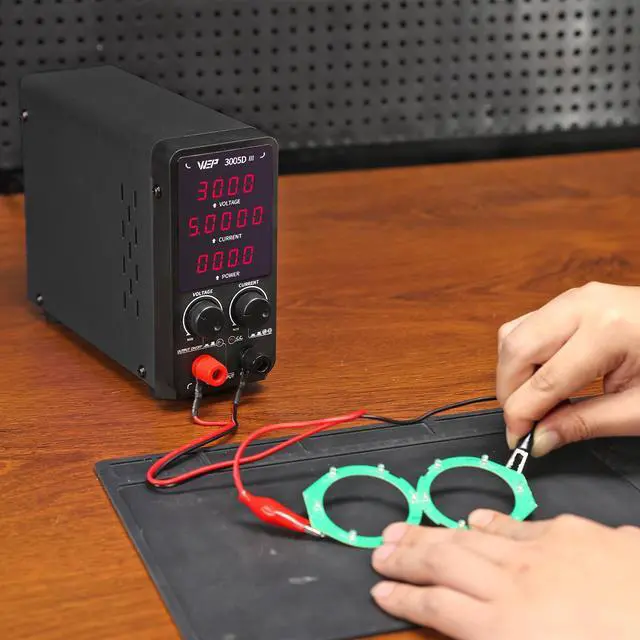

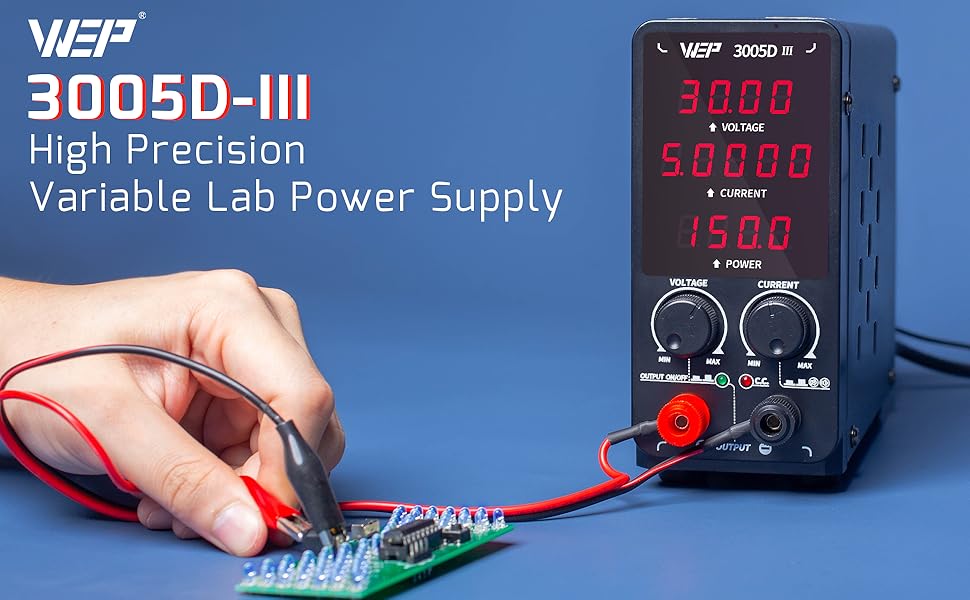

using the WEP 3005D DC Power Supply to power a PCB

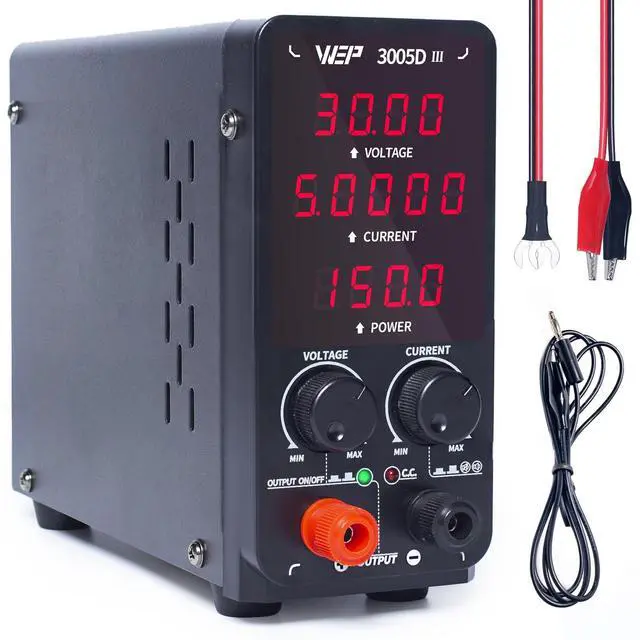

The WEP 3005D-III Precision DC Bench Power Supply includes:

1 x WEP 3005D-III Variable DC Power Supply

1 x Pair of Test Leads (U-Shape to Alligator Clips)

1 x Grounding Test Lead (Banana to Alligator Clips)

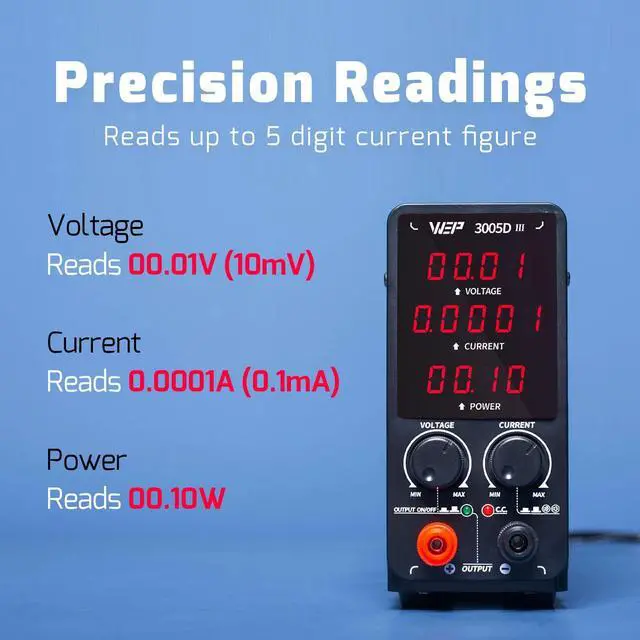

showcasing the reading figures for the DC power supply

Precision Readings

Voltage: Reads 00.00V

Voltage Accuracy: <0.1%+0.03

Current: Reads 0.0000A

Current Accuracy: <0.3%+3mA

Power: Reads 00.00W

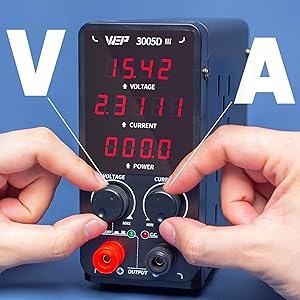

showcasing the voltage and current adjustment method for the WEP 3005D-III

Adjustable Voltage & Current

Voltage: 0~30V

Current: 0~5A

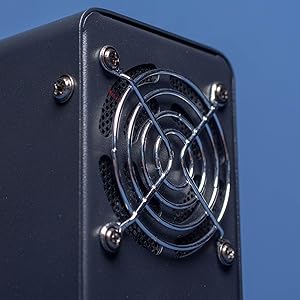

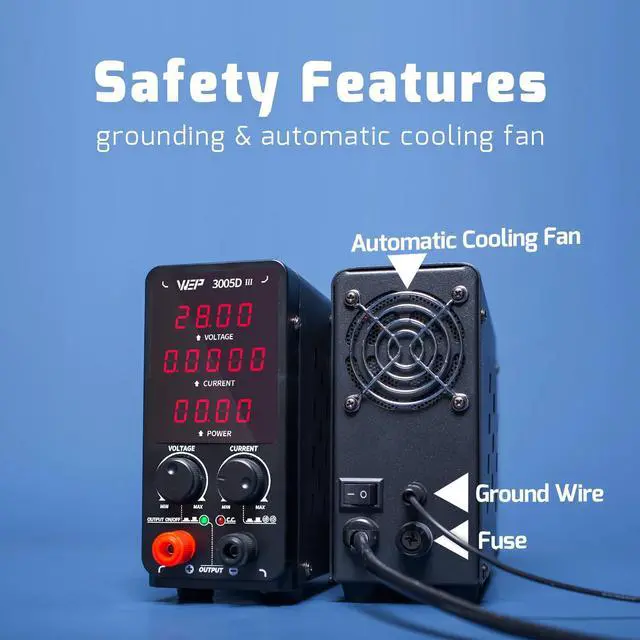

the automatic cooling fan for the WEP 3005D-III

Active Temperature Management

Cooling Fan: activates automatically

Automatic Power-Cut: when overheated

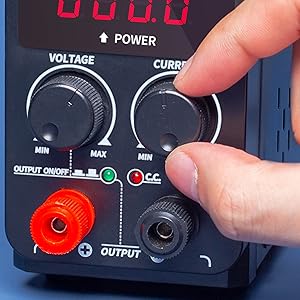

the rotary encoder knob for the WEP 3005D-III

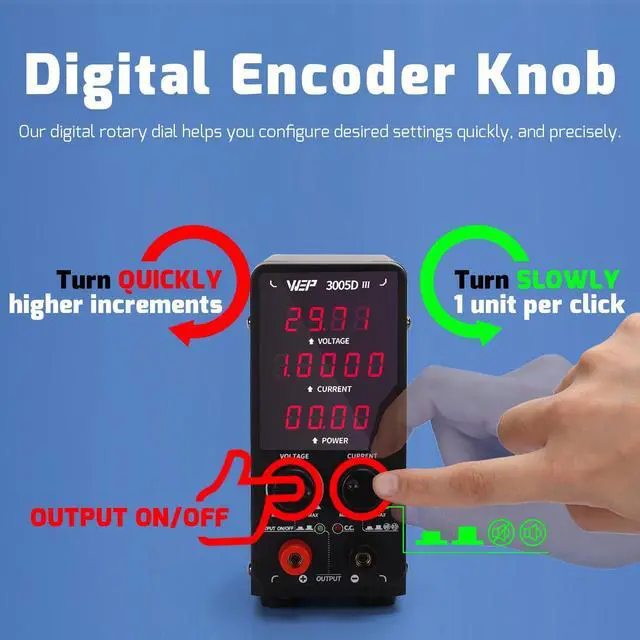

Digital Rotary Encoder

Longer Lifespan
Precise digital adjustment
Turn FAST – higher increments
Turn SLOW – precise increments

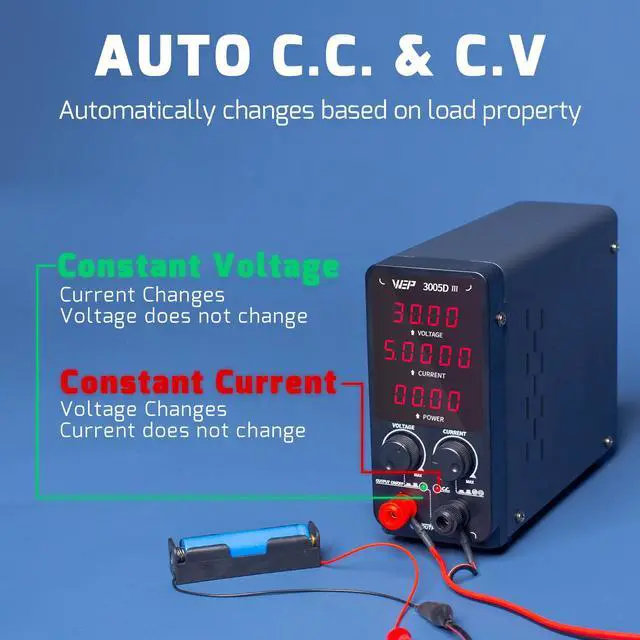

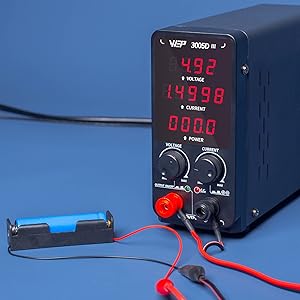

charging a battery with WEP 3005D-III

C.C & C.V Mode

Automatically switches between Constant Current or Constant Voltage mode based on the load connected.

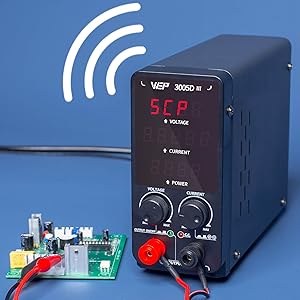

WEP 3005D-III protecting the circuit with short circuit protection mode

Short-Circuit Protection

When short-circuit is detected:

Stops power output
Alarm with beeping sound
Show ScP code

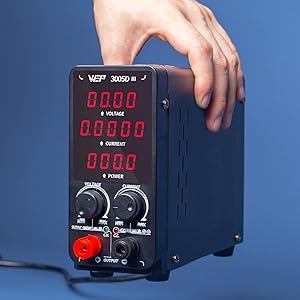

lifting the WEP 3005D-III up easily

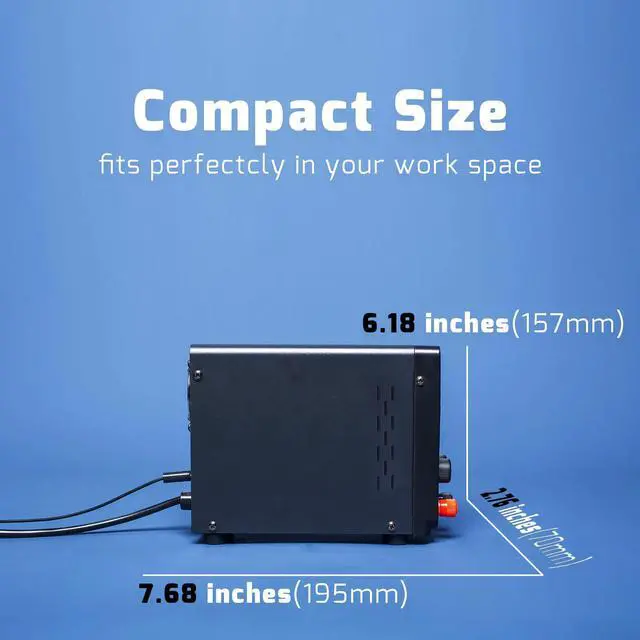

Compact Size

Save precious work space with our compact design
Dimension: 7.67”x2.76”x6.18” inches

test leads for the WEP 3005D-III U-shape terminal to alligator clips

Test Leads Included

U-Shape to Alligator Clips Test Leads – Easier insertion into terminals

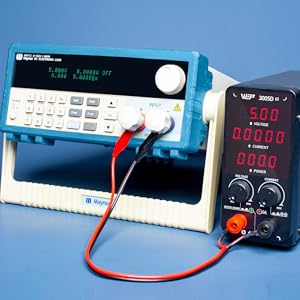

showing current accuracy with the WEP 3005D-III connected to a digital load

High Power

Maximum Power: 150W
Able to power load within the maximum power range without significant voltage drop.

Specifications

Model	3005D-III
Rated Voltage	110~127V AC, 60hz
Rated Power	180W
Unit Dimensions	L7.67W2.76H6.18in ±0.2in
Output Range (Voltage)	DC 0~30V

Output Current	0~5A
Voltage Precision	<0.1%+0.03V
Current Precision	<0.3%+3mA
Load Regulation	<1%+10mV
Ripple	Vrms<0.5% (10Hz-1MHz)
