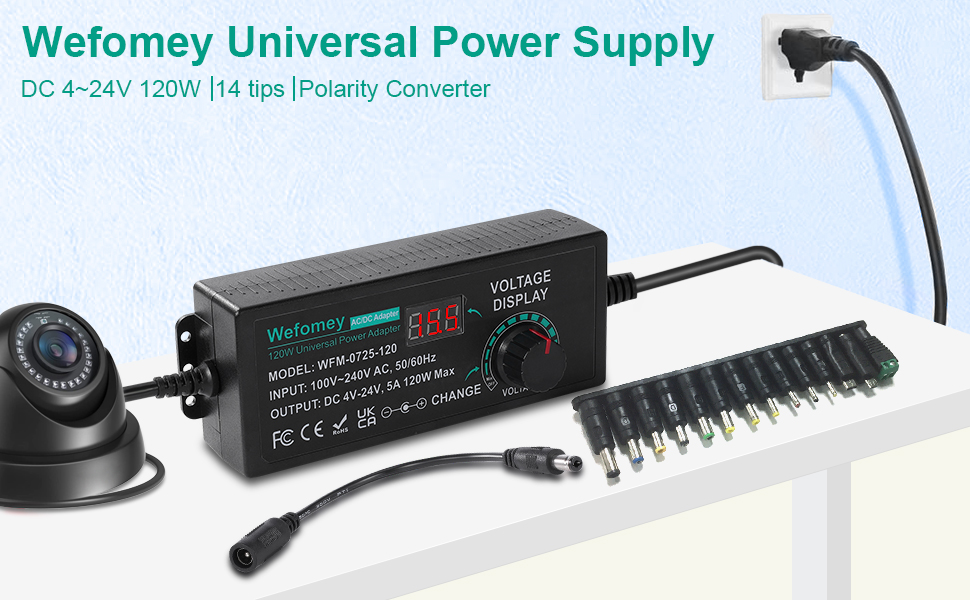

This is a universal power supply fits almost all DC input sockets. Wide Applications for GPS, CCTV camera system, HDMI Converter, LED strip light , DVD Player, DVR, Bluetooth Speaker, mobile, Kindle, camera, router, tablet, radios, electronic gizmos, replacing charger cords, rowing machine, games consoles and many other household electronics.
Parameter
Input: AC 100V~240V 50/60Hz
Output Voltage: DC 3V~24V Adjustable
Output Current: Max 5A
Output Wattage: Max 120W Output DC connector: 5.5mm x 2.5mm (inside"+", outside"-")
14 Tips Size: 6.5x4.4mm+Pin, 5.5x2.1mm, 5.5x3.0mm+Pin, 5.0x2.5mm, 6.3x3.0mm, 5.5x1.7mm, 4.8x1.7mm, 4.0x1.7mm, 3.5x1.35mm, 3.0x1.1mm, 2.5x0.7mm, Micro-USB, Type-C and DC terminal connector.
Reverse polarity converter: 5.5mm x 2.1mm
Power cable length: 6.56ft / 200cm
Working Temperature: -20~50?
Ambient Humidity: 5~95% Non-Condensation
Weight: 1.18 lb / 535g
Package included
1x 120W Universal Power Supply Adapter; 14x DC Tips; 1x Reverse Polarity Converter Cable
Attention: The power cord between power brick and DC plug will lead to 0.4V~0.6V voltage drop, so we designed the screen displayed voltage was 3.5V~24.5V. Only in this way can your device really get 3V~24V voltage. This is the reason why we advertise the power supply's voltage range is 3V~24V, not 3.5V~24.5V.
Caution: The 17.cm short black power cord is a reverse polarity converter, not extension wire. It is used to reverse the original polarity of the power supply output port ( reverse the internal positive pole to negative , and the external negative pole to positive). Please confirm the polarity of your devices’ power port before use. If the positive and negative poles are reversed, it will cause short circuit and damage your device.
Instructions on how to choose a suitable adapter:
1. Check Voltage Please find the spec label of your device and check the working voltage. It should be among 3V~24V DC, not lower than 3V or higher than 24V DC. Otherwise, your device will not work or be damaged.
2. Check Current Check the max current your device will draw. It should be equal to or less than 5A, such as 500mA, 1A, 2A, 3A, 4A, 5A. Otherwise, your device won’t work well and the PS will be damaged very soon.
3. Check Plugs Check the power input port of your device. The PS is equipped with 14 pcs frequently-used DC tips. Please confirm wether it fits for your device before buy. If you can 't confirm, please measure it with a ruler.
4. Check Original PS If you have a original power supply for reference, their output voltage, plug size, polarity should be the same . If our PS’s current is equal to or higher than original one’s, then our PS will work with your device.
