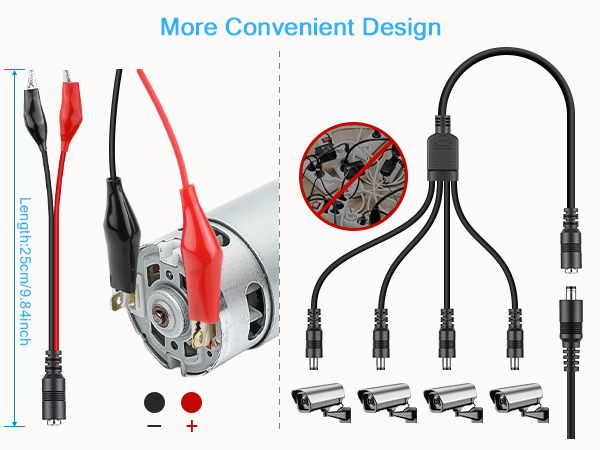

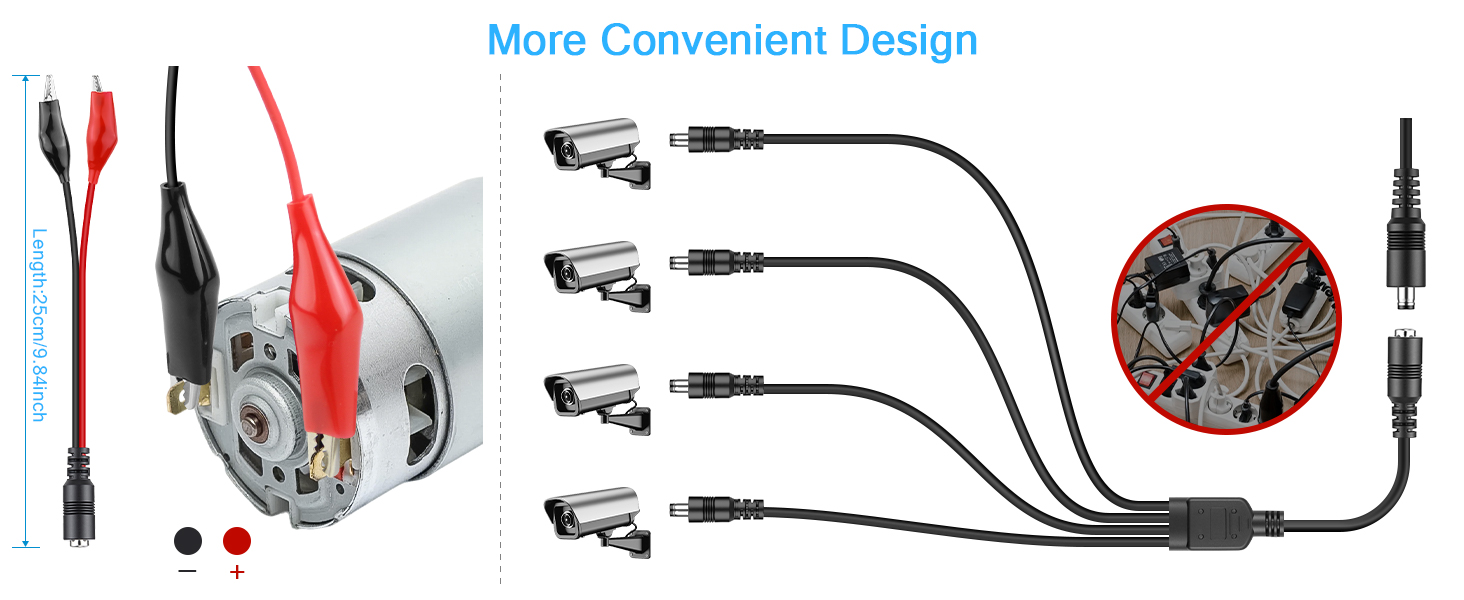

When using the 4-way power splitter cable, TOTAL current must NOT exceed 3A. If all four ports are used simultaneously, EACH device MUST draw =0.75A.
Is this DC 120W 3.5~24V power supply (PS) compatible with your device?
1. Check Voltage
The spec label of your device should be among 3.5~24V DC, not lower than 3.5V or higher than 24V DC. Otherwise, your device may fail or be damaged.
2. Check Current
The max current of your device should be equal to or less than 3A, such as 1A 2A 2.5A 3A. Or, your device won’t work and the PS will be damaged soon.
3. Check Plugs
Check the power input port of your device. It is equipped with 16 pcs frequently-used DC tips. Please confirm if it fits for your device before buy.
4. Check Original PS
Ensure that the output voltage, current, plug size, polarity of your original PS is same as ours. Then our PS will work with your device.
Recommended Related Power Supply Adapter
 DC 3.5V~24V-72W |  DC 3.5V~24V-72W |  DC 3.5V~24V-72W |  DC 4V~24V-120W |  DC 4V~24V-144W |  DC 4V~24V-120W |  DC 4V~24V-144W | |
|---|---|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — | — | — |
Price | — | — | — | — | — | — | — |
Max Output Amps | 3A | 3A | 3A | 5A | 6A | 5A | 6A |
Output Volts | DC 3.5V~24V | DC 3.5V~24V | DC 3.5~24V | DC 4V~24V | DC 4V~24V | DC 4V~24V | DC 4V~24V |
Max Power | 72W | 72W | 72W | 120W | 144W | 120W | 144W |
Output Tip | 16 Tips + 4-Way Power Cable | 14 Tips + 65W PD Fast Charger | 16 Tips + DC Pigtail Cable | 16 Tips + 4-Way Power Cable | 16 Tips + 4-Way Power Cable | 16 Tips + DC Pigtail Cable | 16 Tips + DC Pigtail Cable |
Input Volts | AC 100V~240V | AC 100V~240V | AC 100V~240V | AC 100V~240V | AC 100V~240V | AC 100V~240V | AC 100V~240V |
When using the 4-way power splitter cable, TOTAL current must NOT exceed 3A. If all four ports are used simultaneously, EACH device MUST draw =0.75A.
| Input | AC 100V~240V 50/60Hz |
|---|---|
| Output Voltage | DC 3.5V~24V Adjustable |
| Output Current | Max 3A |
| Output Wattage | Max 72W |
| Power cable length | 8.36ft / 255cm |
| Weight | 1.05 lb / 480g |
| Safety Compliance | FCC / CE/ RoHS |
| Output DC connector | 5.5mm x 2.5mm (inside"+", outside"-") |

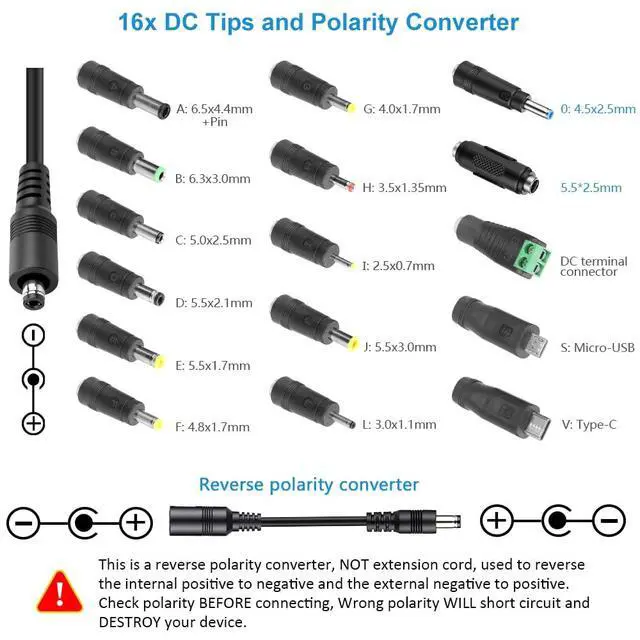

| 16 Tips Size | 6.5x4.4mm+Pin, 5.5x2.1mm, 5.5x3.0mm+Pin, 5.0x2.5mm, 6.3x3.0mm, 5.5x1.7mm, 4.8x1.7mm, 4.0x1.7mm, 3.5x1.35mm, 3.0x1.1mm, 2.5x0.7mm, 4.5x2.5mm, 5.5x2.5mm, Micro-USB, Type-C and DC terminal connector. |
| Please Note | The max use should be no more than 80% of the full loads. Otherwise, the power supply will generate much heat and its service life will be greatly shortened. We recommend you to use this 72W power supply to power devices less than 58W. |

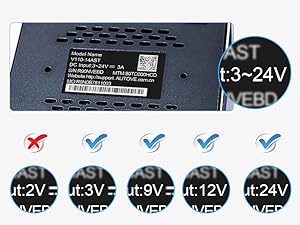

| Attention | The power cord between power brick and DC plug will lead to 0.4V~0.6V voltage drop, so we designed the screen displayed voltage was 3.5V~24V. Only in this way can your device really get 3V~24V voltage. This is the reason why we advertise the power supply's voltage range is 3V~24V, not 3.5V~24V. |

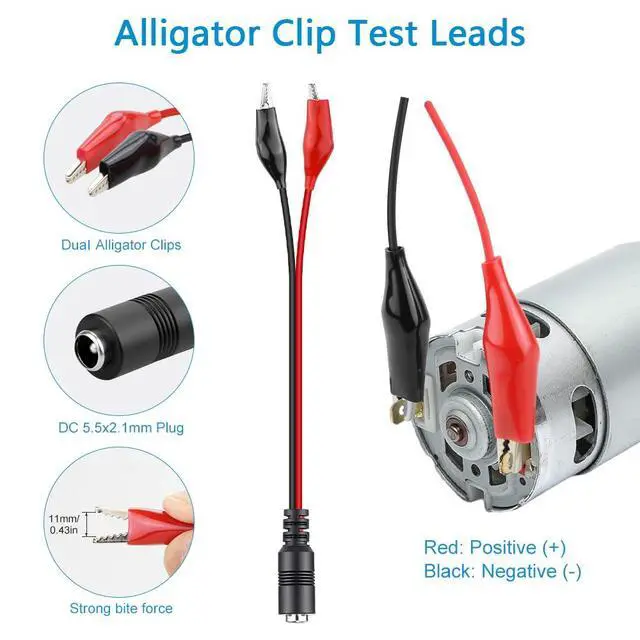

| Package Included | 1x 3.5V~24V DC 72W Universal Power Supply Adapte, 16x DC Tips, 1x 4-Way Power Splitter Cable, 1x DC Female Jack to Alligator Clips Power Cable, 1x Reverse Polarity Converter Cable; |
Is this DC 120W 3.5~24V power supply (PS) compatible with your device?
1. Check Voltage
The spec label of your device should be among 3.5~24V DC, not lower than 3.5V or higher than 24V DC. Otherwise, your device may fail or be damaged.
2. Check Current
The max current of your device should be equal to or less than 3A, such as 1A 2A 2.5A 3A. Or, your device won’t work and the PS will be damaged soon.
3. Check Plugs
Check the power input port of your device. It is equipped with 16 pcs frequently-used DC tips. Please confirm if it fits for your device before buy.
4. Check Original PS
Ensure that the output voltage, current, plug size, polarity of your original PS is same as ours. Then our PS will work with your device.
Recommended Related Power Supply Adapter
DC 3.5V~24V-72W | DC 3.5V~24V-72W | DC 3.5V~24V-72W | DC 4V~24V-120W | DC 4V~24V-144W | DC 4V~24V-120W | DC 4V~24V-144W |
|---|---|---|---|---|---|---|
| Customer Reviews | ||||||
| — | — | — | — | — | — | — |
| Price | ||||||
| — | — | — | — | — | — | — |
| Max Output Amps | ||||||
| 3A | 3A | 3A | 5A | 6A | 5A | 6A |
| Output Volts | ||||||
| DC 3.5V~24V | DC 3.5V~24V | DC 3.5~24V | DC 4V~24V | DC 4V~24V | DC 4V~24V | DC 4V~24V |
| Max Power | ||||||
| 72W | 72W | 72W | 120W | 144W | 120W | 144W |
| Output Tip | ||||||
| 16 Tips + 4-Way Power Cable | 14 Tips + 65W PD Fast Charger | 16 Tips + DC Pigtail Cable | 16 Tips + 4-Way Power Cable | 16 Tips + 4-Way Power Cable | 16 Tips + DC Pigtail Cable | 16 Tips + DC Pigtail Cable |
| Input Volts | ||||||
| AC 100V~240V | AC 100V~240V | AC 100V~240V | AC 100V~240V | AC 100V~240V | AC 100V~240V | AC 100V~240V |
