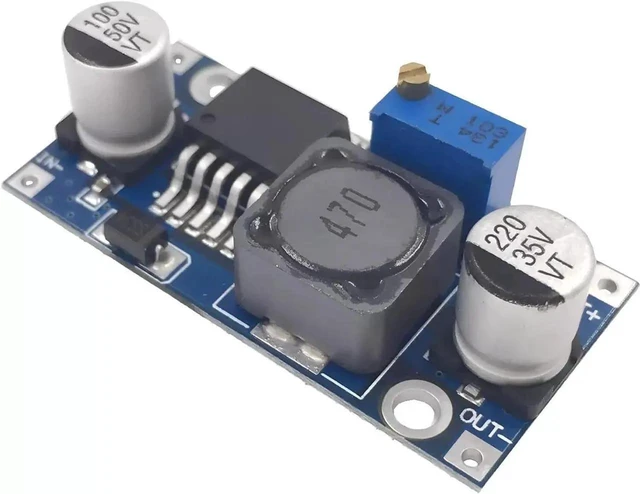

LM2596s DC to DC Buck Converter Step Down Module 3A Adjustable Voltage Regulator 3.2V 35V Input 1.25V 35V Output 1 Pack Power Supply Board for DIY Electronic Maker Project LED Drive Battery Charge
- ADJUSTABLE DC-DC STEP-DOWN OUTPUT Convert a higher DC input voltage to a lower adjustable output for electronics projects; supports 3.2V-35V input and 1.25V-35V output.
- UP TO 3A OUTPUT CURRENT The LM2596S buck converter module supports a maximum output current of 3A, providing a practical adjustable power solution for compatible DIY circuits.

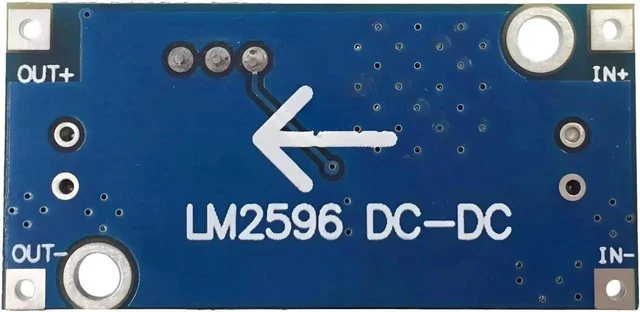

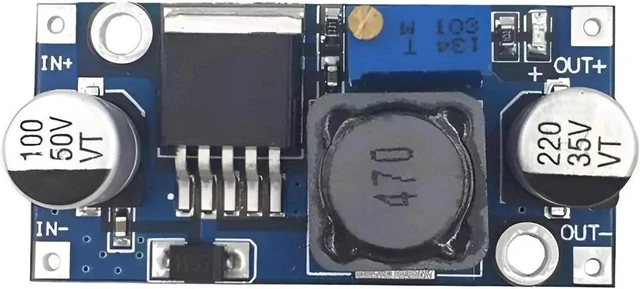

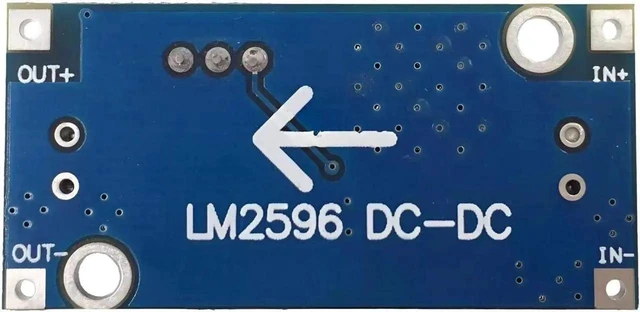

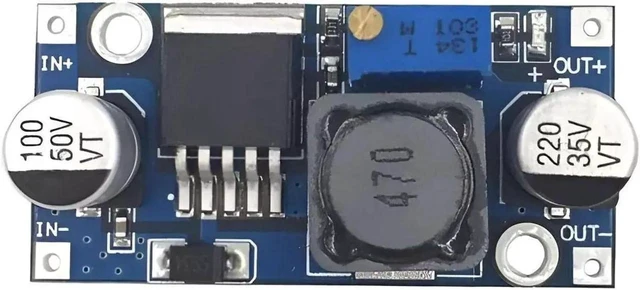

- CLEAR TERMINAL IDENTIFICATION IN+ and IN- identify the positive and negative input connections, while OUT+ and OUT- identify the output connections for straightforward project wiring.
- VERSATILE PROJECT APPLICATIONS Use the adjustable voltage regulator module for prototyping, voltage-range testing, compatible LED projects, and other low-voltage electronic builds.
- COMPACT 1-PACK MODULE Includes one LM2596S step-down power supply board for makers, students, technicians, and electronics enthusiasts who need adjustable DC voltage.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
LM2596S Adjustable DC-DC Buck Converter
LM2596S DC-DC buck converter is an adjustable step-down voltage regulator module designed for DIY electronics, prototyping, and voltage testing. It accepts a 3.2V-35V DC input and provides an adjustable 1.25V-35V DC output, allowing a compatible higher input voltage to be reduced to the level required by your circuit.

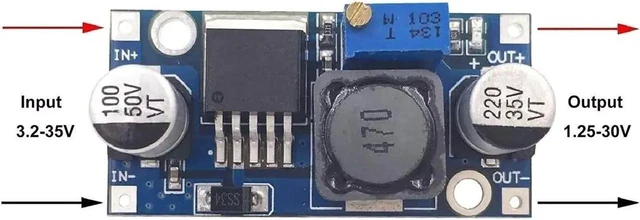

The module supports up to 3A maximum output current. Clearly labeled terminals simplify integration: connect the positive and negative power input to IN+ and IN-, then connect the load to OUT+ and OUT-. Verify polarity and set the required output voltage before connecting sensitive equipment.
Key Specifications
- Converter type: DC-DC step-down buck converter
- Regulator model: LM2596S
- Input voltage: 3.2V-35V DC
- Adjustable output voltage: 1.25V-35V DC
- Maximum output current: 3A
- Input terminals: IN+ and IN-
- Output terminals: OUT+ and OUT-
- Package quantity: 1 module
Suitable uses include adjustable bench-project power, circuit prototyping, voltage-range testing, compatible LED projects, and other maker applications that require a lower regulated DC voltage. This is a step-down module, so it is intended to reduce voltage rather than increase it.
Frequently Asked Questions
Can this LM2596S module increase voltage?
No. It is a DC-DC buck converter designed to step a higher DC input down to a lower output voltage.
What input and output voltage ranges does the module support?
The specified input range is 3.2V-35V DC, and the adjustable output range is 1.25V-35V DC, subject to step-down operation.
How much output current can this buck converter provide?
The listed maximum output current is 3A. Actual operating requirements depend on the connected load and installation conditions.
How are the power connections identified?
IN+ and IN- are the positive and negative input terminals; OUT+ and OUT- are the positive and negative output terminals.
What projects can use this adjustable regulator module?
It can support compatible DIY electronics, prototypes, voltage-test systems, LED projects, and other circuits requiring adjustable step-down DC power.
