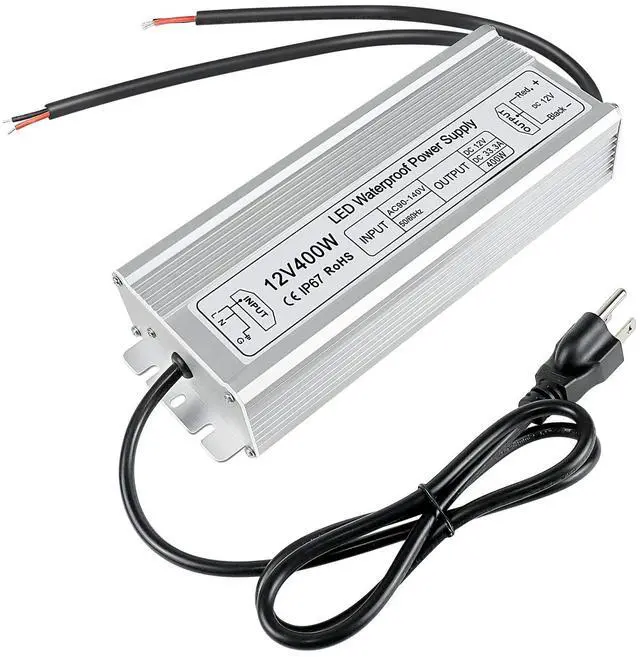

12V 400W Waterproof Power Supply Suitable for 12V LED projects, computer projects, outdoor use,LED strip lights
12V DC LED Power Supply :
InShareplus 12V 33.3A 400W DC power supply is constant voltage power supply; Compatible with LED light bars, surveillance cameras, LED display lights; Indoor and outdoor lamps; Advertising signs; Wireless routing; Switch, etc
- Please note that:
- The total wattage of outdoor lights or other items shall not exceed the maximum wattage of the dc power supply (400W)
- LED waterproof power driver cannot be dimmable, and cannot be used together with dimmer and constant current lamp
- Average power score - Line 18 is used for power supply; There are two output lines, each with the same power (200W)

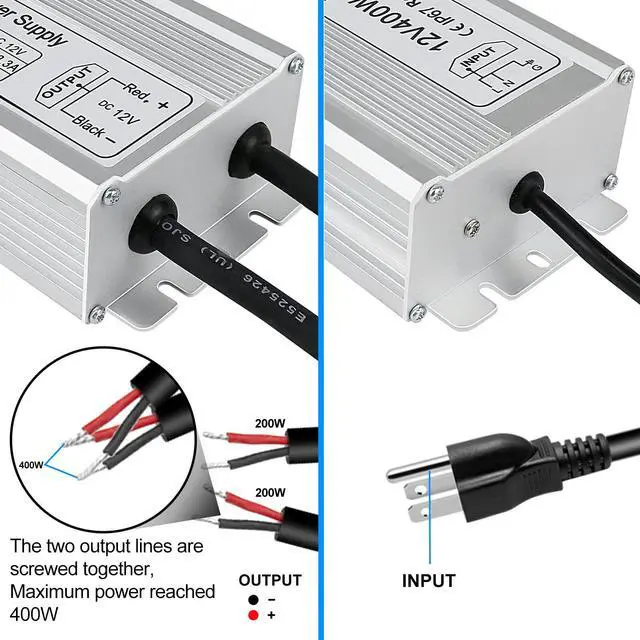

- The output lines of the same 12v power supply can be used in parallel, and the positive and negative poles of the two output lines can be connected correspondingly.There are two wires on the output end, each with a red wire and a black wire. The maximum output power of each wire is 200W. If you want to use an output higher than 200W, you need to connect the two wires together by twisting the red wire with the other red wire, and the black wire with the other black wire. The red wire is the live wire, and the black wire is the neutral wire. Please note that in order to prevent the led power supply from working at full load, keep the power usage around 80%.
Specifications
- Input voltage range: 90-140V AC 50/60HZ
- Output power: 400W
- Output: 12V DC 33.3AW
- Waterproof: IP67
- Work efficiency: 86%
- Operating temperature: - 20~+60 ? 20%~90% RH (non condensing)

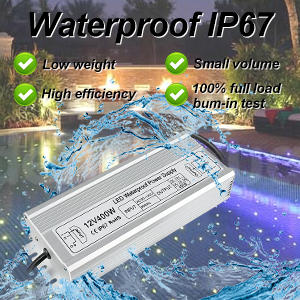

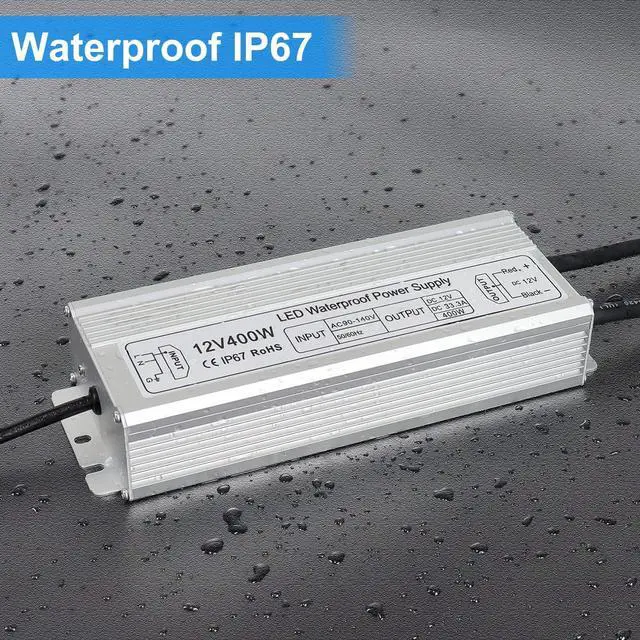

Waterproof IP67

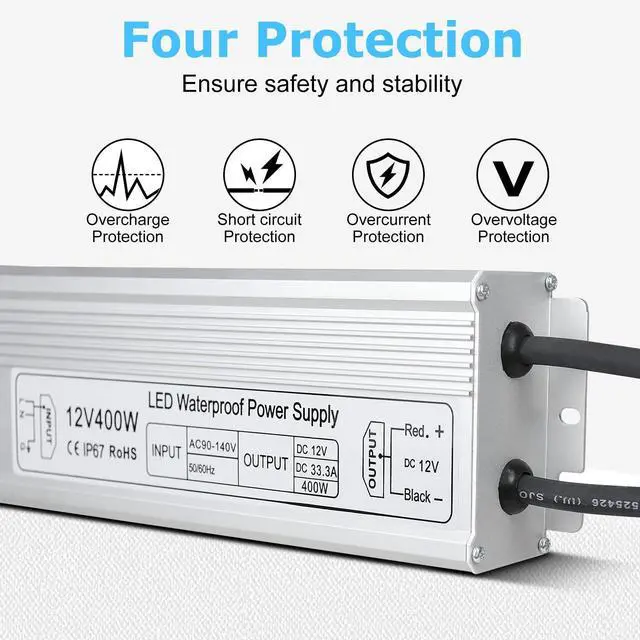

- Protection function: short circuit, overload, overvoltage, over temperature, over-current automatic protection;
- Protection type: Hiccup mode, automatic recovery after troubleshooting;
- Aluminum alloy metal shell, easy to dissipate heat and ensure stability;
- 100% full load aging test. Small size, light weight, working efficiency up to about 86%
- Natural air convection cooling, IP67 fully sealed package
Wide application

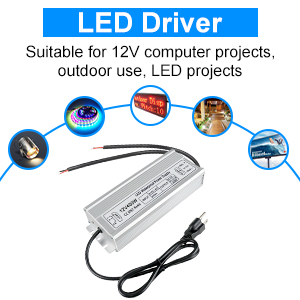

12 volt power supply suitable for LED light strip; Security camera; Computer project; Outdoor lamp; Interior lamps; Industrial use; LED display lights and any other 12V DC LED lights
Warm Tips!
- Do not disassemble or modify the LED light source!
- Keep children away from high-voltage power supply!
- Please use it under the guidance of professional electricians!
- Please make sure to place the power supply in a well-ventilated environment to efficiently lower its operating temperature. Otherwise, there's a possibility of triggering the over-temperature protection, causing the power supply to temporarily shut down. Once the temperature has cooled down, you can resume using it.

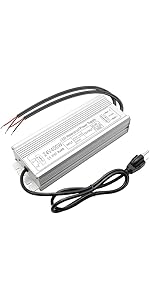

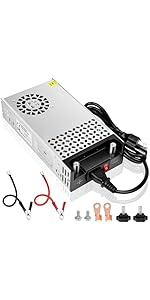

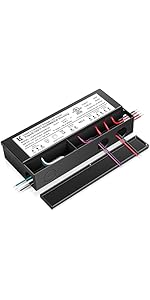

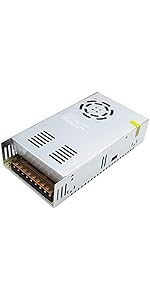

 200W Low Voltage Landscape Transformer |  12V Dimmable LED Driver |  12V New Version Power Supply |  12V Switching Power Supply |  24V IP67 Waterproof Power Supply |  12V IP67 Waterproof Power Supply | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Is it 12V? | 12V / 15V | ? | ? | ? | 24V | ? |
| Waterproof IP67 | Weatherproof | ? | No | No | ? | ? |
| Non-Dimmable | ? | Dimmable | ? | ? | ? | ? |
| Wattage | 150W,200W | 200W | 360W,500W,600W,720W | 60W,120W,150W, 180W,240W,360W,400W, 450W, 500W,600W | 40W, 60W, 100W,120W, 150W, 200W,250W,280W,300W,350W,400W | 30W,60W,300W,400W |
